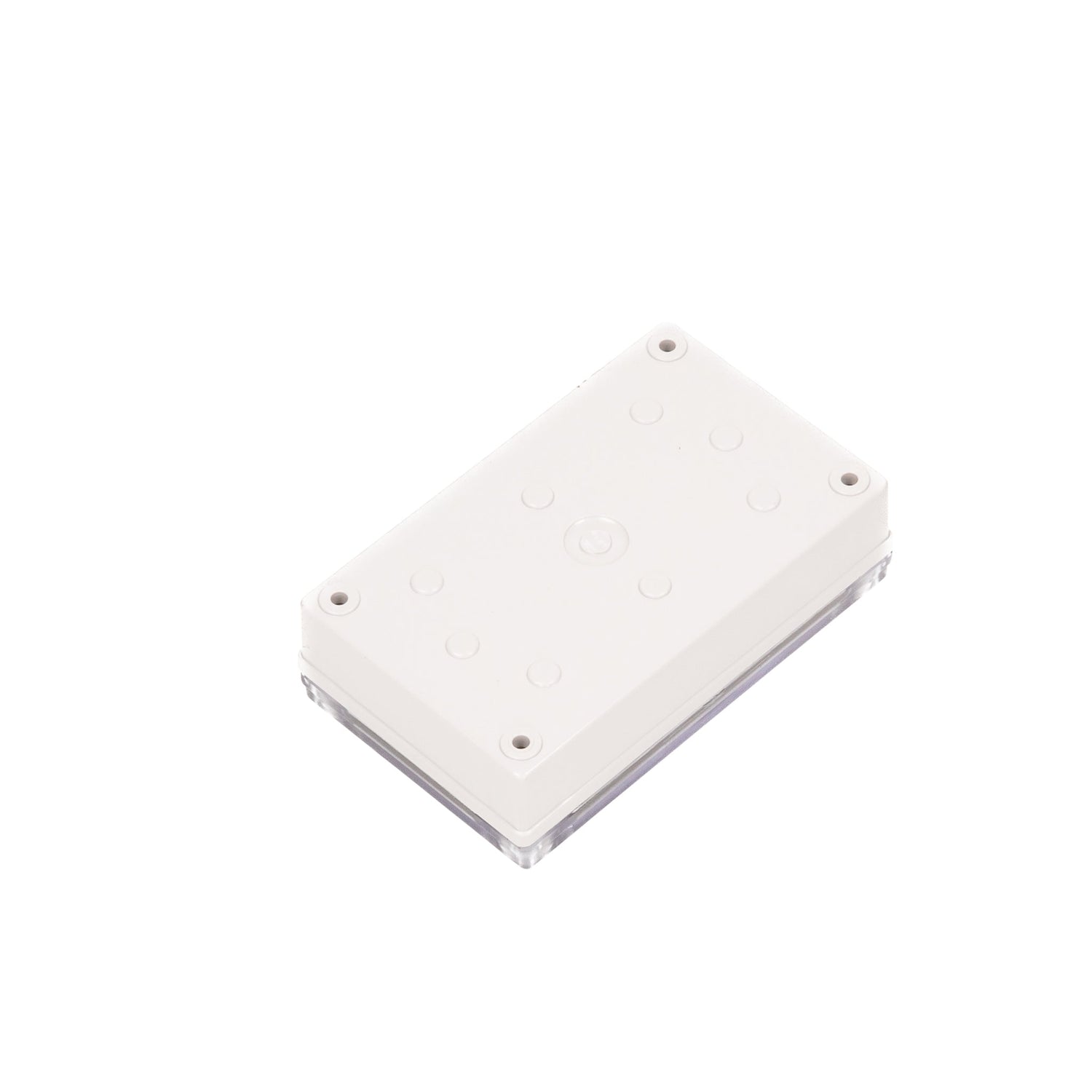

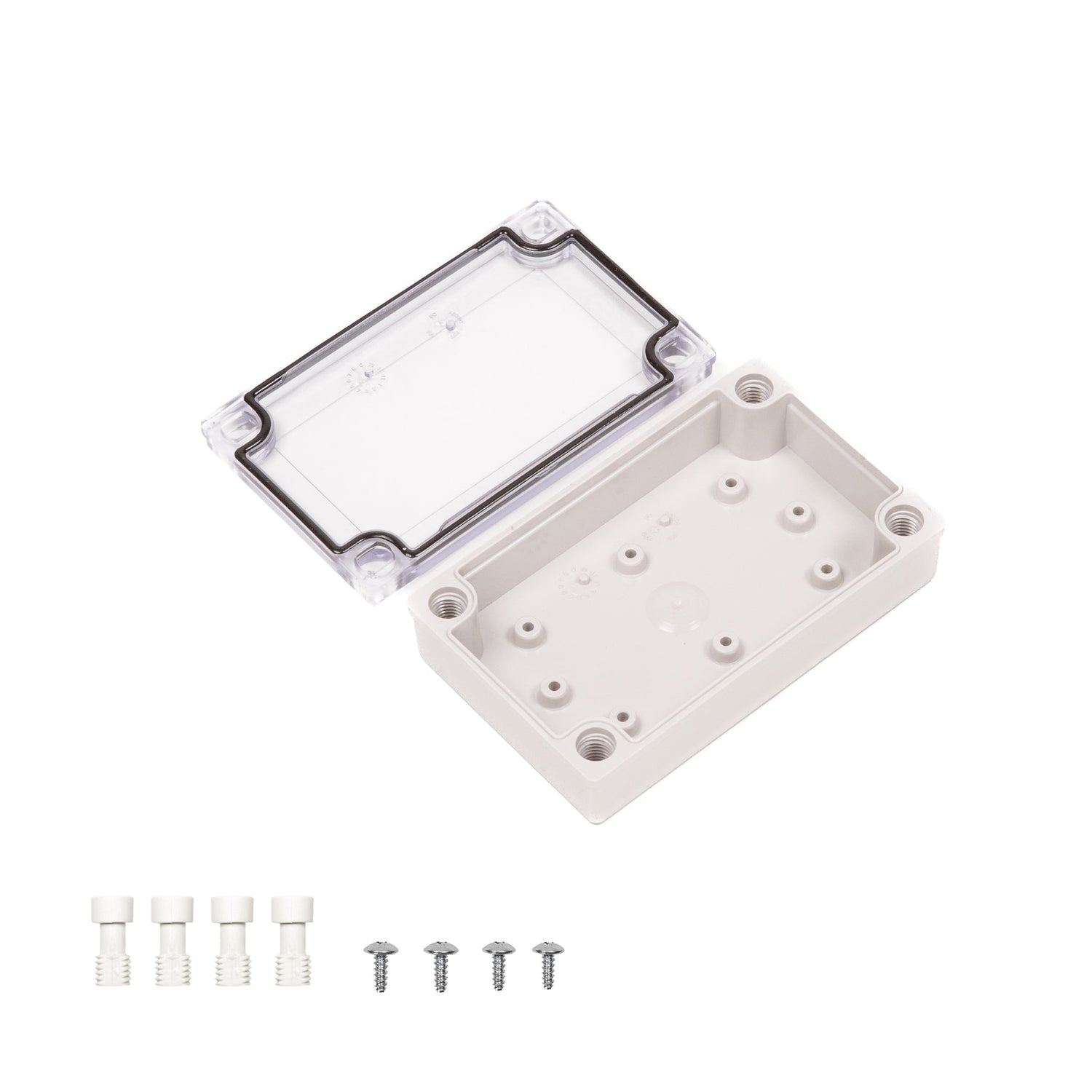

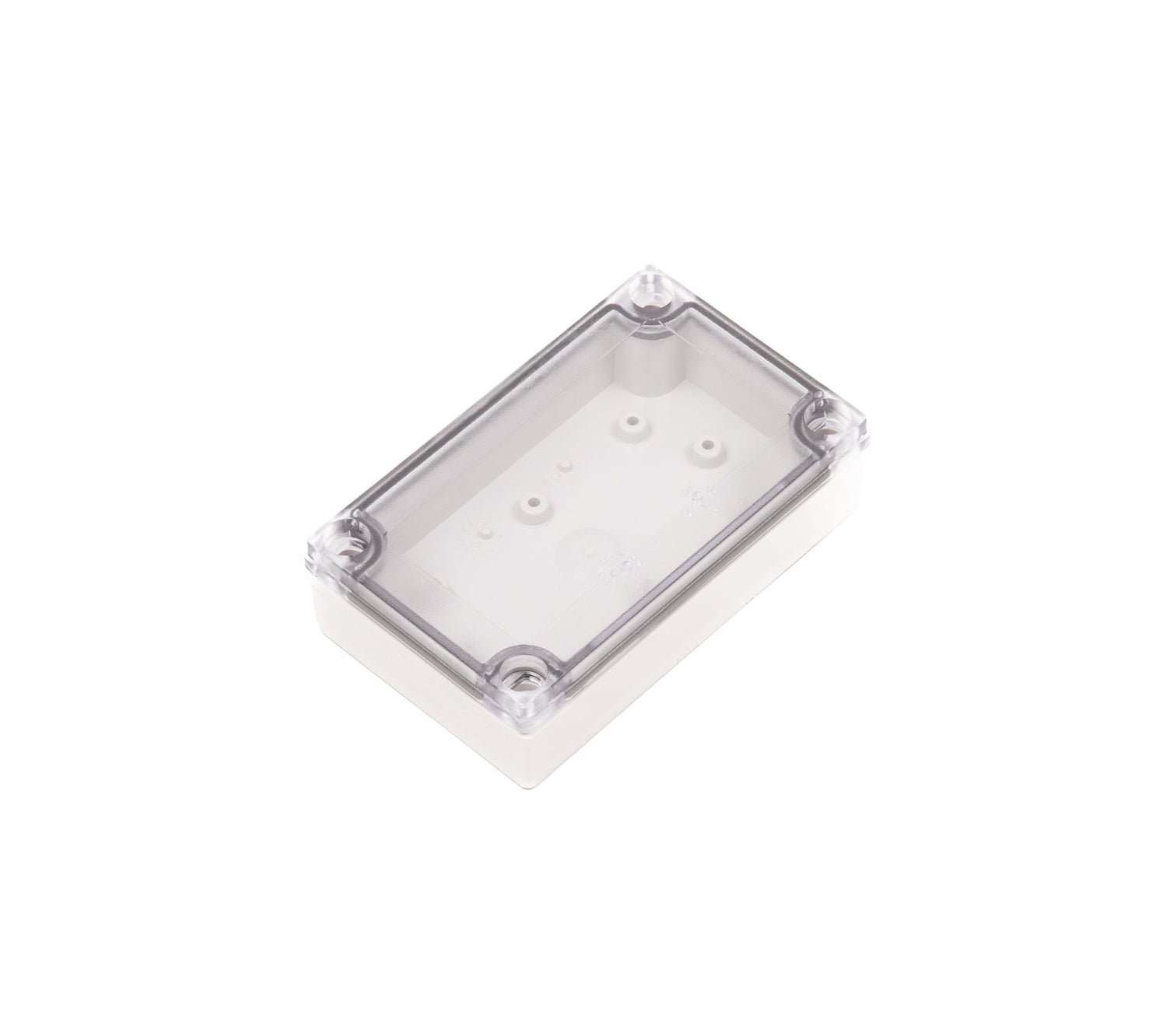

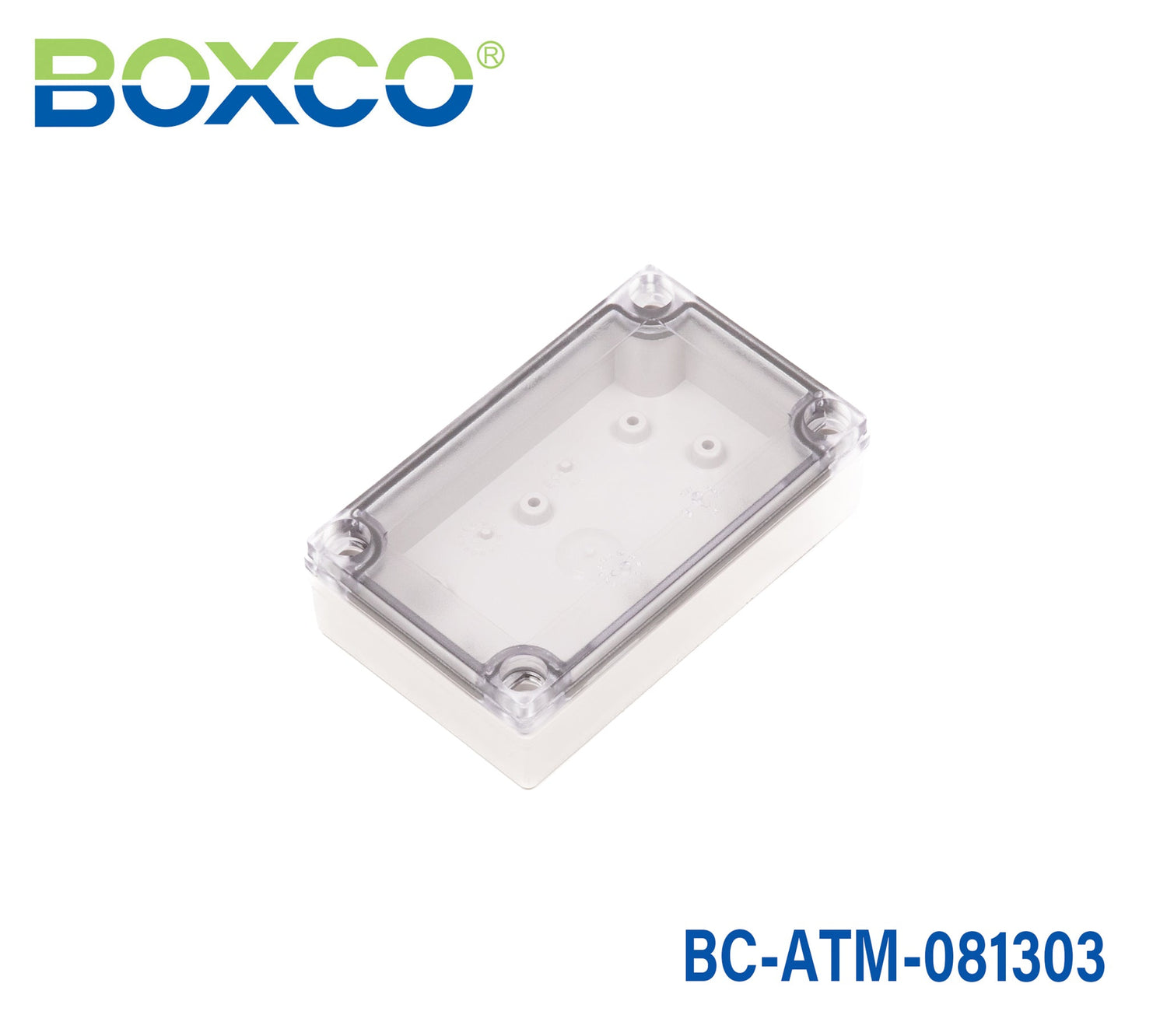

Boxco M-Series 3.15 x 5.12 x 3.35 Inches(80 x 130 x 85mm) Plastic E...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.15 in
-
Width5.12 in
-
Height3.35 in
-
Weight0.51 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco M-Series BC-ATM-081308 enclosure?
This model is a plastic ABS enclosure with a transparent screw-type cover and overall dimensions of 3.15 x 5.12 x 3.35 inches (80 x 130 x 85 mm). It is rated IP67 for dust and water ingress protection and IK08 for impact resistance. The listed operating temperature range is -40°C to 70°C, and the unit weight is 0.2300 kg.
Is this enclosure suitable for outdoor or harsh industrial environments?
This Boxco M-Series enclosure is designed for demanding environments, with IP67 sealing and IK08 impact resistance. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping limit visible color change over time. Buyers should still confirm that the full application environment stays within the stated -40°C to 70°C range.
What kinds of applications is this transparent-cover enclosure best suited for?
This model is a practical choice for electronics that need a sealed ABS housing and a visible cover panel. The recessed screw-type cover is specifically noted as being used for mounting a membrane keypad, which makes it relevant for control, monitoring, or interface enclosures. It can also suit outdoor or industrial equipment housings where visibility and protection are both important.
Why choose the transparent-cover version instead of a standard opaque enclosure?
The transparent cover makes this version more suitable when the enclosed interface or visible components matter to the application. On this model, that benefit is paired with the same core protection features buyers expect from the M-Series, including IP67 sealing and IK08 impact resistance. If cover visibility is not needed, an opaque enclosure may be considered for the same general use category.
How should I evaluate whether this enclosure is compatible with my equipment layout?
Start by checking the enclosure's external size of 80 x 130 x 85 mm against the space available in your product or panel area. Buyers should also confirm that their components, clearances, and any required front-surface interface needs fit the overall enclosure format. This model is particularly relevant when a recessed cover and membrane keypad mounting are part of the design requirement.
What temperature range and warranty does this Boxco enclosure offer?
The specified operating temperature range for this model is -40°C to 70°C. That makes it suitable for a broad range of industrial and outdoor enclosure uses, provided the rest of the application stays within those limits. The listed warranty period for this product is 1 year.
