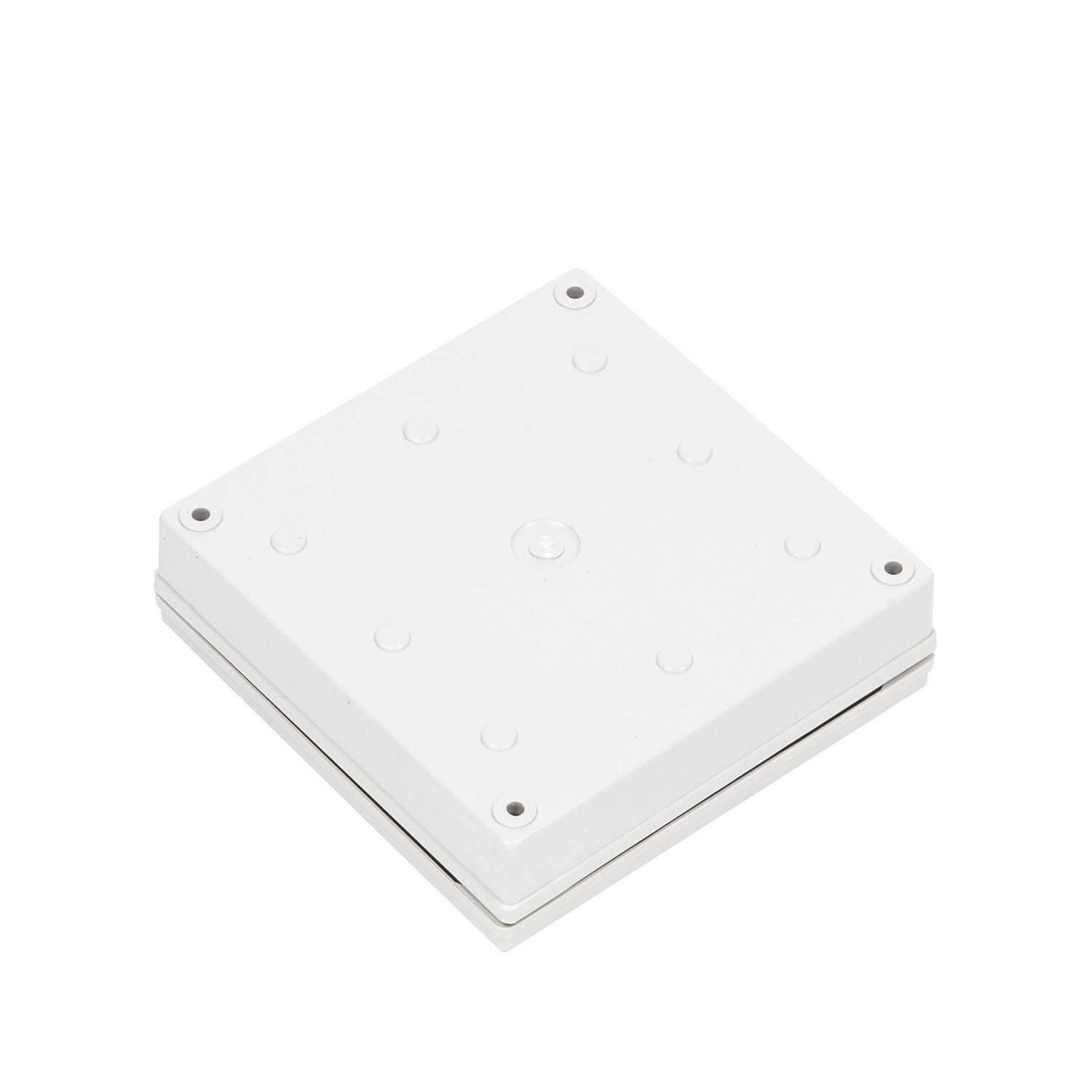

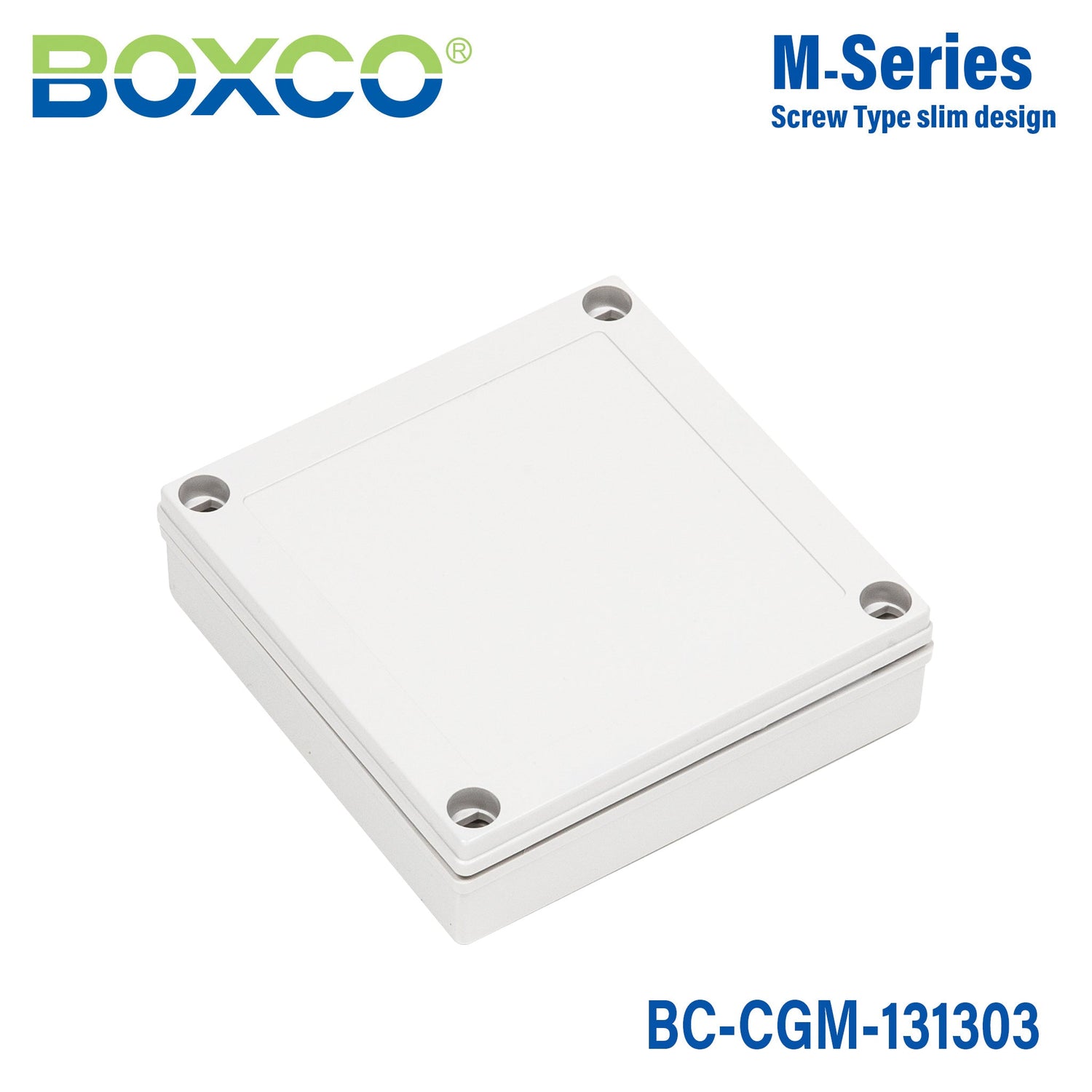

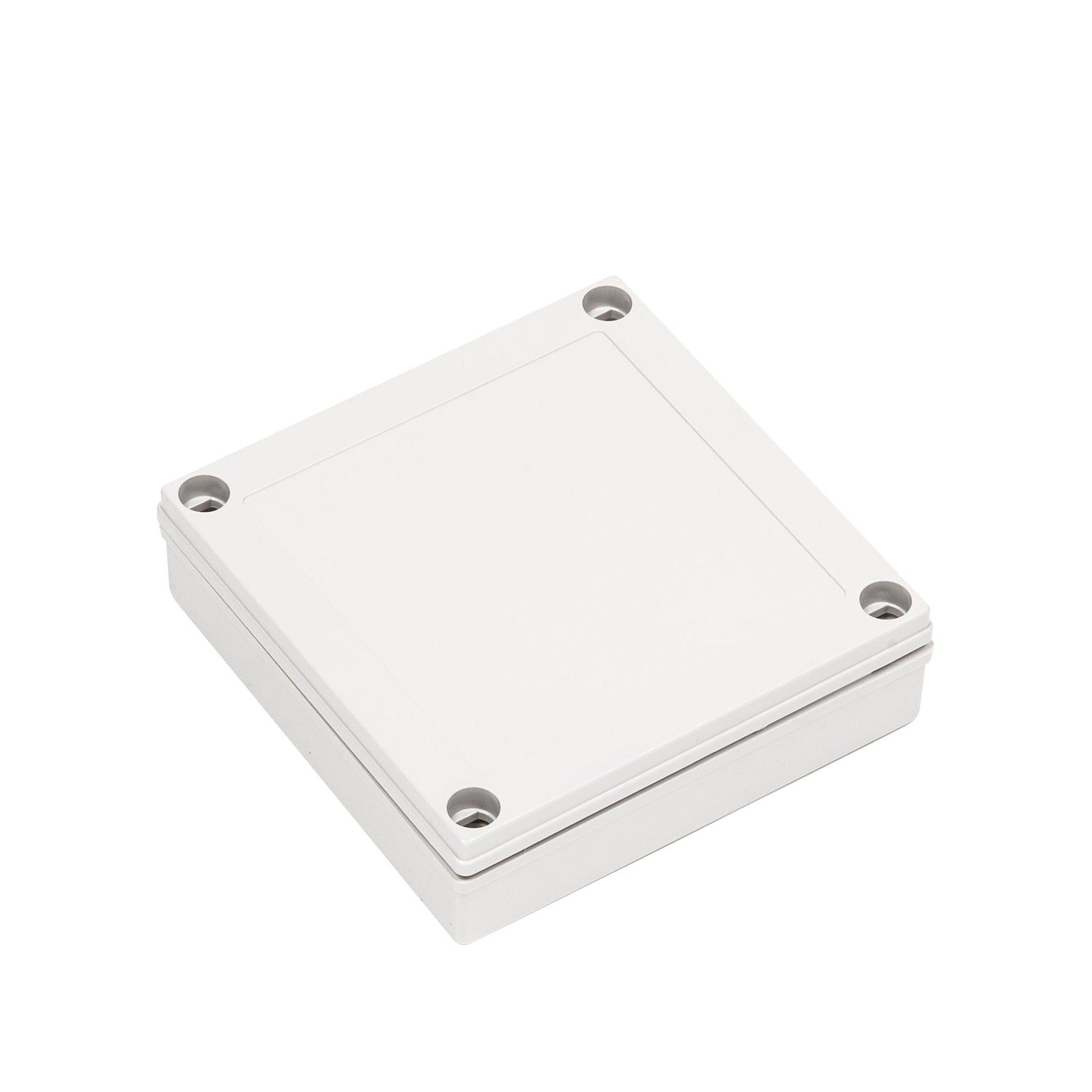

Boxco M-Series 5.12 x 5.12 x 1.38 Inches(130 x 130 x 35mm) Plastic ...
Description
Description
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

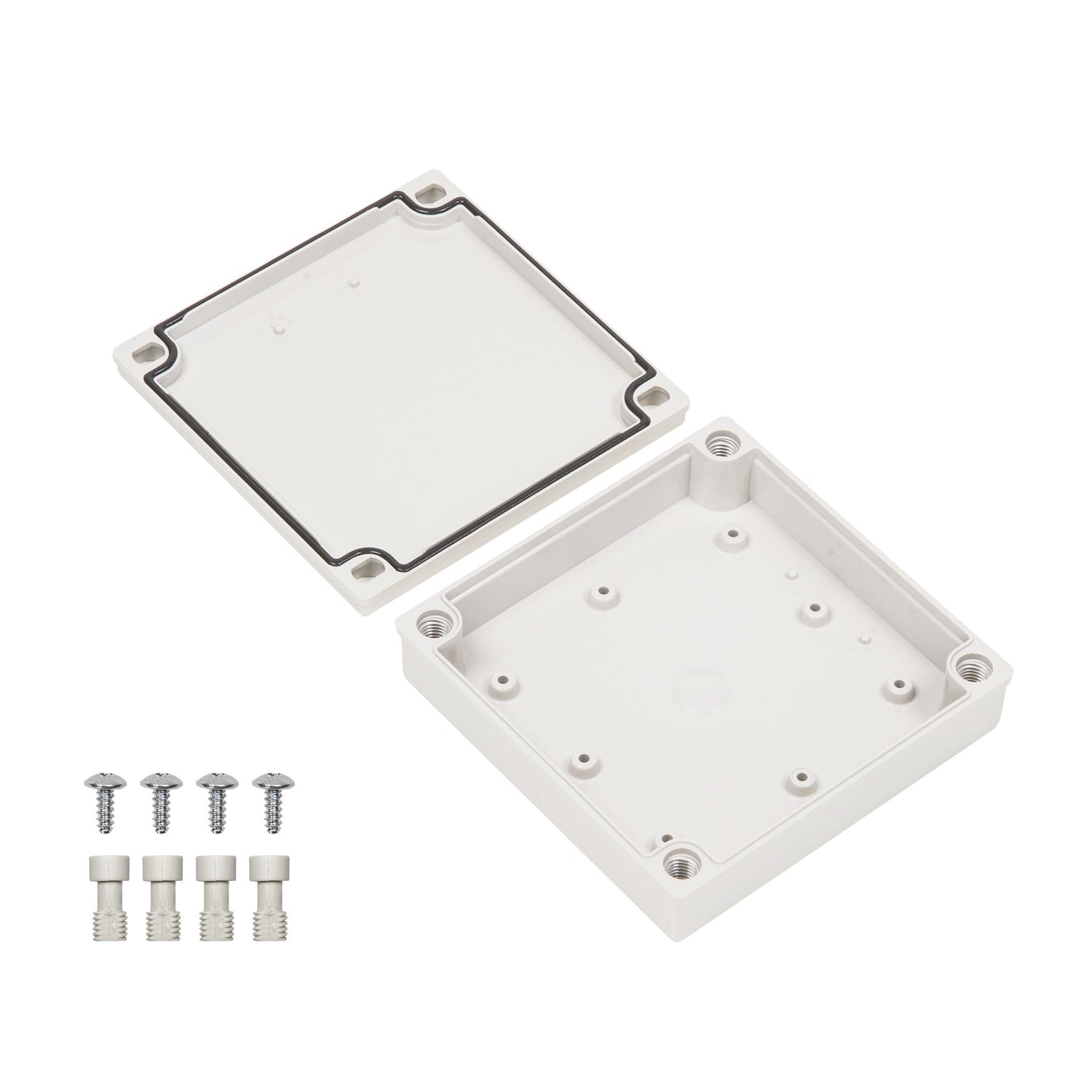

- Screw type with recessed cover
- Used for mounting membrane keypad
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length5.12 in
-
Width5.12 in
-
Height1.38 in
-
Weight2.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco M-Series BC-CGM-131303 plastic enclosure suitable for?
This enclosure is suited for protecting electronic components and sensitive instruments in industrial or outdoor environments. Its recessed screw-type cover is also used for applications that require mounting a membrane keypad on the enclosure surface.
Is this enclosure appropriate for outdoor use?
Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.
How durable is this Boxco enclosure against impact?
This model is rated IK08 for impact resistance and is described as being made from high impact resistant material. That makes it a good fit for applications where the enclosure may be exposed to mechanical contact or rough handling.
What are the size, material, and temperature range of this enclosure?
The BC-CGM-131303 measures 5.12 x 5.12 x 1.38 inches, which is 130 x 130 x 35 mm. It is made of polycarbonate (PC) and is rated for temperatures from -40 degrees C to 110 degrees C.
Does this enclosure help protect sensitive electronics from static electricity?
Yes. The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. This makes it a practical option for housing electronics that benefit from added static-control properties.
What distinguishes this screw-type enclosure from a standard general-purpose box?
This model uses a screw-type recessed cover, which is specifically noted as being used for mounting membrane keypads. It also combines UV-stabilized outdoor suitability, IK08 impact resistance, and anti-static material in a compact polycarbonate enclosure.
