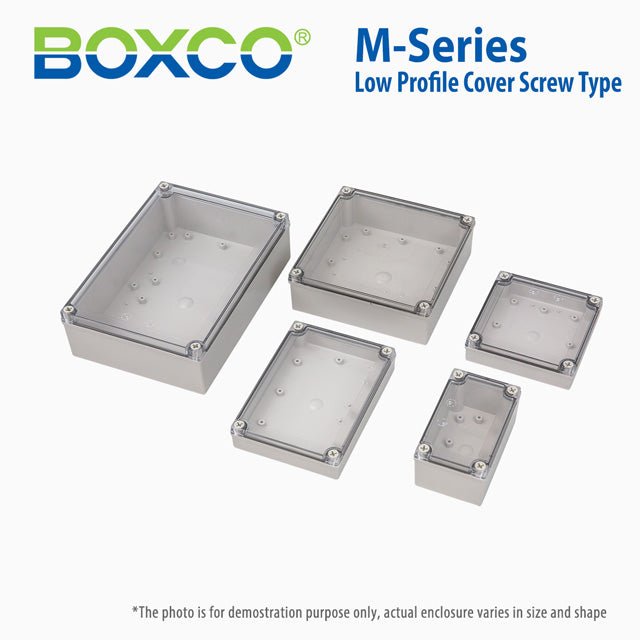

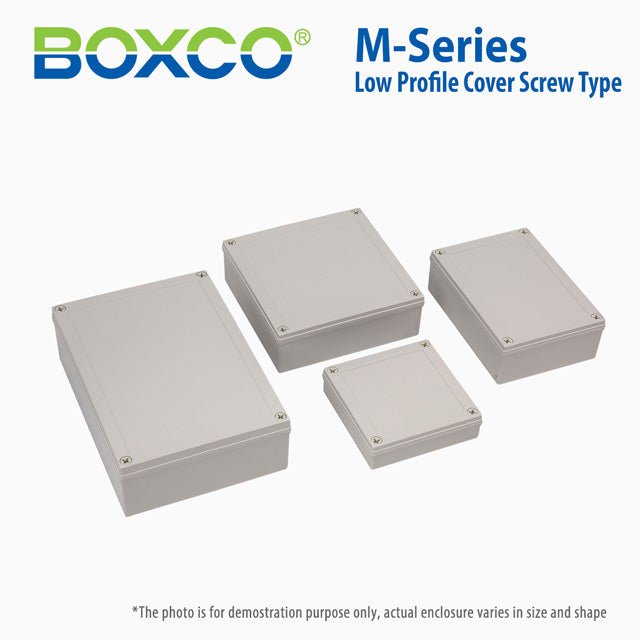

Boxco M-Series 5.12 x 5.12 x 1.38 Inches(130 x 130 x 35mm) Plastic ...
Description
Description
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length5.12 in
-
Width5.12 in
-
Height1.38 in
-
Weight2.01 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco M-Series BC-CTM-131303 enclosure suited for?
This model is suited to protecting sensitive electronics in industrial, commercial, or outdoor equipment where dust and water resistance matter. Its anti-static material helps support applications involving electronic instruments, and the recessed transparent cover is useful where a membrane keypad needs to be mounted.
Is the BC-CTM-131303 enclosure suitable for outdoor environments?
Yes, this enclosure is intended for outdoor use. Boxco states that ultraviolet stabilizer is added to help limit color change over long-term exposure, and the IP67 rating indicates strong protection against dust and water ingress.
What are the key size and material specifications of this enclosure?
The BC-CTM-131303 measures 5.12 x 5.12 x 1.38 inches, which is 130 x 130 x 35 mm. It is a plastic enclosure made from PC material and includes a transparent cover, with a listed weight of 0.9100 kg.
Can this enclosure handle demanding temperature conditions?
This model has a rated operating temperature range of -40 degrees C to 110 degrees C. That makes it a practical option for equipment exposed to both low-temperature and elevated-temperature environments within that range.

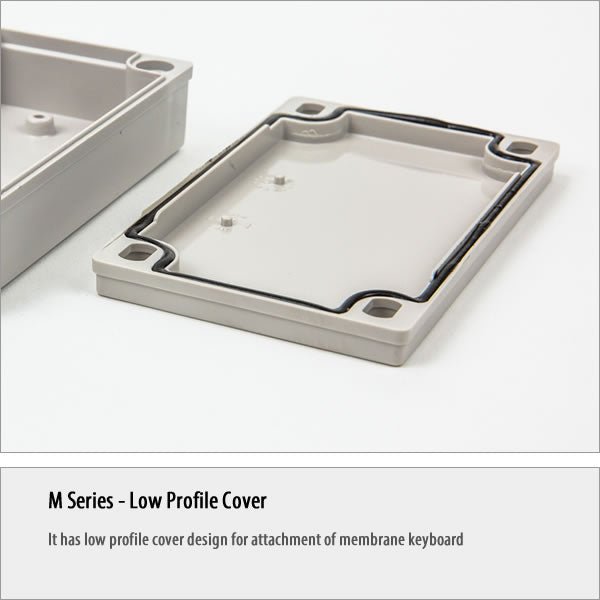

What does the screw-type recessed cover design help with?
The screw-type design provides a secure closure, while the recessed cover style is specifically noted as being used for mounting a membrane keypad. For buyers comparing enclosure styles, that makes this version more suitable when a protected front surface is needed for keypad-related applications.
How durable is the BC-CTM-131303 for industrial use?
This enclosure is built from high impact resistant material and carries an IK08 impact rating. Boxco also notes that the material is designed to resist breakage during hole and press processing, which supports use in demanding industrial environments.
Is this enclosure a good fit for protecting static-sensitive electronics?
Yes, Boxco states that anti-static material is used in this model to help protect sensitive electronic instruments from static electricity. That makes it a stronger fit than a general-purpose enclosure when electrostatic protection is part of the application requirement.
