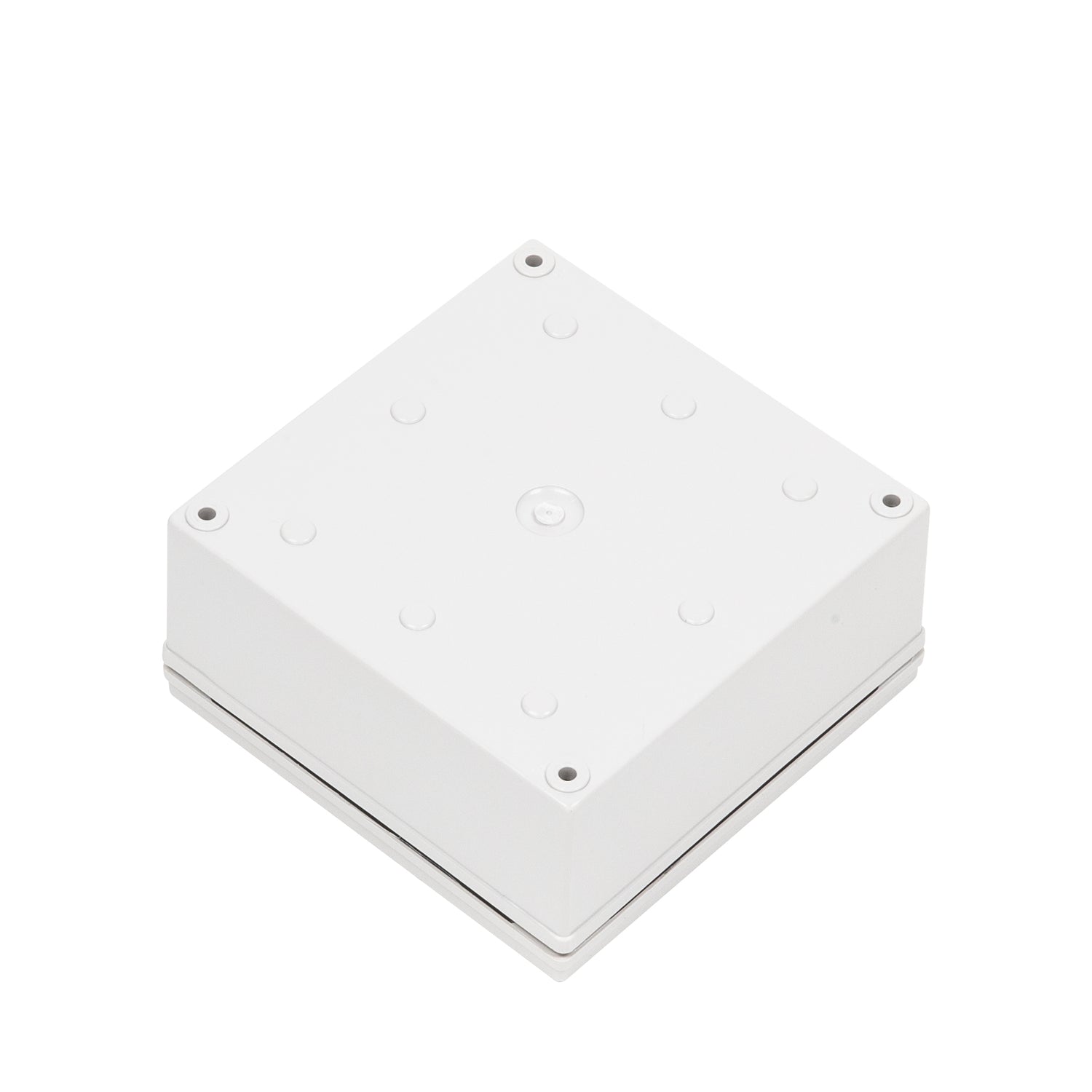

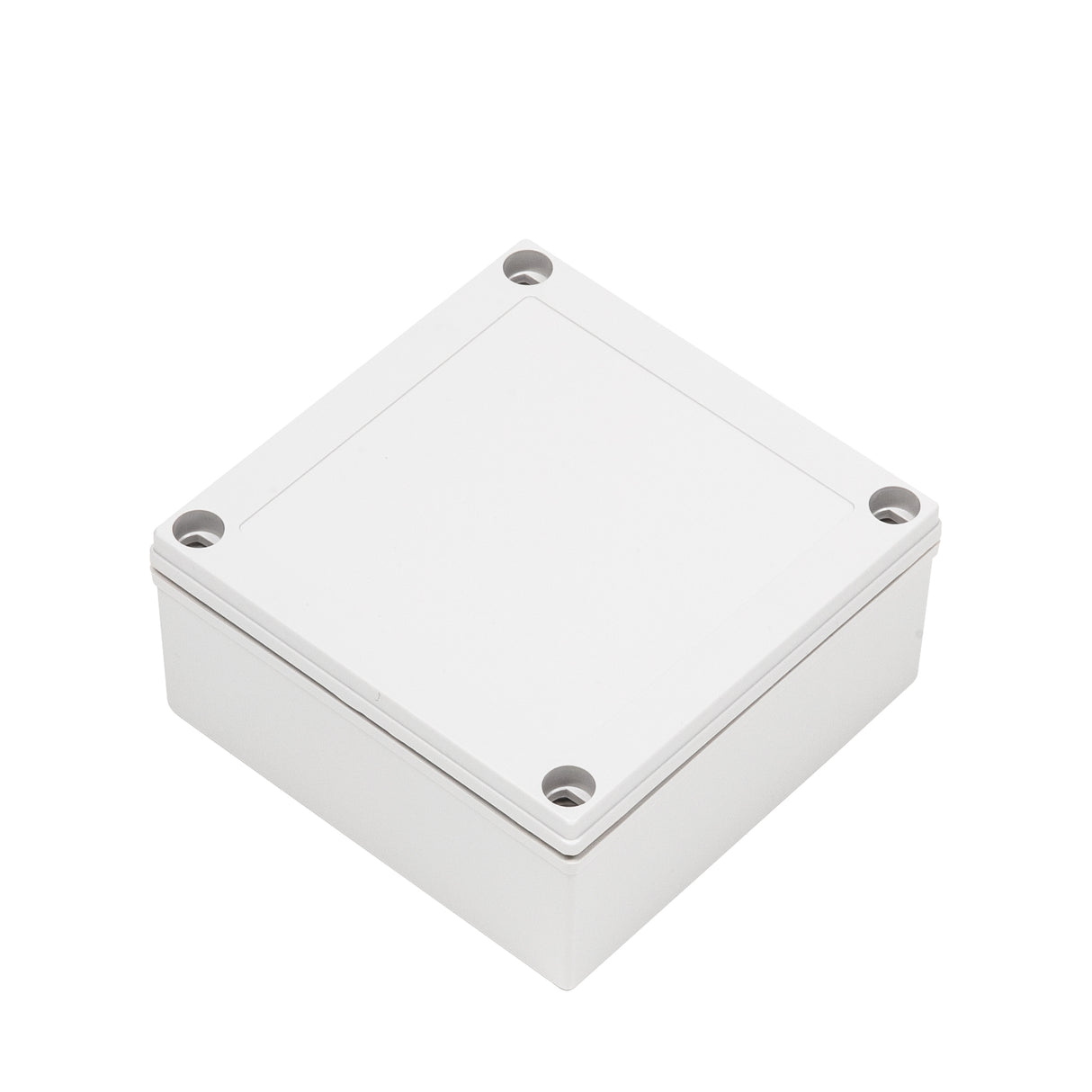

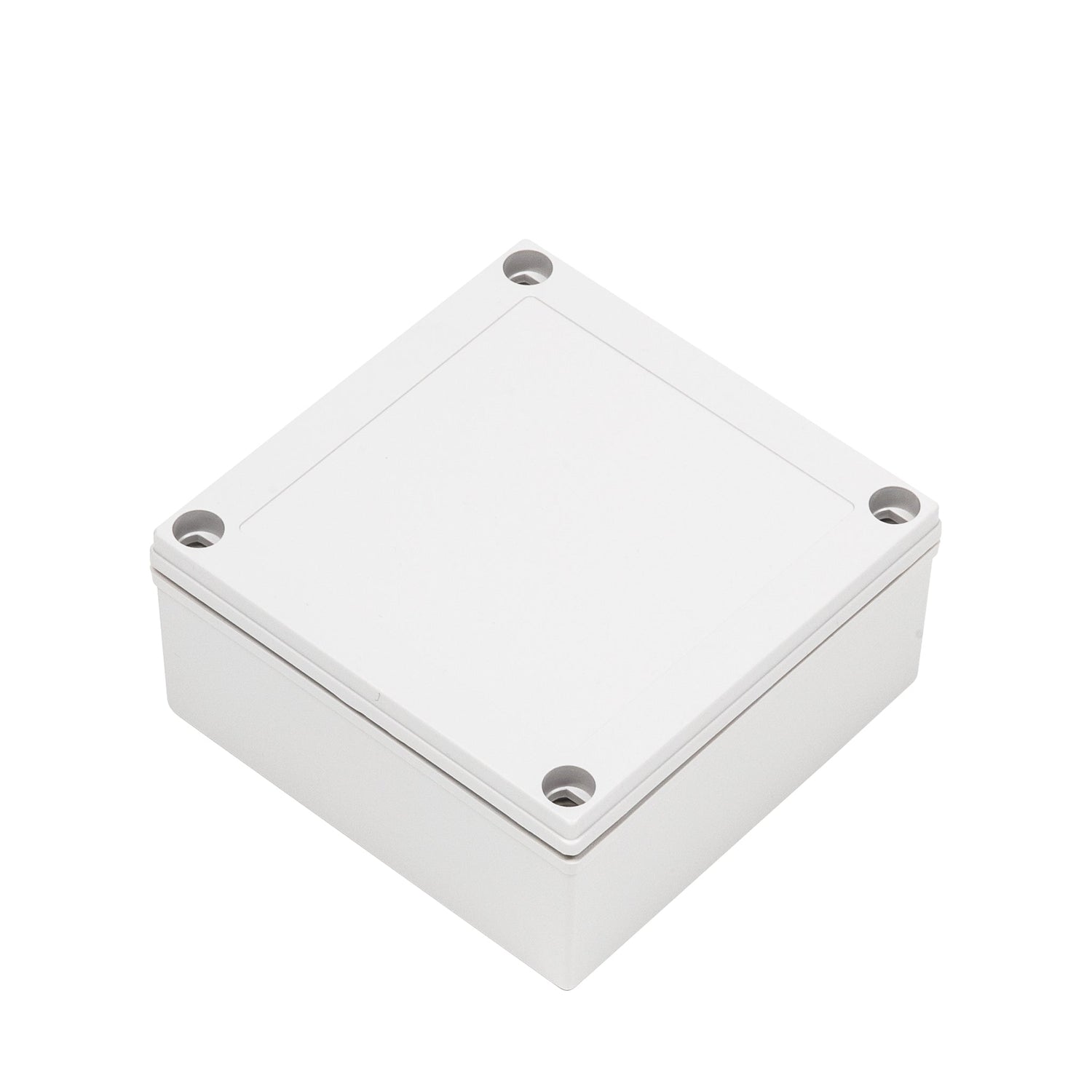

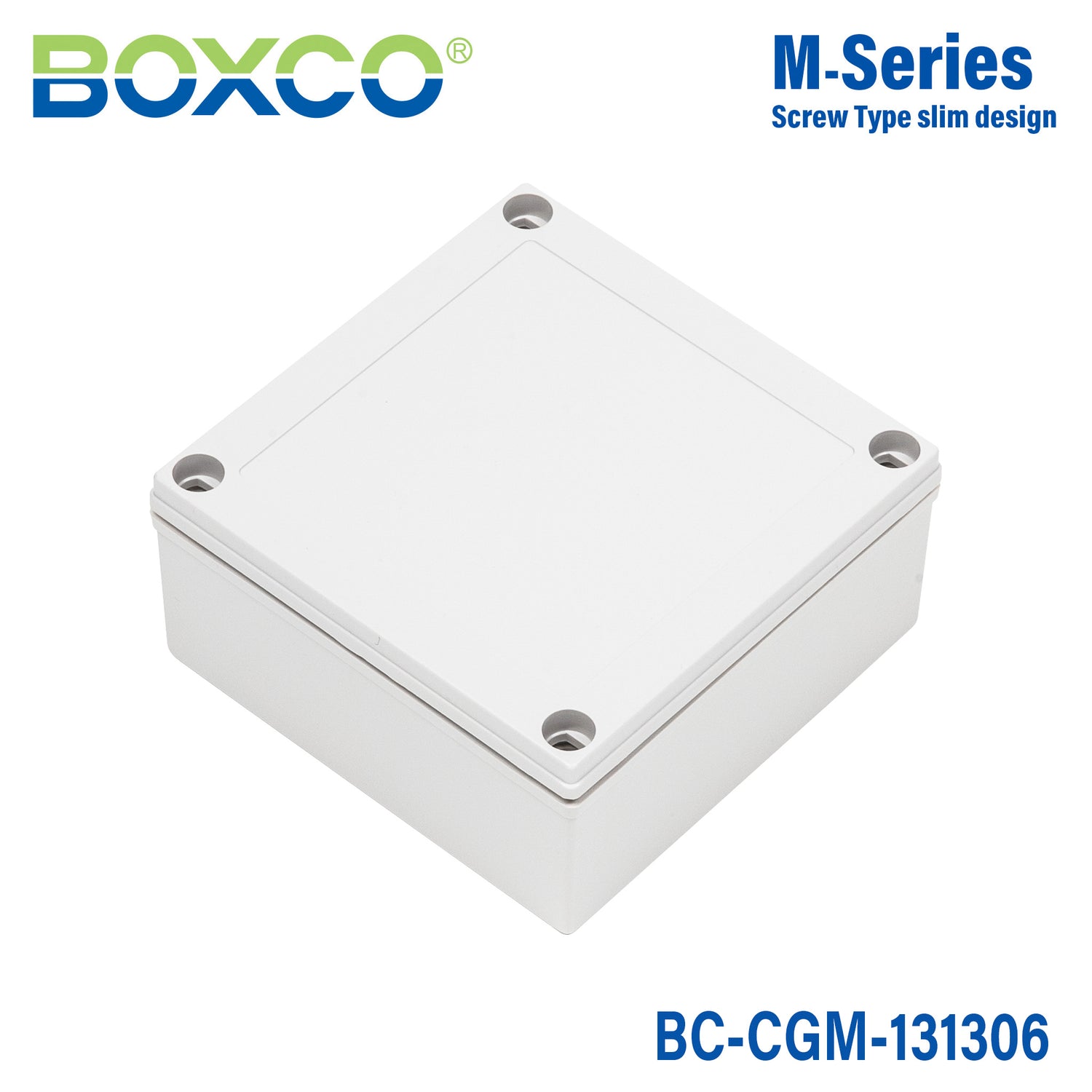

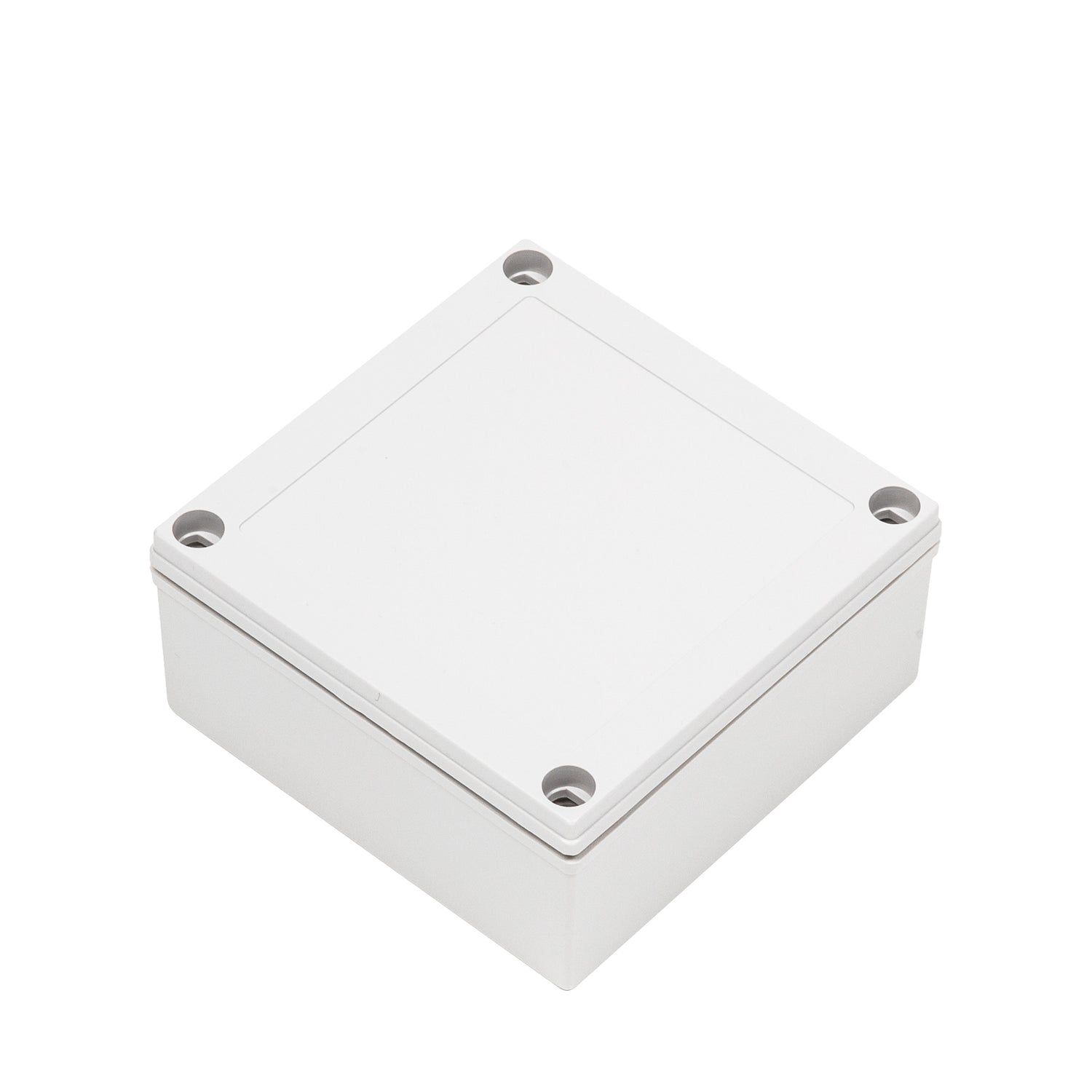

Boxco M-Series 5.12 x 5.12 x 2.36 Inches(130 x 130 x 60mm) Plastic ...
Description
Description
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

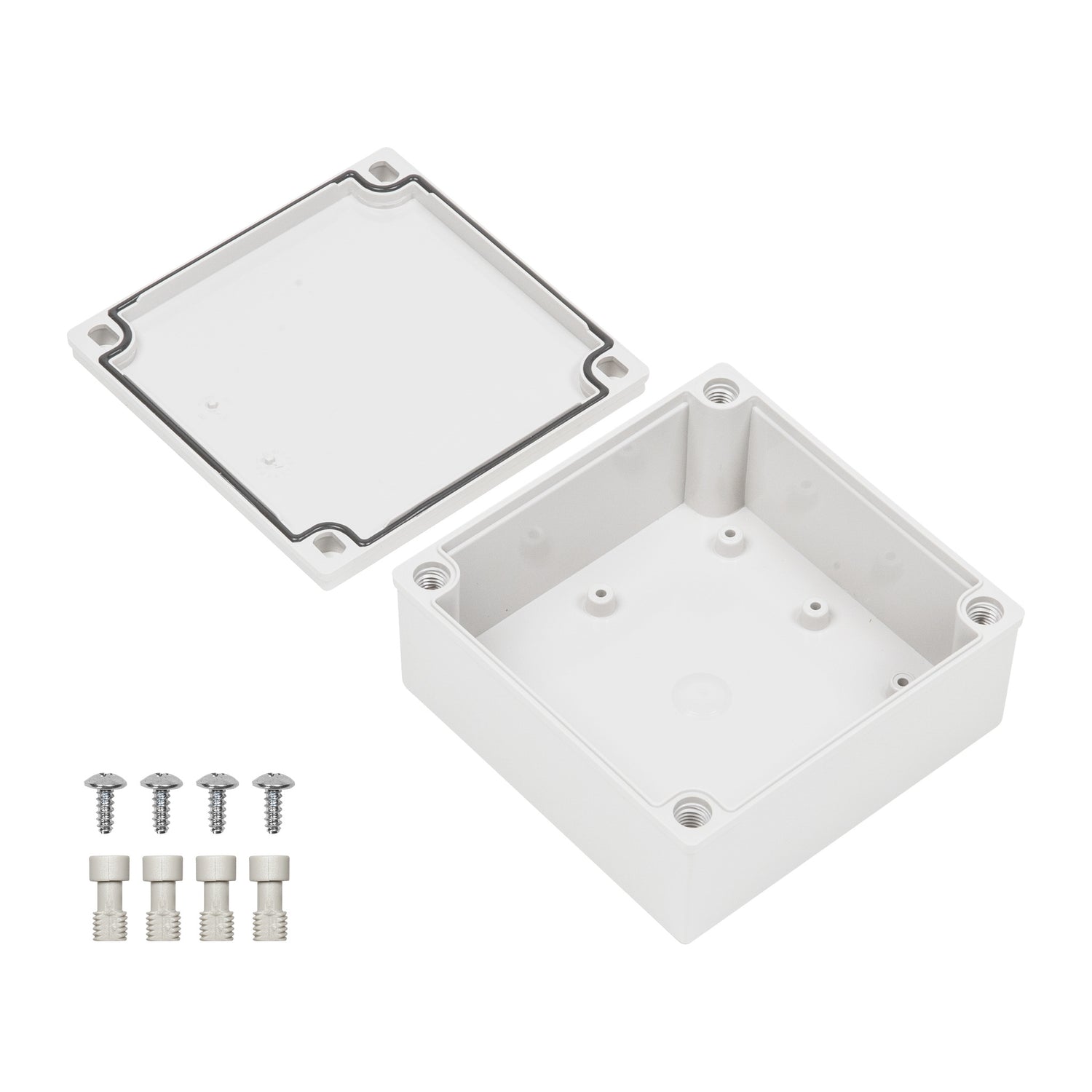

- Screw type with recessed cover
- Used for mounting membrane keypad
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length5.12 in
-
Width5.12 in
-
Height2.36 in
-
Weight0.59 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco M-Series BC-CGM-131306 enclosure suited for?
This enclosure is suited for protecting electronic components in industrial and commercial environments where a sealed plastic housing is needed. Its recessed screw-type cover also makes it appropriate for applications that use a membrane keypad on the enclosure surface.
Is this enclosure suitable for outdoor use?
Yes. Boxco states that this M-Series enclosure includes an ultraviolet stabilizer to help protect it during outdoor use. The material is designed to limit noticeable color change even after long-term exposure.
What level of environmental protection does this model provide?
The BC-CGM-131306 is rated IP67 and IK08. That means it is designed for strong protection against dust and temporary water ingress, along with resistance to external impact for demanding environments.
What material is this enclosure made from?
This model is made from PC and has a grey cover. Boxco also notes the use of anti-static material to help protect sensitive electronic instruments from static electricity.
What are the dimensions and weight of this enclosure?
The enclosure measures 5.12 x 5.12 x 2.36 inches, which corresponds to 130 x 130 x 60 mm. The listed weight for this model is 0.2660 kg.
What operating temperatures can this enclosure handle?
This model is specified for temperatures from -40 degrees C to 110 degrees C. That range makes it suitable for applications exposed to both low and elevated temperatures within those limits.
How does this screw-type enclosure compare with a standard flat-cover design?
This model uses a screw-type recessed cover rather than a standard flat cover. The recessed design is specifically noted as being used for mounting a membrane keypad, which can make it a better fit for interface-focused enclosure applications.
