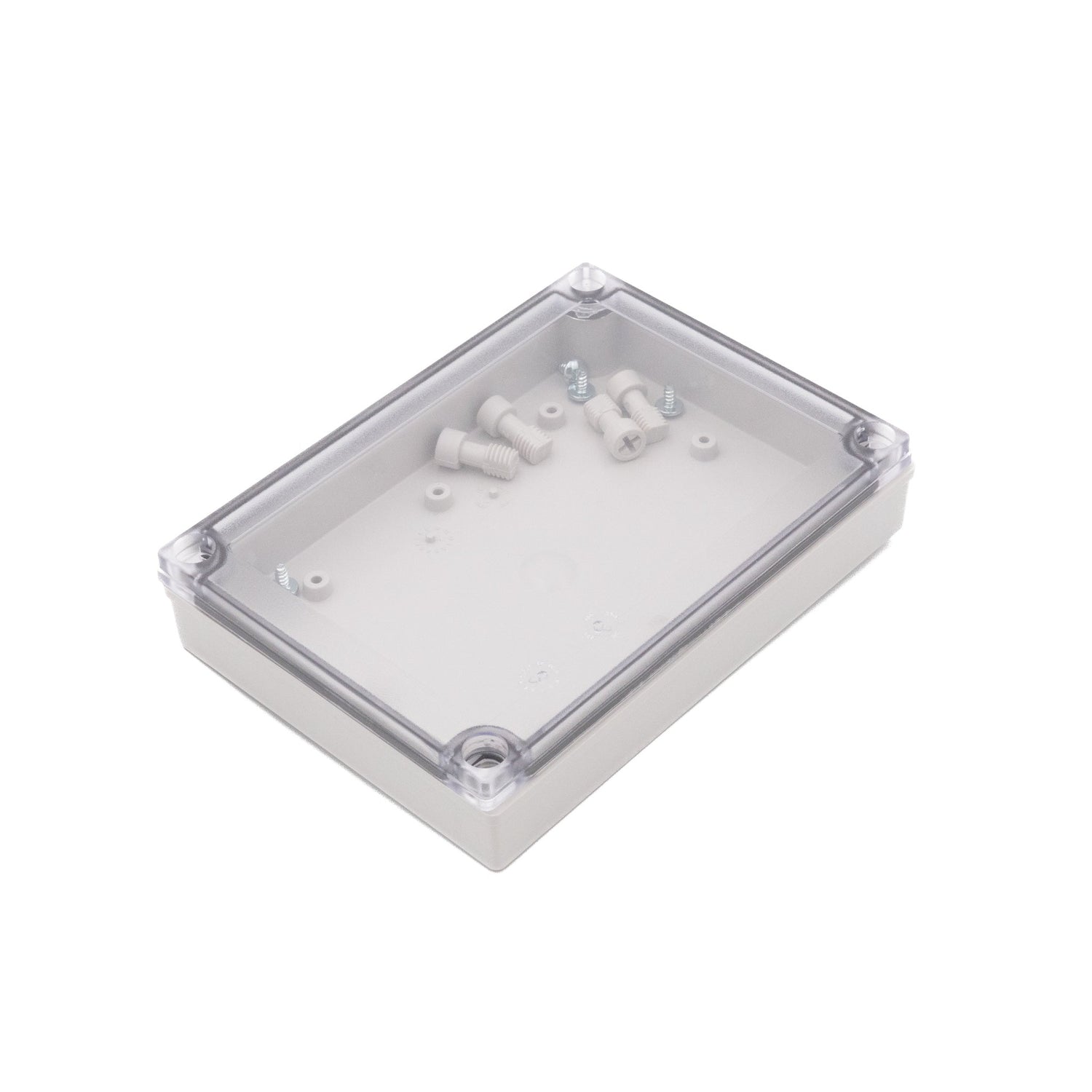

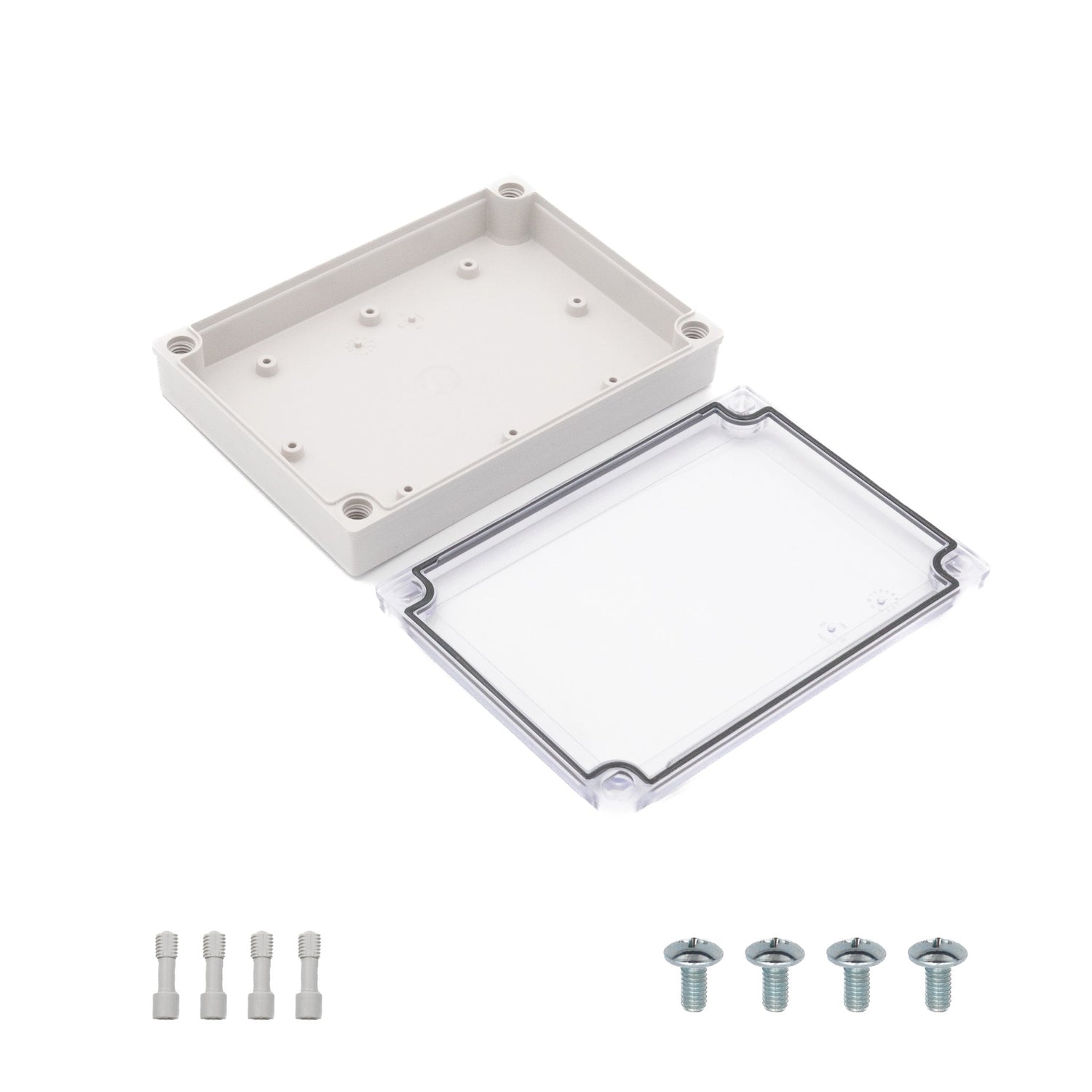

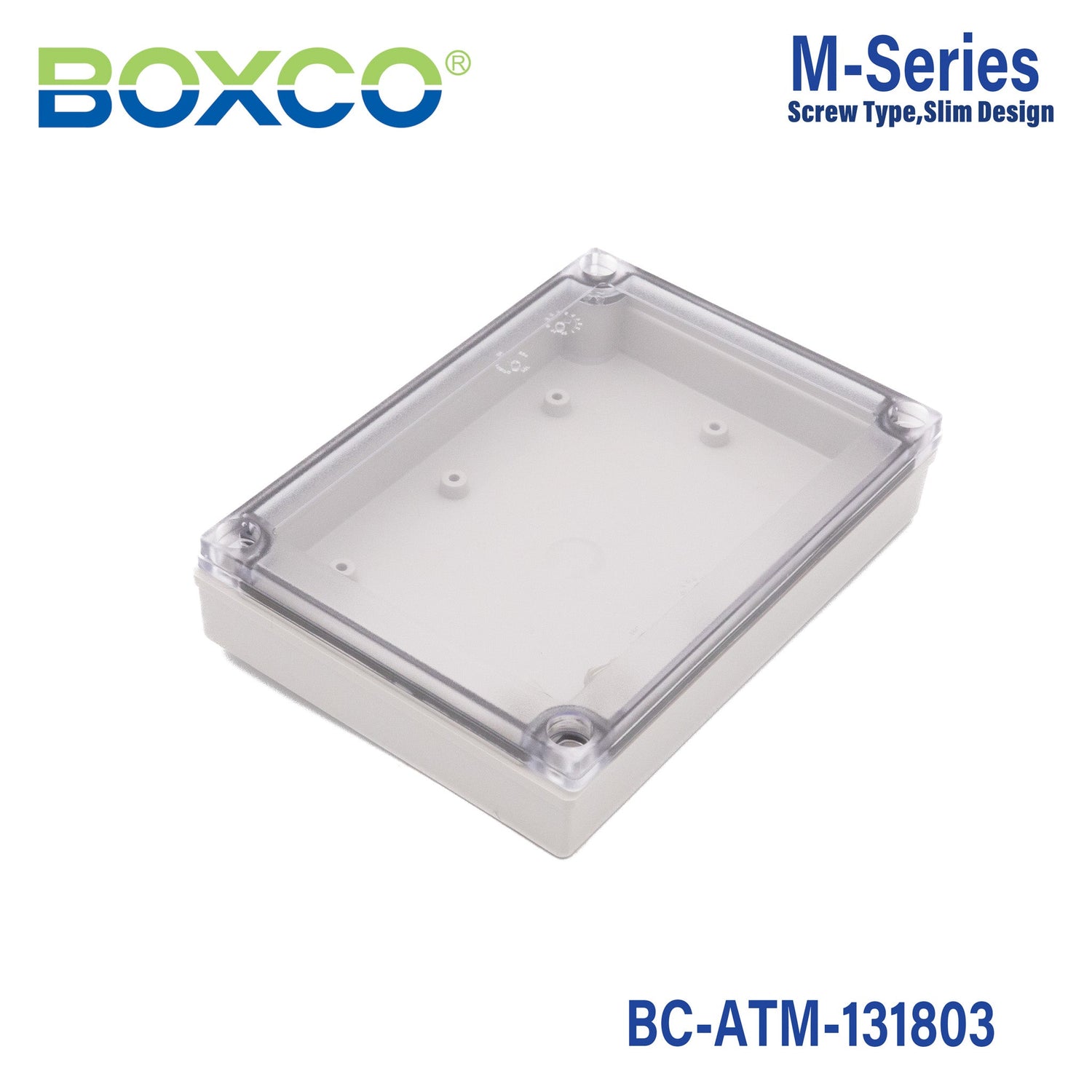

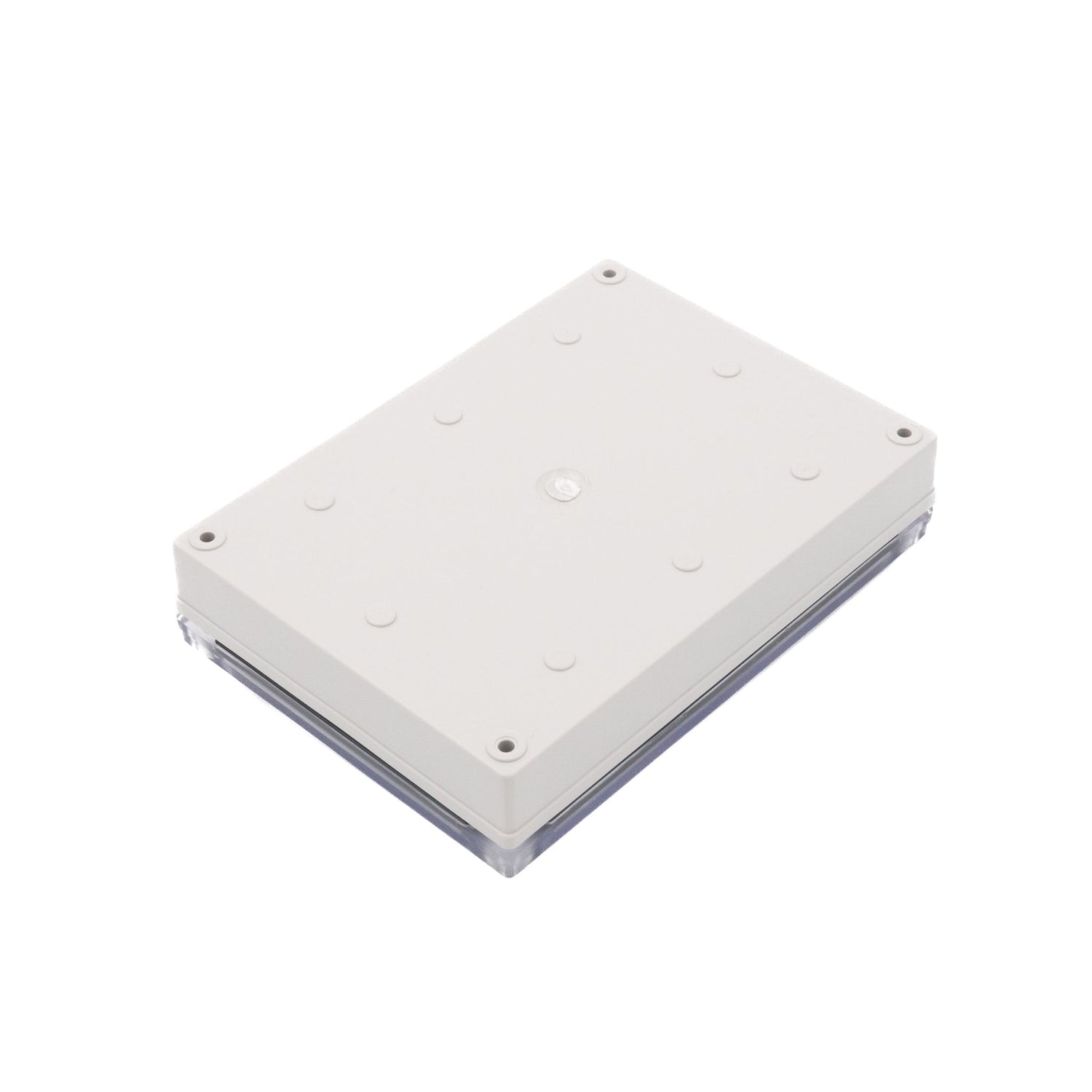

Boxco M-Series 5.12 x 7.09 x 1.38 Inches(130 x 180 x 35mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco M-Series 5.12 x 7.09 x 1.38 Inches(130 x 180 x 35mm) Plastic ...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length5.12 in
-
Width7.09 in
-
Height1.38 in
-
Weight0.56 lb
::specification::
Frequently Asked Questions
What applications is this Boxco M-Series enclosure best suited for?
This enclosure is suited for protecting electronics and control components in indoor or outdoor industrial environments where dust and water resistance matter. Its recessed transparent cover also makes it a practical choice for applications that use a membrane keypad or need visual access to enclosed indicators.
Is this enclosure suitable for outdoor use?
Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce noticeable color change over long periods. Its IP67 rating also supports use in environments where strong protection against dust and water ingress is important.
What does the IP67 rating mean for this enclosure?
This model is rated IP67, indicating a high level of protection against dust ingress and exposure to water. For buyers comparing enclosure protection levels, IP67 makes this model a strong option when environmental sealing is a priority.
How durable is the Boxco M-Series plastic enclosure against impact?
This enclosure carries an IK08 impact rating and is described as being made from high impact resistant material. That makes it a good fit for applications where the housing may face routine handling or incidental external impact.
What are the material and cover style for this specific model?
This model uses an ABS body and comes with a transparent cover in a screw-type design. The cover is recessed, which the product description notes is useful for mounting a membrane keypad.
What temperature range can this enclosure handle?
The listed operating range for this model is -40 C to 70 C. That range makes it suitable for many industrial and outdoor applications that experience both low-temperature and moderately elevated-temperature conditions.
What are the dimensions and weight of this enclosure?
This Boxco M-Series enclosure measures 5.12 x 7.09 x 1.38 inches, which is 130 x 180 x 35 mm. The listed weight is 0.2520 kg, which can be useful when evaluating panel, cabinet, or equipment packaging requirements.
