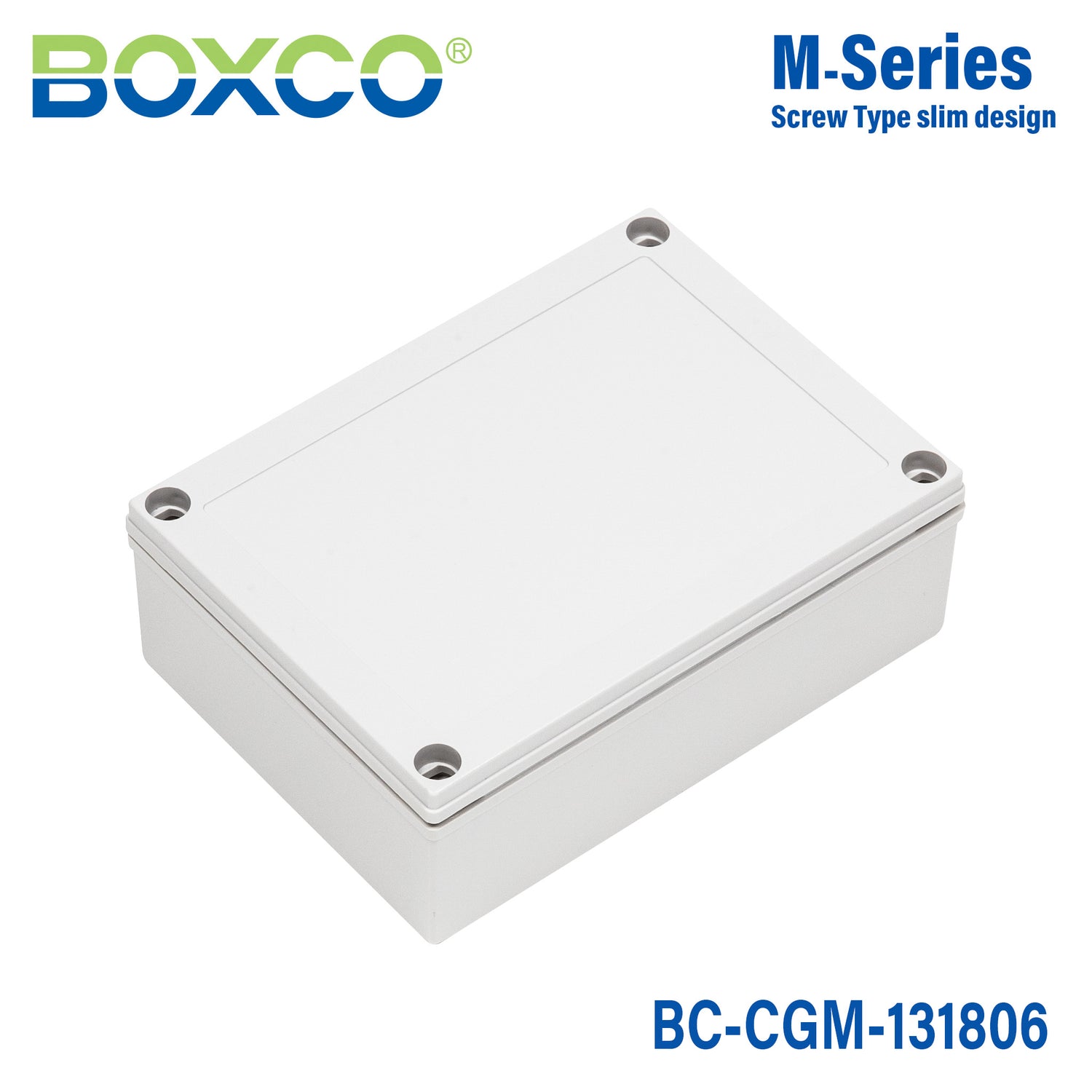

Boxco M-Series 5.12 x 7.09 x 2.36 Inches(130 x 180 x 60mm) Plastic ...
Description
Description
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

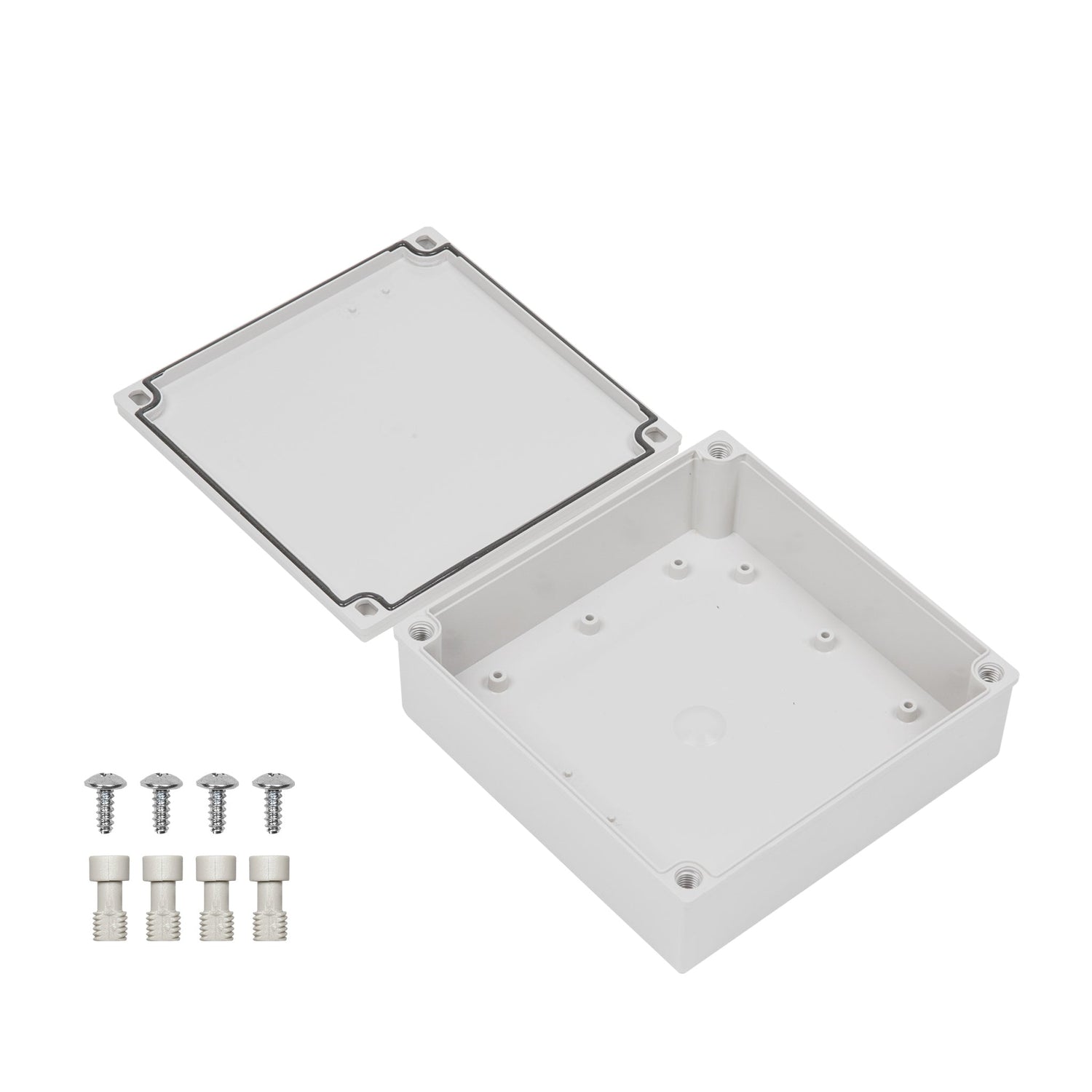

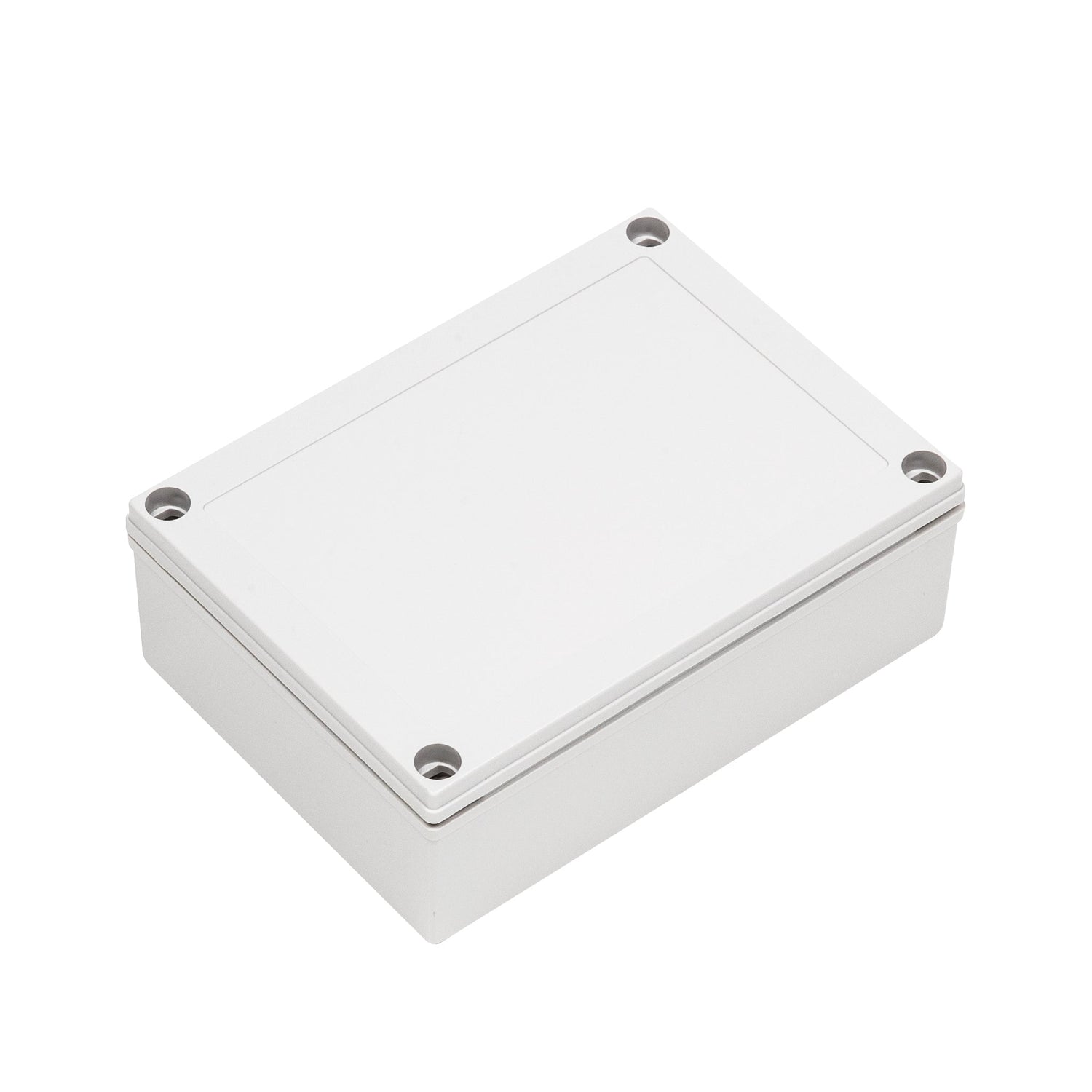

- Screw type with recessed cover
- Used for mounting membrane keypad
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length5.12 in
-
Width7.09 in
-
Height2.36 in
-
Weight0.72 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco M-Series BC-CGM-131806 enclosure suited for?
This enclosure is suited for protecting electronic components and instruments in industrial and commercial applications where a sealed non-metallic housing is needed. Its recessed screw-type cover is also intended for use with membrane keypad layouts, making it a practical choice for control and interface enclosures.
Is this enclosure appropriate for outdoor environments?
Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. That helps reduce visible color change over long periods of exposure, while the IP67 rating supports use in environments where dust protection and resistance to water ingress are important.
What are the key material and impact-resistance features of this enclosure?
The BC-CGM-131806 is made from polycarbonate (PC) and is described as using high impact resistant material. It also carries an IK08 impact rating, which indicates added durability for applications where the enclosure may be exposed to incidental external impact.
What size is this plastic enclosure?
This Boxco M-Series enclosure measures 5.12 x 7.09 x 2.36 inches, which corresponds to 130 x 180 x 60 mm. That size can be useful when evaluating available internal space and external mounting constraints for your application.
What temperature range can this enclosure handle?
This model is specified for a temperature range from -40 °C to 110 °C. That wide range makes it suitable for demanding environments where both low-temperature and elevated-temperature exposure are concerns.
How does this screw-type enclosure compare to a standard flat-cover design?
This model uses a screw-type cover with a recessed top, and the product description specifically notes that it is used for mounting a membrane keypad. Compared with a standard non-recessed cover style, that makes it better aligned with applications that need a protected, integrated front-surface interface area.
