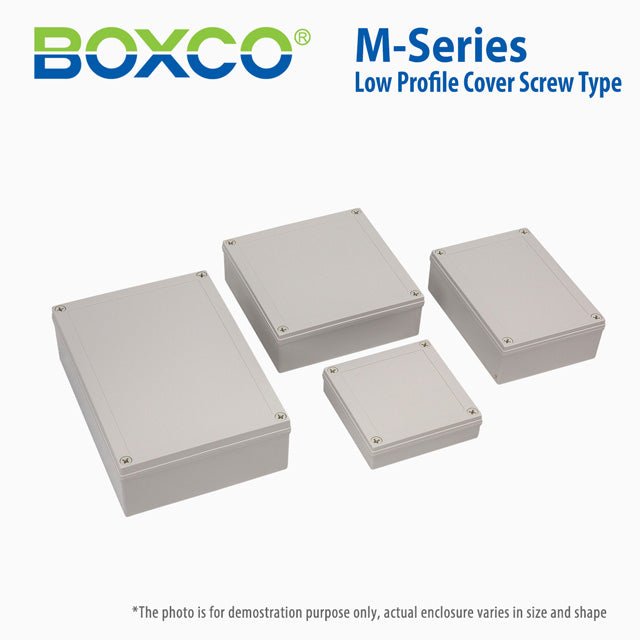

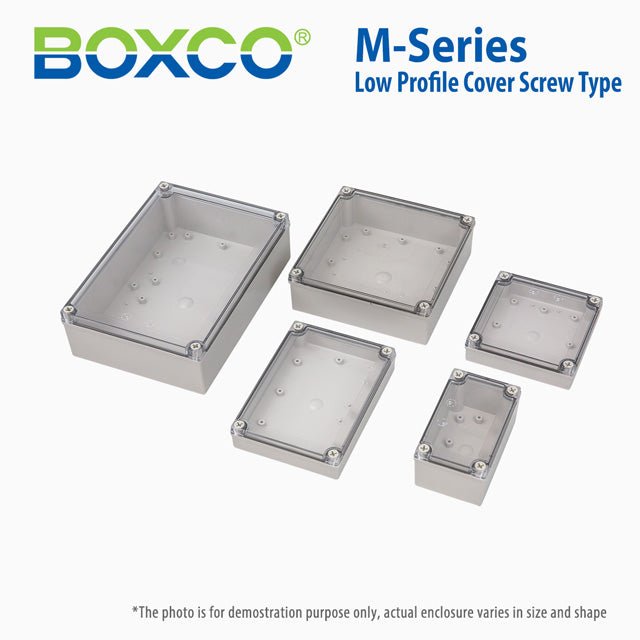

Boxco M-Series 7.09 x 10.04 x 3.94 Inches(180 x 255 x 100mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco M-Series 7.09 x 10.04 x 3.94 Inches(180 x 255 x 100mm) Plasti...
Description
Description
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

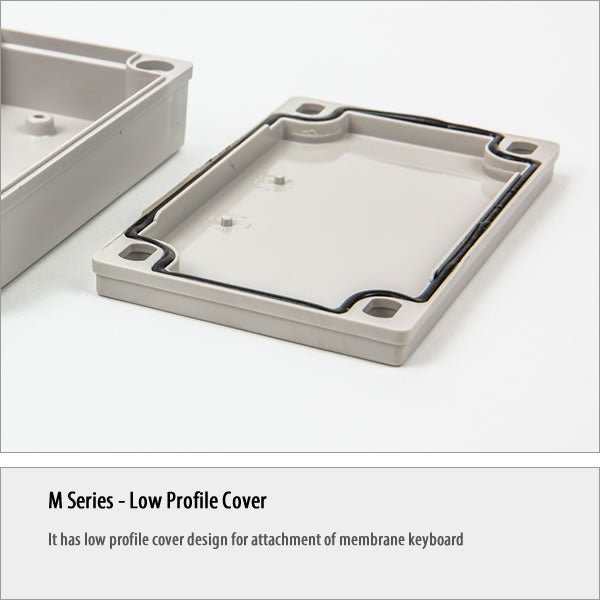

- Screw type with recessed cover
- Used for mounting membrane keypad
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.09 in
-
Width10.04 in
-
Height3.94 in
-
Weight1.37 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is this Boxco M-Series enclosure typically used for?
This enclosure is designed to protect electronics and control components in industrial and commercial applications where a sealed plastic housing is needed. Its recessed transparent cover also makes it suitable for applications that use a membrane keypad or require visibility into the enclosure.
What are the key size and material details for model BC-ATM-182510?
This model measures 7.09 x 10.04 x 3.94 inches, which corresponds to 180 x 255 x 100 mm. It is made from ABS plastic and includes a transparent screw-type cover.
Is this enclosure suitable for outdoor or harsh environments?
Yes, this enclosure is built for demanding environments with an IP67 rating for dust-tight and water-resistant protection. It also includes an ultraviolet stabilizer for outdoor usage and carries an IK08 impact rating for resistance to external impact.
What temperature range can this plastic enclosure handle?
This model is rated for use from -40 degrees C to 70 degrees C. That range makes it suitable for many indoor and outdoor industrial environments where temperature exposure varies.
Does the cover allow visibility while keeping the enclosure sealed?
Yes, this model has a transparent cover, which allows visual inspection of internal indicators or components without opening the enclosure. The cover is screw type and recessed, helping maintain the enclosure's protective design.
Is this enclosure appropriate for protecting sensitive electronic equipment?
Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material to reduce breakage during processing and use.
