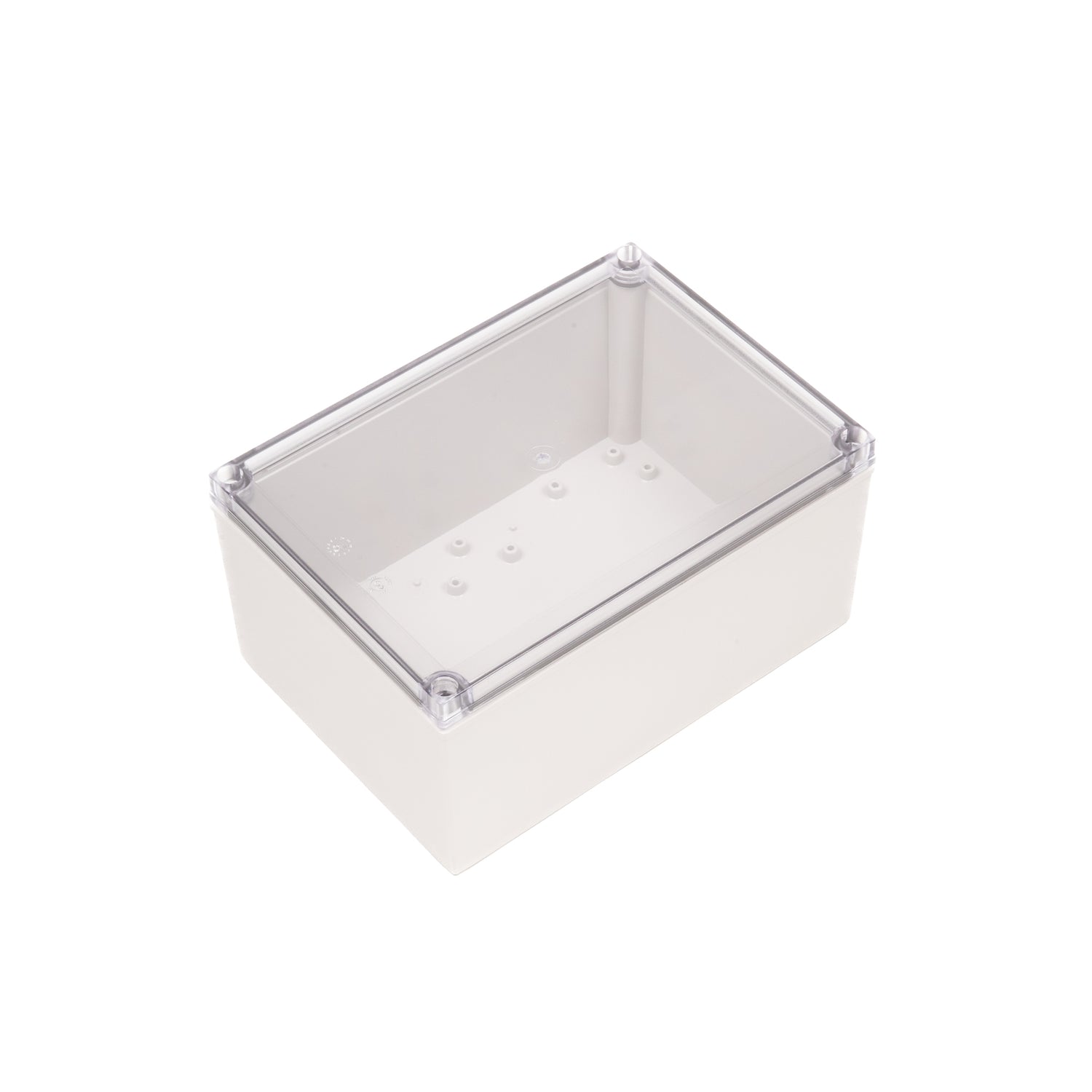

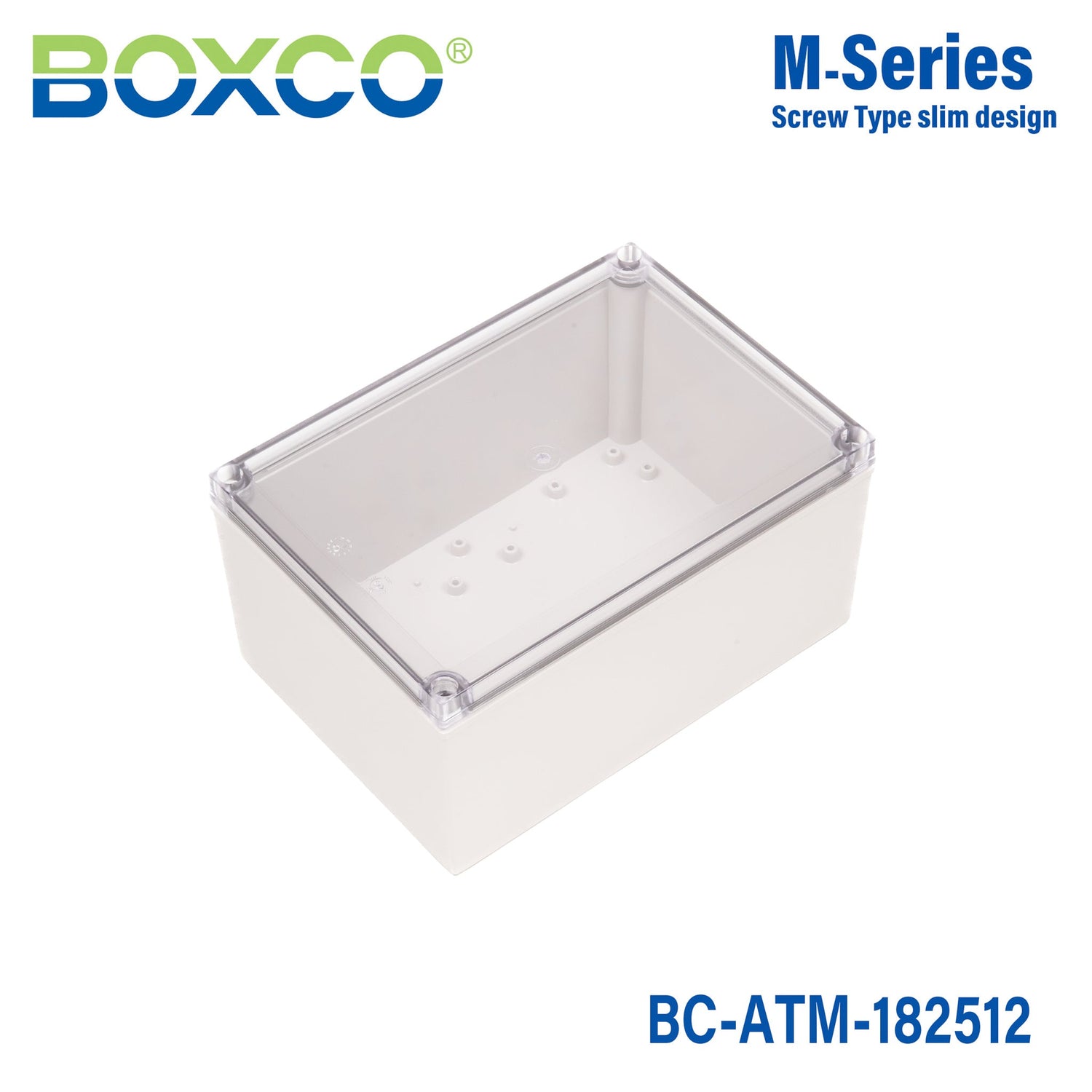

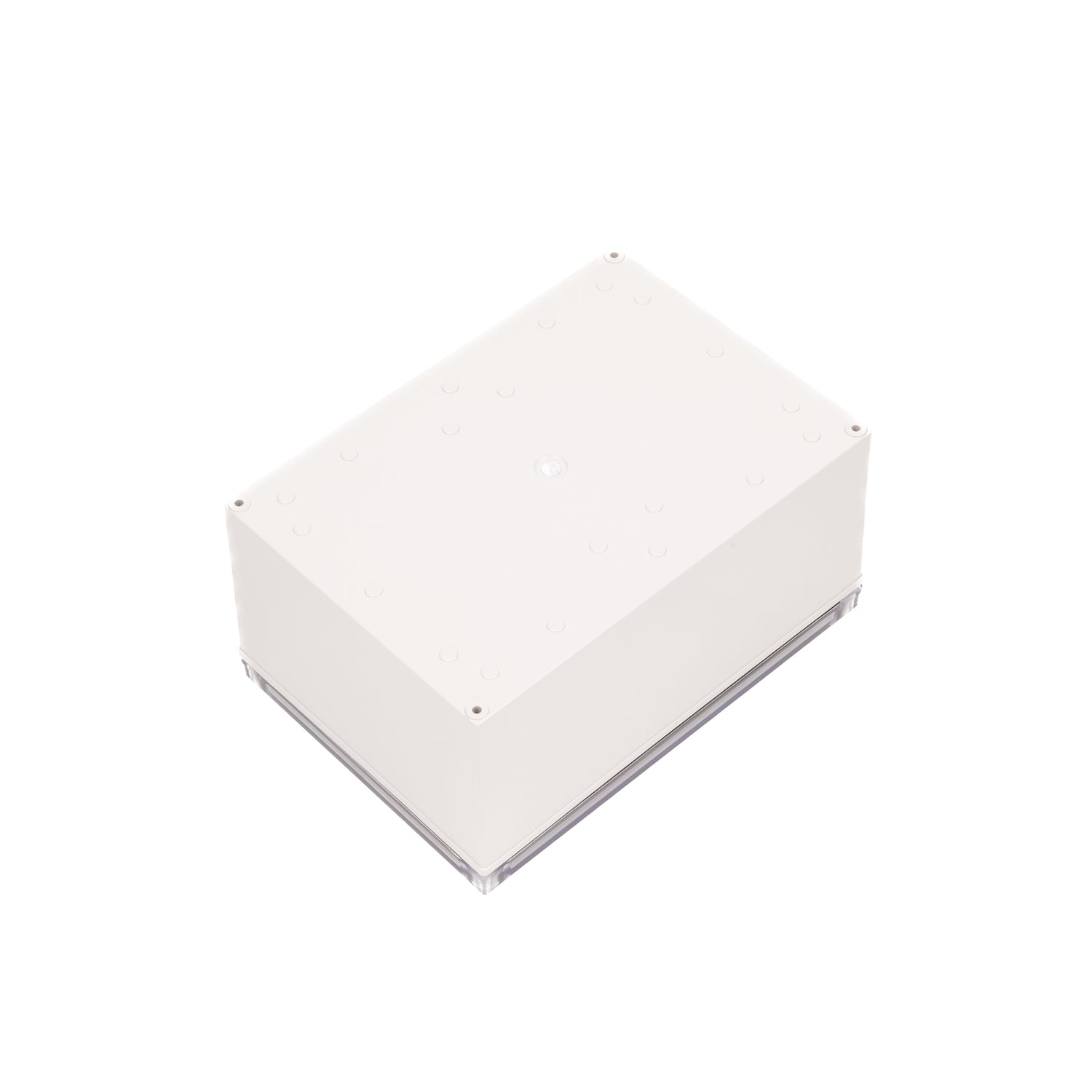

Boxco M-Series 7.09 x 10.04 x 4.92 Inches(180 x 255 x 125mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco M-Series 7.09 x 10.04 x 4.92 Inches(180 x 255 x 125mm) Plasti...
Description
Description
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

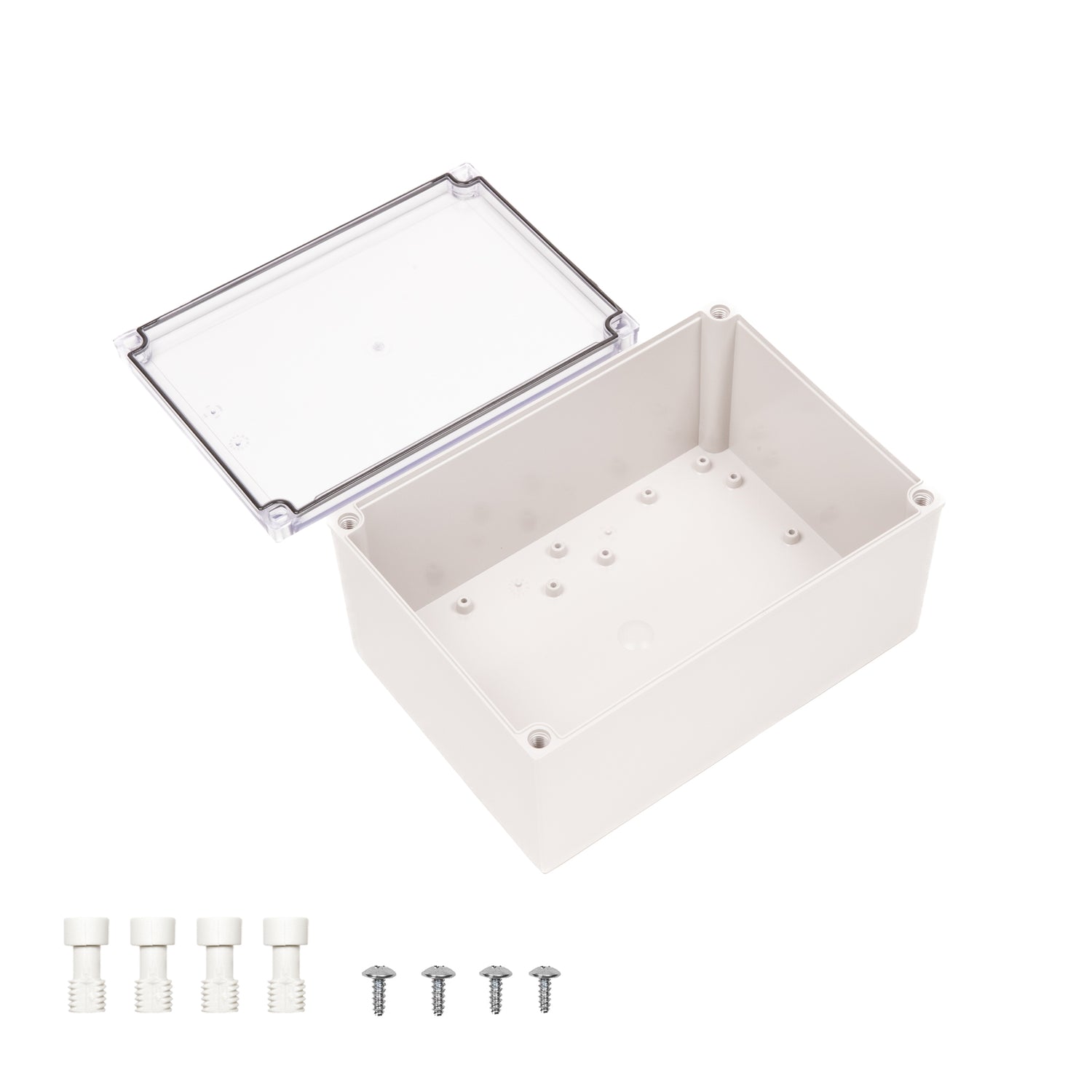

- Screw type with recessed cover
- Used for mounting membrane keypad
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.09 in
-
Width10.04 in
-
Height4.92 in
-
Weight2.4 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is this Boxco M-Series enclosure typically used for?
This enclosure is intended for protecting electronic components and instruments in industrial or commercial applications where a sealed plastic housing is needed. Its recessed transparent cover also makes it suitable for designs that use a membrane keypad or require visual access without opening the box.
What are the main specifications of this enclosure?
This model measures 7.09 x 10.04 x 4.92 inches, which corresponds to 180 x 255 x 125 mm. It is an ABS plastic enclosure with a transparent screw-type cover, rated IP67 and IK08, and weighs 1.09 kg.
Is this enclosure suitable for outdoor environments?
Yes, the product description states that an ultraviolet stabilizer is added for outdoor usage. Boxco also notes that only minor color changes are expected even after long-term use.
How well does this enclosure resist dust, water, and impact?
This model carries an IP67 rating, indicating strong protection against dust ingress and temporary immersion conditions. It also has an IK08 impact rating, and the description notes that the material is designed to resist external impact and reduce breakage during processing.
What temperature range can this enclosure handle?
The specified operating temperature range is -40 °C to 70 °C. That makes it suitable for applications exposed to both low-temperature and moderately elevated-temperature environments within that range.
Does the transparent cover offer any practical advantage over an opaque cover?
Yes, a transparent cover can be useful when the contents or indicators inside the enclosure need to remain visible without opening it. On this model, the recessed screw-type cover is also noted as being used for mounting a membrane keypad.
