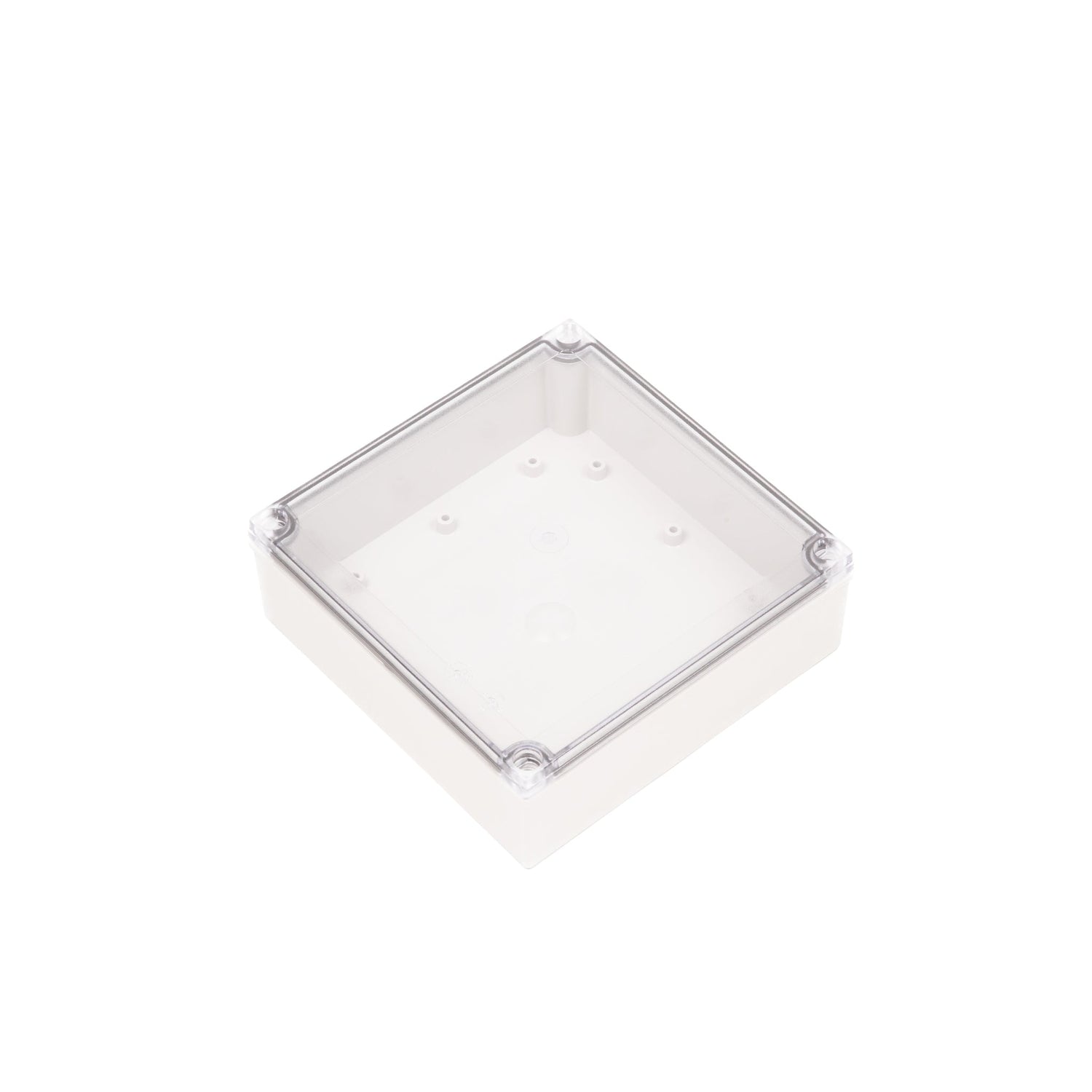

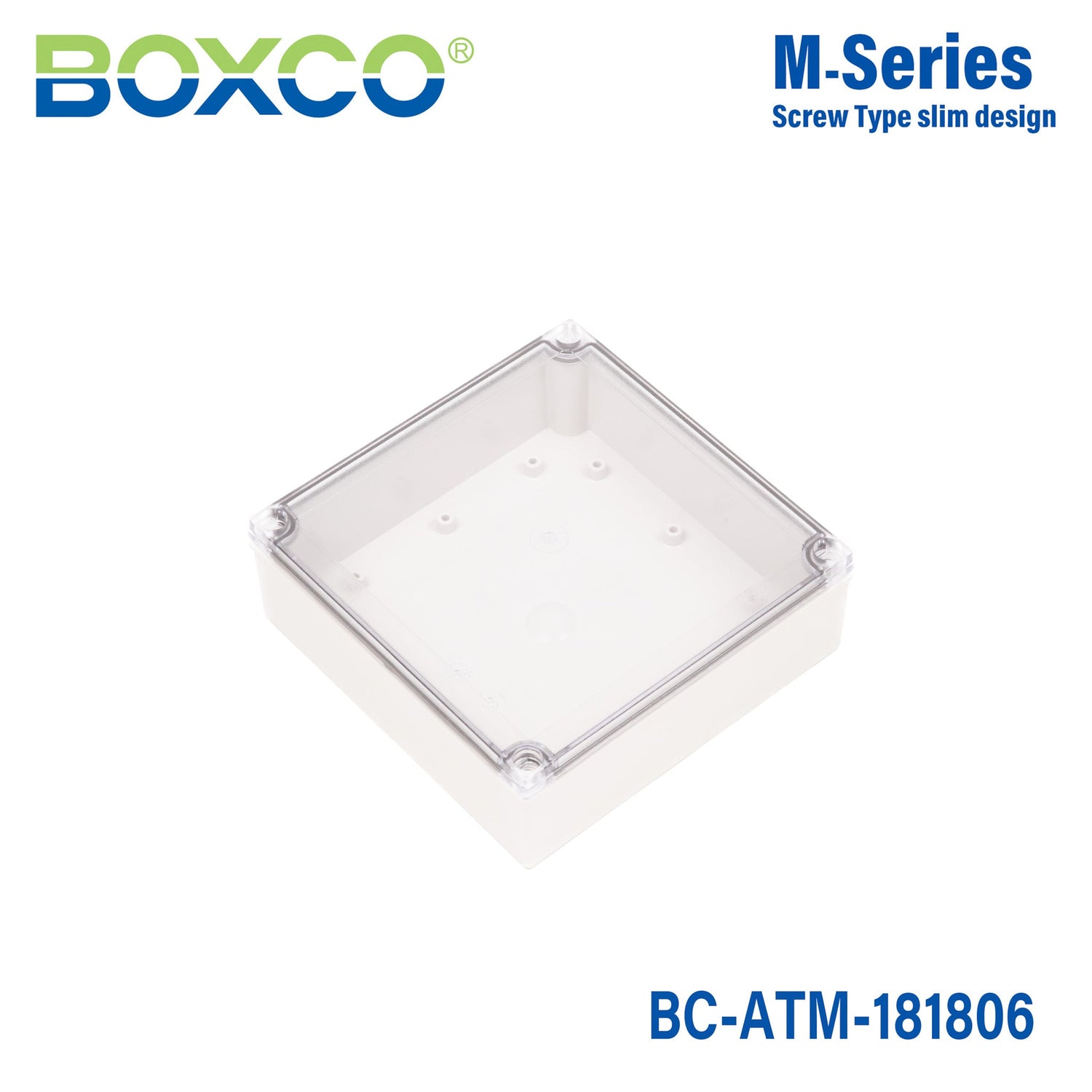

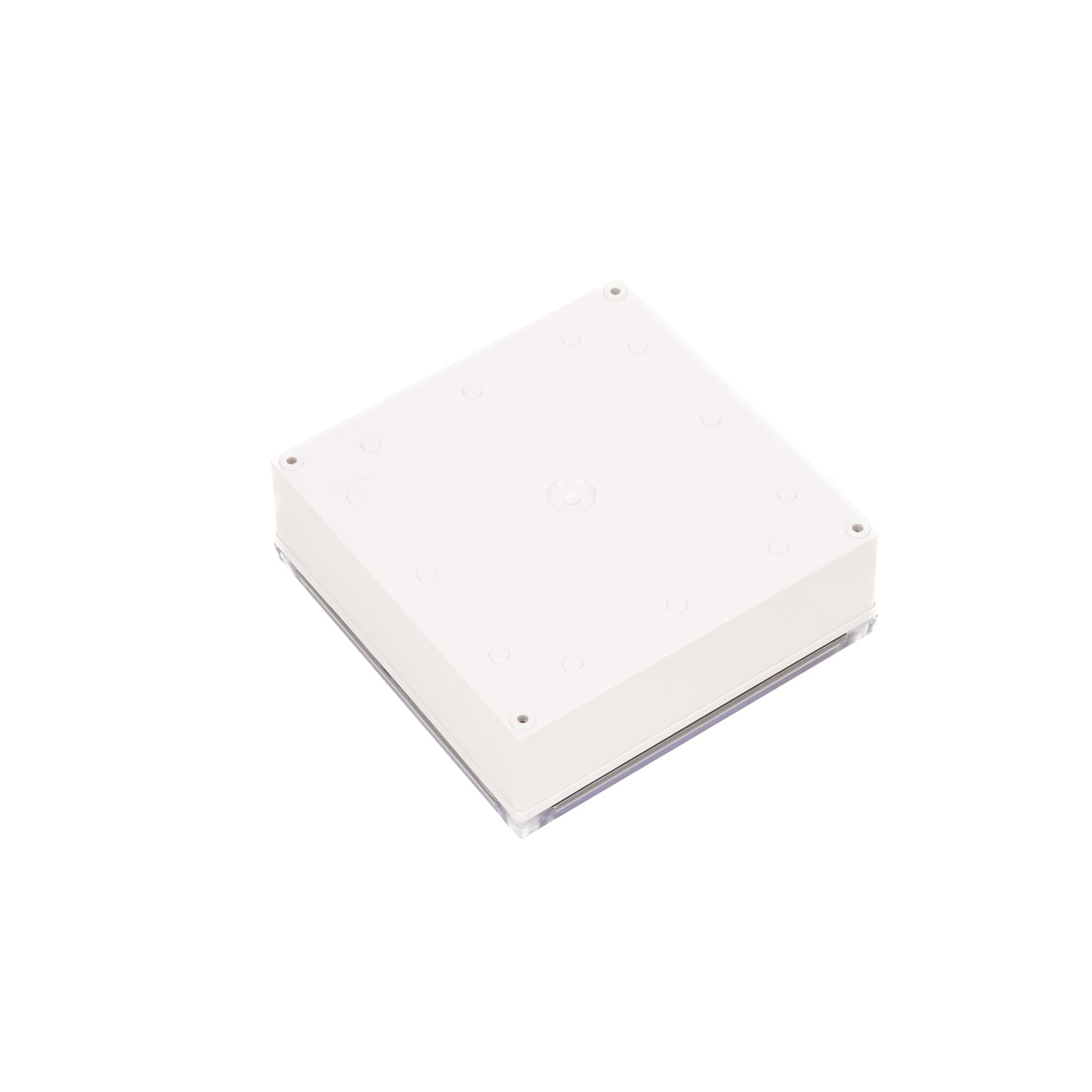

Boxco M-Series 7.09 x 7.09 x 2.36 Inches(180 x 180 x 60mm) Plastic ...
Description
Description
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

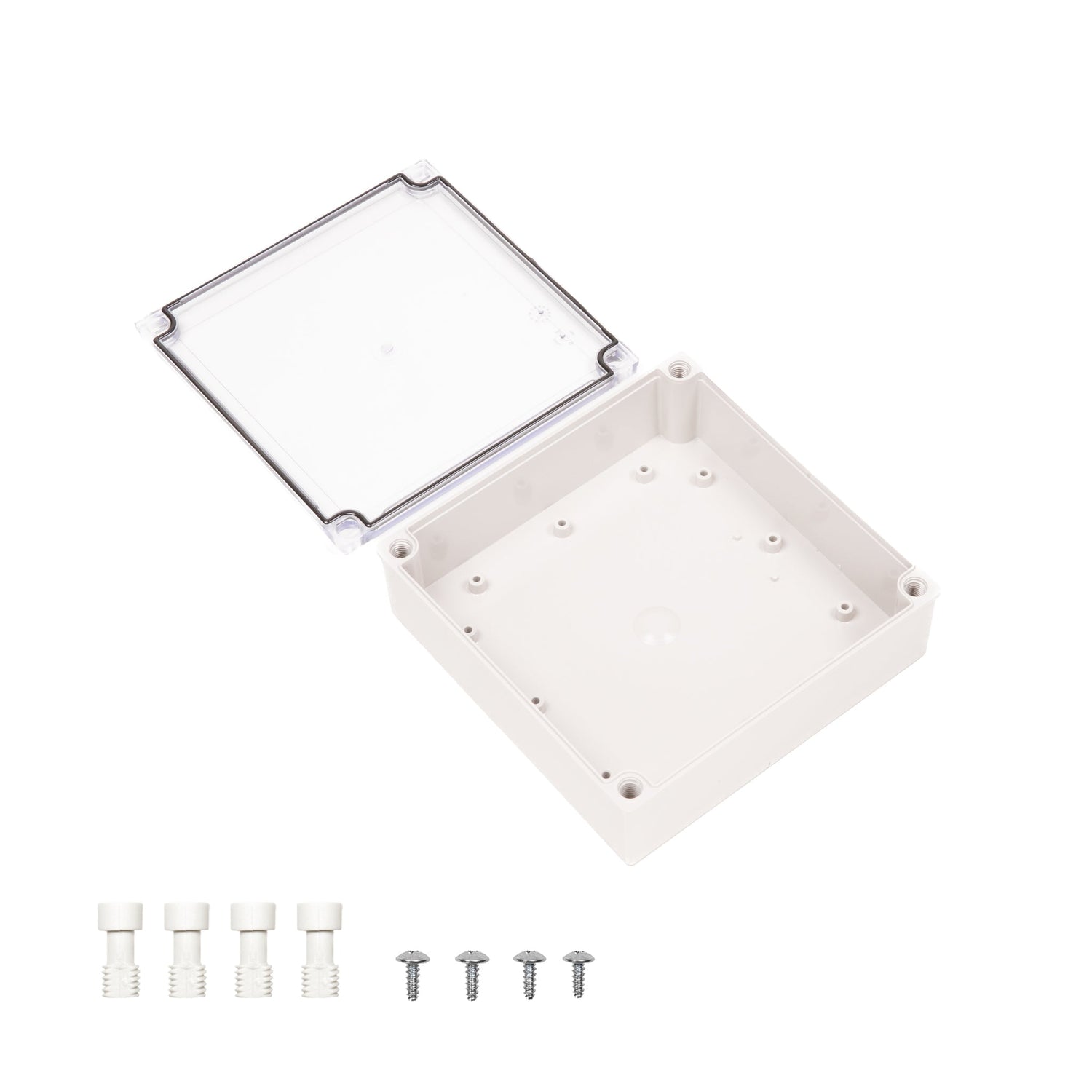

- Screw type with recessed cover
- Used for mounting membrane keypad
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.09 in
-
Width7.09 in
-
Height2.36 in
-
Weight0.8 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is this Boxco M-Series enclosure best suited for?
This enclosure is designed to protect electronic components and instruments in industrial or commercial environments where a sealed plastic housing is needed. Its recessed transparent cover also makes it suitable for applications that use a membrane keypad or need quick visual inspection without opening the enclosure.
Is this enclosure suitable for outdoor or washdown environments?
Yes, this model is built for demanding environments with an IP67 rating and IK08 impact resistance. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time.
What are the key size and material specifications of this enclosure?
This model measures 7.09 x 7.09 x 2.36 inches, which corresponds to 180 x 180 x 60 mm. It is made from ABS plastic and includes a transparent screw-type cover.
What temperature range can this enclosure handle?
This enclosure is rated for use from -40 °C to 70 °C. That range makes it appropriate for many indoor and outdoor industrial environments where equipment may be exposed to low or elevated temperatures.
Does the transparent cover offer any practical advantage over a solid cover?
Yes, the transparent cover allows users to visually check indicators, displays, or internal labels without opening the enclosure. On this model, the recessed screw-type cover also supports applications involving a membrane keypad.
What is the weight and warranty period for this model?
This enclosure has a listed weight of 0.362 kg. The stated warranty period for this model is 1 year.
