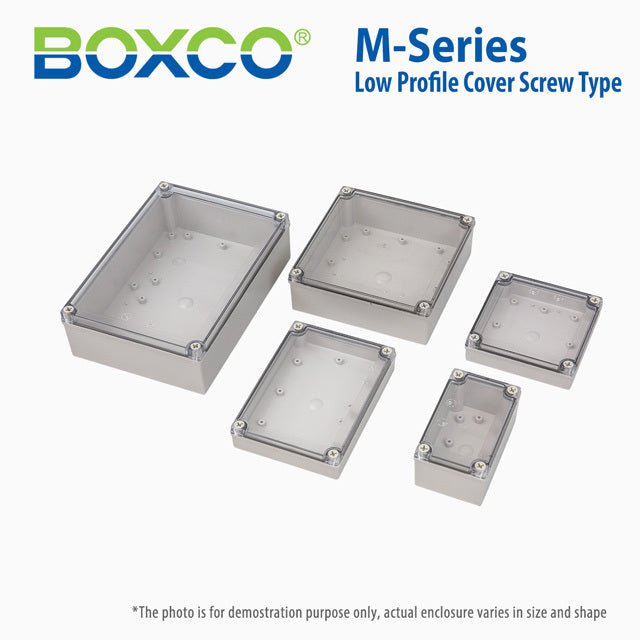

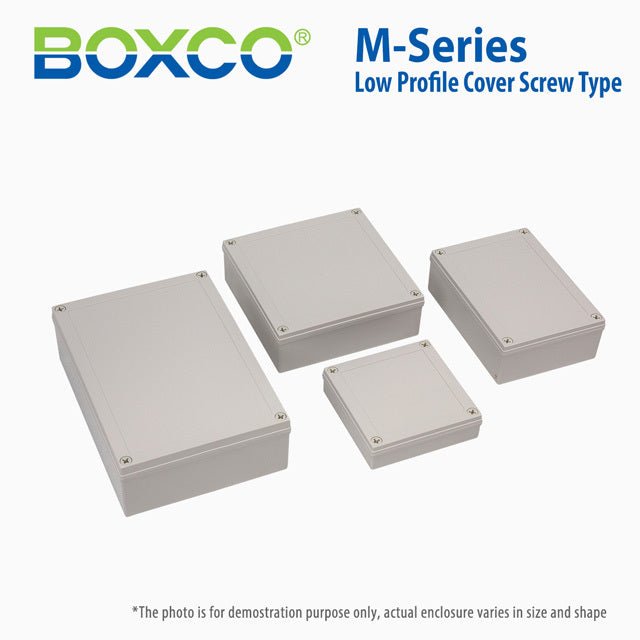

Boxco M-Series 7.09 x 7.09 x 2.95 Inches(180 x 180 x 75mm) Plastic ...
Description
Description
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

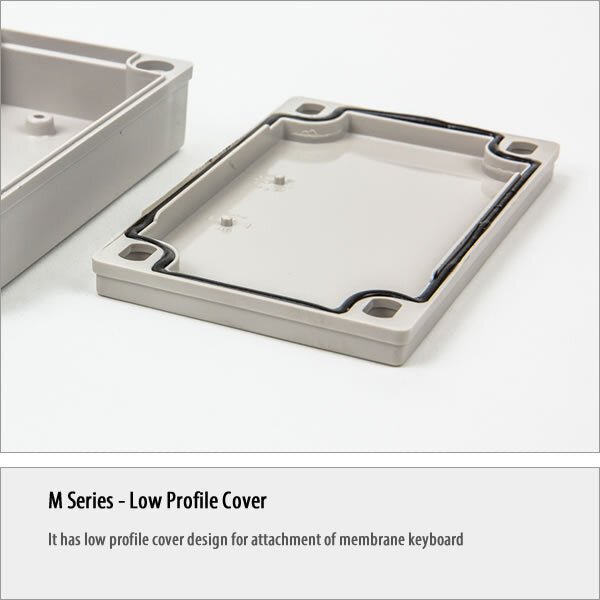

- Screw type with recessed cover
- Used for mounting membrane keypad
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.09 in
-
Width7.09 in
-
Height2.95 in
-
Weight0.93 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is this Boxco M-Series enclosure best suited for?
This enclosure is designed for protecting electronics and control components in industrial and commercial environments where a sealed plastic housing is needed. Its recessed transparent cover also makes it suitable for applications that use a membrane keypad or require visual access to indicators without opening the box.
What are the key specifications of the BC-ATM-181807 enclosure?
This model measures 7.09 x 7.09 x 2.95 inches (180 x 180 x 75 mm) and is made from ABS plastic with a transparent screw-type cover. It carries IP67 ingress protection and IK08 impact resistance, weighs 0.422 kg, and is rated for use from -40 C to 70 C.
Is this enclosure suitable for outdoor or harsh environments?
Yes, this Boxco M-Series enclosure is intended for demanding environments thanks to its IP67 rating and high-impact ABS construction. The product description also notes an ultraviolet stabilizer for outdoor use, which helps reduce visible color change over time.
How does the transparent cover affect product selection?
The transparent cover allows users to view displays, status lights, or internal labels without opening the enclosure. That makes this version a practical choice when visibility matters, compared with opaque-cover options in the same general enclosure category.
Is this enclosure compatible with membrane keypad designs?
Yes, the product features specifically state that the screw-type enclosure with recessed cover is used for mounting a membrane keypad. Buyers looking for a housing that supports keypad-based interfaces should consider this model for that reason.
What kind of material performance does this ABS enclosure offer?
The enclosure is made from high-impact-resistant ABS, which is intended to resist external impact and reduce the chance of breakage during machining or press processing. The description also mentions anti-static material use for protecting sensitive electronic instruments from static electricity.
