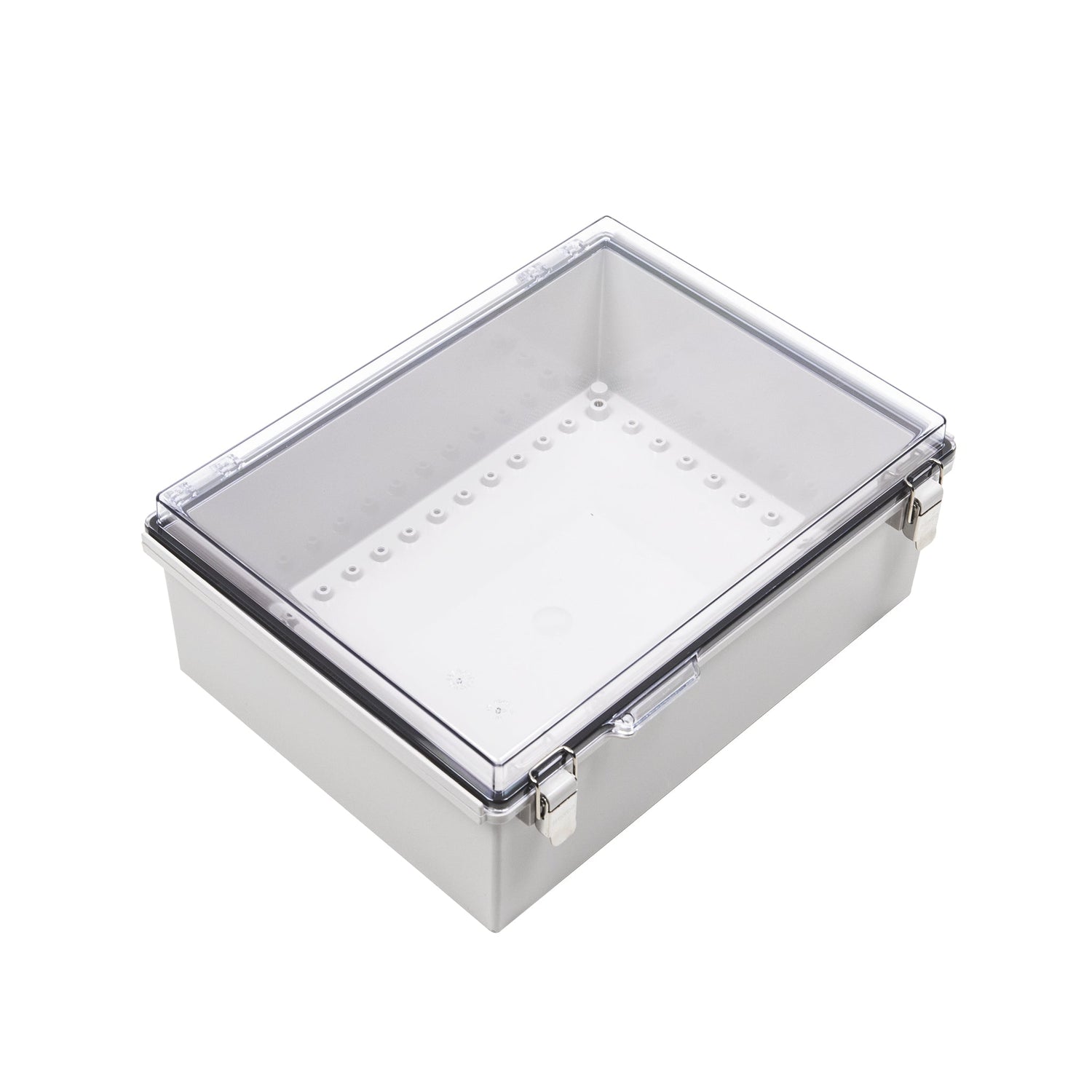

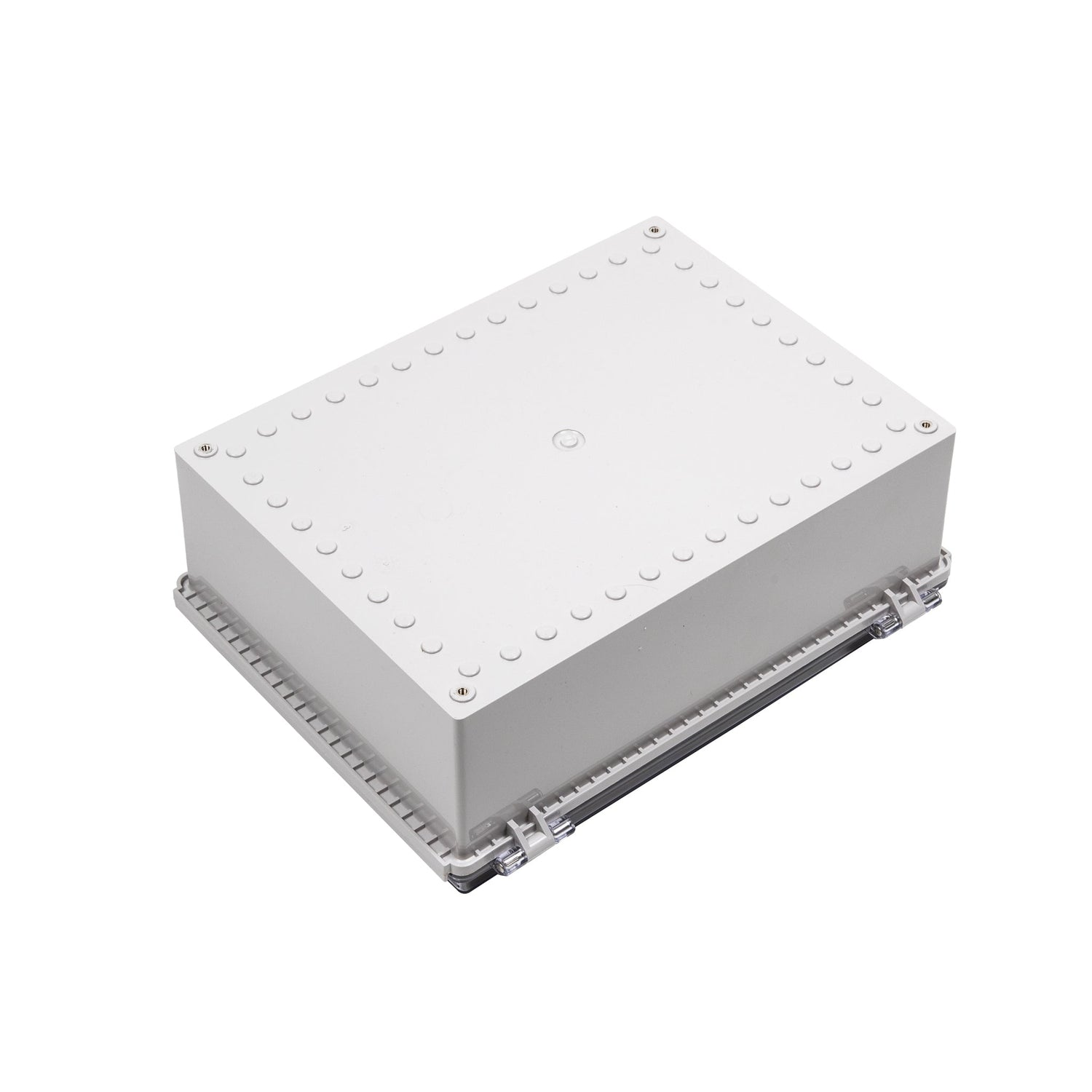

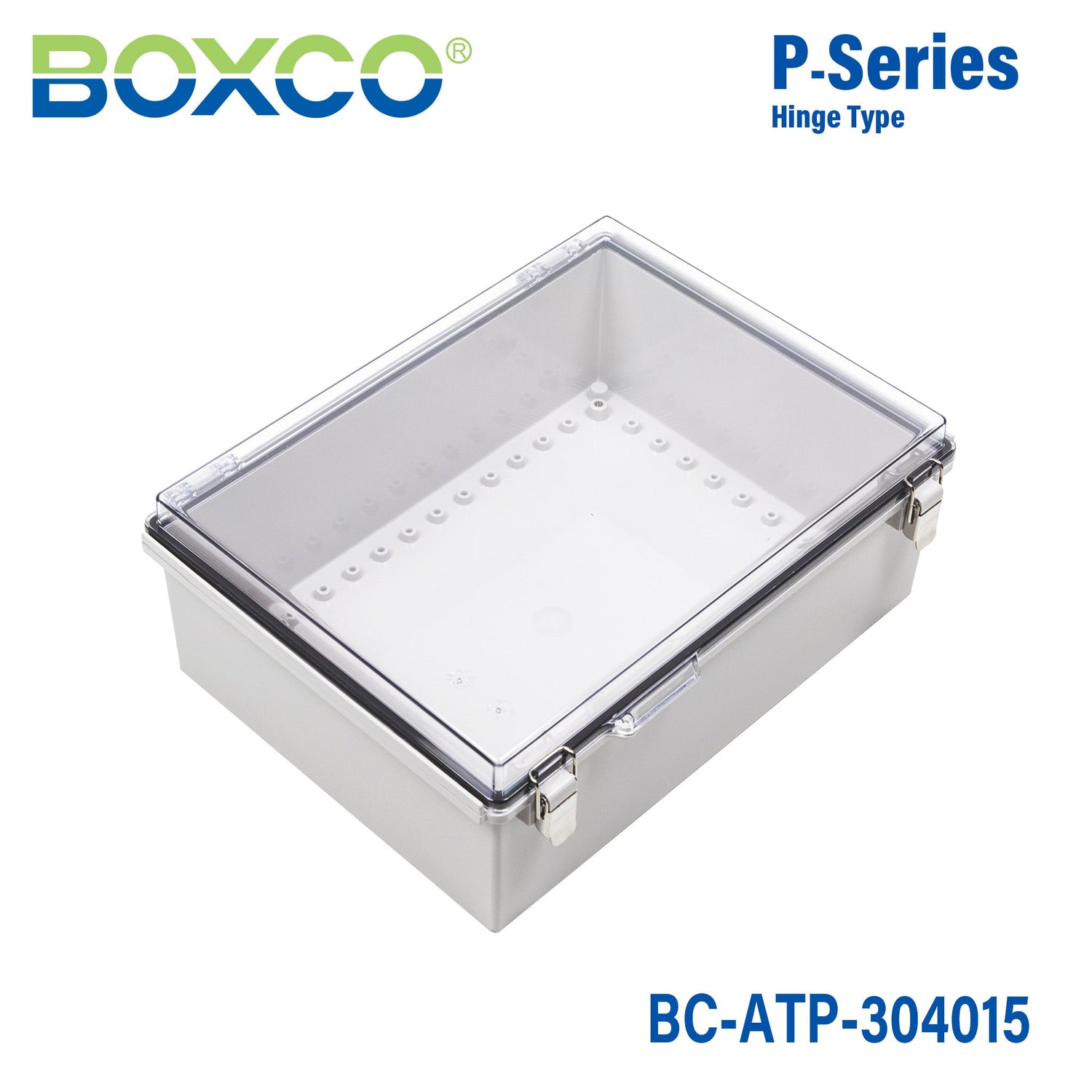

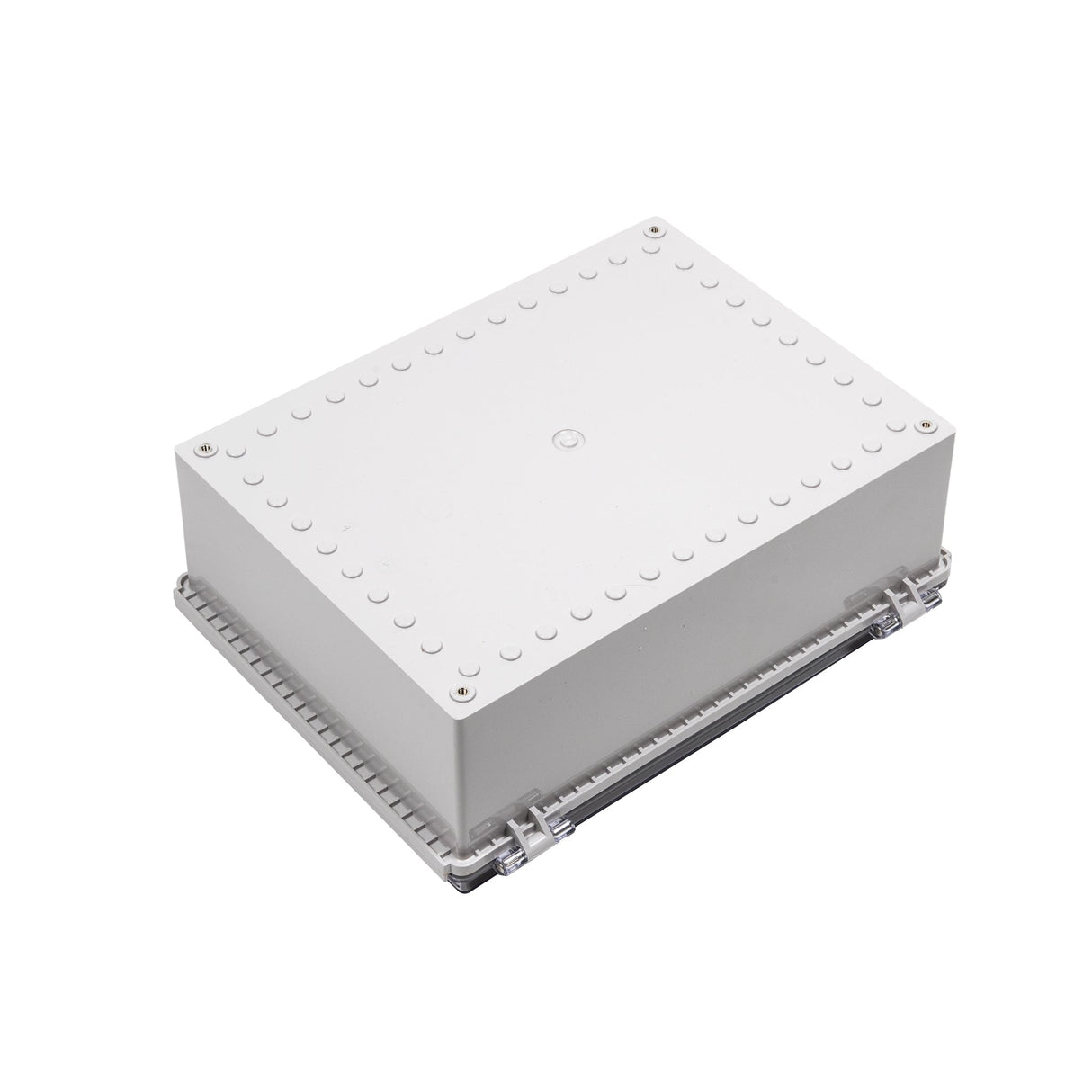

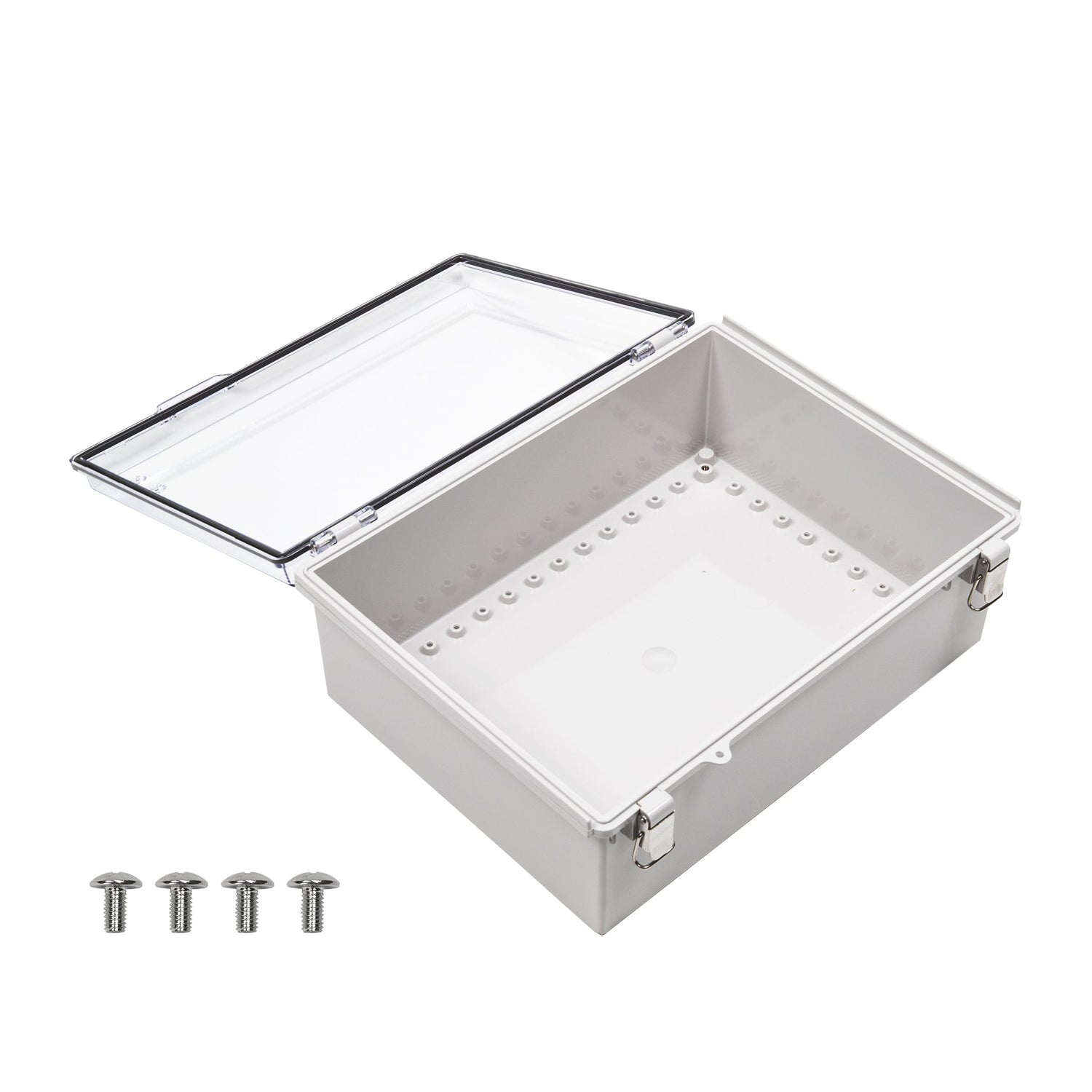

Boxco P-Series 11.81 x 15.75 x 5.91 Inches(300 x 400 x 150mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 11.81 x 15.75 x 5.91 Inches(300 x 400 x 150mm) Plast...
Description
Description
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length11.81 in
-
Width15.75 in
-
Height5.91 in
-
Weight3.7 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco P-Series BC-ATP-304015 enclosure best suited for?
This enclosure is designed for protecting electrical and electronic equipment in industrial and commercial environments where dust, water, and impact resistance matter. Its ABS construction, transparent cover, and molded hinge and latch design make it a practical choice for control, monitoring, and instrumentation housing.
Is this enclosure suitable for outdoor environments?
Yes, this model is built for outdoor-capable use with an ultraviolet stabilizer added to help reduce color change over time. It also includes roof protection features and an IP67 rating to support resistance against water and dust exposure.
What are the key specifications of this enclosure?
The BC-ATP-304015 measures 11.81 x 15.75 x 5.91 inches, which corresponds to 300 x 400 x 150 mm. It is made from ABS, has a transparent cover, carries IP67 and IK08 ratings, operates from -40 C to 70 C, and weighs 1.678 kg.
How does this model help protect equipment in demanding environments?
This enclosure combines IP67 sealing for dust and water resistance with an IK08 impact rating for added durability. Its gasket is robot-injected for waterproof and dust-proof performance, and the enclosure material is described as high impact resistant for demanding use.
What makes this enclosure different from a basic plastic enclosure?
This model includes several upgraded design features beyond a basic box, including a transparent cover, integrated plastic hinge with a stainless steel bearing, stainless steel latch components, and pre-molded mounting screw nuts. It is also built with outdoor-oriented UV stabilization and anti-static material for protection of sensitive instruments.
Can this enclosure support internal mounting hardware or equipment plates?
Yes, the enclosure includes pre-molded mounting screw nuts to help secure DIN rail or other equipment, and it has dedicated attachment points for an internal mounting plate. The mounting plate can be fixed onto brass inserted injection molding to better handle heavier installed equipment.
