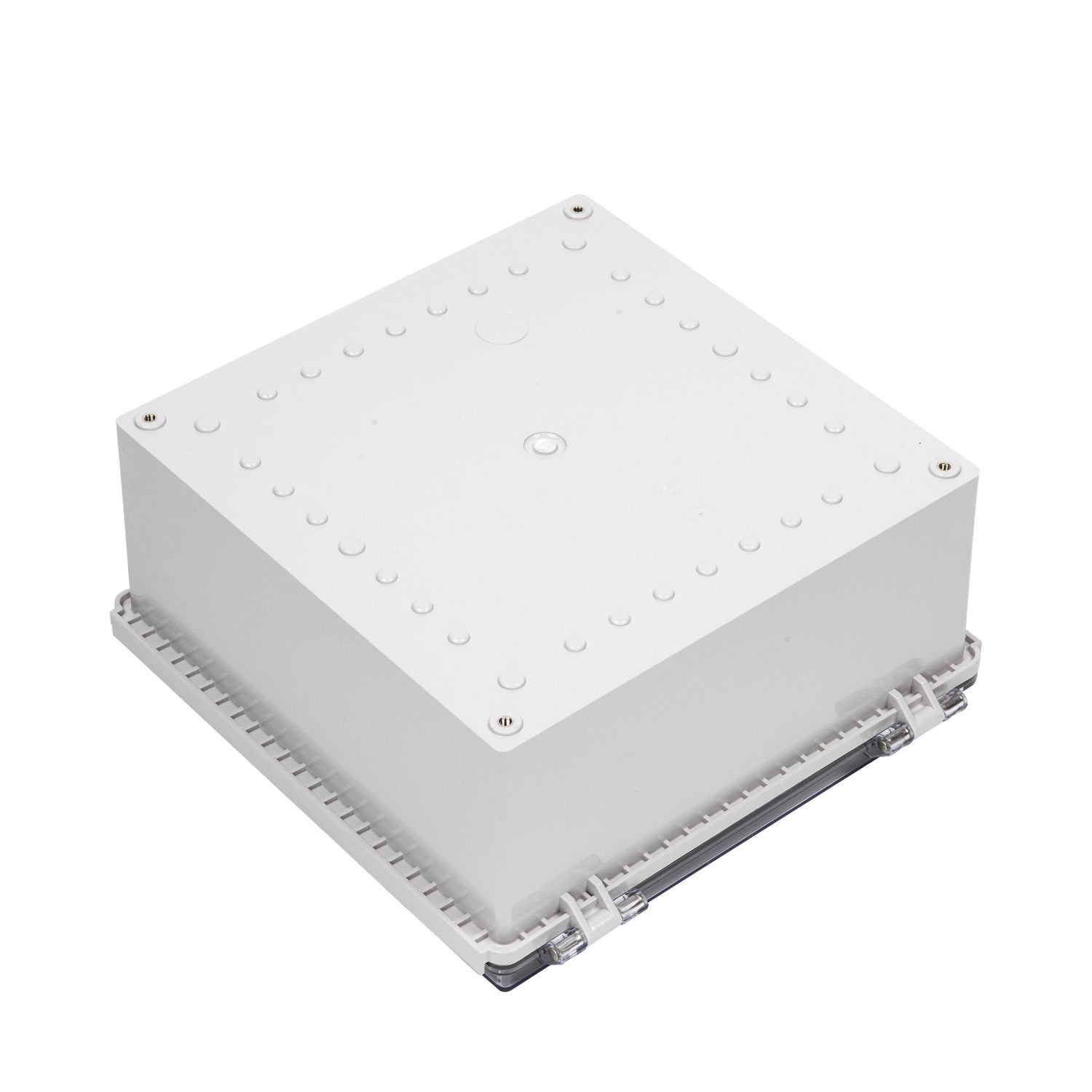

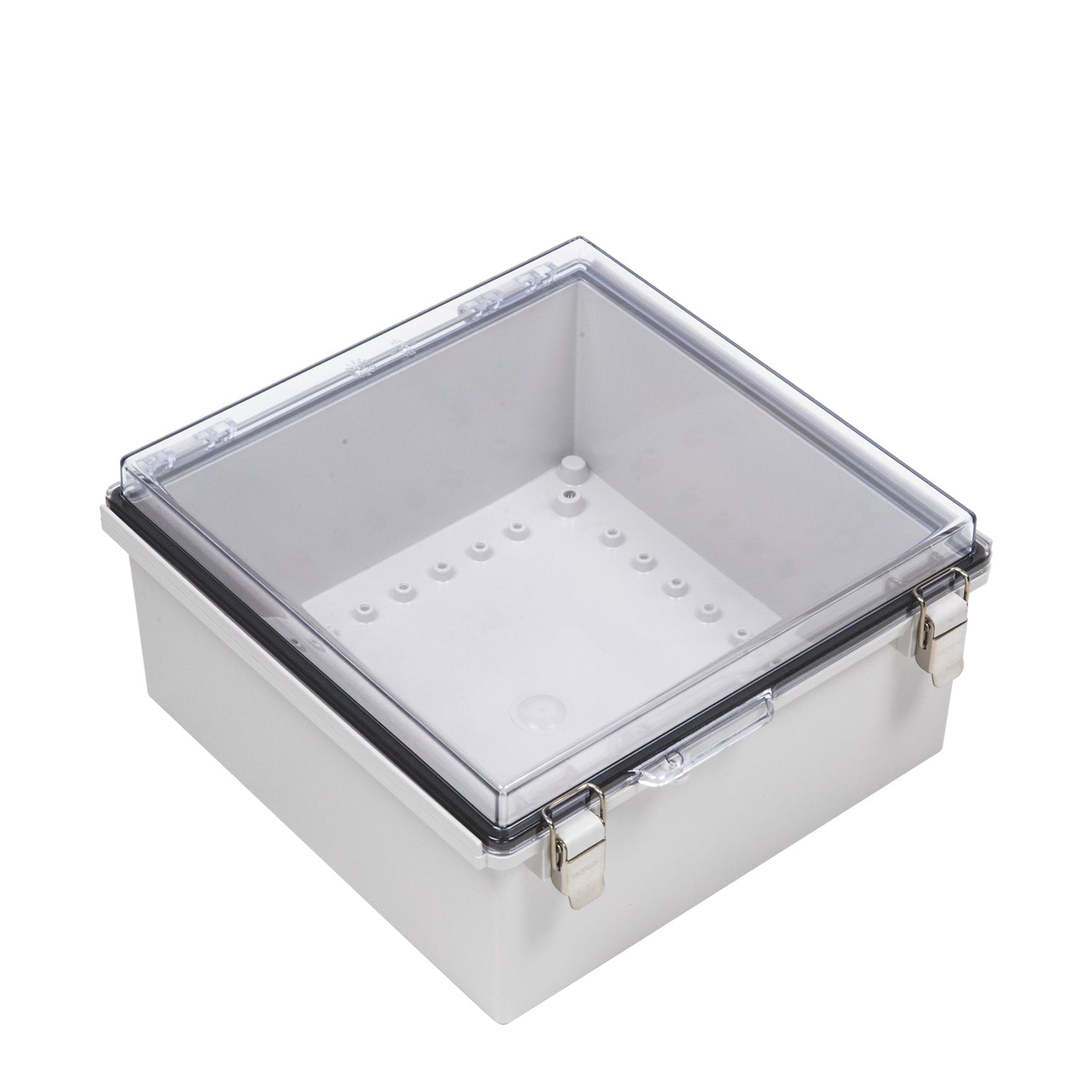

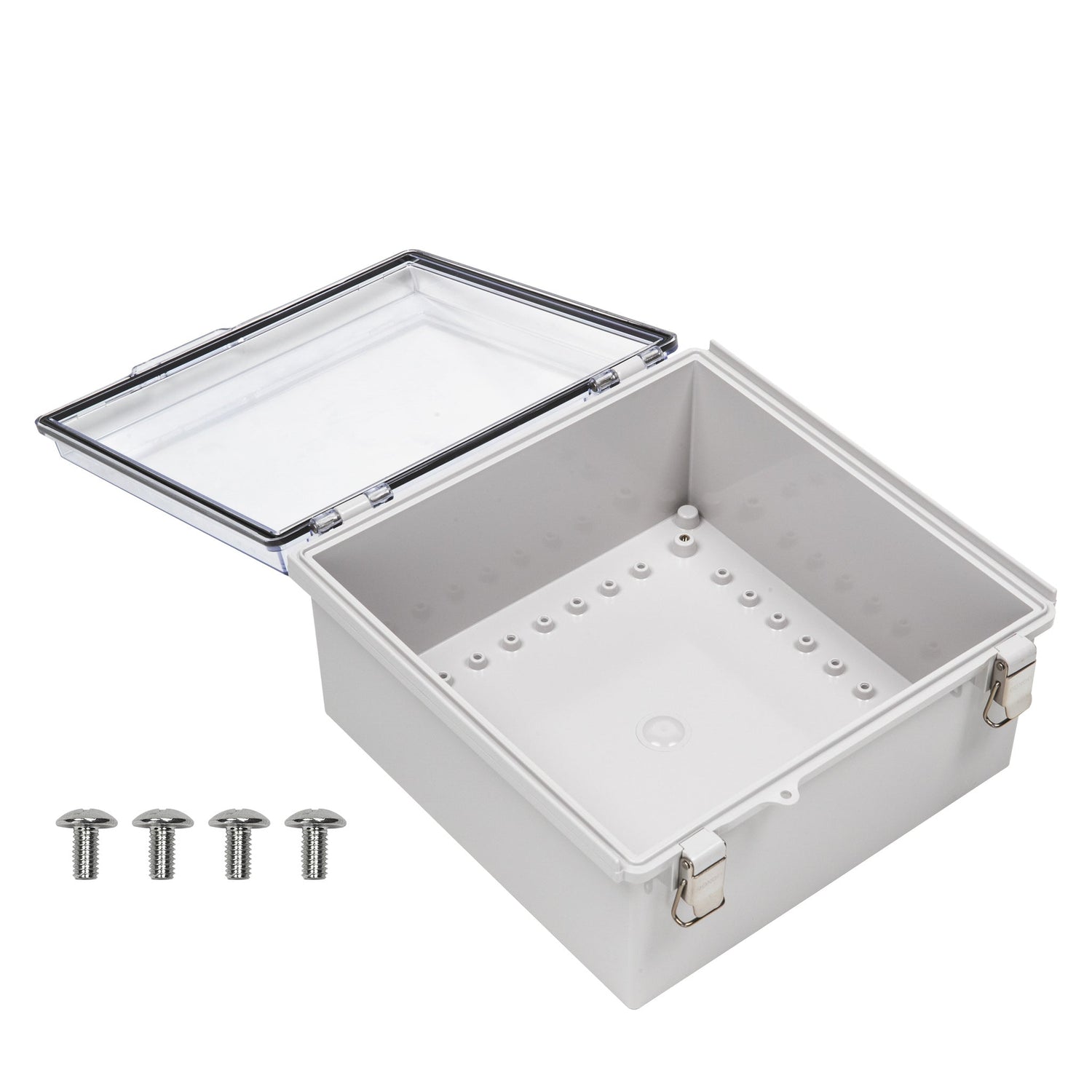

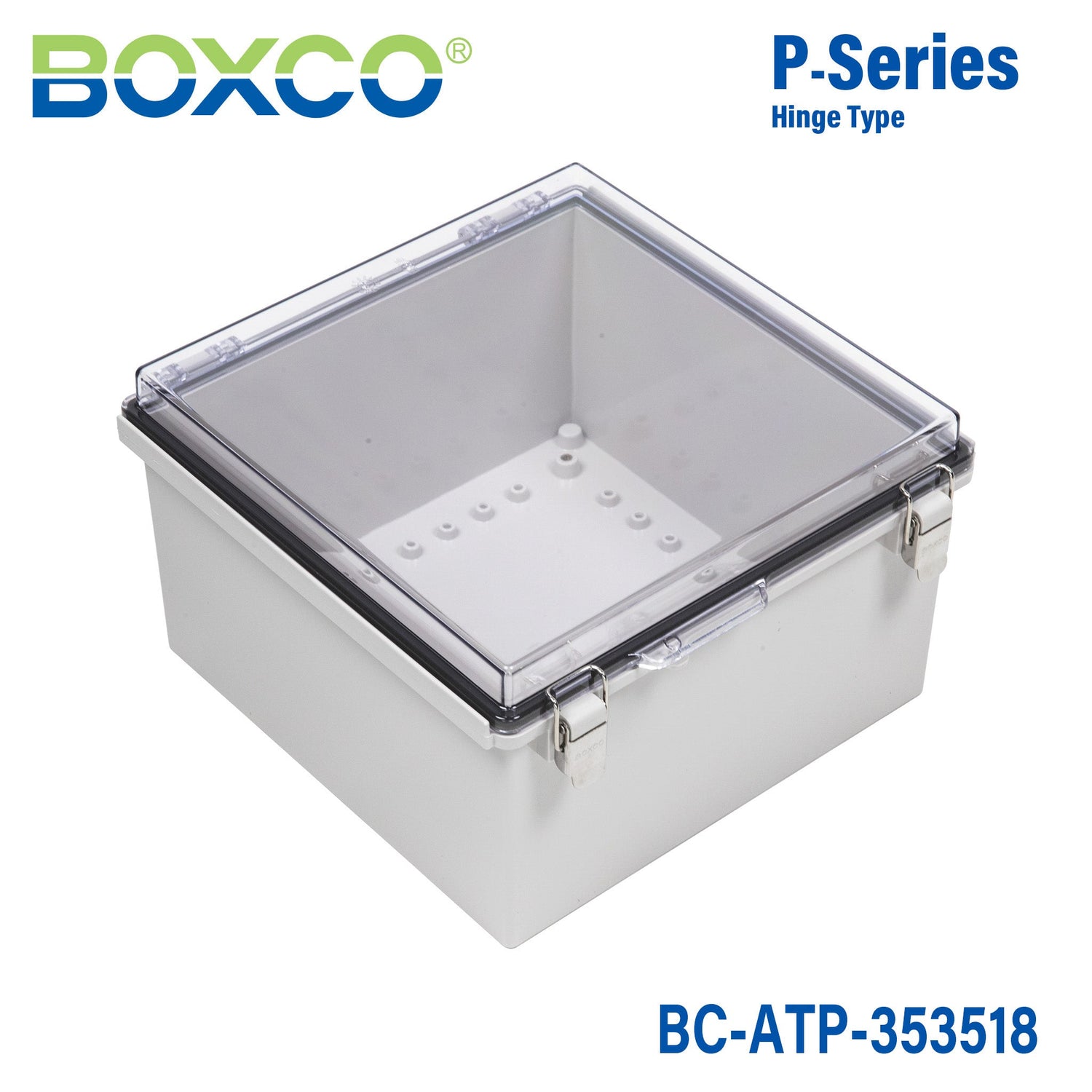

Boxco P-Series 13.78 x 13.78 x 7.09 Inches(350 x 350 x 180mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 13.78 x 13.78 x 7.09 Inches(350 x 350 x 180mm) Plast...
Description
Description
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length13.78 in
-
Width13.78 in
-
Height7.09 in
-
Weight4.09 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is this Boxco P-Series enclosure best suited for?
This enclosure is suited for protecting industrial controls, monitoring devices, and other sensitive electronics that need a durable non-metallic housing. Its ABS construction, transparent cover, and molded hinge-and-latch design make it a practical choice for commercial and industrial environments where equipment needs visibility and strong environmental protection.
What are the exact dimensions of this enclosure?
This model measures 13.78 x 13.78 x 7.09 inches, which corresponds to 350 x 350 x 180 mm. That size provides a relatively large enclosure footprint for housing internal components while maintaining a compact wall- or machine-mountable form factor.
Is this enclosure suitable for outdoor or washdown environments?
This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also notes UV stabilizer material and roof protection features that help support outdoor use and reduce long-term color change.
How impact-resistant is this plastic enclosure?
This enclosure carries an IK08 impact rating, indicating resistance to mechanical impact for demanding environments. It is also described as being made from high impact resistant material to help prevent breakage during processing and general use.
What material is this enclosure made from, and why does that matter?
This model is made from ABS, a durable plastic commonly used where impact resistance and corrosion resistance are important. For this Boxco P-Series version, the material also includes anti-static properties and UV stabilization, which adds value for sensitive electronics and outdoor exposure.
What temperature range can this enclosure handle?
The stated operating temperature range for this model is -40 degrees C to 70 degrees C. That makes it suitable for a wide range of cold and hot industrial or outdoor conditions within that specified range.
Does this enclosure support mounting internal components?
Yes, the enclosure includes pre-molded mounting screw nuts and mounting plate attachment points for securing internal hardware. The description also notes that the internal mounting plate can be fixed tightly to support heavier installed equipment.
What are the cover and latch features on this model?
This version has a transparent cover along with a molded hinge and latch-type closure. The latch uses a stainless steel main part for strength, and the integrated plastic hinge includes a stainless steel bearing to improve service life.
