Boxco P-Series 20.87 x 28.74 x 7.28 Inches(530 x 730 x 185mm) Plastic Enclosure, IP67, IK08, PC, Grey Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 20.87 x 28.74 x 7.28 Inches(530 x 730 x 185mm) Plast...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

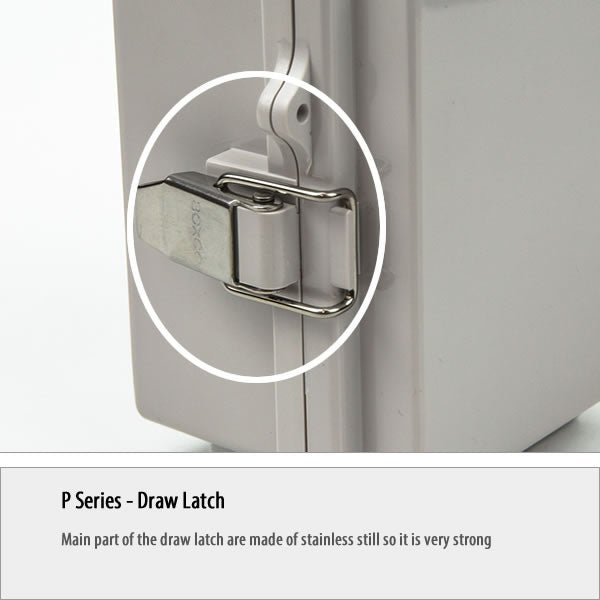

- Latch - Main part of the draw latch is made of stainless steel so it is very strong.

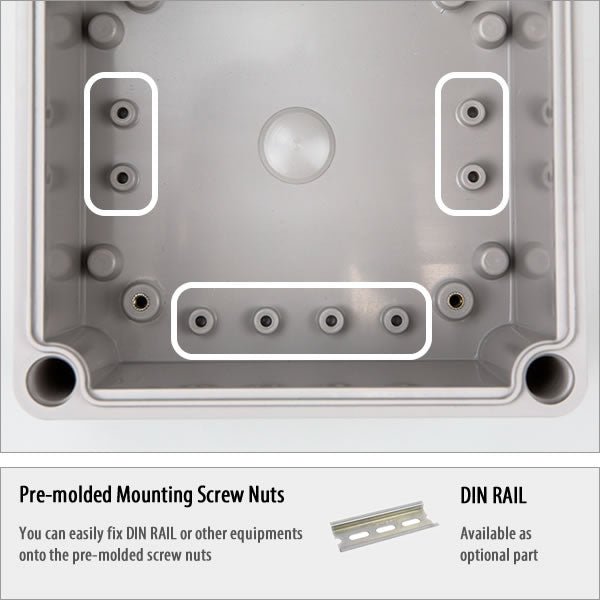

- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

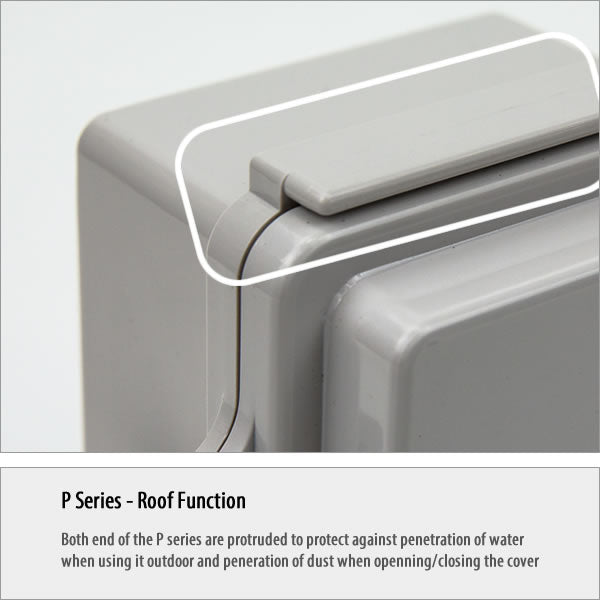

- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover

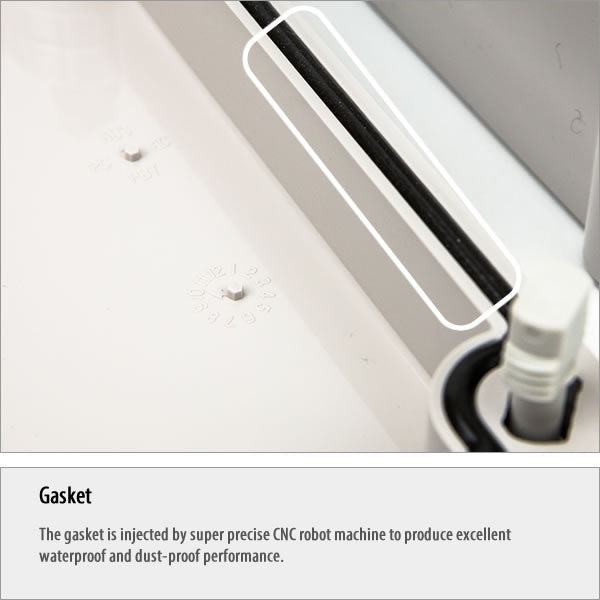

- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

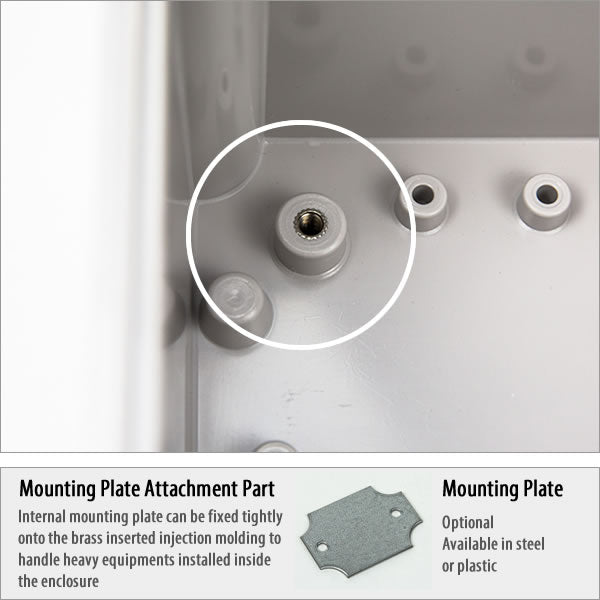

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

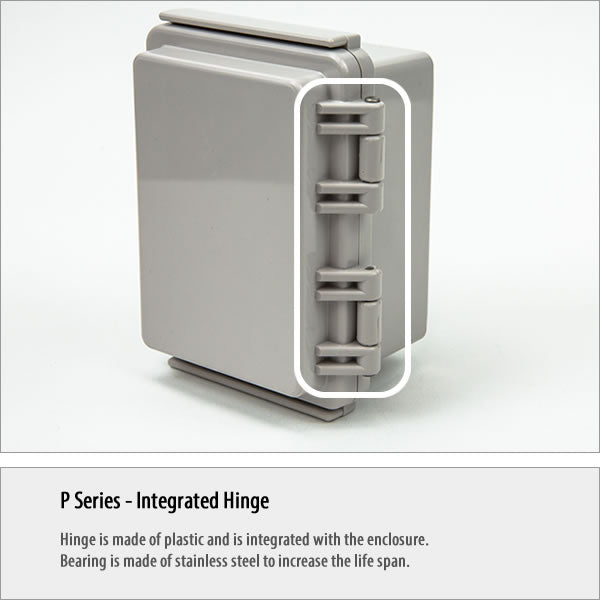

- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length20.87 in
-
Width28.74 in
-
Height7.28 in
-
Weight45.31 lb
::specification::
Frequently Asked Questions
What applications is the Boxco P-Series BC-CGP-507018 enclosure best suited for?
This enclosure is suited to protecting larger electrical or electronic assemblies that need a sealed non-metallic housing. Its molded hinge-and-latch design, large internal volume, and impact-resistant polycarbonate construction make it a practical choice for industrial control, monitoring, and outdoor equipment protection where a durable enclosure is needed.
Is the BC-CGP-507018 suitable for outdoor environments?
Yes. Boxco states that this P-Series enclosure includes an ultraviolet stabilizer for outdoor use, and the design includes roof protection features at both ends to help reduce water and dust penetration during cover operation. With an IP67 rating, it is built for strong resistance to dust ingress and temporary water exposure.
What are the key material and durability characteristics of this enclosure?
This model is made from polycarbonate and is rated IK08 for impact resistance. The product description also notes anti-static material for protecting sensitive instruments from static electricity and high impact resistance to reduce breakage during machining or press processing.
What size is the Boxco BC-CGP-507018 enclosure?
This model measures 20.87 x 28.74 x 7.28 inches, which is 530 x 730 x 185 mm. That larger format gives it more room for equipment layouts that need a deeper and wider plastic enclosure than smaller junction-box styles.
What internal mounting features does this enclosure include?
The enclosure includes pre-molded mounting screw nuts so DIN rail or other equipment can be secured more easily. It also includes mounting plate attachment points with brass-inserted injection molding, which helps support heavier internal equipment more securely.
How does this model differ from a basic plastic enclosure box?
This P-Series model adds several higher-spec features beyond a simple hinged plastic box, including IP67 sealing, IK08 impact resistance, UV-stabilized outdoor material, anti-static properties, and a molded hinge with stainless steel bearing components. It also uses a stainless steel draw-latch main part and a robot-injected gasket for stronger waterproof and dust-proof performance.
What operating temperature range does the BC-CGP-507018 support?
The listed operating temperature range is -40 degrees C to 110 degrees C. That gives this enclosure a broad temperature span for demanding indoor or outdoor environments where equipment housings may be exposed to cold or elevated heat.
