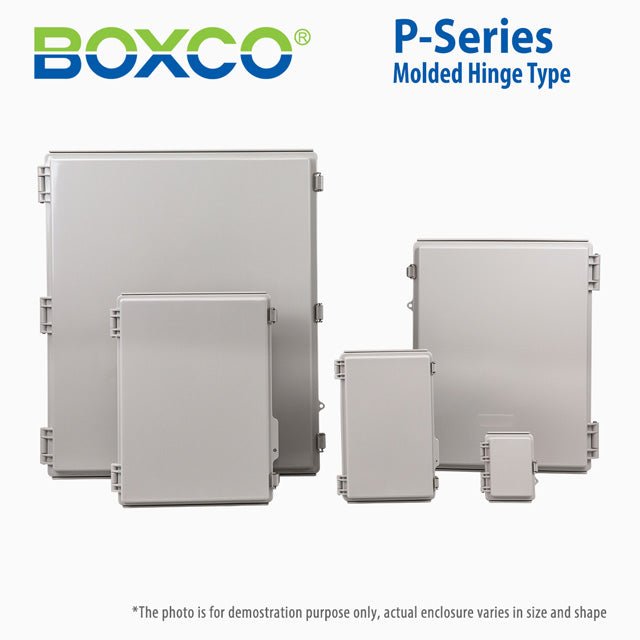

Boxco P-Series 24.80 x 32.68 x 7.28 Inches(630 x 830 x 185mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 24.80 x 32.68 x 7.28 Inches(630 x 830 x 185mm) Plast...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

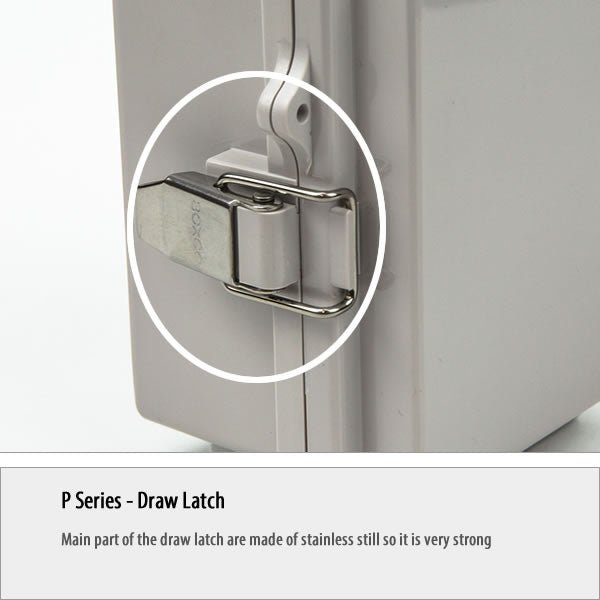

- Latch - Main part of the draw latch is made of stainless steel so it is very strong.

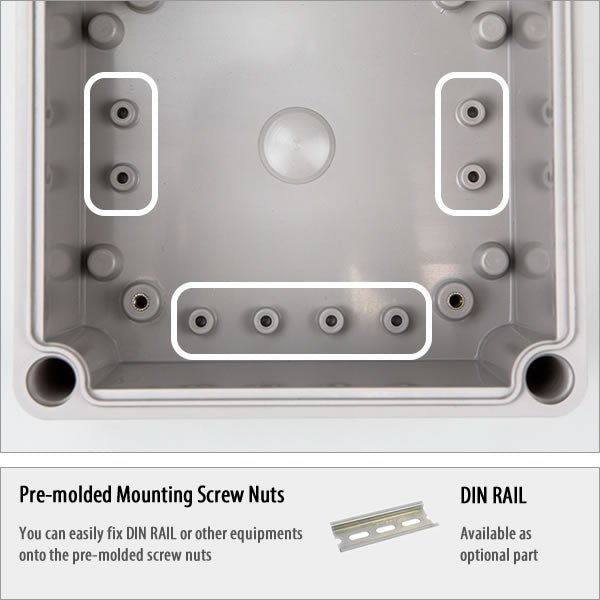

- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

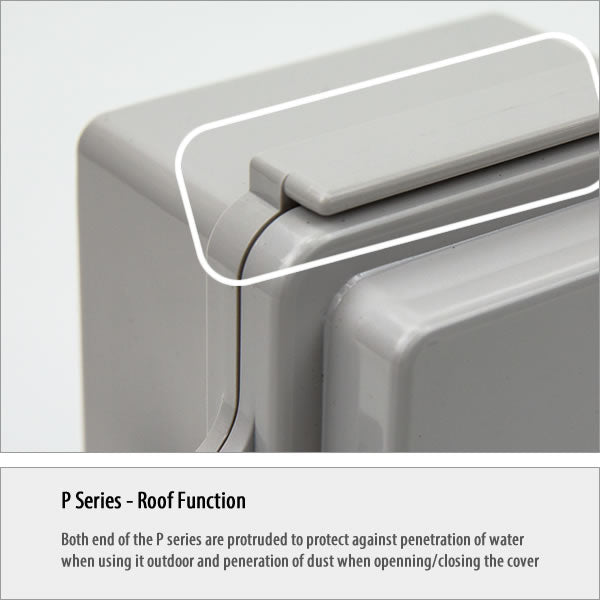

- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover

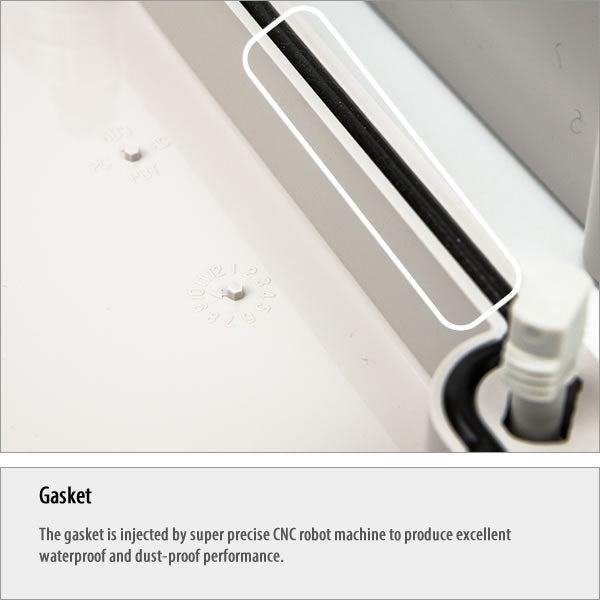

- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

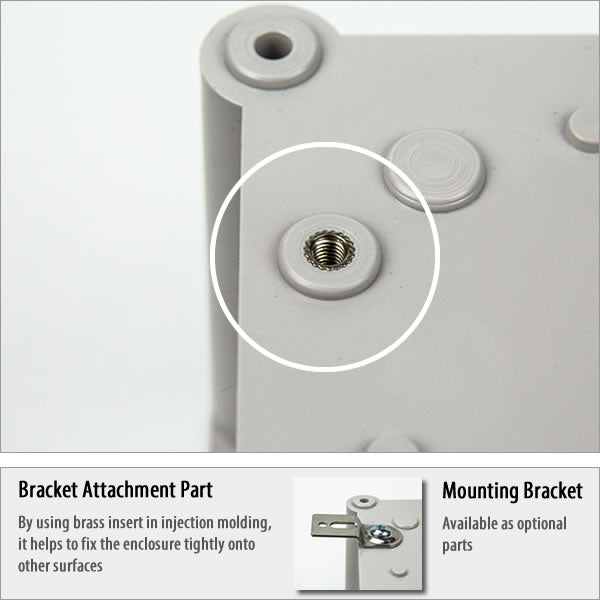

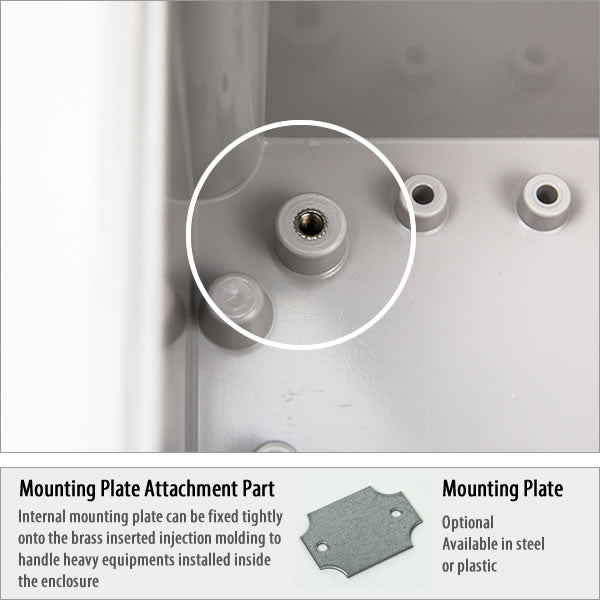

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

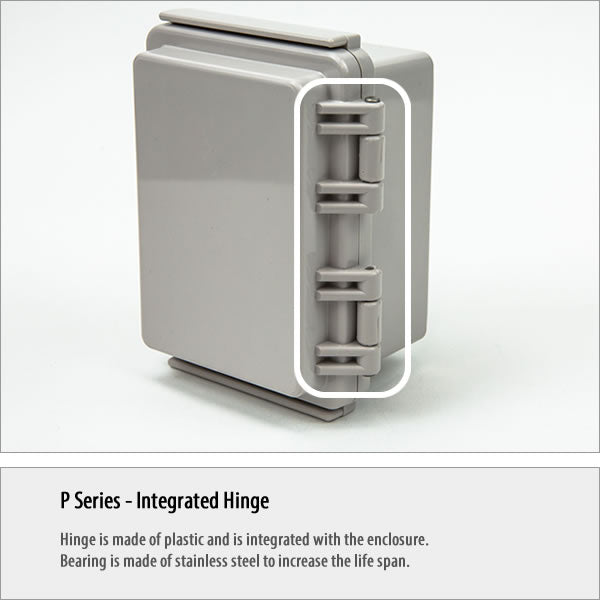

- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length24.8 in
-
Width32.68 in
-
Height7.28 in
-
Weight53.1 lb
::specification::
Frequently Asked Questions
What applications is this Boxco P-Series plastic enclosure best suited for?
This model is suited to protecting larger industrial or commercial control components, instrumentation, and other sensitive electronics that need a sealed non-metallic enclosure. Its large 24.80 x 32.68 x 7.28 inch form factor makes it a better fit for applications that require more internal space than compact junction boxes.
Is this enclosure suitable for outdoor use?
Yes. The product description states that ultraviolet stabilizer is added for outdoor usage, and the enclosure also includes roof protection features designed to help reduce water penetration when used outside. It is rated IP67, which supports strong protection against dust and water ingress.
How durable is this enclosure in demanding environments?
This enclosure is built from high-impact ABS and carries an IK08 impact rating, which indicates good resistance to external mechanical impact. The molded hinge design also uses a stainless steel bearing to improve hinge life over repeated opening and closing.
Does this enclosure help protect sensitive electronic equipment from static electricity?
Yes. The description specifies that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model more suitable for applications where static-sensitive components are housed inside the enclosure.
What are the key specifications of this Boxco P-Series enclosure?
This model measures 24.80 x 32.68 x 7.28 inches (630 x 830 x 185 mm) and weighs 24.084 kg. It has an IP67 ingress rating, an IK08 impact rating, an operating temperature range of -40 to 70 degrees C, and a 1-year warranty.
What makes this model different from a basic plastic enclosure box?
Compared with a basic plastic enclosure, this model adds molded hinge and latch construction, IP67 sealing, IK08 impact resistance, anti-static material, UV stabilization, and pre-molded mounting screw nuts. It is intended for more demanding enclosure applications where durability, environmental protection, and equipment support matter.
