Boxco P-Series 5.31 x 6.10 x 3.35 Inches(135 x 155 x 85mm) Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 5.31 x 6.10 x 3.35 Inches(135 x 155 x 85mm) Plastic ...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

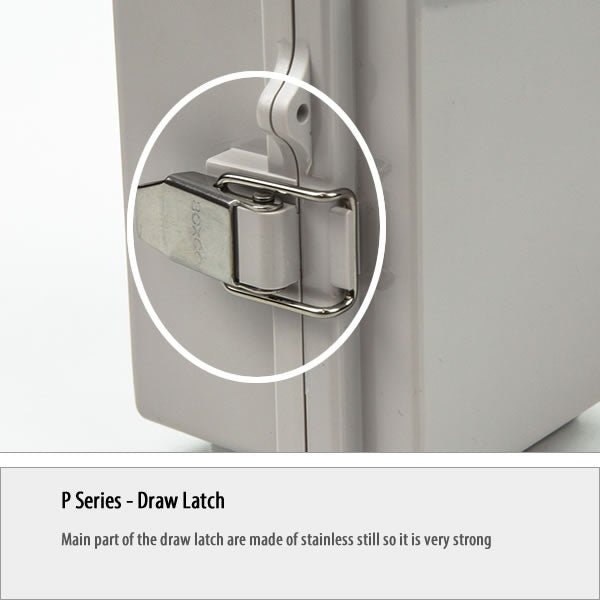

- Latch - Main part of the draw latch is made of stainless steel so it is very strong.

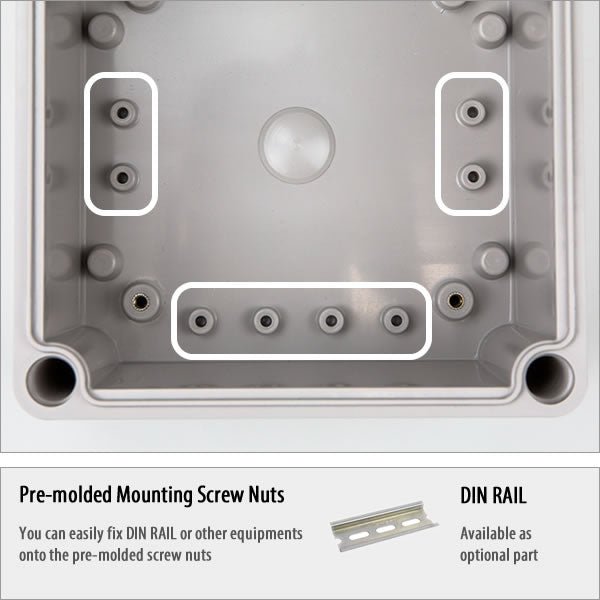

- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

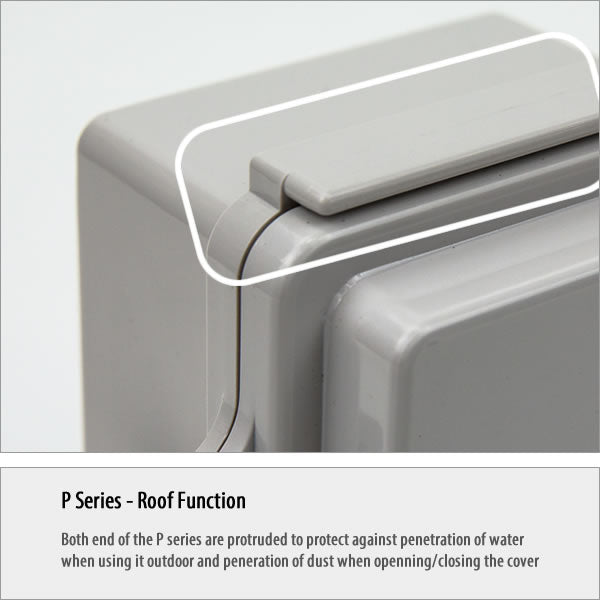

- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover

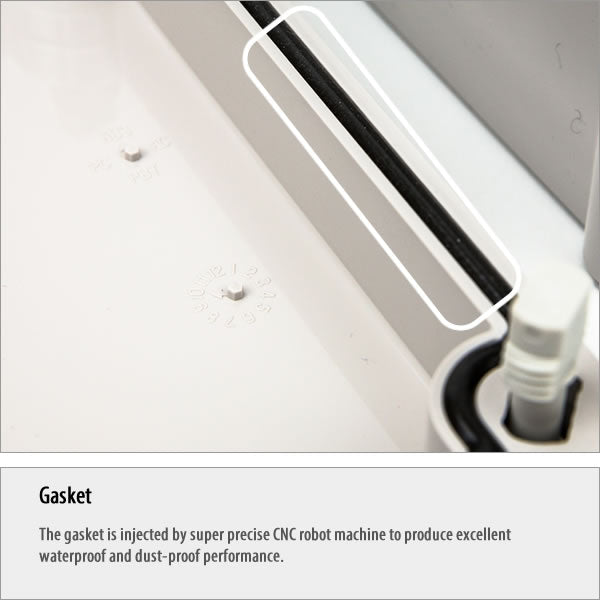

- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

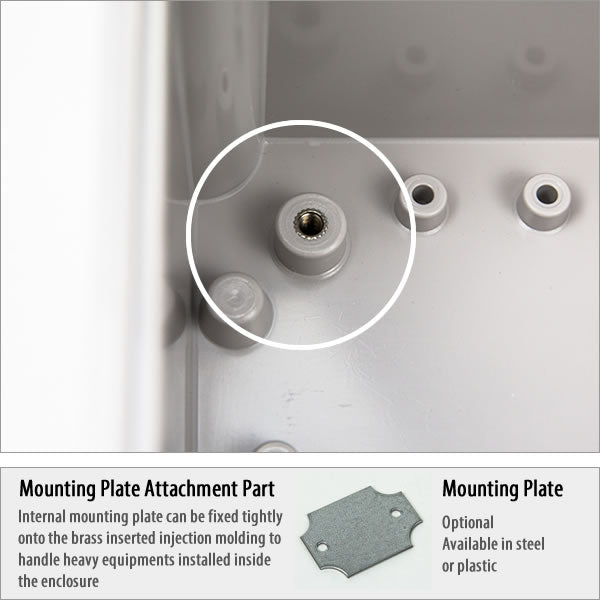

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

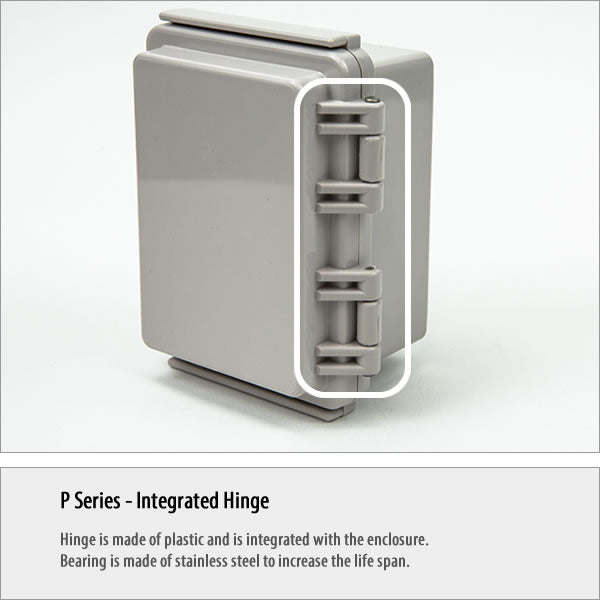

- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length5.32 in
-
Width6.1 in
-
Height3.35 in
-
Weight0.86 lb
::specification::
Frequently Asked Questions
Is this enclosure suitable for outdoor use?
Yes. This Boxco P-Series enclosure includes an ultraviolet stabilizer to help protect it in outdoor environments, and the design includes roof protection features to reduce water and dust intrusion around the cover area. Its IP67 rating also indicates strong protection against dust and temporary water exposure.
What material is this enclosure made from?
This model is made from PC (polycarbonate) and includes a transparent cover. The product description also notes high impact resistant material and an IK08 impact rating, which helps it resist external impact and reduce breakage during processing.
What are the dimensions of this enclosure?
The enclosure measures 5.31 x 6.10 x 3.35 inches, which is 135 x 155 x 85 mm. This makes it a mid-size plastic enclosure for protecting equipment that needs a sealed housing with a transparent cover.
Can this enclosure be used for sensitive electronic equipment?
Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a practical option for applications where electrostatic protection is a consideration.
What temperature range can this enclosure handle?
This model is rated for temperatures from -40 °C to 110 °C. That wide range supports use in both cold and hot operating environments, depending on the overall application requirements.
How does this model differ from a basic plastic enclosure?
This P-Series model combines several protective features in one enclosure, including IP67 sealing, IK08 impact resistance, a transparent polycarbonate cover, and an integrated molded hinge and latch design. It also includes details such as pre-molded mounting screw nuts, gasket sealing, and roof protection for more demanding industrial or outdoor use.
