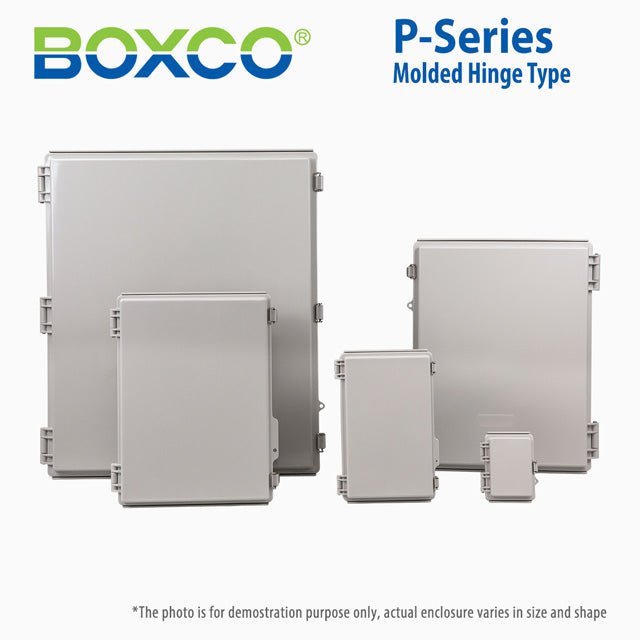

Boxco P-Series 5.91 x 5.91 x 4.72 Inches(150 x 150 x 120mm) Plastic Enclosure, IP67, IK08, PC, Transparent Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 5.91 x 5.91 x 4.72 Inches(150 x 150 x 120mm) Plastic...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

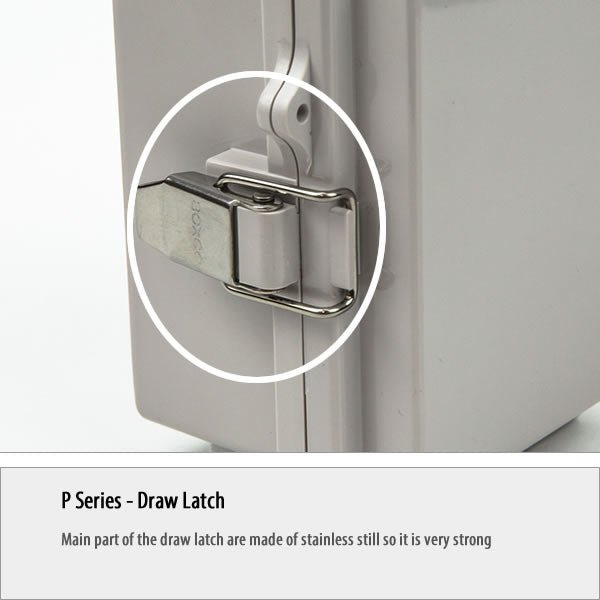

- Latch - Main part of the draw latch is made of stainless steel so it is very strong.

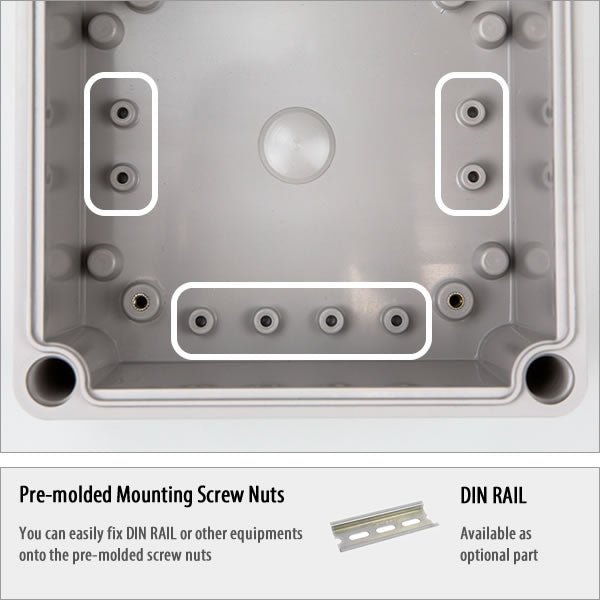

- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

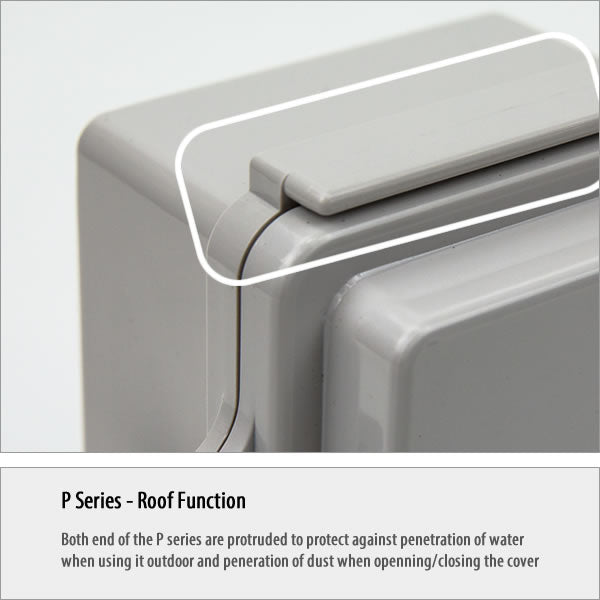

- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover

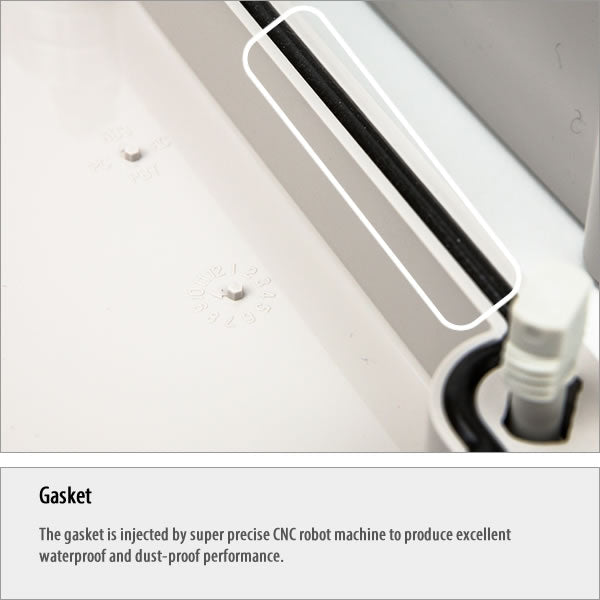

- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

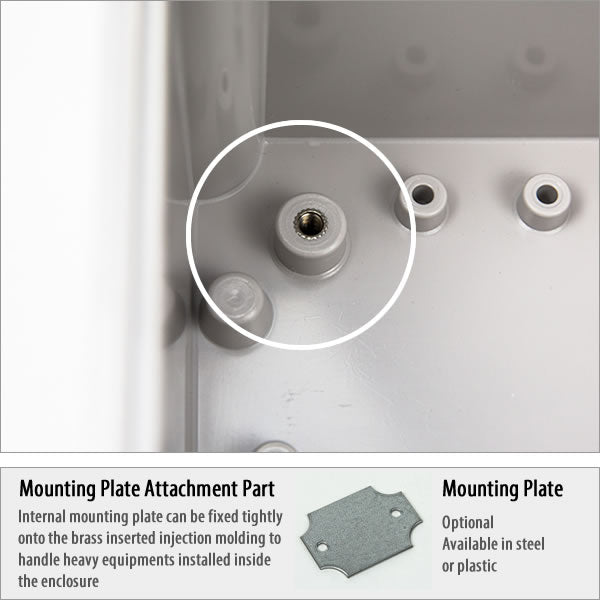

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

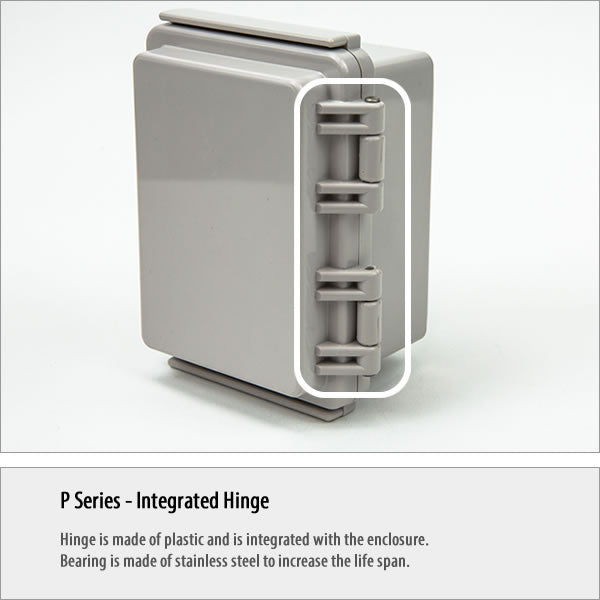

- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length5.91 in
-
Width5.91 in
-
Height4.72 in
-
Weight1.01 lb
::specification::
Frequently Asked Questions
What applications is this Boxco P-Series enclosure best suited for?
This enclosure is suited for protecting sensitive electronic equipment in industrial and outdoor environments where dust, water, and impact resistance matter. Its anti-static material and high-impact polycarbonate construction make it a practical choice for control, monitoring, and instrumentation housings.
Is this enclosure suitable for outdoor use?
Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. Its roof protection design and gasket system are also intended to support strong waterproof and dust-proof performance.
What are the key protection features of this model?
This model is rated IP67 for dust and water ingress protection and IK08 for impact resistance. It also includes a transparent polycarbonate cover, molded hinge and latch design, and a robot-injected gasket to support sealing performance.
What size is this enclosure?
This Boxco P-Series enclosure measures 5.91 x 5.91 x 4.72 inches, which is 150 x 150 x 120 mm. That size makes it suitable when you need a compact but still substantial enclosure for internal equipment protection.
What temperature range can this enclosure handle?
The listed operating temperature range is from -40 °C to 110 °C. That makes this model appropriate for demanding environments with both low-temperature and elevated-temperature exposure.
How does this model differ from a basic plastic enclosure?
Compared with a basic enclosure, this model adds features aimed at durability and long-term field use, including UV stabilization, anti-static material, molded hinge and latch construction, and pre-molded mounting screw nuts. It also includes a transparent cover and an IP67 / IK08 protection profile, which are meaningful differentiators for B2B buyers.
Does this enclosure support internal mounting hardware?
Yes. The product description notes pre-molded mounting screw nuts for securing DIN rail or other equipment, along with attachment points for an internal mounting plate. It is designed to hold internal components more securely, including heavier installed equipment.
