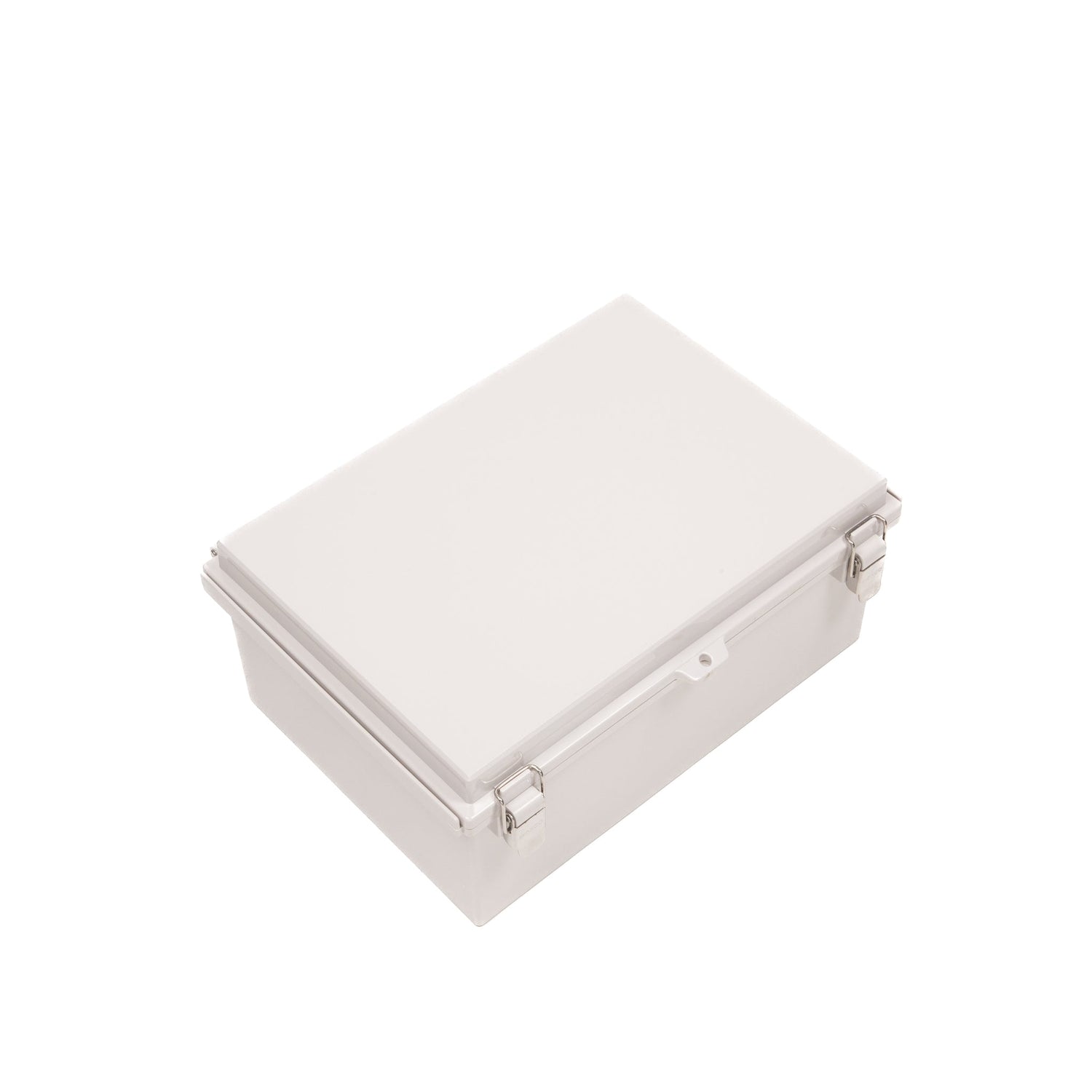

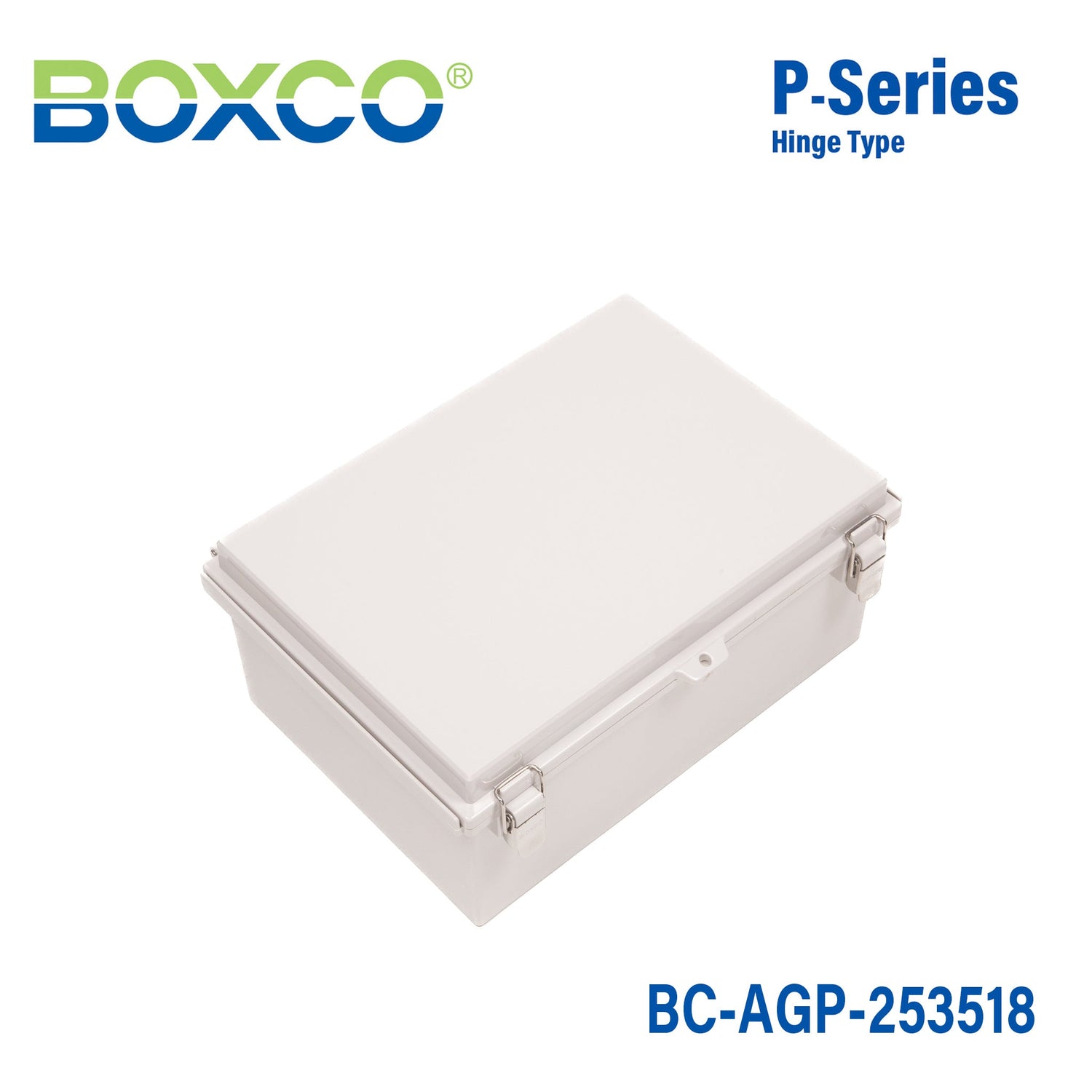

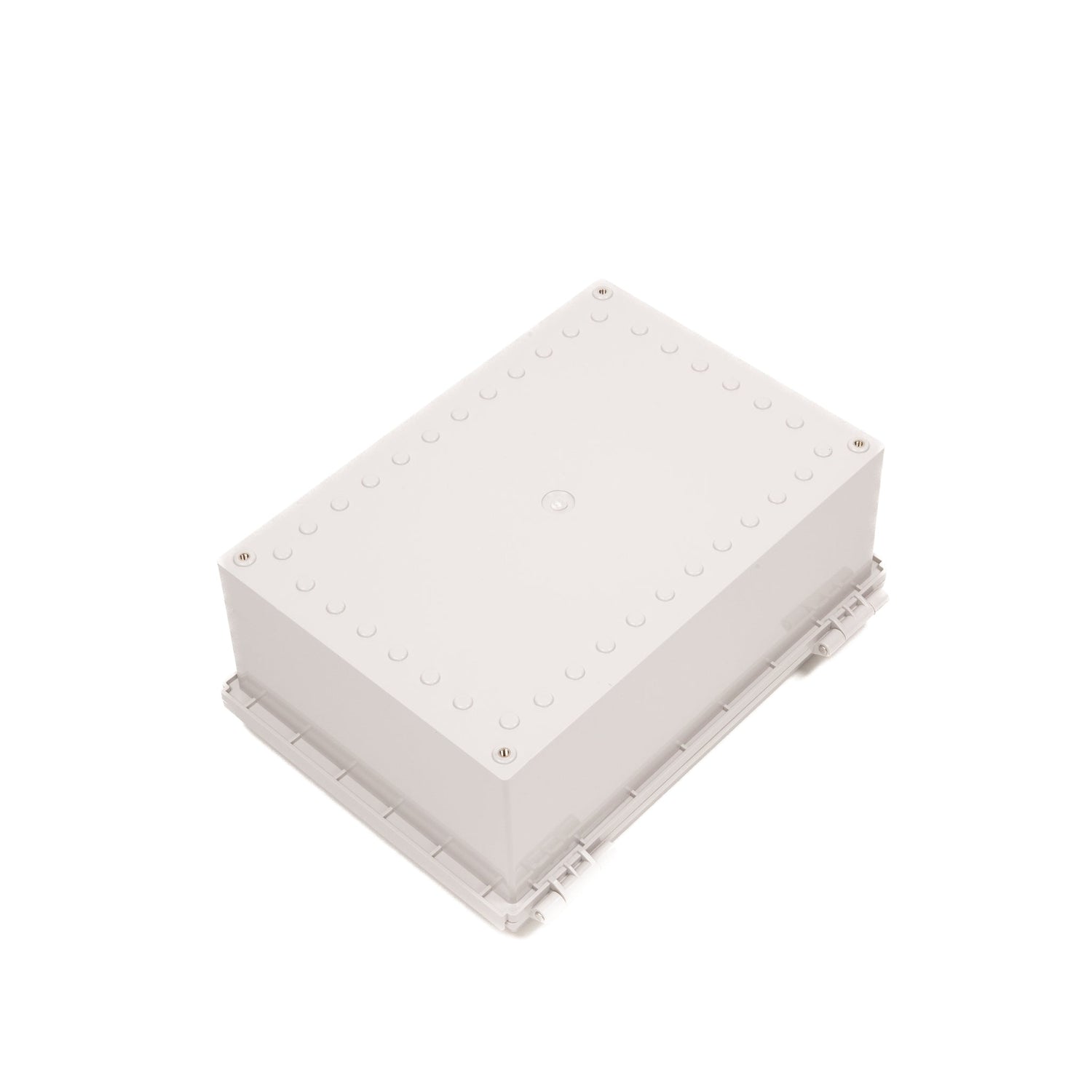

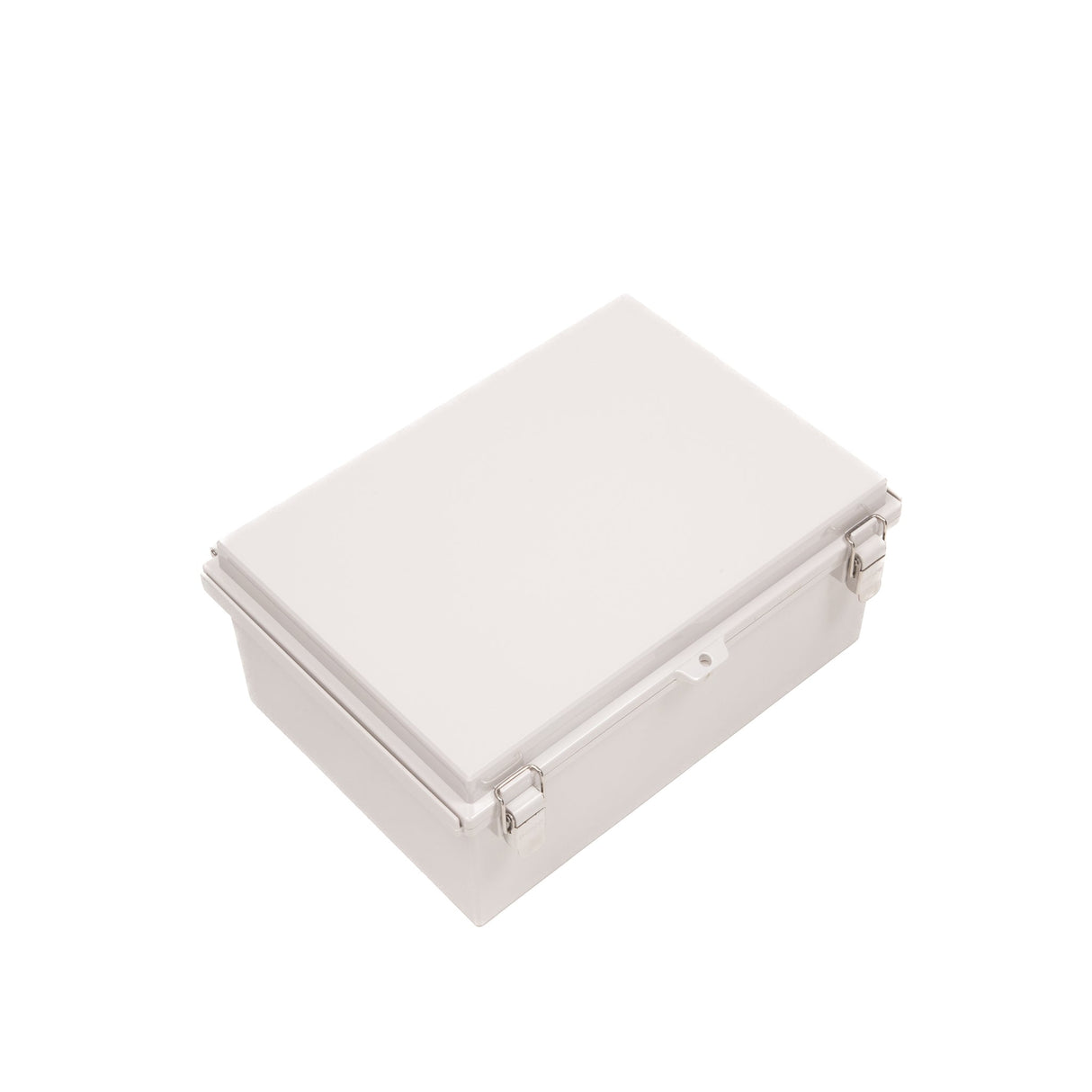

Boxco P-Series 9.84 x 13.78 x 7.09 Inches(250 x 350 x 180mm) Plastic Enclosure, IP67, IK08, ABS, Grey Cover, Molded Hinge and Latch Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco P-Series 9.84 x 13.78 x 7.09 Inches(250 x 350 x 180mm) Plasti...
For Boxco P-Series,Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Latch - Main part of the draw latch is made of stainless steel so it is very strong.
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Roof Protection – Both ends of the P series are protruded to protect against penetration of water when using it outdoor and penetration of dust when opening/closing the cover
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

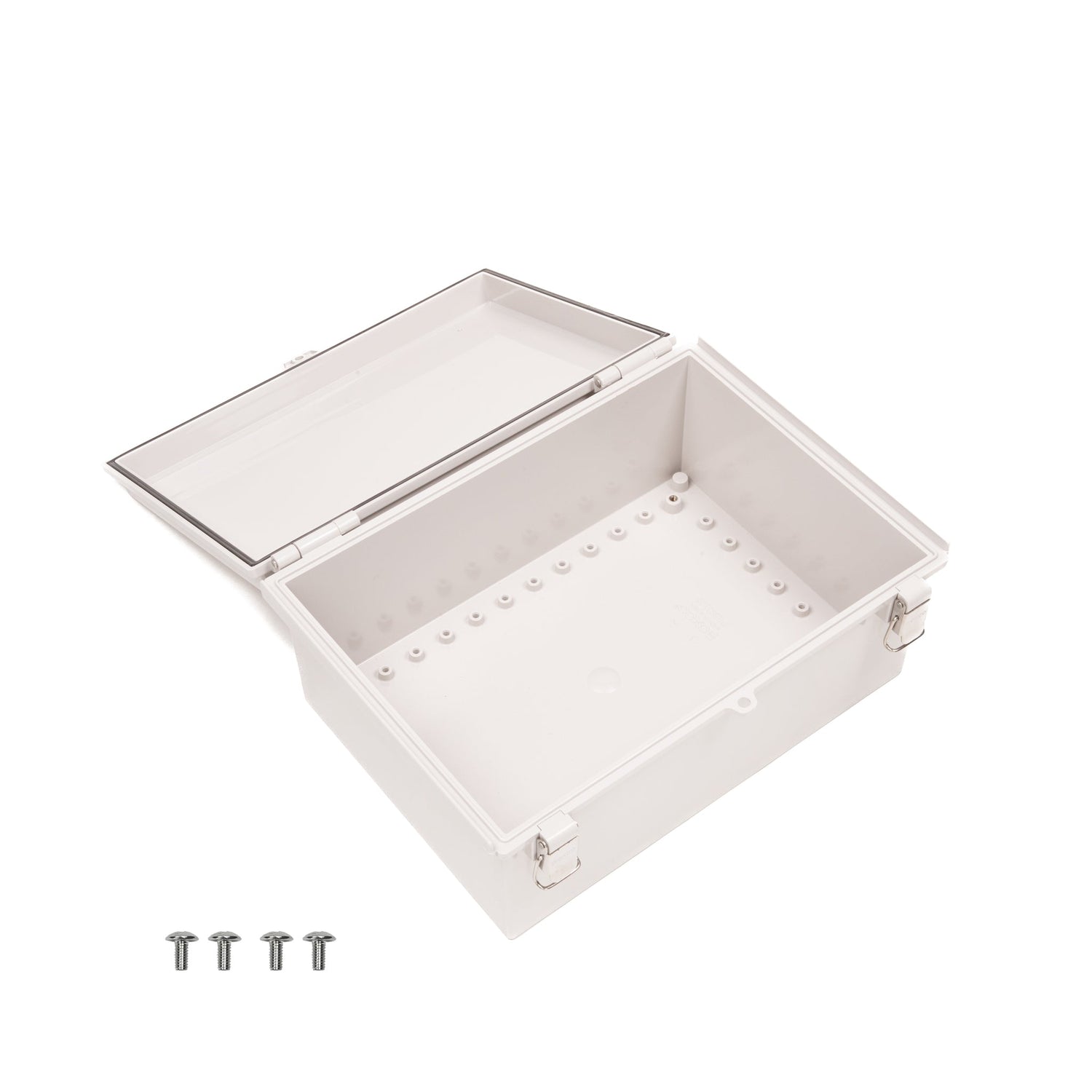

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Integrated Hinge – Hinge is made of plastic and is integrated with the enclosure. Bearing is made of stainless steel to increase the life span.
-
BrandBoxco
-
SeriesBoxco P Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length9.84 in
-
Width13.78 in
-
Height7.09 in
-
Weight3.12 lb
::specification::
Frequently Asked Questions
What applications is the Boxco P-Series BC-AGP-253518 enclosure suited for?
This model is intended for protecting electrical or electronic equipment in industrial and outdoor environments where a sealed plastic enclosure is needed. Its IP67 rating, IK08 impact resistance, UV-stabilized material, and anti-static properties make it a practical choice for control, monitoring, and instrument housing applications.
Is the BC-AGP-253518 suitable for outdoor use?
Yes. Boxco states that ultraviolet stabilizer is added to the P-Series to support outdoor usage and reduce visible color change over time. The enclosure also includes roof protection features and an IP67 rating for strong resistance to water and dust ingress.
What are the key specifications of this enclosure?
The BC-AGP-253518 measures 9.84 x 13.78 x 7.09 inches, or 250 x 350 x 180 mm, and weighs 1.416 kg. It is made from ABS, uses a grey cover, carries IP67 and IK08 ratings, and is specified for operation from -40 degrees C to 70 degrees C.
How does the hinge and latch design help on this model?
This enclosure uses an integrated molded hinge with a stainless steel bearing to improve service life. The latch design uses a stainless steel main part, which Boxco describes as strong and suitable for repeated access to the enclosure.
Can this enclosure support internal mounting hardware or equipment plates?
Yes. Boxco includes pre-molded mounting screw nuts that can be used for DIN rail or other internal equipment mounting, and it also provides mounting plate attachment points with brass inserted injection molding. That design helps the enclosure support heavier internal components more securely than a plain empty box.
Does this model help protect sensitive electronic equipment from static electricity?
Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this enclosure a better fit for applications where static control matters than a standard non-specified plastic box.
What environmental protection features are built into the BC-AGP-253518?
Beyond its IP67 sealing performance, this model includes a robot-injected gasket for waterproof and dust-proof performance and roof protection at both ends to reduce water and dust penetration during outdoor use and cover operation. Its ABS body is also described as high impact resistant to help prevent breakage during processing.
