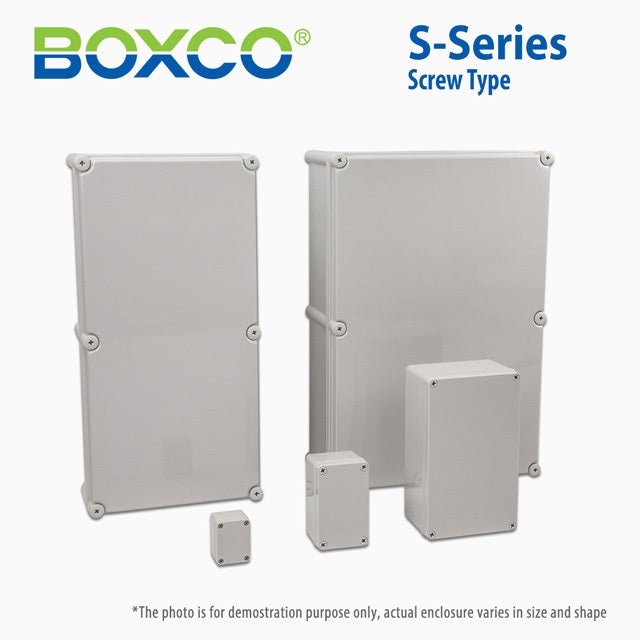

Boxco S-Series 11.02 x 13.39 x 5.12 Inches(280x340x130mm) Plastic E...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

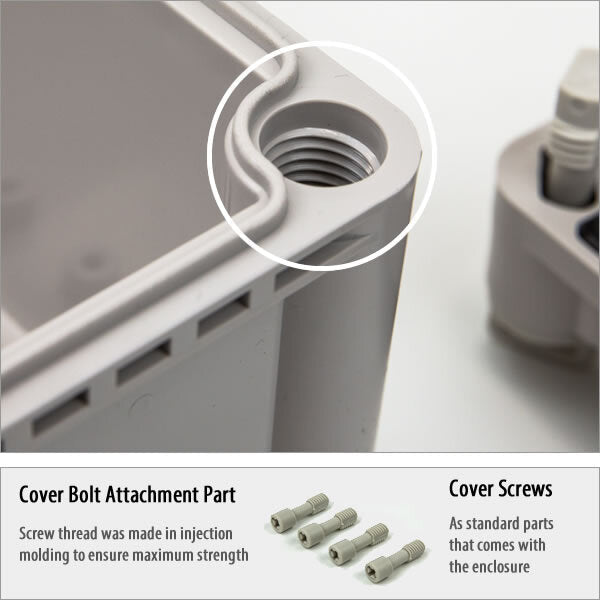

- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length11.02 in
-
Width13.39 in
-
Height5.12 in
-
Weight3.02 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is this Boxco S-Series enclosure used for?
This model is designed to house and protect electrical or electronic equipment in industrial and commercial applications. Its impact-resistant ABS body, sealed construction, and internal mounting features make it suitable for control, monitoring, and protection setups that need a durable non-metallic enclosure.
What are the dimensions of this enclosure?
This Boxco S-Series enclosure measures 11.02 x 13.39 x 5.12 inches, which is 280 x 340 x 130 mm. That size provides a relatively large interior for equipment that needs more room than compact junction-style boxes.
Is this enclosure suitable for outdoor environments?
Yes, this enclosure is intended for outdoor use. The product description states that an ultraviolet stabilizer is added to help reduce color change over long-term exposure, and the IP67-rated sealing helps protect against water and dust.
How durable is this plastic enclosure?
This model is made from high-impact-resistant ABS and carries an IK08 impact rating. It is built to resist external impact and is also described as helping prevent breakage during hole and press processing.
What level of environmental protection does this enclosure provide?
This enclosure is rated IP67, indicating strong protection against dust ingress and temporary water exposure. The product description also notes a precision-injected gasket designed to support waterproof and dust-proof performance.
What mounting or internal equipment support features are included?
The enclosure includes internal mounting plate attachment points with brass-inserted injection molding for securely supporting heavier installed equipment. It also has pre-molded mounting screw nuts that can be used to fix DIN rail or other internal components inside the enclosure.
What temperature range can this enclosure handle?
This Boxco S-Series model is rated for use from -40 °C to 70 °C. That operating range makes it suitable for many industrial and outdoor environments where temperature swings are a concern.
