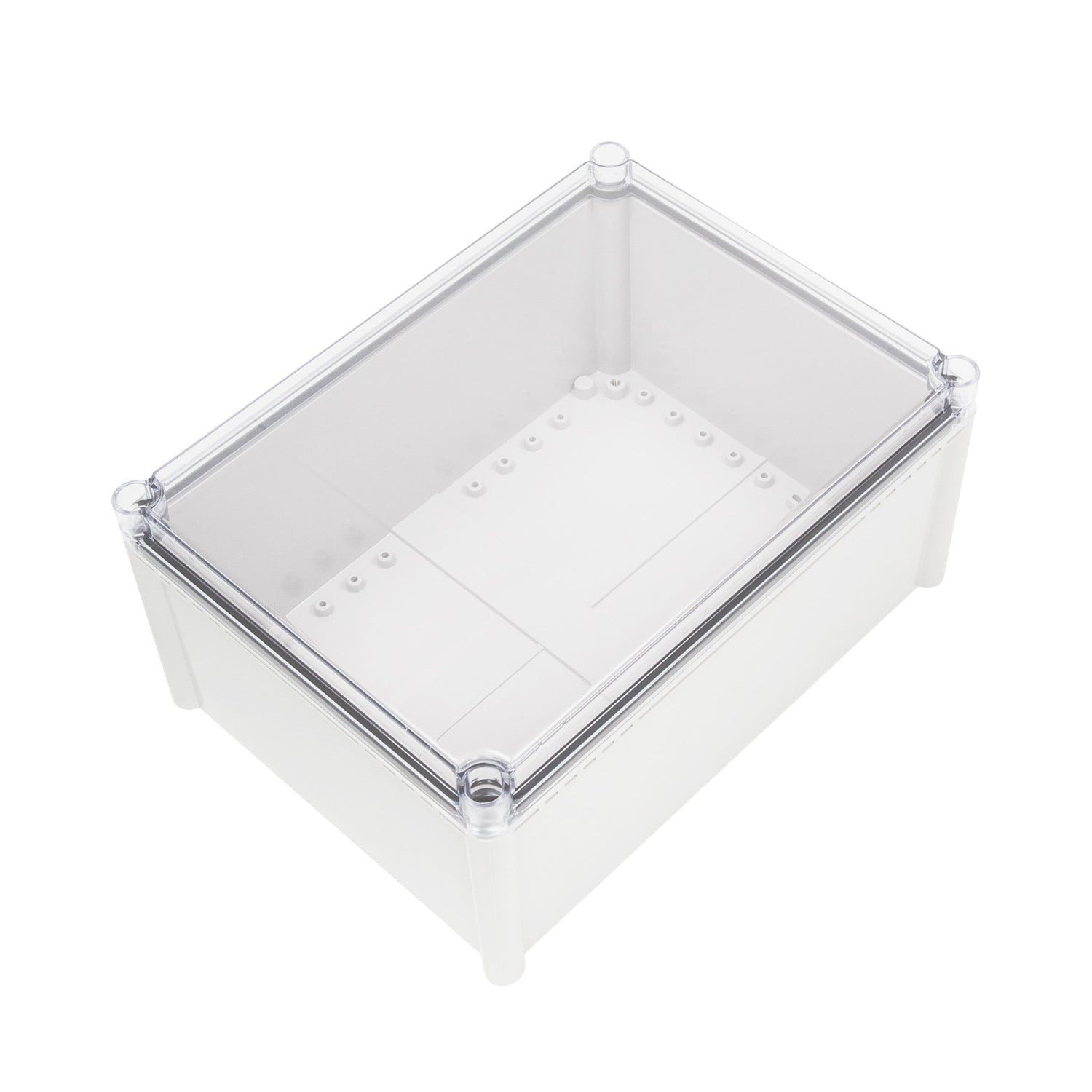

Boxco S-Series 11.02 x 13.39 x 5.12 Inches(280x340x130mm) Plastic E...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length11.02 in
-
Width13.39 in
-
Height5.12 in
-
Weight3.16 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is this Boxco S-Series enclosure suited for?
This enclosure is designed for protecting industrial and commercial equipment that needs a durable sealed housing. Its ABS construction, transparent cover, and internal mounting features make it a practical choice for control, monitoring, and instrumentation enclosures where components need to remain visible without opening the lid.
Is this enclosure suitable for outdoor or harsh environments?
Yes, this model is built for demanding environments with an IP67 rating for dust-tight and water-resistant protection and an IK08 impact rating for mechanical durability. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods.
What are the main material and construction features of this enclosure?
This model is made from ABS and includes a transparent cover with a screw-type closure. The S-Series design also includes a gasket for waterproof and dust-proof performance, molded cover bolt attachment points for strength, and pre-molded screw nuts for mounting internal hardware.
What size is this enclosure?
This enclosure measures 11.02 x 13.39 x 5.12 inches, which is also listed as 280 x 340 x 130 mm. That size makes it a larger enclosure option for applications that need more internal room for mounted equipment and accessories.
What internal mounting compatibility features does this enclosure include?
This model includes mounting plate attachment points and pre-molded mounting screw nuts. According to the product description, those features help support internal mounting plates as well as DIN rail or similar equipment inside the enclosure.
What temperature range can this enclosure handle?
This enclosure is rated for use from -40 degrees C to 70 degrees C. That operating range supports use in both cold and hot industrial environments, provided the full application stays within the product's stated limits.
What distinguishes this model from a basic plastic enclosure box?
This specific model combines ABS construction, a transparent screw-type cover, IP67 sealing, IK08 impact resistance, and UV-stabilized outdoor suitability in one enclosure. It also includes molded internal mounting features that support heavier installed equipment more effectively than a basic empty box.
