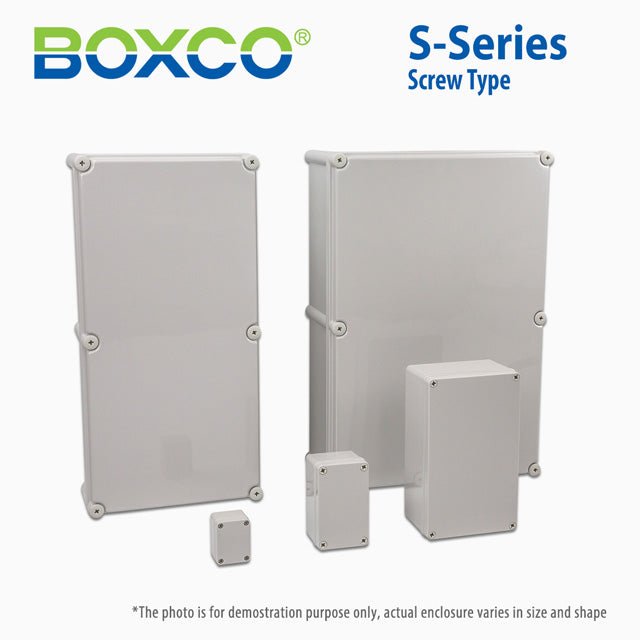

Boxco S-Series 11.02 x 13.39 x 5.12 Inches(280x340x130mm) Plastic E...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

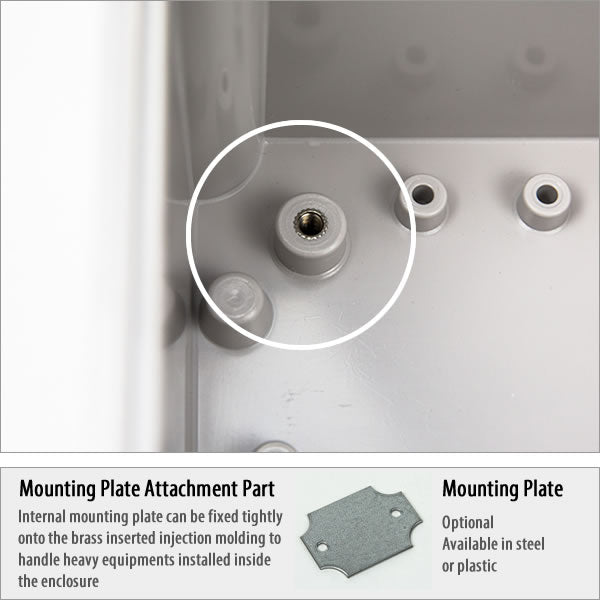

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure

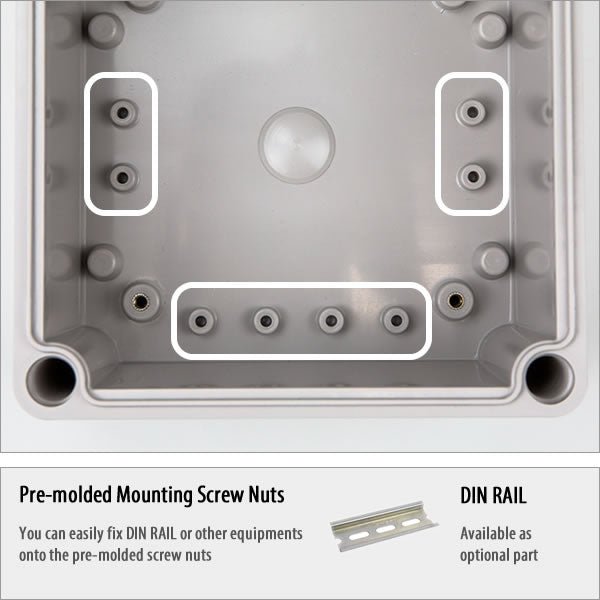

- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts

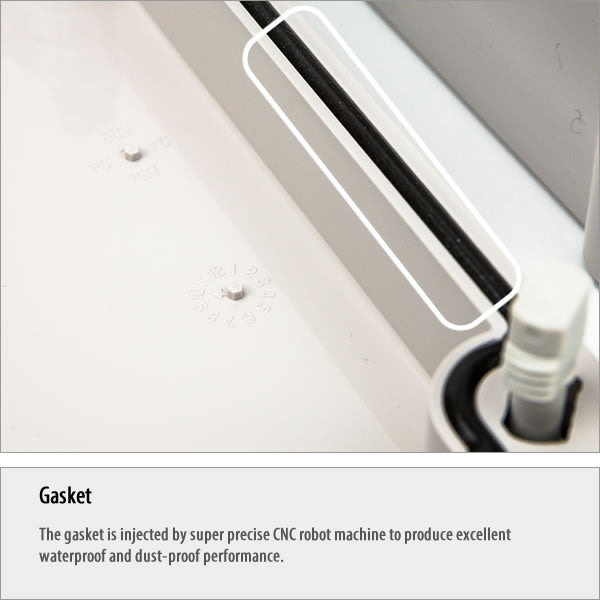

- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance

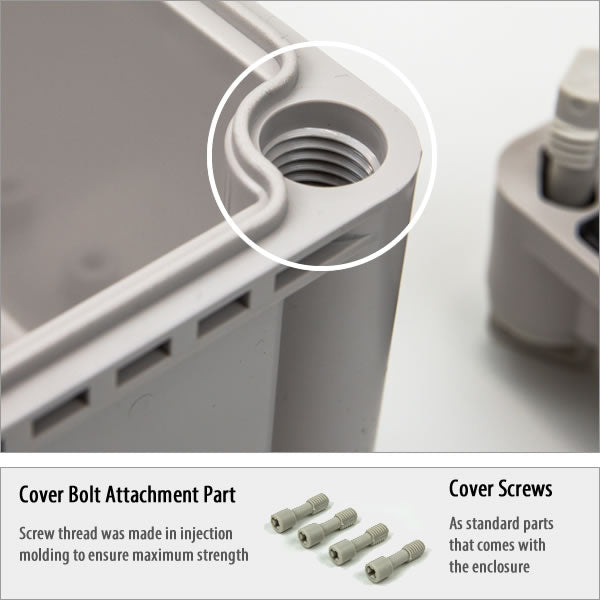

- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length11.02 in
-
Width13.39 in
-
Height5.12 in
-
Weight8.02 lb
::specification::
Frequently Asked Questions
Is this Boxco S-Series enclosure suitable for outdoor use?
Yes. This model uses ultraviolet stabilizer material to help protect the enclosure in outdoor environments and reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and water ingress when the enclosure is properly closed.
What are the dimensions of this enclosure?
This enclosure measures 11.02 x 13.39 x 5.12 inches, which is 280 x 340 x 130 mm. That size makes it a larger plastic enclosure intended for equipment that needs more internal space than compact junction-style boxes.
Can this enclosure be used for sensitive electronic equipment?
Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. The polycarbonate construction is also designed for high impact resistance, which helps protect equipment in demanding environments.
How durable is this enclosure in industrial environments?
This model is rated IP67 for dust and water resistance and IK08 for impact resistance. It is also made from high impact resistant polycarbonate, and the screw threads are formed in injection molding to improve cover strength.
What internal mounting options does this enclosure support?
This enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. According to the product details, those features are intended to help secure internal mounting plates, DIN rail, and other equipment inside the enclosure.
What temperature range is this enclosure rated for?
This model is specified for use from -40 C to 110 C. That wide temperature range makes it better suited to demanding indoor or outdoor applications than enclosures with narrower operating limits.
