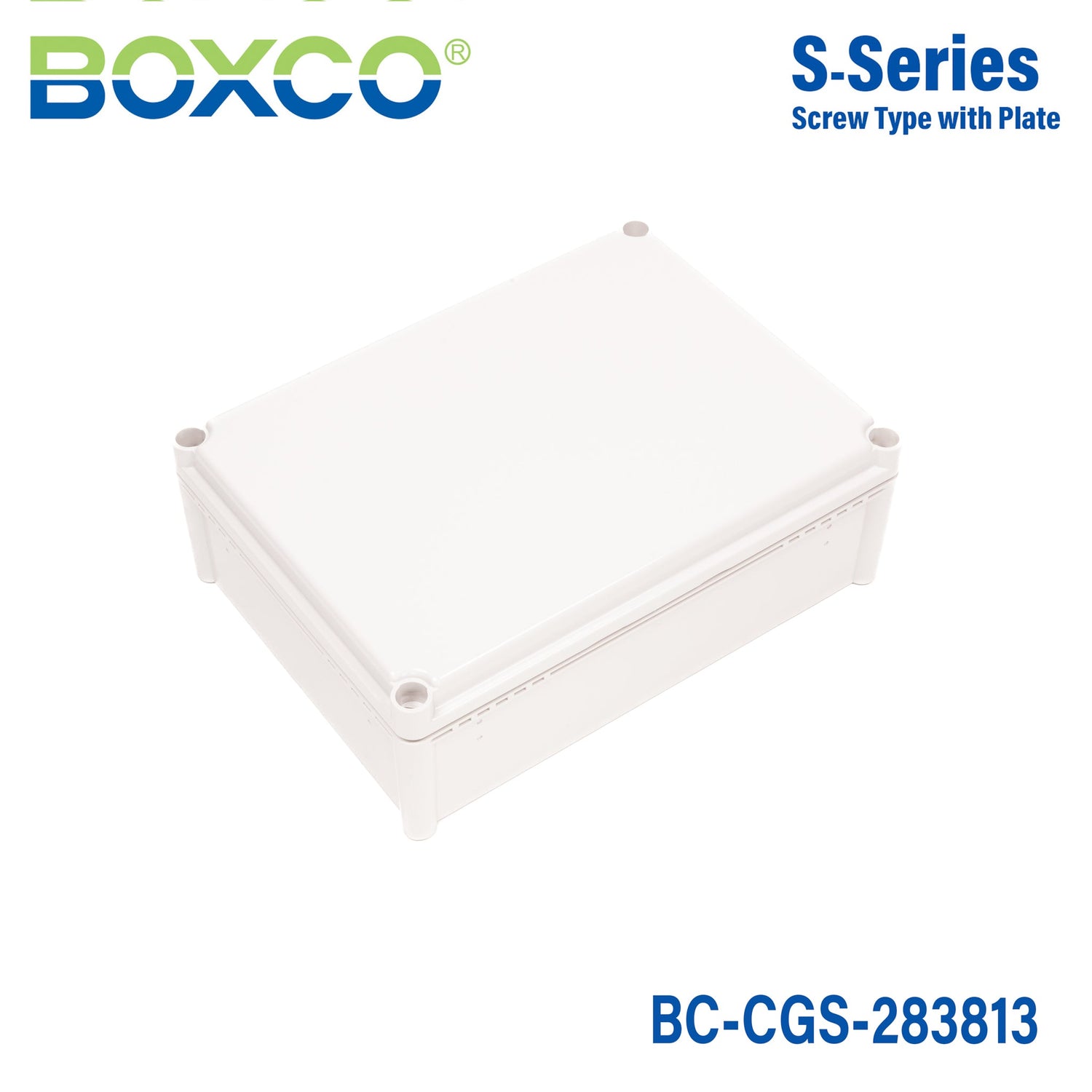

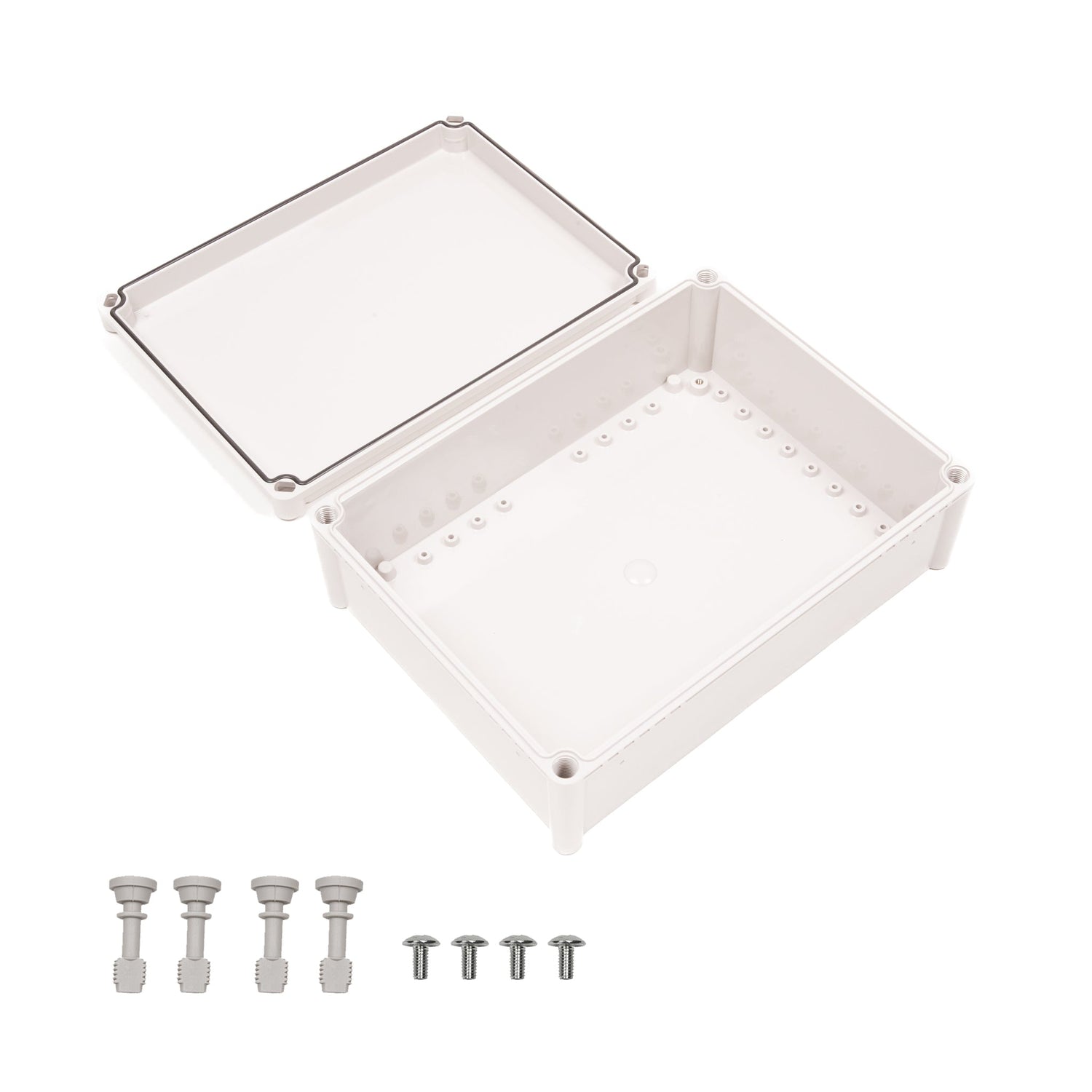

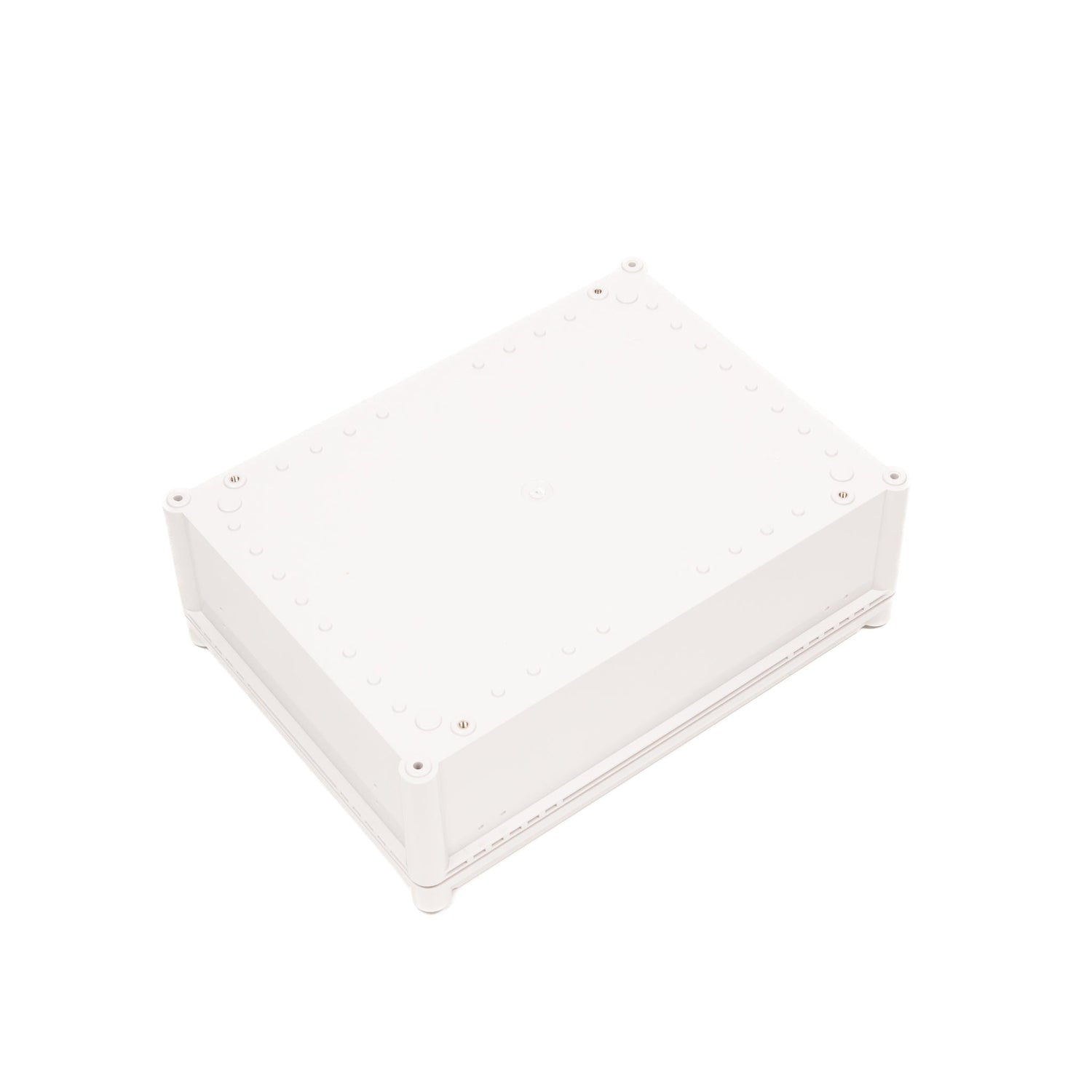

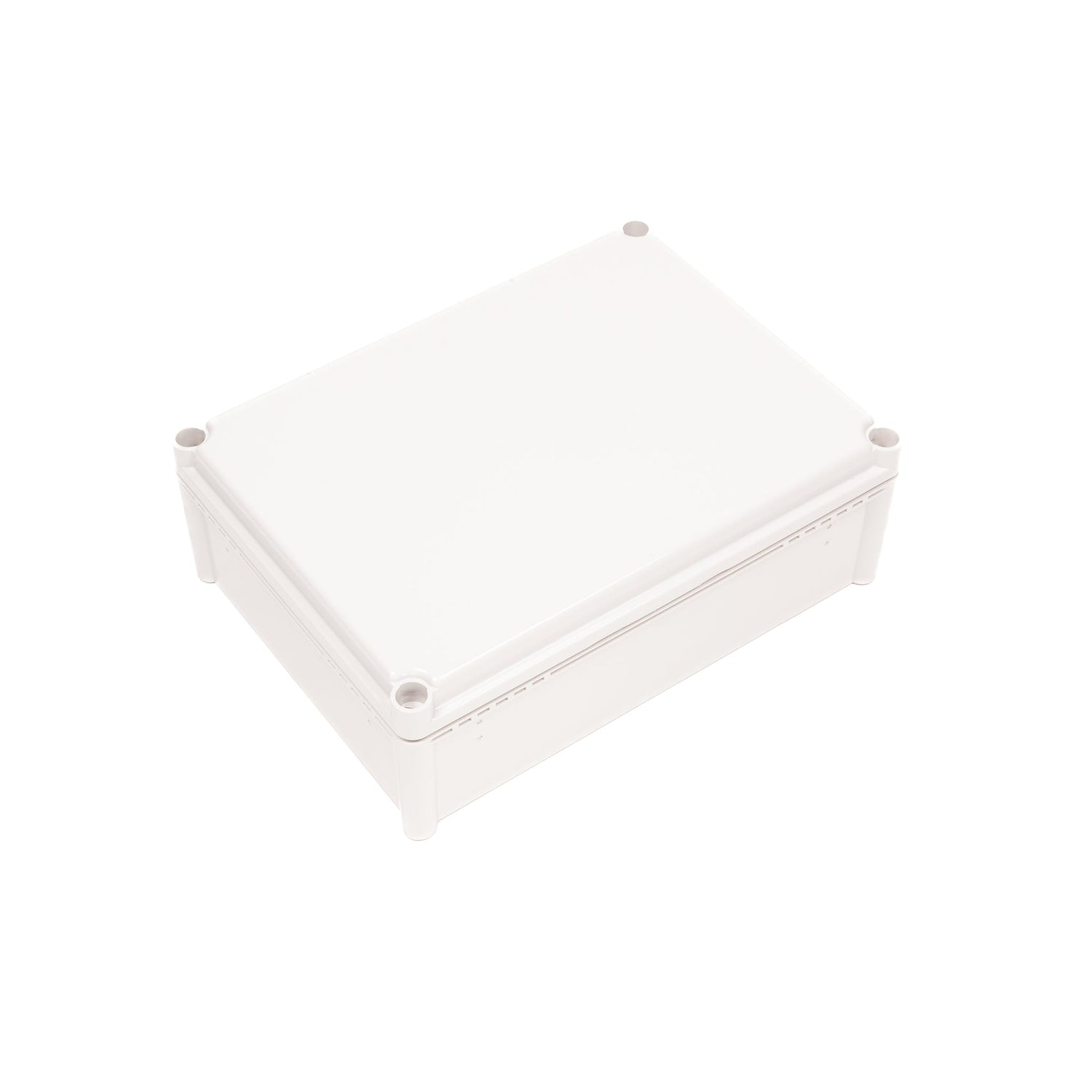

Boxco S-Series 11.02 x 14.96 x 5.12 Inches(280x380x130mm) Plastic E...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length11.02 in
-
Width14.96 in
-
Height5.12 in
-
Weight3.73 lb
::specification::
Frequently Asked Questions
What applications is this Boxco S-Series plastic enclosure best suited for?
This enclosure is designed for protecting electronic and control components in industrial or commercial environments where dust, moisture, and impact resistance matter. Its anti-static material and high-impact polycarbonate construction make it a practical choice for housing sensitive equipment in both indoor and outdoor applications.
Is this enclosure suitable for outdoor use?
Yes. This Boxco S-Series model includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also supports strong protection against dust and water ingress in exposed environments.
What are the key specifications of this enclosure?
This model measures 11.02 x 14.96 x 5.12 inches (280 x 380 x 130 mm) and weighs 1.69 kg. It is made from polycarbonate with a grey cover, uses a screw-type cover design, carries IP67 and IK08 ratings, and has an operating temperature range of -40 degrees C to 110 degrees C.
How durable is this enclosure for demanding environments?
This enclosure is built from high-impact resistant polycarbonate and is rated IK08 for impact protection. It is designed to resist breakage during machining processes such as hole and press processing while also maintaining strong waterproof and dust-proof performance through its precision-injected gasket.
What internal mounting features does this model include?
This enclosure includes mounting plate attachment points that allow an internal mounting plate to be secured to brass inserted injection molding for heavier installed equipment. It also has pre-molded mounting screw nuts to support mounting of DIN rail or other internal hardware.
How does the screw-type cover benefit this enclosure compared with lighter-duty designs?
The screw-type cover is intended to provide a more secure closure for applications that need dependable environmental protection and enclosure strength. On this model, the cover bolt attachment points use molded screw threads to help maximize strength and support the enclosure's IP67-rated design.
