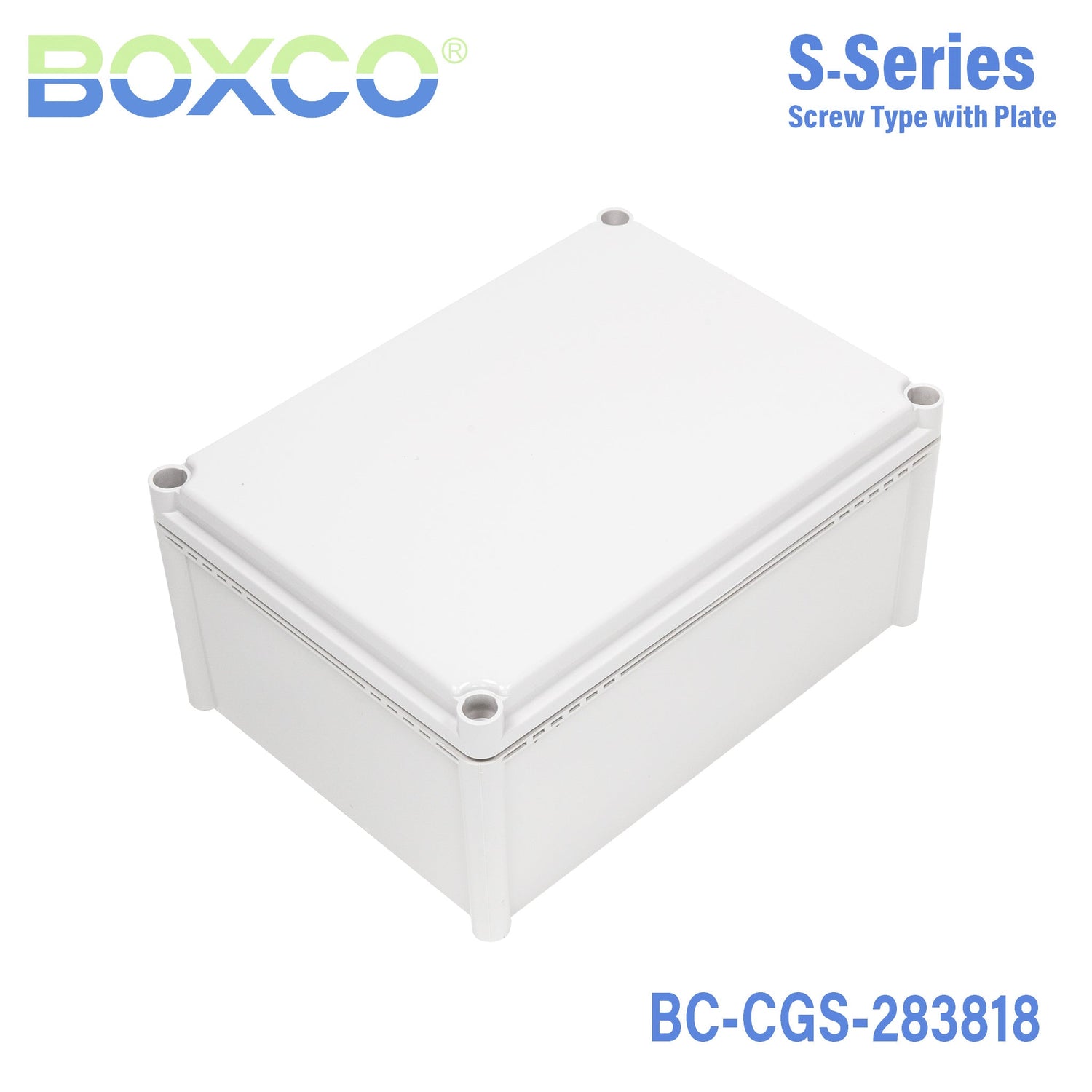

Boxco S-Series 11.02 x 14.96 x 7.09 Inches(280x380x180mm) Plastic E...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

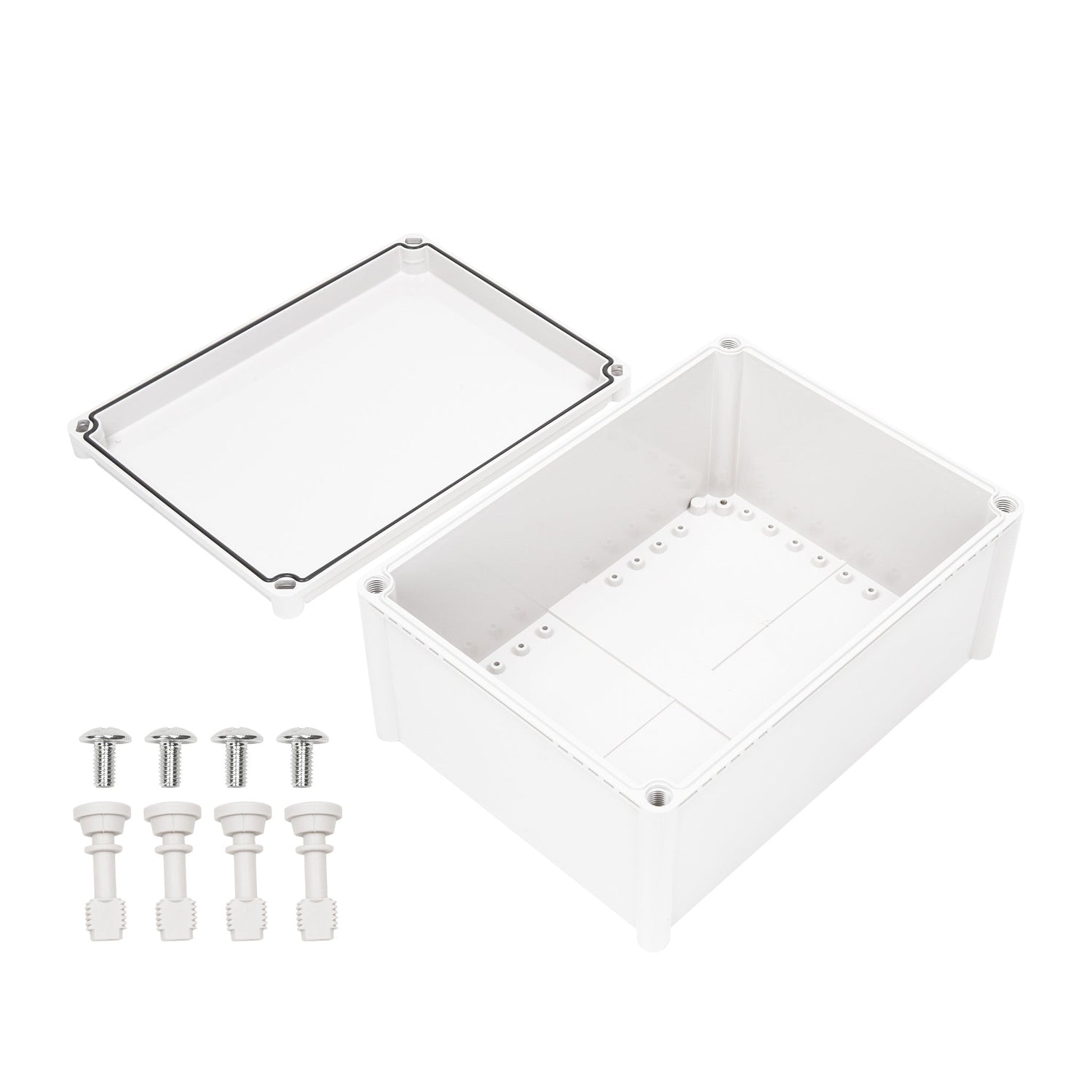

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length11.02 in
-
Width14.96 in
-
Height7.09 in
-
Weight4.54 lb
::specification::
Frequently Asked Questions
What is this Boxco S-Series enclosure typically used for?
This enclosure is designed to protect electrical or electronic components in industrial and commercial equipment housings. Its large internal form factor, impact resistance, and sealed construction make it a practical choice for control, protection, or instrumentation applications where durability matters.
Is this enclosure suitable for outdoor or washdown environments?
Yes. This model is rated IP67 for protection against dust and water ingress, and the S-Series description states that ultraviolet stabilizer is added for outdoor usage. The molded gasket is also designed to support strong waterproof and dust-proof performance.
What material is this enclosure made from?
This model is made from polycarbonate (PC) and has a grey cover. The product description also notes high impact resistance and anti-static material properties, which can help protect sensitive electronic instruments from static electricity.
What are the dimensions of this enclosure?
The enclosure measures 11.02 x 14.96 x 7.09 inches, which corresponds to 280 x 380 x 180 mm. This larger size can be useful when a project needs more internal space for mounted components and accessories.
What temperature range can this enclosure handle?
This model is specified for use from -40 °C to 110 °C. That wide operating range makes it suitable for demanding environments where both low and high temperatures are a consideration.
Does this enclosure support internal mounting hardware or equipment mounting?
Yes. The product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features support secure mounting of compatible internal hardware such as rails or plates inside the enclosure.
