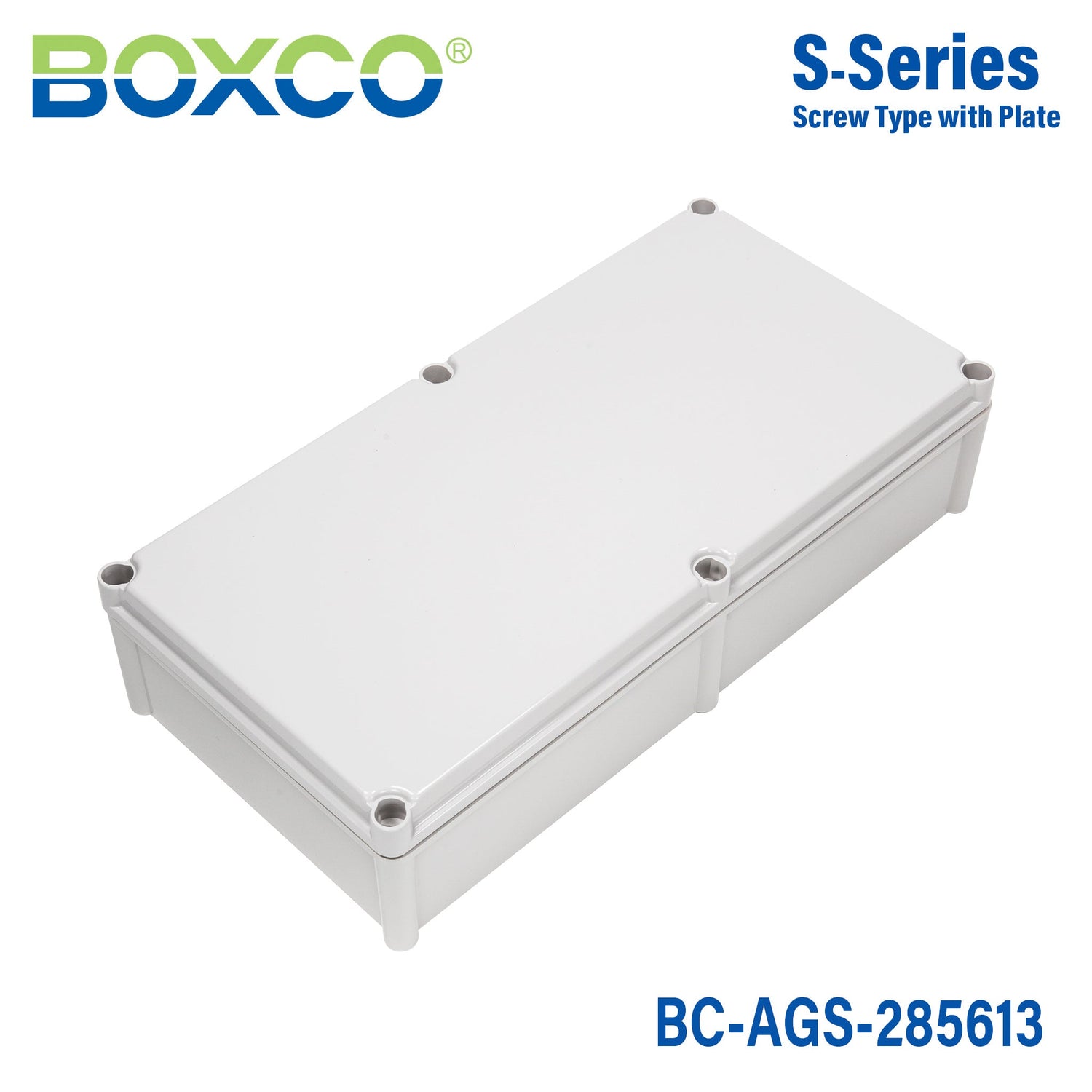

Boxco S-Series 11.02 x 22.05 x 5.12 Inches(280x560x130mm) Plastic E...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length11.02 in
-
Width22.05 in
-
Height5.12 in
-
Weight4.75 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main specifications of the Boxco S-Series BC-AGS-285613 enclosure?
This model is a screw-type plastic enclosure made from ABS with a grey cover. Its external size is 11.02 x 22.05 x 5.12 inches (280 x 560 x 130 mm), and it is rated IP67 for dust and water resistance and IK08 for impact resistance. The listed product weight is 2.154 kg, and it carries a 1-year warranty.
Is this enclosure suitable for outdoor environments?
Yes. The product description states that the Boxco S-Series uses an ultraviolet stabilizer for outdoor usage, helping limit visible color change over time. Its IP67 rating also supports use in environments where strong protection against dust and water ingress is required.
What temperature range can this enclosure handle?
This enclosure is specified for operation from -40 °C to 70 °C. That range makes it suitable for many industrial and outdoor applications where equipment may face both low ambient temperatures and elevated heat. Buyers should still confirm that all installed components fit within the same temperature range.
What types of equipment is this enclosure designed to protect?
This model is intended for protecting sensitive electronic instruments and other enclosed equipment that need a durable housing. The description highlights anti-static material for protecting sensitive electronics from static electricity, along with high impact resistance to help prevent breakage during machining or pressing operations. Its large format also makes it relevant for larger control or equipment housings where internal mounting space matters.

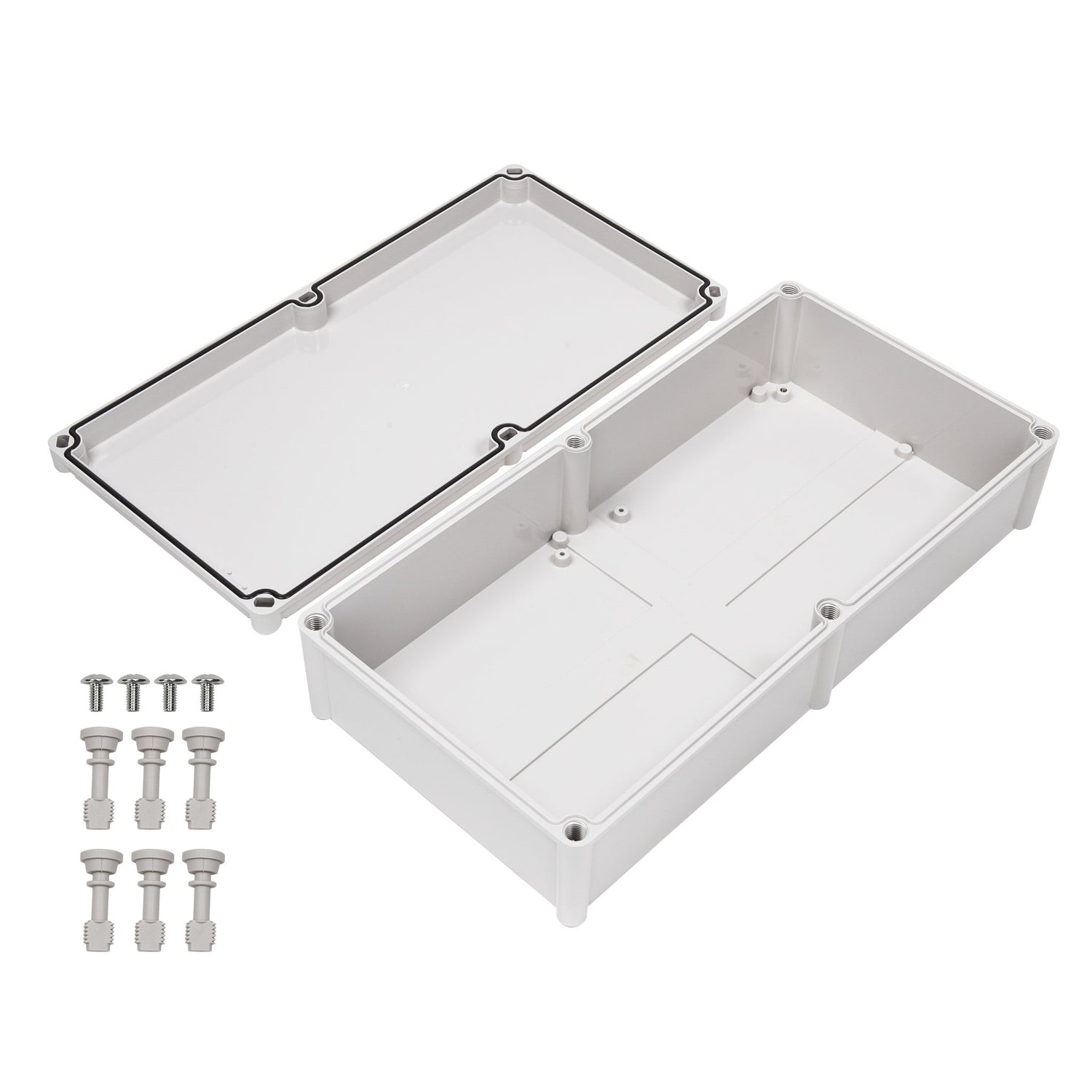

What internal mounting features does this Boxco enclosure include?
The enclosure includes internal mounting plate attachment points with brass inserted injection molding so a mounting plate can be fixed tightly inside. It also has pre-molded mounting screw nuts to support mounting DIN rail or other equipment. These built-in features make the enclosure more practical for applications needing secure internal hardware support.
How does this model help with waterproof and impact protection compared with a basic plastic box?
This enclosure is differentiated by its IP67 ingress rating, IK08 impact rating, injected gasket design, and molded screw-thread cover attachment points. According to the product description, the gasket is robot-injected for strong waterproof and dust-proof performance, while the screw-thread design is formed in injection molding for added strength. Those details make it more robust than a generic unsealed plastic project box.
