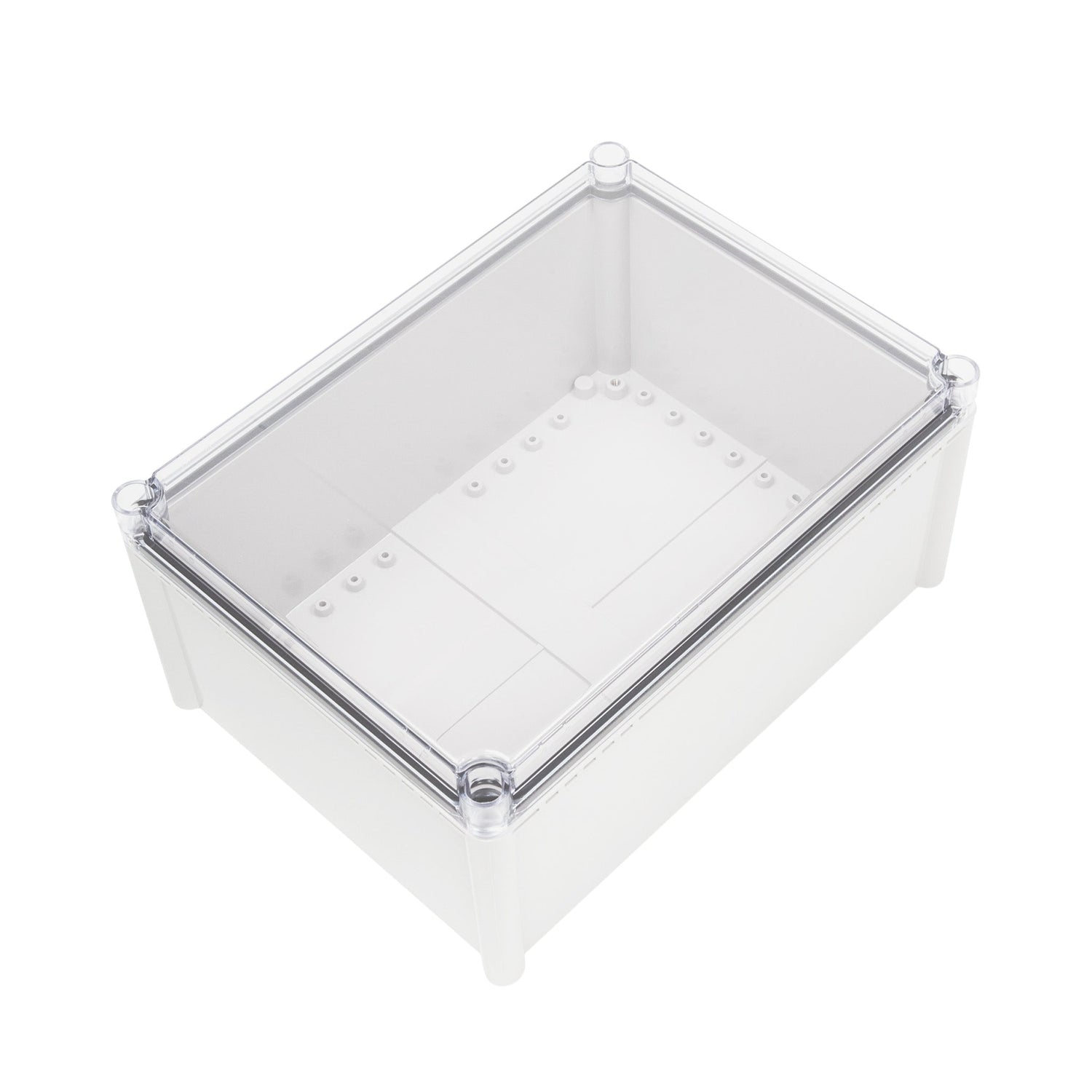

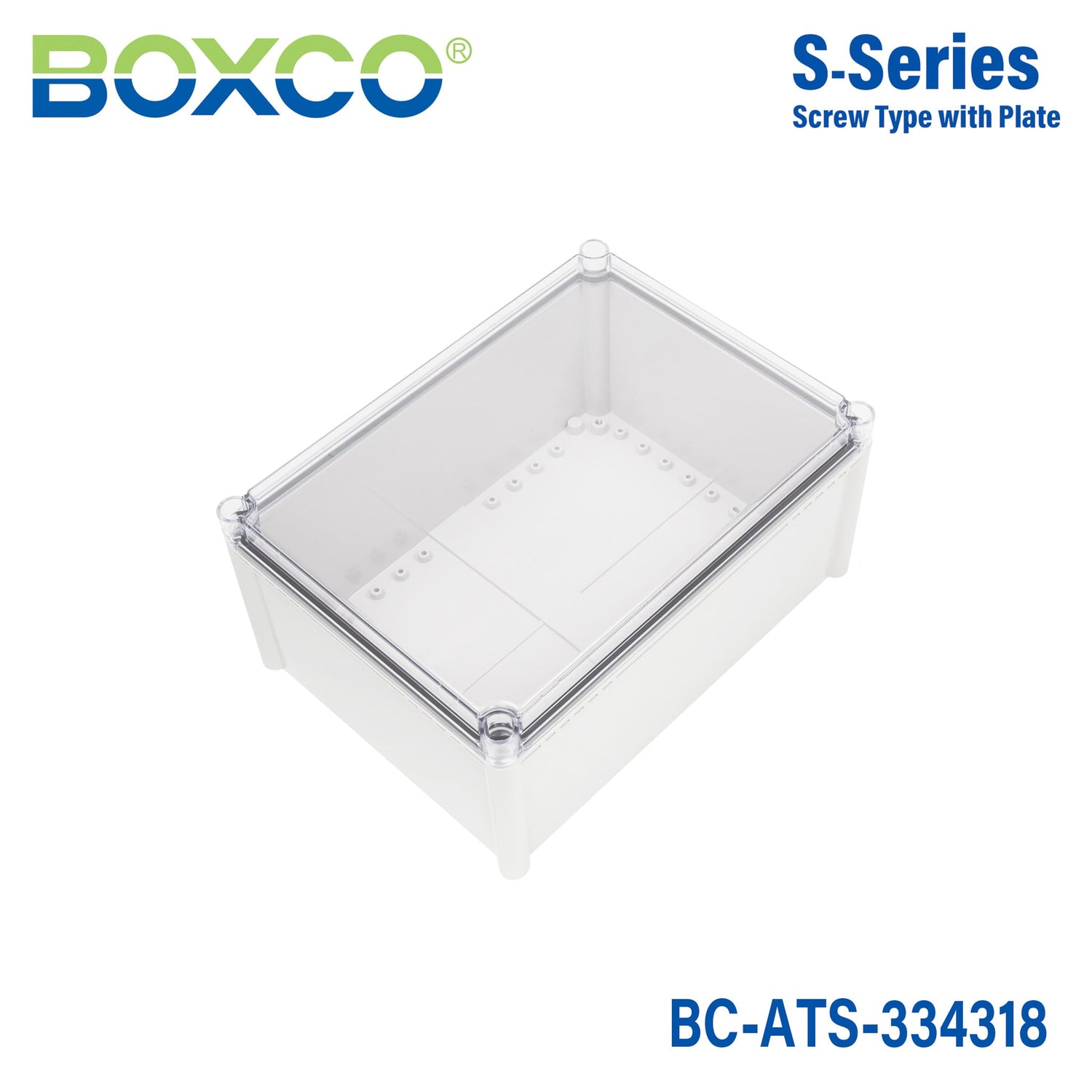

Boxco S-Series 12.99 x 16.93 x 7.09 Inches(330x430x180mm) Plastic E...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length12.99 in
-
Width16.93 in
-
Height7.09 in
-
Weight5.5 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What is this enclosure typically used for?
This Boxco S-Series enclosure is suited for protecting control, monitoring, and instrumentation components that need a sealed plastic housing. Its anti-static ABS construction and transparent screw cover make it a practical choice for electronic assemblies that benefit from visibility and added protection from dust, water, and impact.
Is this enclosure suitable for outdoor or washdown environments?
Yes, this model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The description also notes an ultraviolet stabilizer for outdoor usage, helping the enclosure maintain its performance with less visible color change over time.
What are the size and material details for this model?
This enclosure measures 12.99 x 16.93 x 7.09 inches, which is 330 x 430 x 180 mm. It is made from ABS and includes a transparent cover, giving you a non-metallic housing with internal visibility for inspection without opening it.
How durable is this plastic enclosure?
This model carries an IK08 impact rating, indicating resistance to mechanical impact in demanding industrial settings. Boxco also describes the material as high-impact resistant, designed to reduce breakage during machining and processing.
What mounting and internal equipment support features does this enclosure include?
The enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts for securing internal hardware. These features help support heavier installed equipment and make the enclosure more adaptable for organized internal layouts.
What temperature range can this enclosure handle?
This model is specified for operation from -40 °C to 70 °C. That range makes it appropriate for many industrial and outdoor applications where equipment may be exposed to both low and elevated ambient temperatures.
Why choose this screw-cover ABS enclosure instead of a lighter-duty general-purpose box?
This model stands out with its IP67 sealing, IK08 impact rating, UV-stabilized ABS body, anti-static material, and transparent screw-fastened cover. Compared with a basic utility box, it is better suited for harsher environments and more demanding electronics protection requirements.
