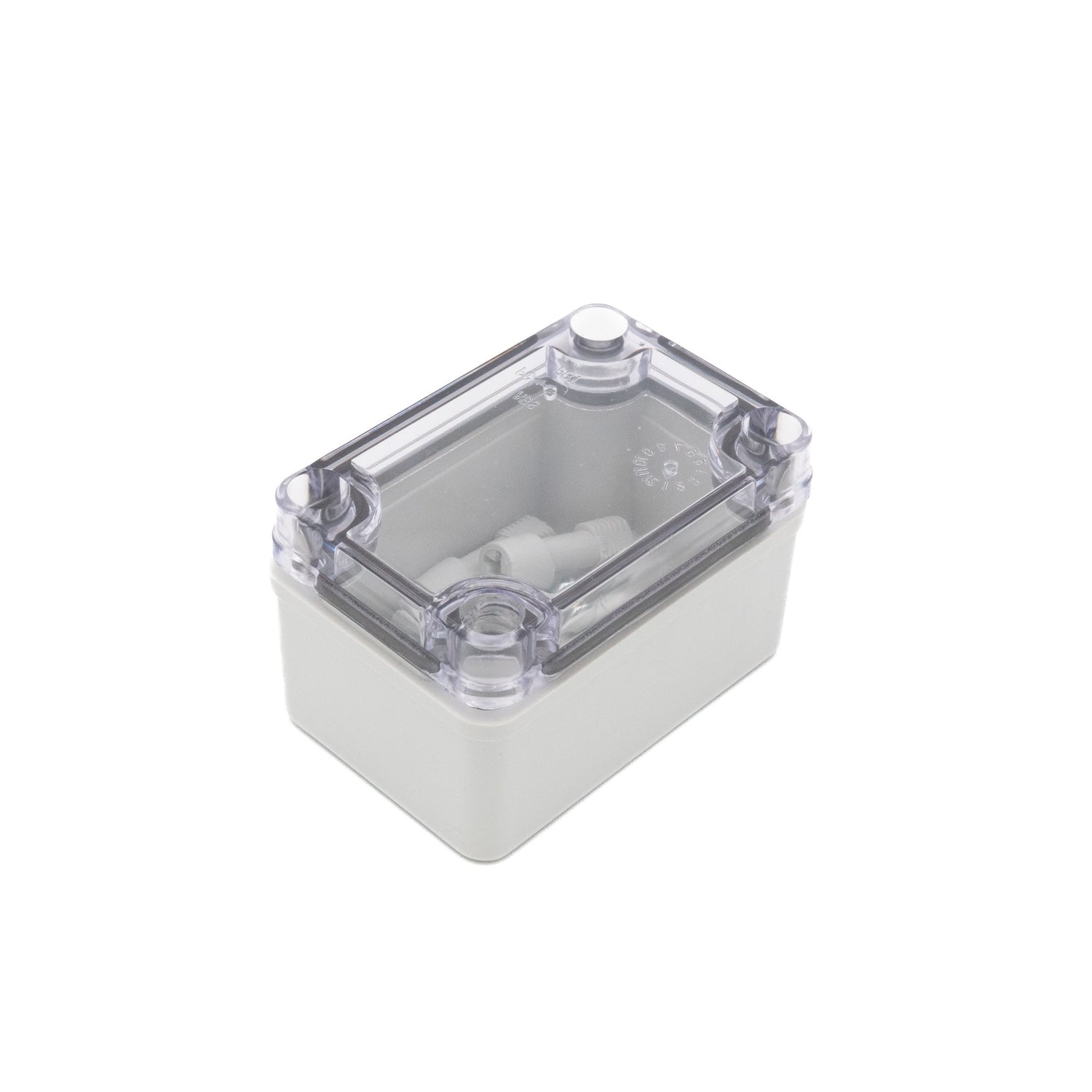

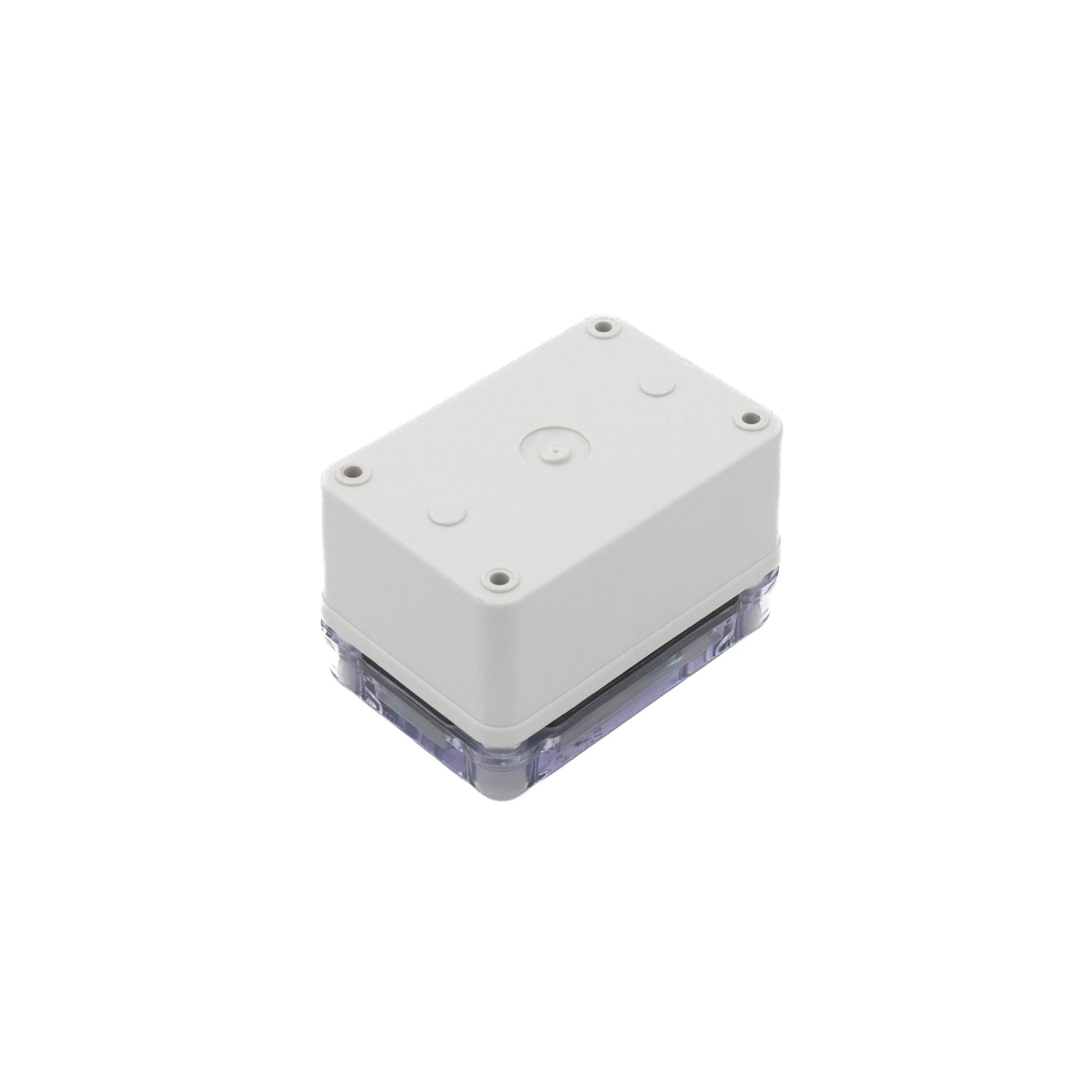

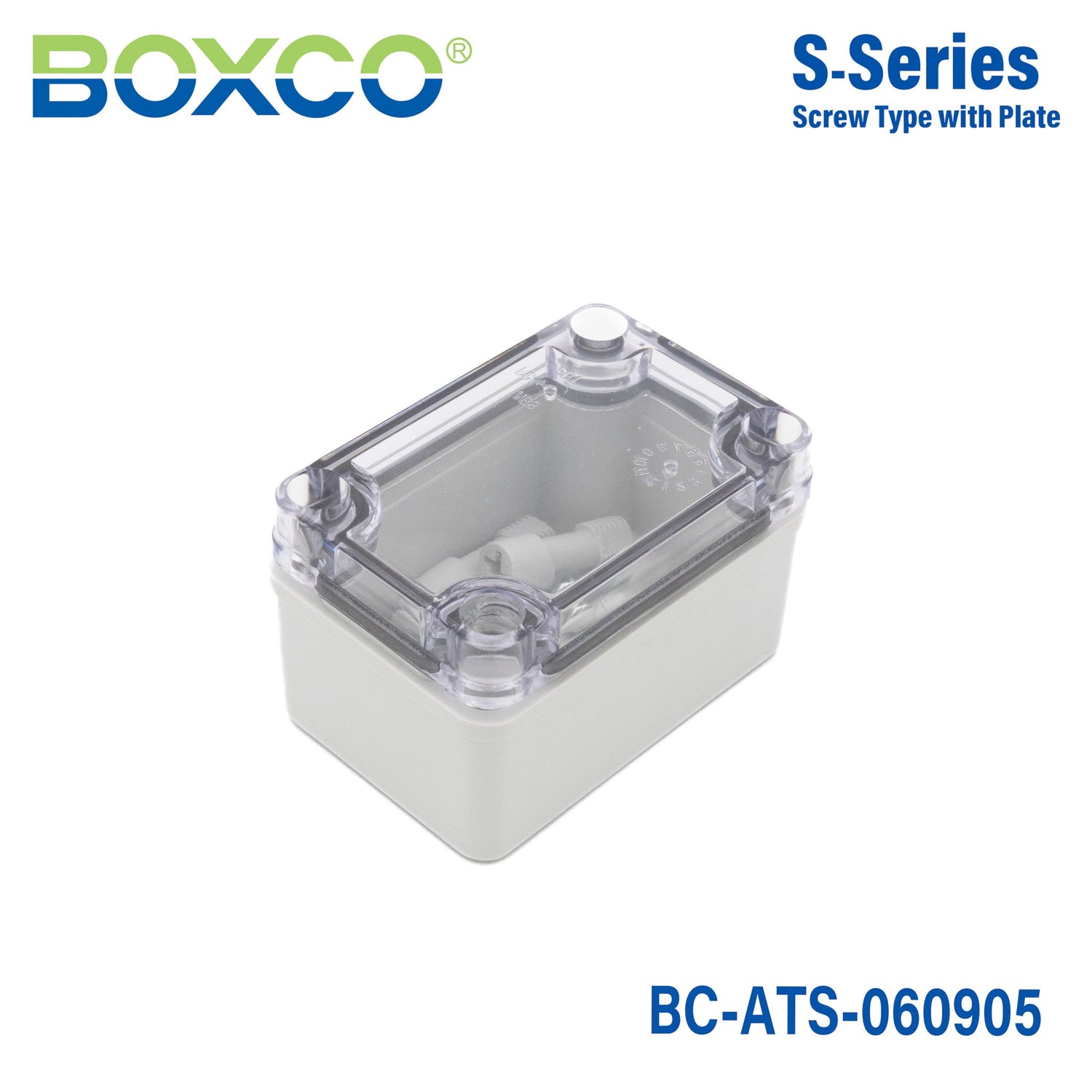

Boxco S-Series 2.56 x 3.74 x 2.17 Inches(65x95x55mm) Plastic Enclos...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

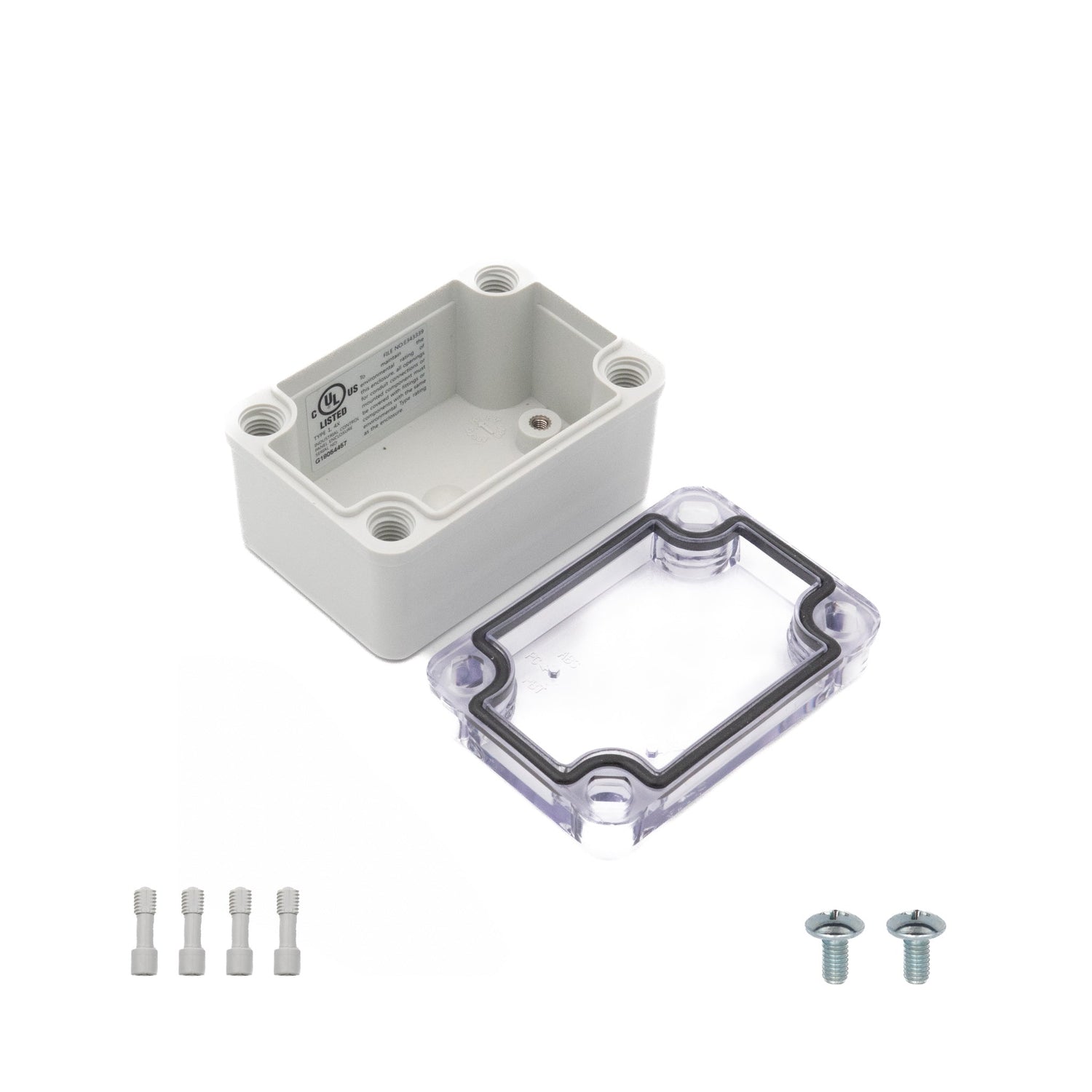

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length2.56 in
-
Width3.74 in
-
Height2.17 in
-
Weight0.29 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco S-Series BC-ATS-060905 enclosure suited for?
This enclosure is suited for protecting sensitive electronic equipment in industrial, commercial, and outdoor environments where dust, water, and impact resistance matter. Its anti-static material and high-impact ABS construction make it a practical choice for control, monitoring, and instrumentation housings.
Is this enclosure suitable for outdoor use?
Yes. Boxco adds an ultraviolet stabilizer to the S-Series to help protect the enclosure in outdoor use and reduce visible color change over time. Its IP67 rating also supports use in wet or dusty environments when a sealed enclosure is needed.
What protection ratings does this model offer?
The BC-ATS-060905 is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. These ratings make it a strong option for applications that need both environmental sealing and durability against external impact.
What are the size and material of this enclosure?
This model measures 2.56 x 3.74 x 2.17 inches, which corresponds to 65 x 95 x 55 mm. It is made from ABS plastic and includes a transparent cover, giving visibility inside the enclosure without changing the cover type.
What internal mounting features does this enclosure include?
This enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support secure installation of internal components such as mounting plates or DIN rail-based hardware.
What temperature range can this enclosure handle?
The specified operating temperature range for this model is -40 degrees C to 70 degrees C. That range supports use in both cold and warm environments where standard-purpose plastic enclosures may be exposed to temperature variation.
