Boxco S-Series 3.15 x 4.33 x 1.77 Inches(80x110x45mm) Plastic Enclo...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.15 in
-
Width4.33 in
-
Height1.77 in
-
Weight0.35 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco S-Series 80 x 110 x 45 mm enclosure suited for?
This model is suited for protecting small electronic assemblies, control components, and sensitive instruments that need a sealed non-metallic housing. Its anti-static material, IP67 sealing, and IK08 impact rating make it a practical choice for industrial, utility, and outdoor equipment enclosures.
Is this enclosure suitable for outdoor environments?
Yes. Boxco adds an ultraviolet stabilizer to this S-Series enclosure for outdoor use, which helps reduce visible color change over time. The IP67 rating also indicates strong protection against dust ingress and temporary water exposure in demanding environments.
What are the key specifications of this Boxco enclosure?
This enclosure measures 3.15 x 4.33 x 1.77 inches (80 x 110 x 45 mm) and weighs 0.158 kg. It is a screw-type plastic enclosure with a grey cover, IP67 ingress protection, IK08 impact resistance, a PC material construction, and an operating temperature range of -40 to 110 degrees C.
Can this enclosure help protect sensitive electronics from static and impact?
Yes. The housing uses anti-static material to help protect sensitive electronic instruments from static electricity. Boxco also describes the enclosure as high impact resistant, and the IK08 rating supports its suitability where mechanical durability matters.
What design features distinguish this screw-type S-Series enclosure?

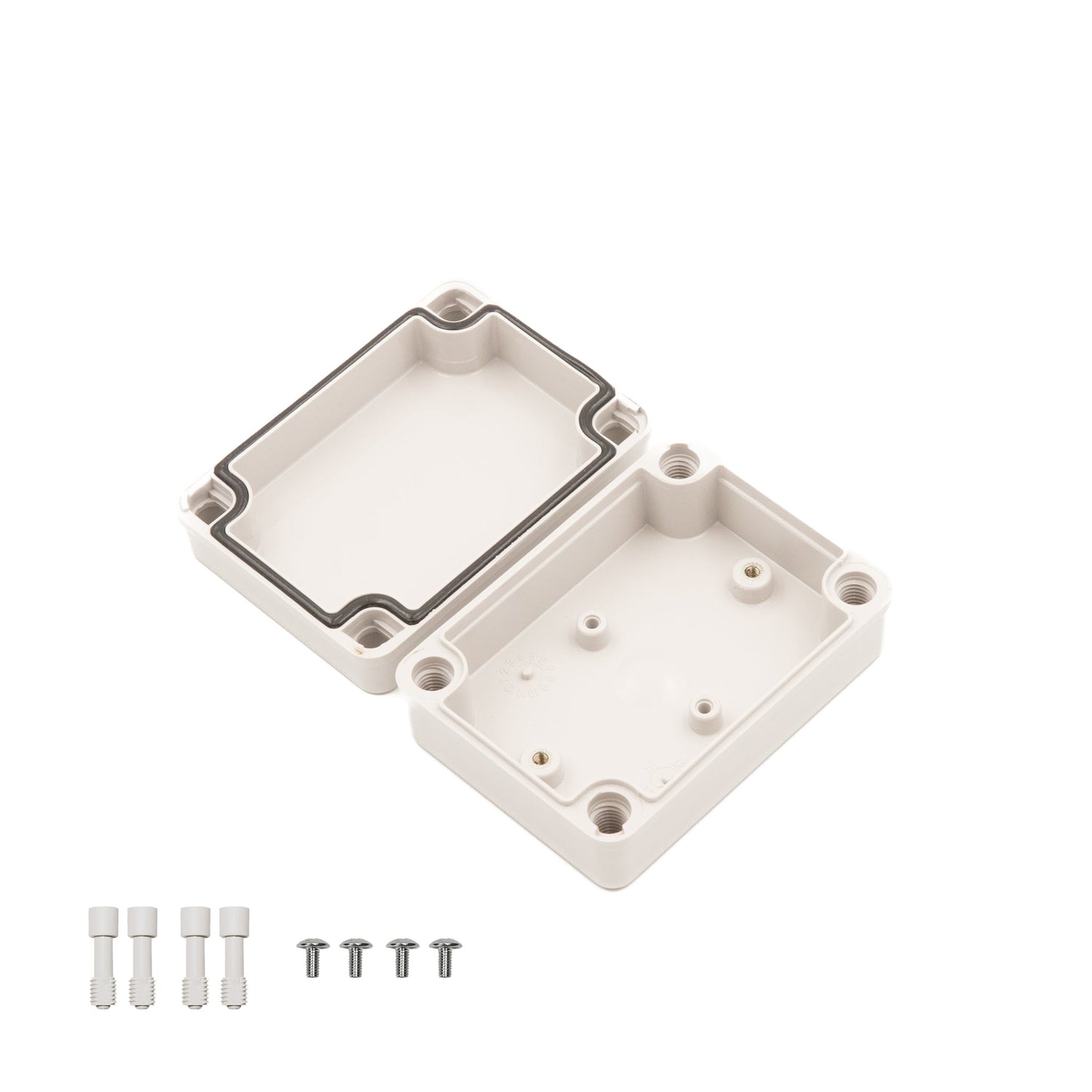

This model includes internal mounting plate attachment points with brass inserted injection molding, pre-molded mounting screw nuts, a precision-injected gasket, and molded cover screw threads for strength. Compared with a basic utility box, these features make it better suited for applications that need stronger internal mounting support and dependable sealing.
