Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

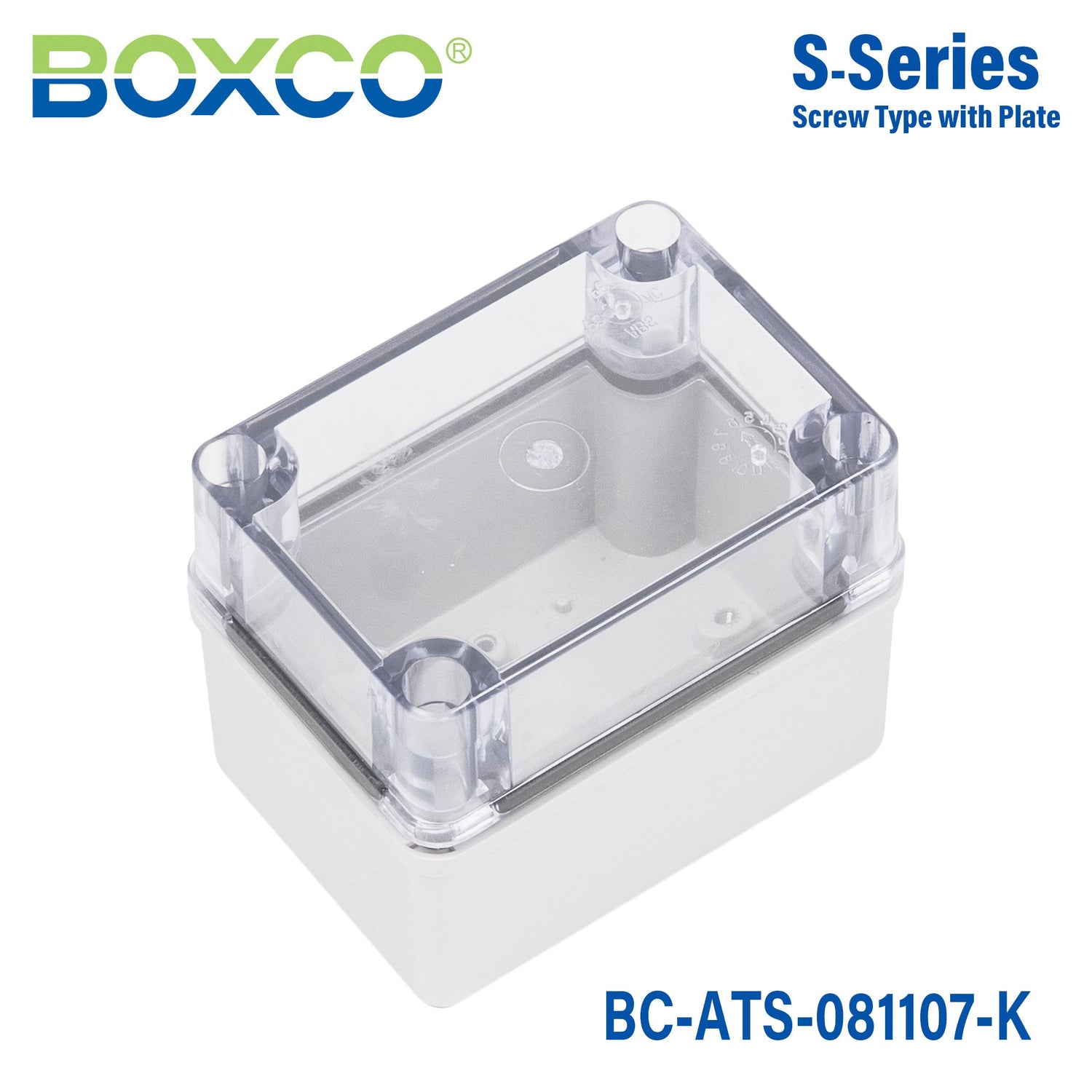

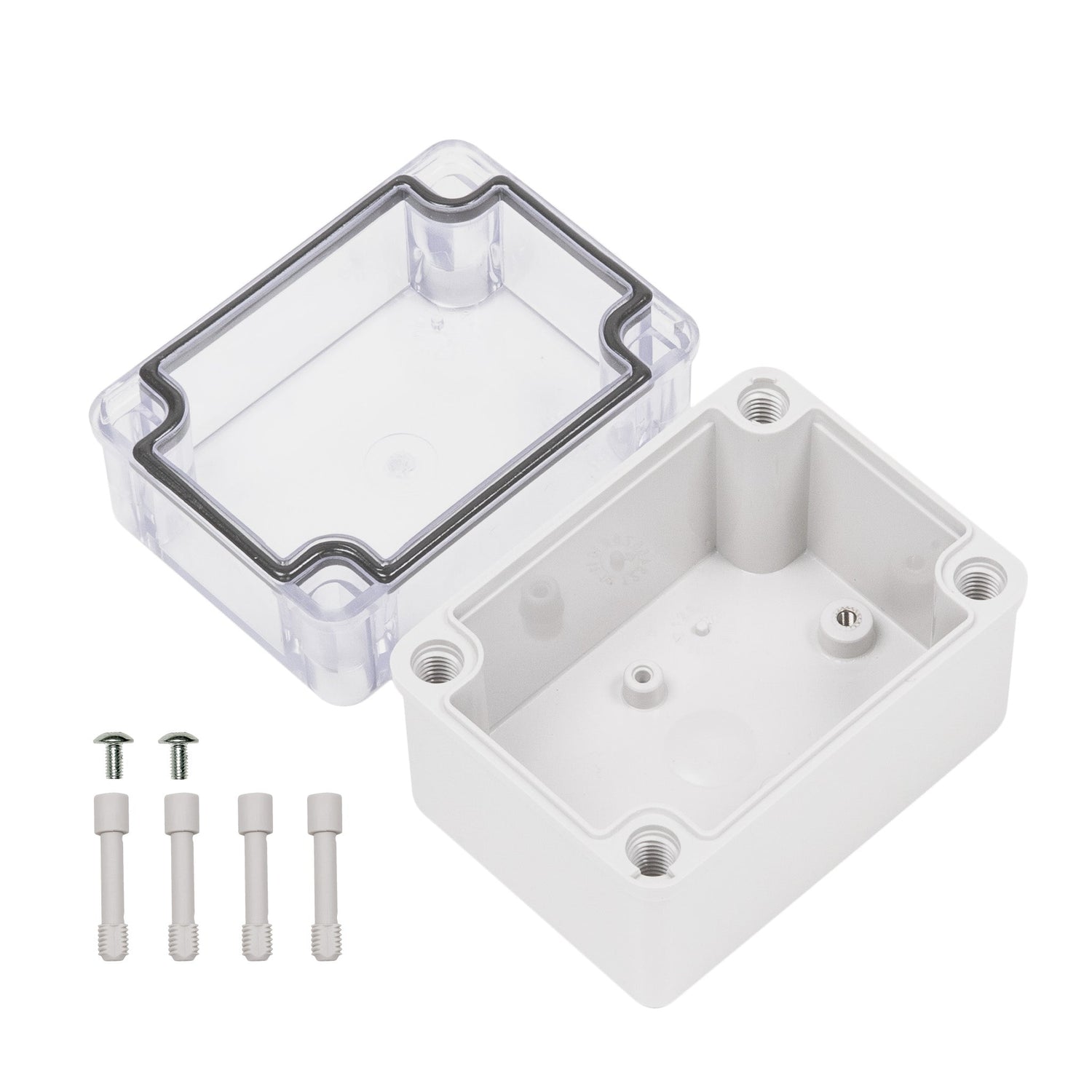

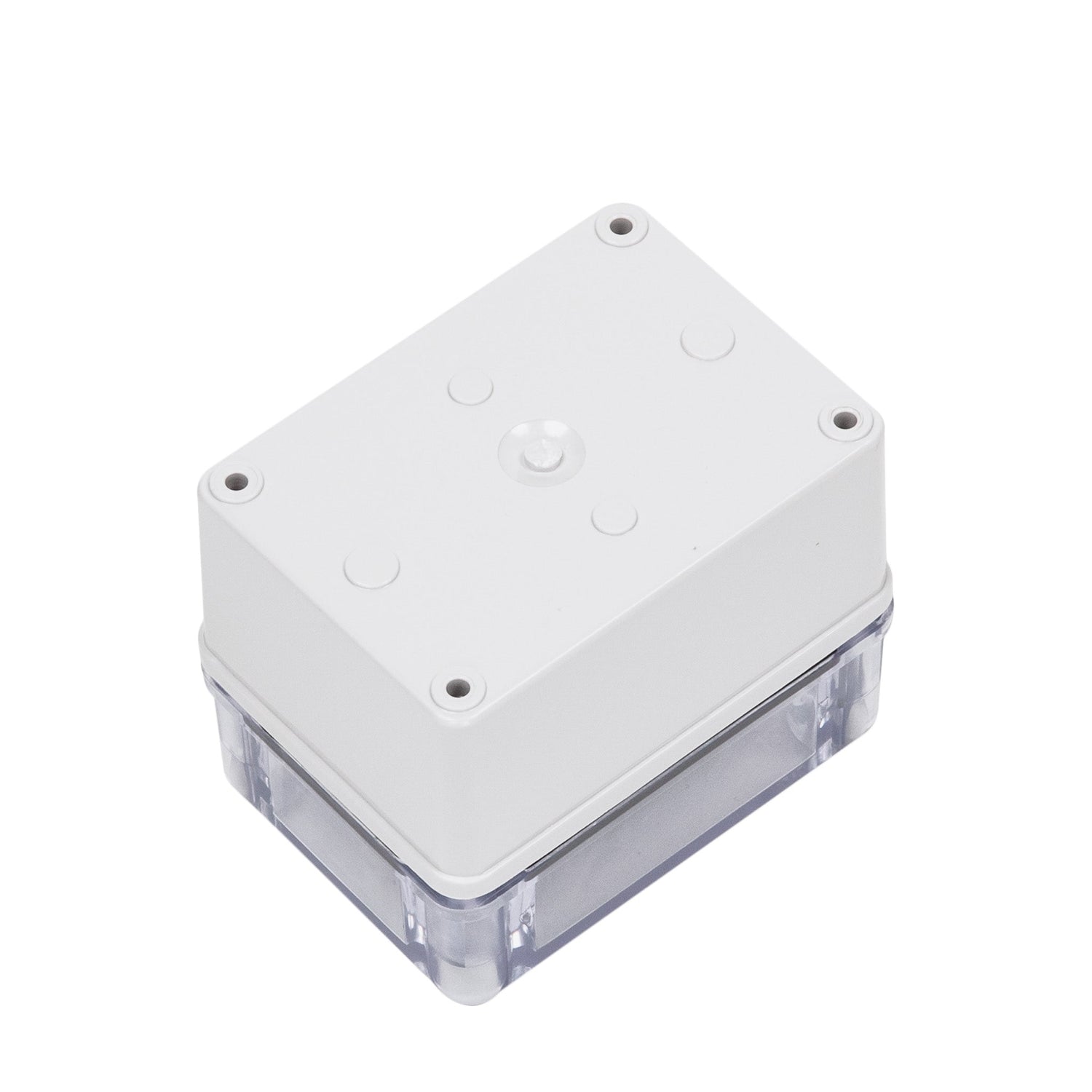

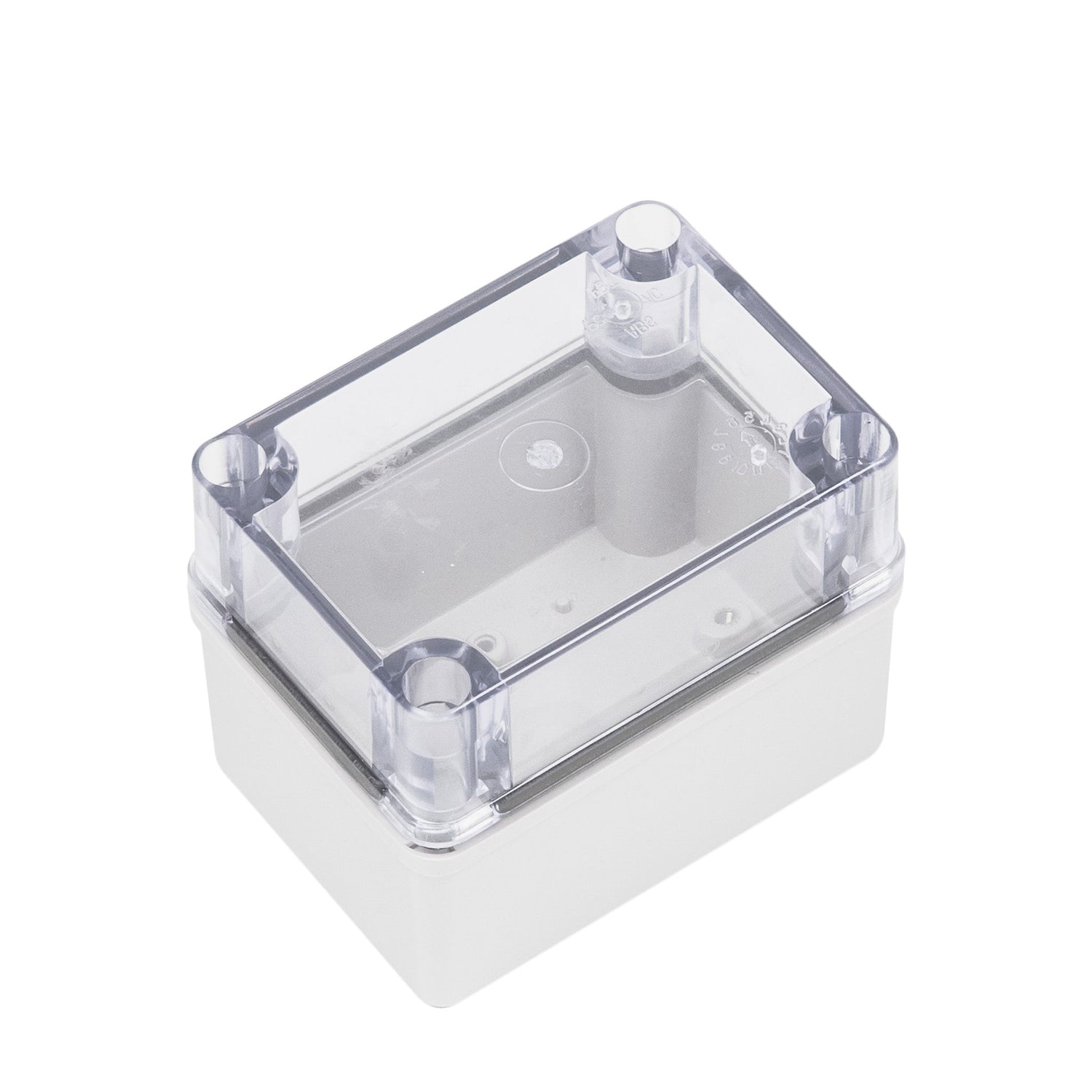

Boxco S-Series 3.15 x 4.33 x 2.76 Inches(80 x 110 x 70mm) Plastic E...
Description
Description
Features
- Screw type
- This series has a knock out base
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.15 in
-
Width4.33 in
-
Height2.76 in
-
Weight1.1 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is this Boxco S-Series enclosure best suited for?
This model is suited for protecting components in industrial, commercial, and general-purpose equipment where a compact sealed plastic enclosure is needed. Its transparent cover is useful when contents need to be viewed without opening the box. The screw-type design also makes it a practical choice for applications that prioritize a secure closed housing.
What are the key specifications of this enclosure?
This enclosure measures 3.15 x 4.33 x 2.76 inches (80 x 110 x 70 mm) and is made from ABS. It has an IP67 rating, an IK08 impact rating, a transparent cover, and a screw-type closure. The listed product weight is 0.5000 kg.
Is this enclosure appropriate for demanding environmental conditions?
This model is rated IP67, which indicates strong protection against dust and water ingress under its rated conditions. It also carries an IK08 rating for impact resistance. The operating temperature range is -40 degrees C to 70 degrees C, making it suitable for a wide range of indoor and outdoor environments within that range.
What does the transparent cover offer compared with a non-transparent cover?
The transparent cover allows visual inspection of the enclosure contents without opening it. That can be useful when identification or status checks are needed while keeping the housing closed. Buyers who do not need visibility may prefer a non-transparent option for other design preferences, but this specific model is built with a transparent cover.
Does this enclosure include any base features that affect compatibility with enclosure layouts?
Yes, the product description states that this S-Series model has a knock out base. That feature may matter for buyers comparing enclosure styles within the same category or planning around available base design options. Compatibility should be evaluated against your required enclosure size, cover style, and screw-type format for this exact model.
What material is this enclosure made from, and why does that matter?
This model is made from ABS plastic. For buyers comparing enclosure materials, ABS offers a lightweight non-metallic housing option, and this unit weighs 0.5000 kg. In this model, the ABS body is paired with IP67 and IK08 ratings for a combination of sealing and impact resistance.
What warranty period is listed for this enclosure?
The listed warranty period for this model is 1 year. For procurement or project planning, that gives buyers a defined warranty term tied to this specific SKU. It is best referenced alongside your seller's standard warranty terms and coverage details.
