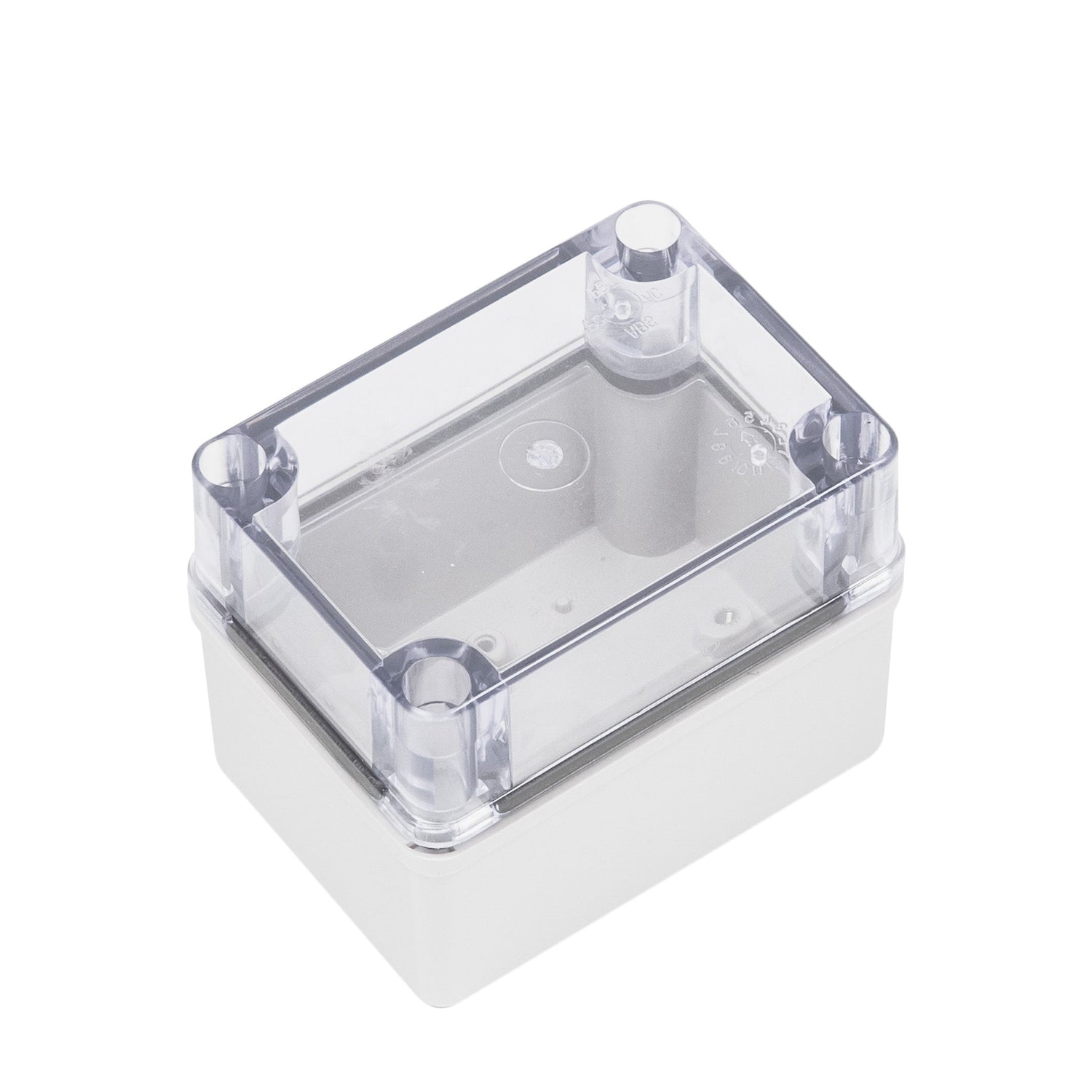

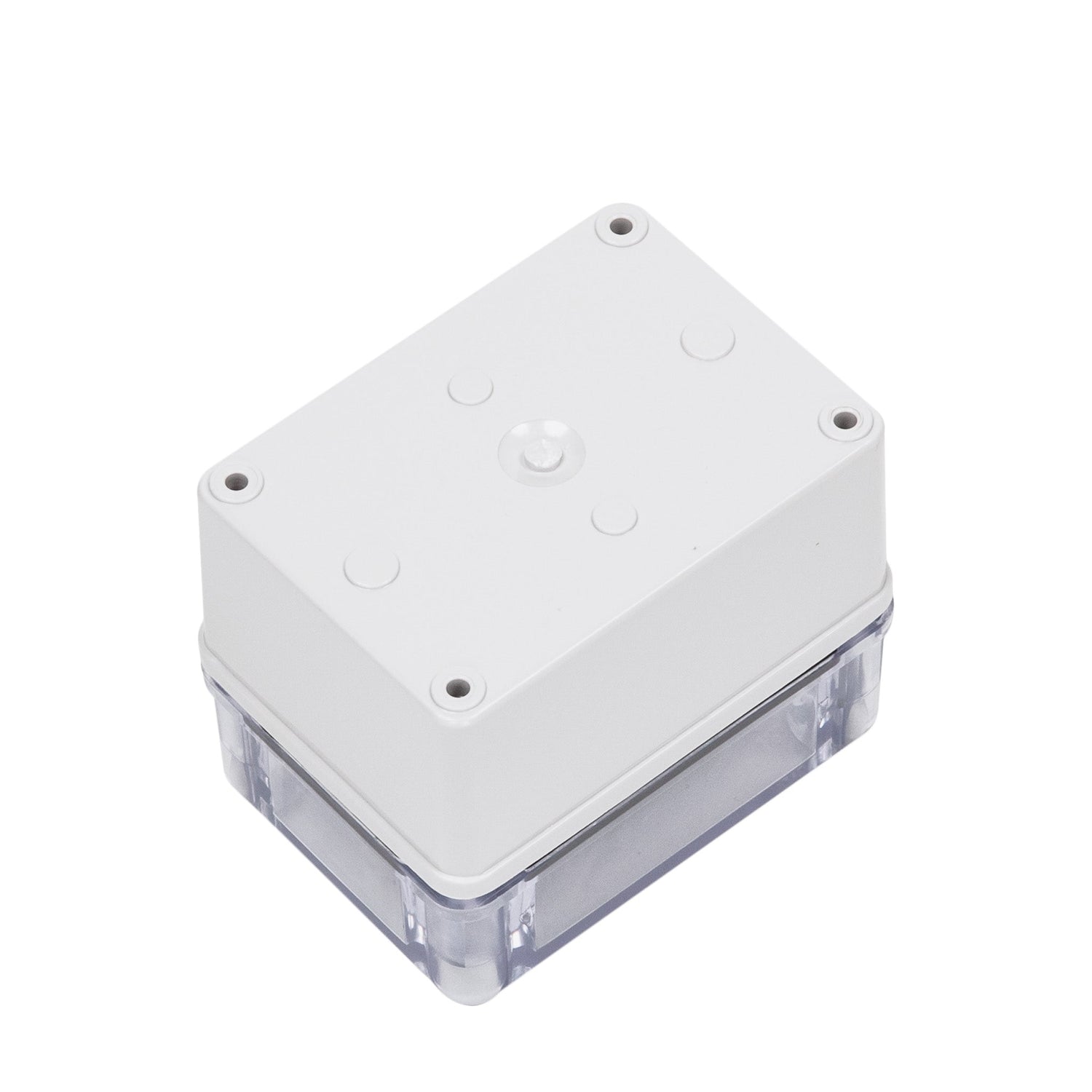

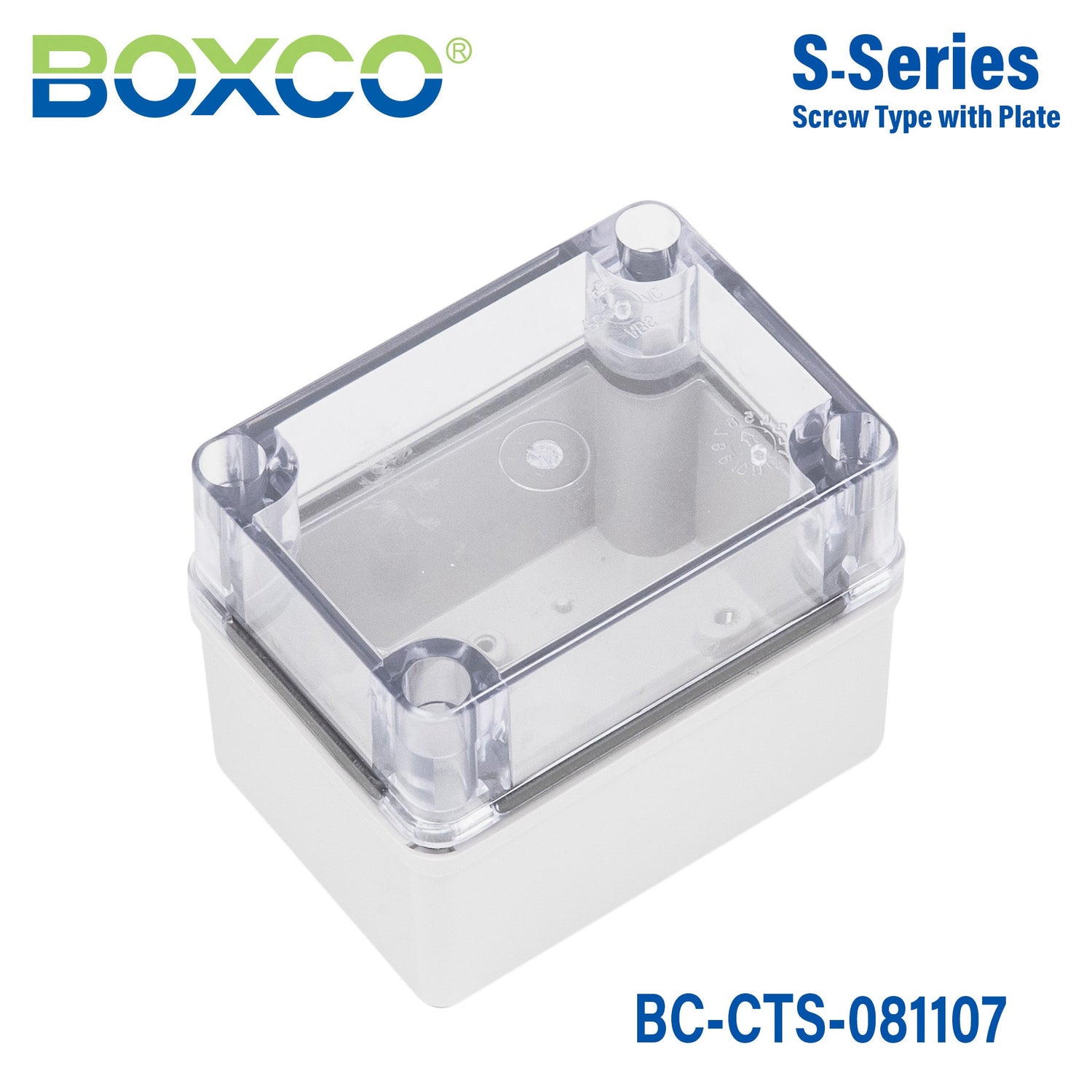

Boxco S-Series 3.15 x 4.33 x 2.76 Inches(80x110x70mm) Plastic Enclo...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

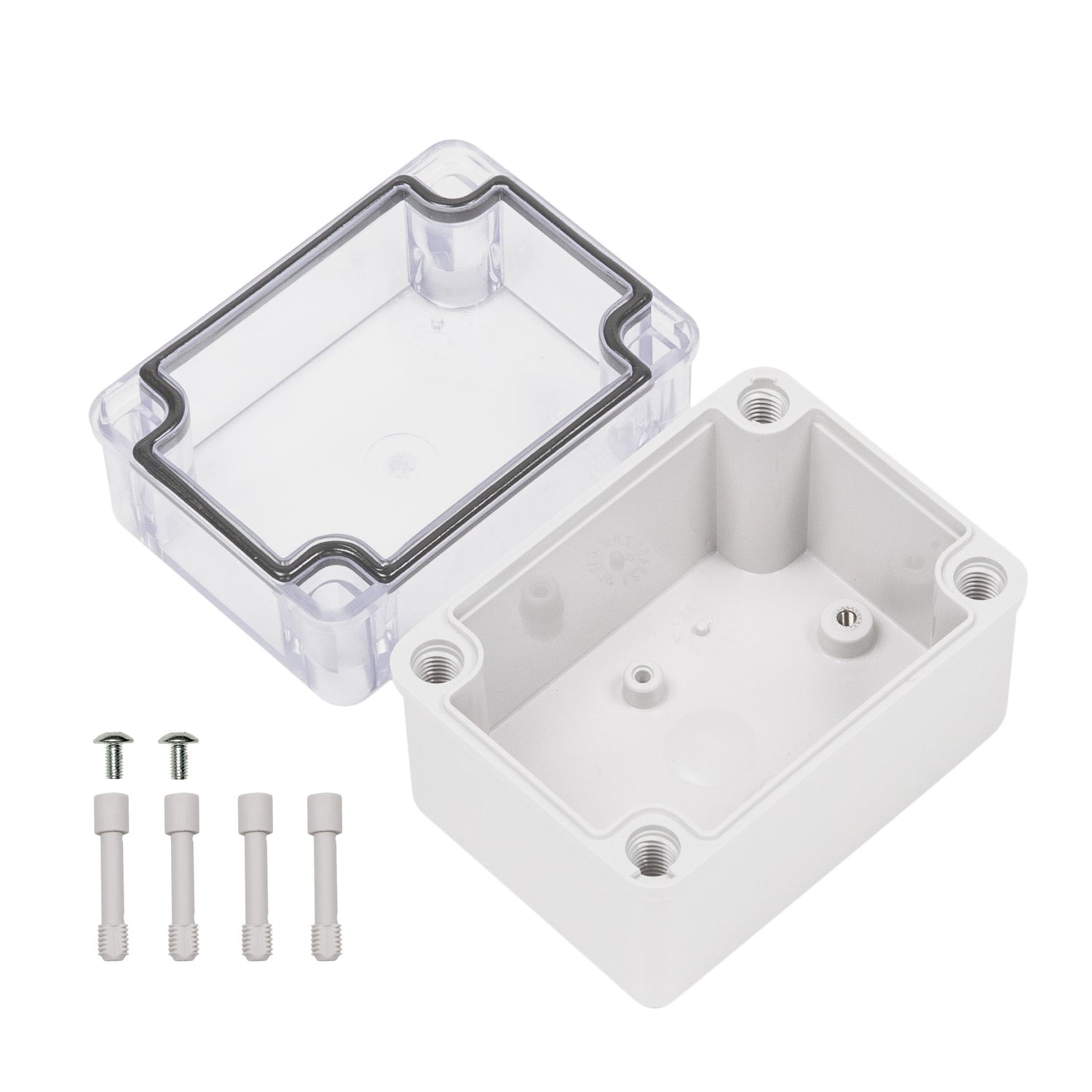

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.15 in
-
Width4.33 in
-
Height2.76 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What kind of applications is the Boxco S-Series 80x110x70mm enclosure suited for?
This enclosure is suited for protecting electronic components and instruments that need a compact, sealed housing. Its transparent cover is useful when visual inspection is needed without opening the box, and its impact-resistant plastic construction makes it a practical choice for industrial and outdoor equipment housings.
Is this enclosure appropriate for outdoor use?
Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to support outdoor use and reduce noticeable color change over time. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.
What are the key protection and durability ratings for this model?
This model is rated IP67 for dust-tight and water-resistant protection and IK08 for impact resistance. It is made from polycarbonate with a transparent cover and is described as high impact resistant for tougher service conditions.
What temperature range can this enclosure handle?
The specified operating temperature range is -40°C to 110°C. That makes this model suitable for both low-temperature and elevated-temperature environments where a standard plastic enclosure may not be enough.
Does this enclosure support internal mounting hardware or accessories?
Yes. The product description notes internal mounting plate attachment points and pre-molded mounting screw nuts for securing compatible internal hardware such as a DIN rail or mounting plate. These molded-in features are intended to provide stronger support for equipment inside the enclosure.
Why would a buyer choose this screw-type transparent-cover version over a basic opaque enclosure?
This version combines a screw-fastened cover with a transparent top, allowing contents to be viewed while keeping the enclosure closed. Compared with a basic opaque box, that can be an advantage where inspection visibility, dust resistance, and water resistance all matter.
