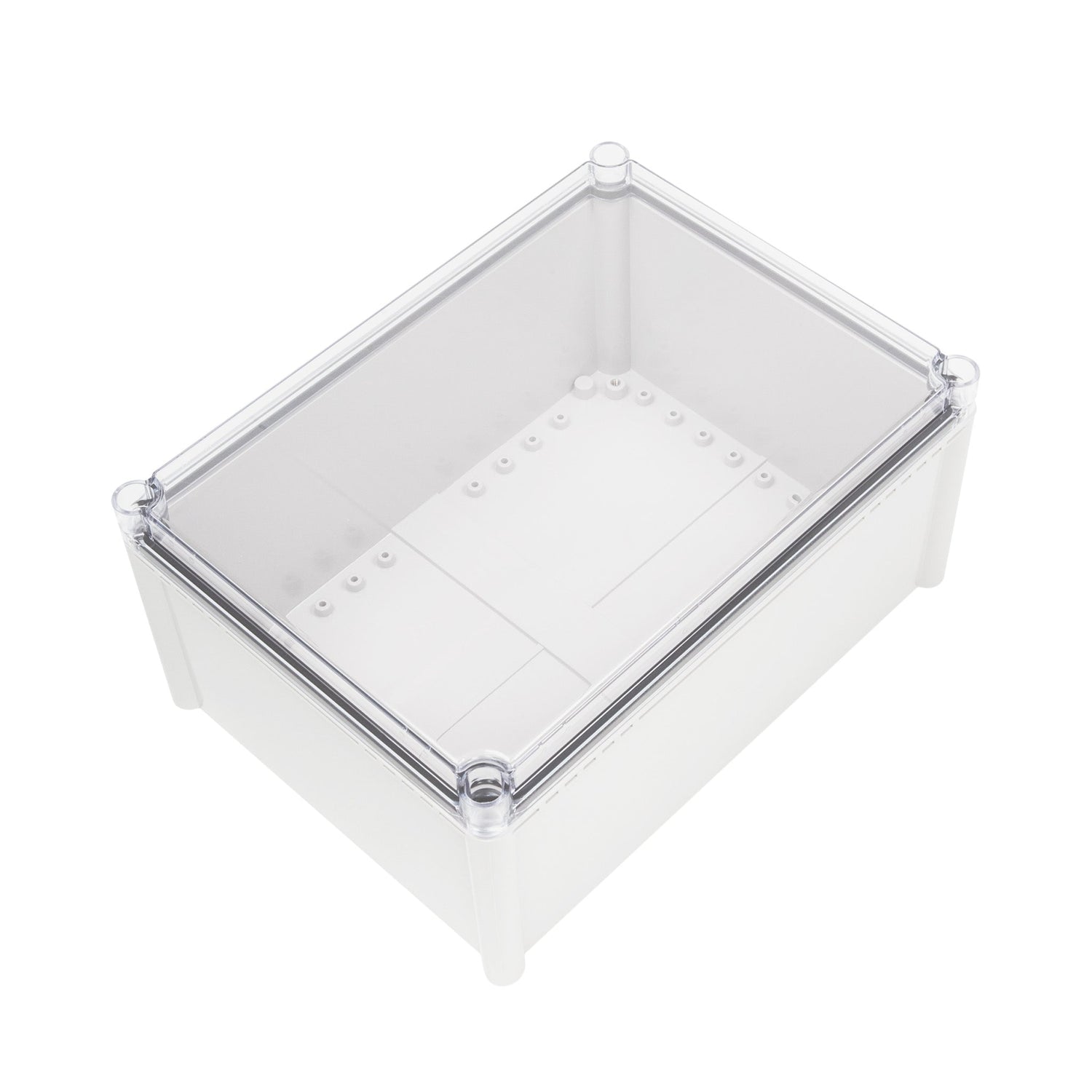

Boxco S-Series 3.15 x 6.3 x 2.17 Inches(80x160x55mm) Plastic Enclos...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.15 in
-
Width6.3 in
-
Height2.17 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What are the key specifications of the Boxco S-Series BC-CTS-081605 enclosure?
This model measures 3.15 x 6.3 x 2.17 inches (80 x 160 x 55 mm) and is made from polycarbonate with a transparent screw-type cover. It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure weighs 0.45 kg and is specified for use from -40°C to 110°C.
Is this enclosure suitable for outdoor or harsh environments?
Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce color change over long-term exposure. Its IP67 rating and IK08 impact rating also make it well suited for demanding industrial and outdoor environments.
What kind of applications is this enclosure commonly used for?
This enclosure is intended for protecting electronic instruments and components that need a durable non-metallic housing. Its anti-static material and high-impact construction make it a practical choice for industrial control, instrumentation, and outdoor equipment protection. The transparent cover is also useful where internal visual inspection is needed without opening the box.
Does this model support internal mounting hardware or accessory plates?
Yes. The enclosure includes internal mounting plate attachment points with brass inserted injection molding for securing heavier internal equipment. It also has pre-molded mounting screw nuts that can be used for DIN rail or other internal equipment mounting.
How does the transparent cover benefit this enclosure compared with an opaque cover?
The transparent cover allows visual inspection of indicators, labels, or internal components without opening the enclosure. That can be useful when quick status checks are needed while still maintaining the enclosure's protective design. For buyers comparing cover types, this model is a better fit when visibility matters.
Is this enclosure designed to protect sensitive electronics?
Yes. The description specifically notes that anti-static material is used to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material to reduce breakage risk during mechanical processing and in service.
