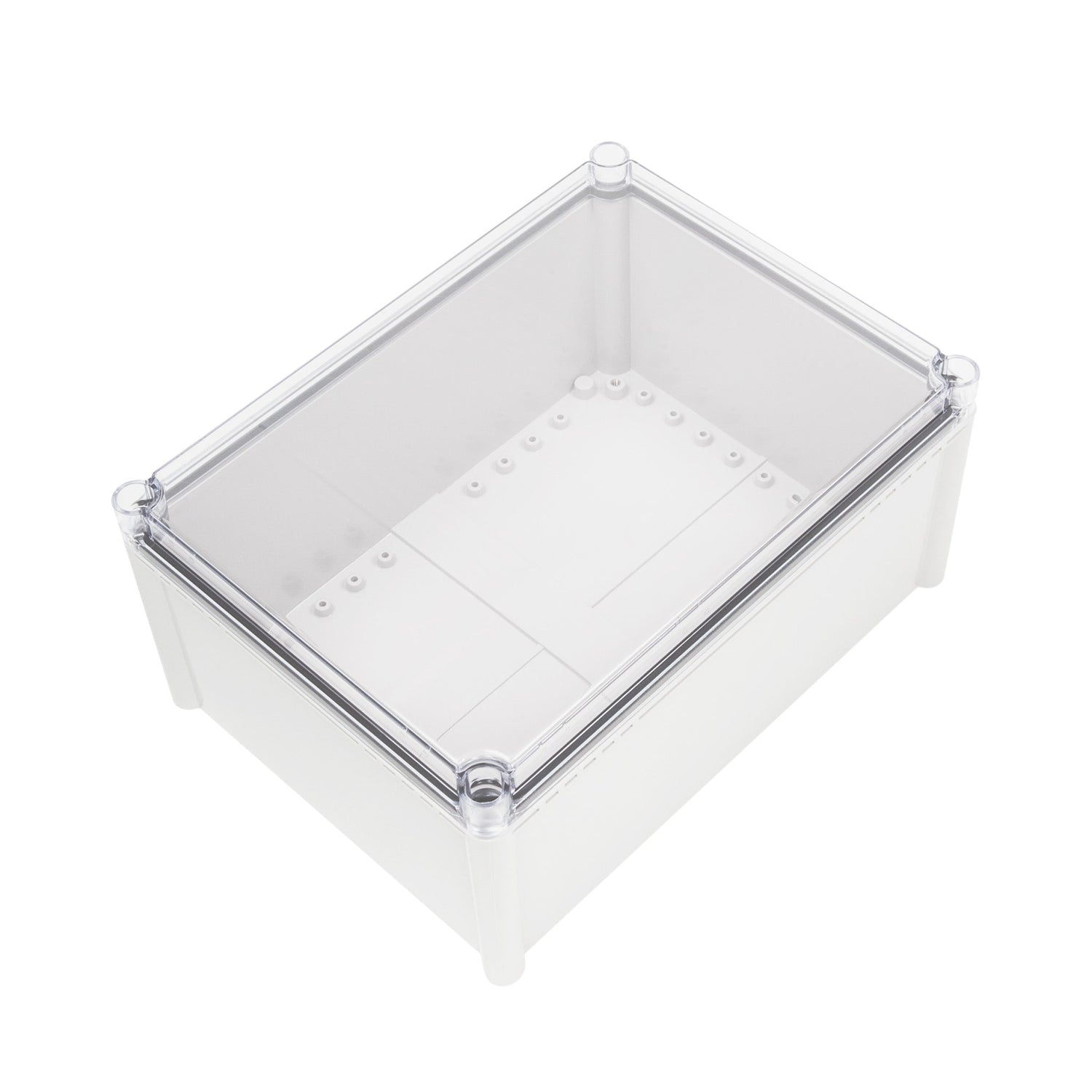

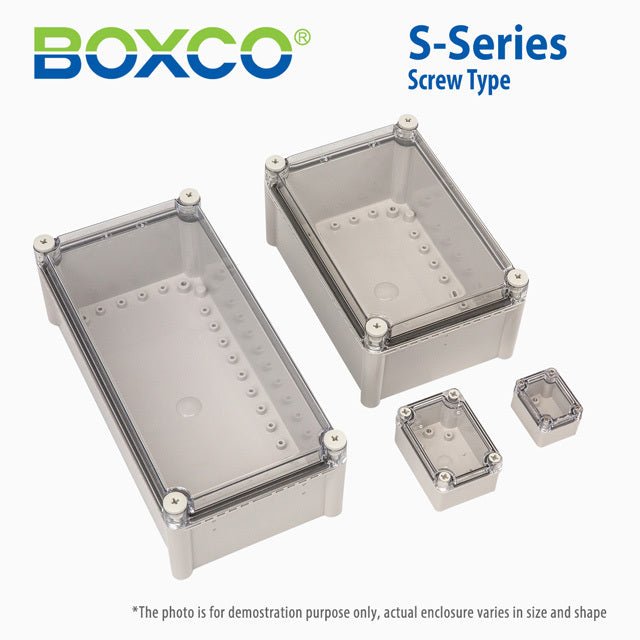

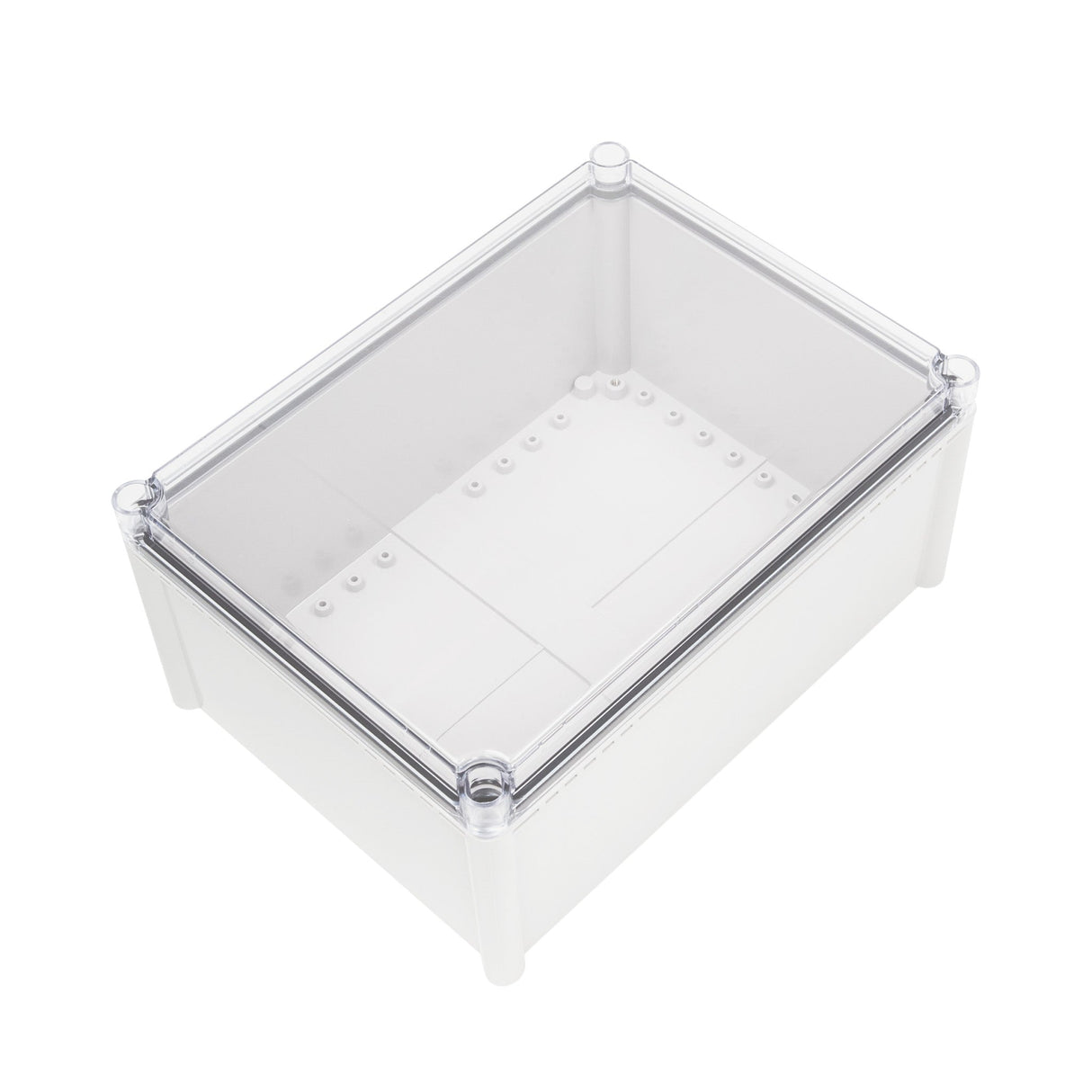

Boxco S-Series 3.15 x 9.84 x 2.76 Inches(80x250x70mm) Plastic Enclo...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.15 in
-
Width9.84 in
-
Height2.76 in
-
Weight0.69 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco S-Series 80x250x70mm enclosure suited for?
This enclosure is designed to protect sensitive electronic instruments and components in industrial or commercial environments. Its anti-static material, impact-resistant ABS body, and transparent screw-type cover make it a practical choice when equipment needs both protection and visual inspection.
Is this enclosure suitable for outdoor use?
Yes. Boxco states that an ultraviolet stabilizer is added for outdoor usage, which helps reduce color change over long-term exposure. The IP67 rating also supports use where protection from dust and water ingress is important.
How durable is this plastic enclosure in demanding environments?
This model combines an ABS construction with IK08 impact protection for resistance to external impact. The product description also notes high impact resistance and reduced risk of breakage during hole and press processing.
What kind of ingress protection does this enclosure provide?
This model is rated IP67, indicating strong protection against dust ingress and temporary water exposure. Boxco also highlights a precision-injected gasket designed to support waterproof and dust-proof performance.
What are the key size and material specifications for this model?
This enclosure measures 3.15 x 9.84 x 2.76 inches, which corresponds to 80 x 250 x 70 mm. It is made from ABS and includes a transparent cover in a screw-type enclosure design.
What internal mounting support does this enclosure include?
The enclosure includes mounting plate attachment points that allow an internal mounting plate to be fixed securely to brass inserted injection molding. It also includes pre-molded mounting screw nuts for securing DIN rail or other internal equipment.
What operating temperature range does this enclosure support?
This model is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for applications exposed to both low and elevated ambient temperatures within those limits.
