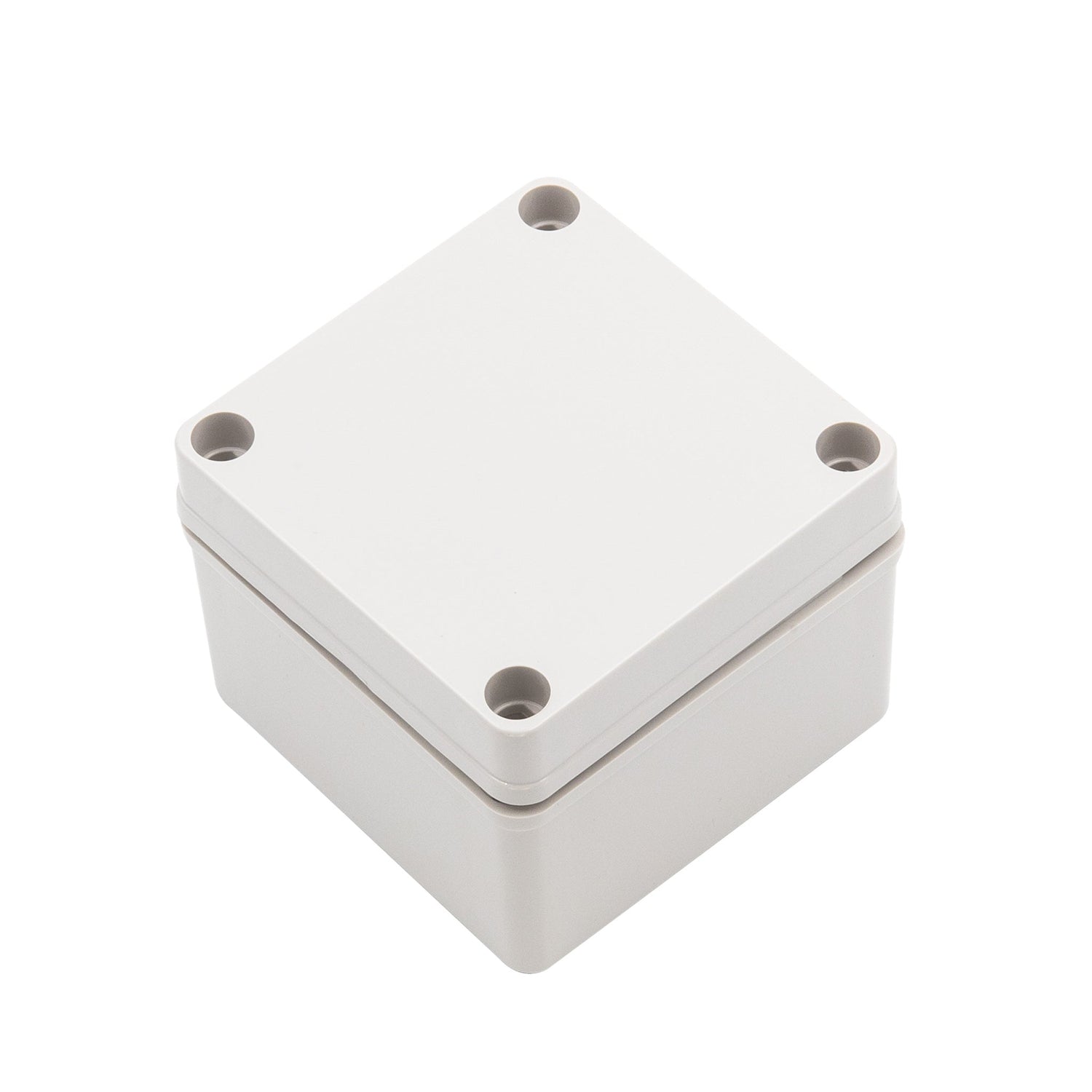

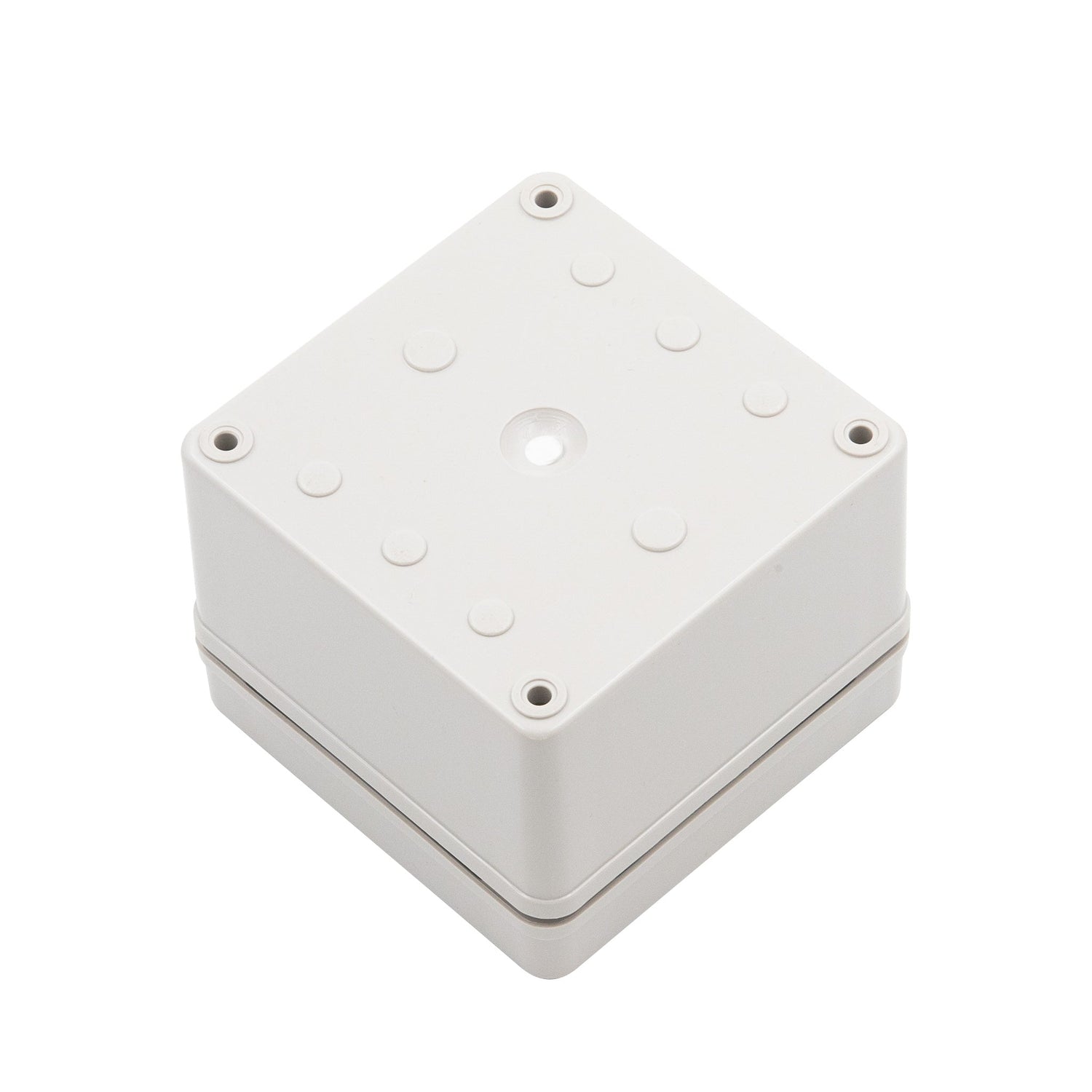

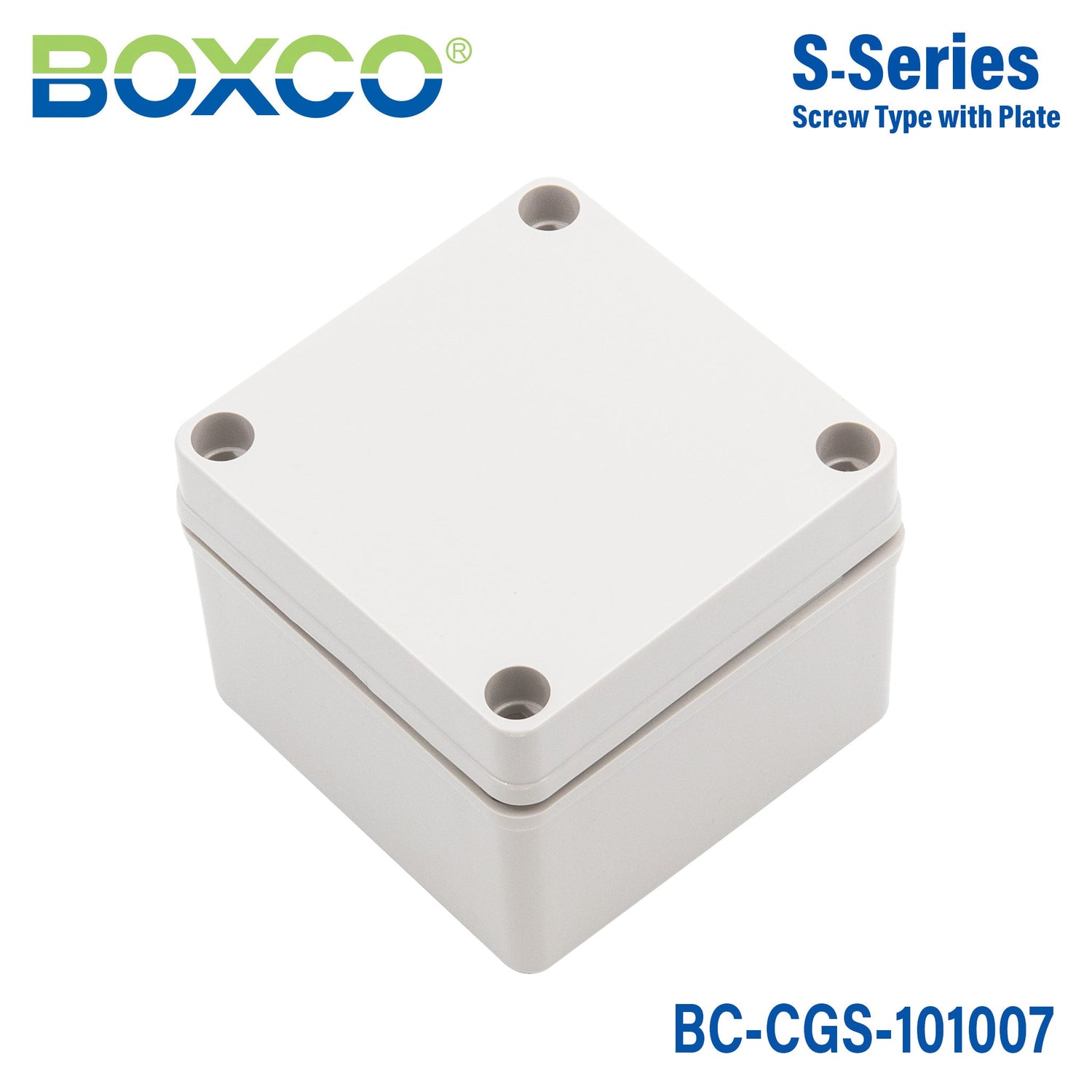

Boxco S-Series 3.94 x 3.94 x 2.95 Inches(100x100x75mm) Plastic Encl...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

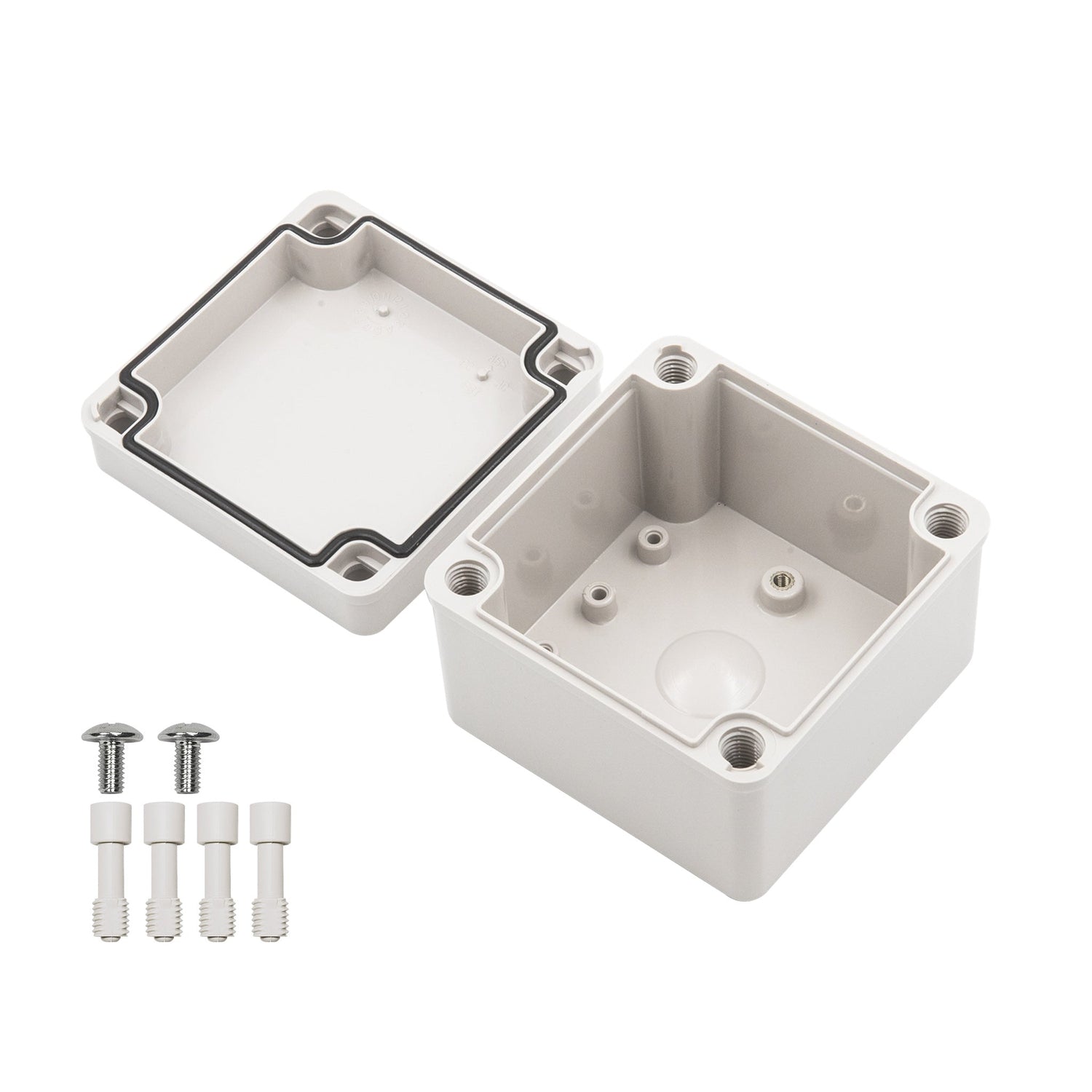

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.94 in
-
Width3.94 in
-
Height2.95 in
-
Weight0.55 lb
::specification::
Frequently Asked Questions
What are the dimensions of this enclosure?
This Boxco S-Series enclosure measures 3.94 x 3.94 x 2.95 inches, which corresponds to 100 x 100 x 75 mm. That size makes it suitable for compact control, protection, or junction-style enclosure applications where a small footprint is important.
Is this enclosure suitable for outdoor environments?
Yes. This model includes an ultraviolet stabilizer intended to help protect the enclosure during outdoor use and reduce visible color change over time. Its IP67 rating also indicates strong protection against dust ingress and temporary water exposure.
How durable is this plastic enclosure?
This enclosure is rated IP67 for dust and water resistance and IK08 for impact resistance. It is made from polycarbonate and described as high impact resistant, which helps it stand up to demanding industrial and commercial environments.
What material is this enclosure made from?
This model is made from polycarbonate (PC) and has a grey cover. The product description also notes anti-static material properties, which can help protect sensitive electronic instruments from static electricity.
What temperature range can this enclosure handle?
This enclosure is specified for use from -40 °C to 110 °C. That wide operating range makes it a practical option for both cold and high-heat environments where standard plastic housings may be more limited.
What kinds of equipment is this enclosure designed to support internally?
The enclosure includes internal mounting plate attachment points with brass inserted injection molding to help secure heavier internal equipment. It also has pre-molded mounting screw nuts, which can support DIN rail or other internal hardware where that format is required.
What distinguishes this screw type Boxco S-Series enclosure?
This model uses a screw-type cover and includes molded cover bolt attachment points designed for strength. It also combines outdoor UV stabilization, anti-static material properties, IP67 sealing, and IK08 impact resistance in a compact 100 x 100 x 75 mm format.
