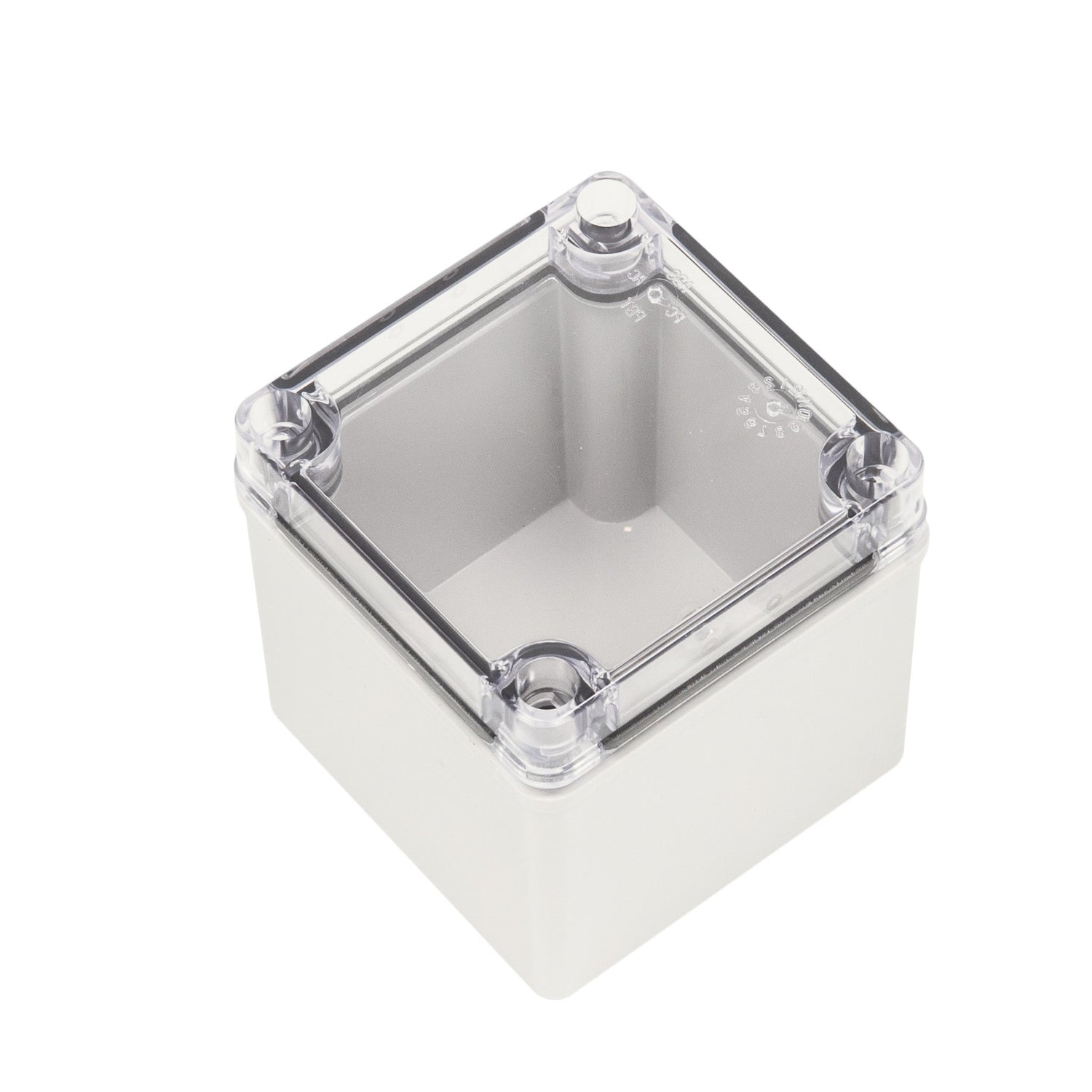

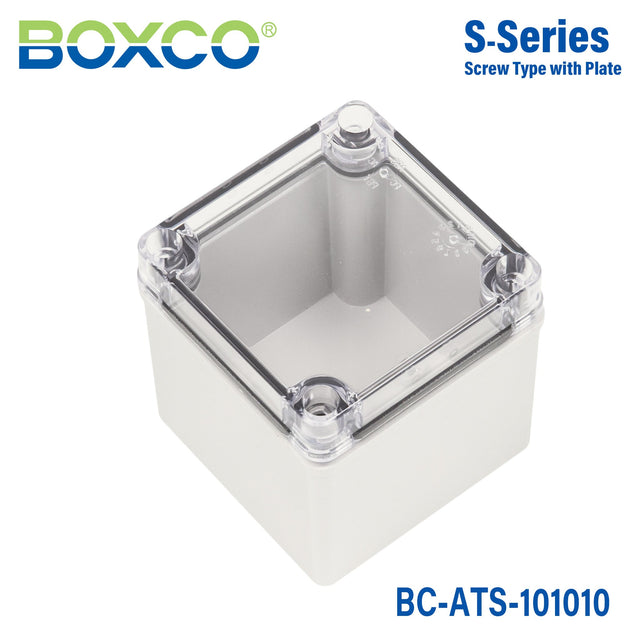

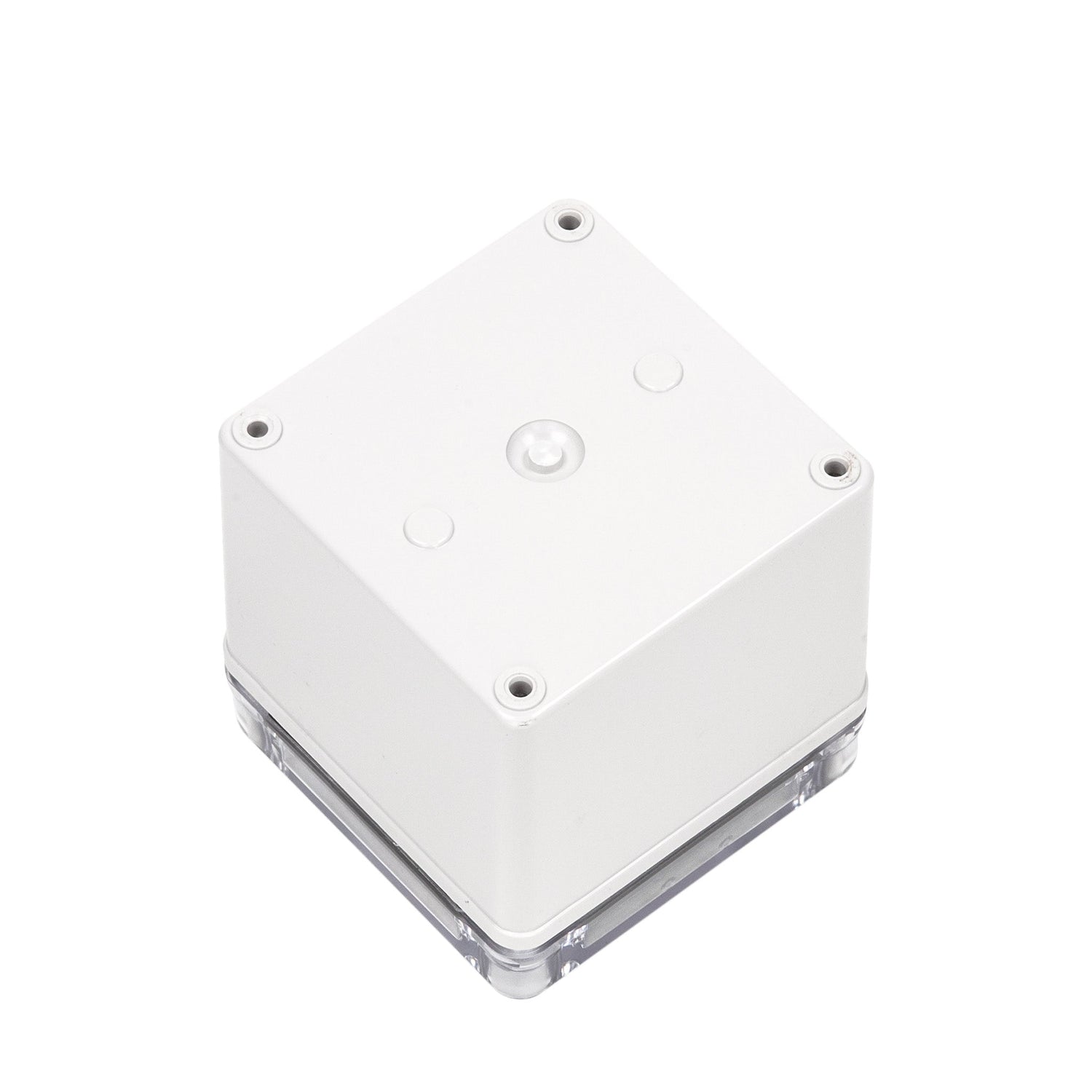

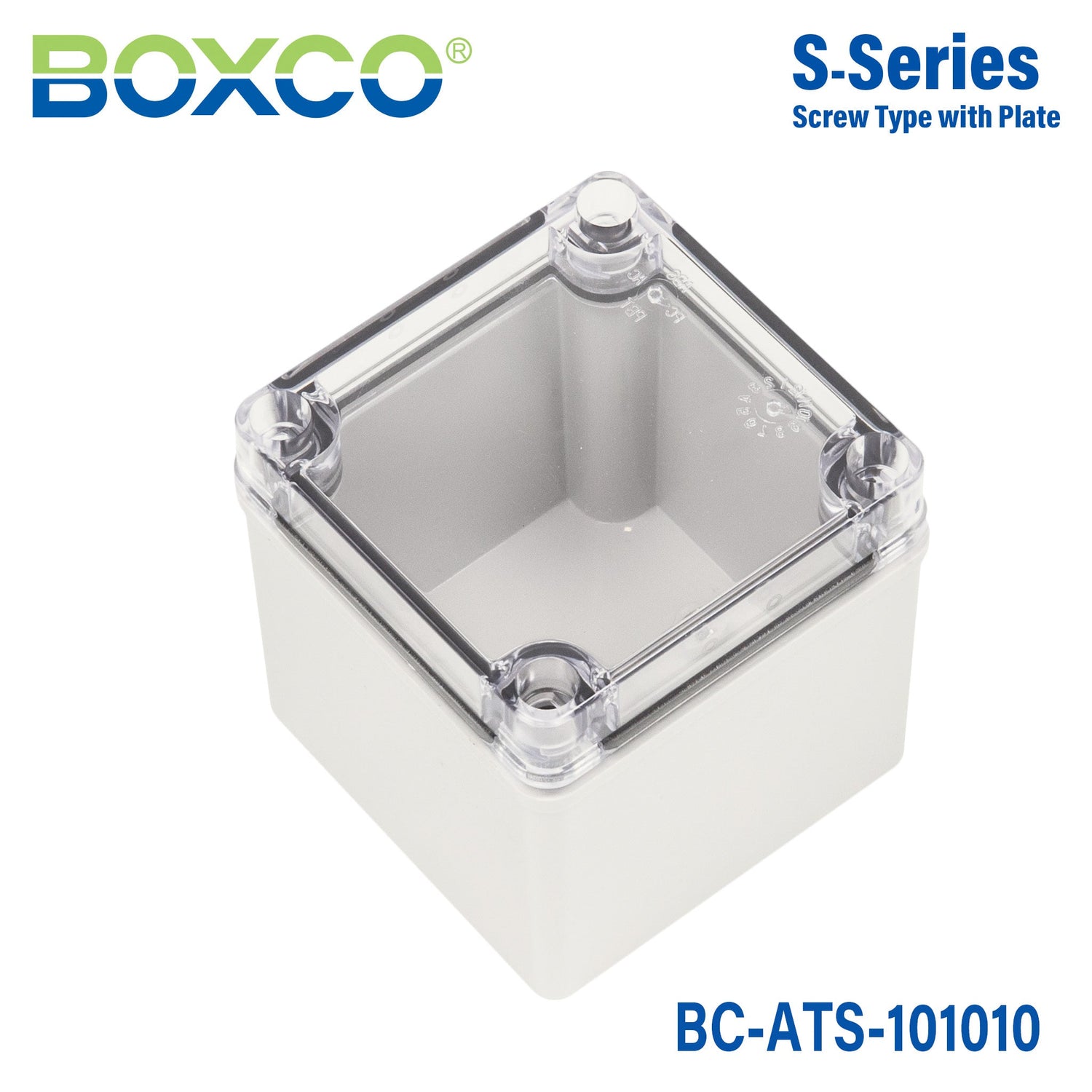

Boxco S-Series 3.94 x 3.94 x 3.94 Inches(100x100x100mm) Plastic Enc...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

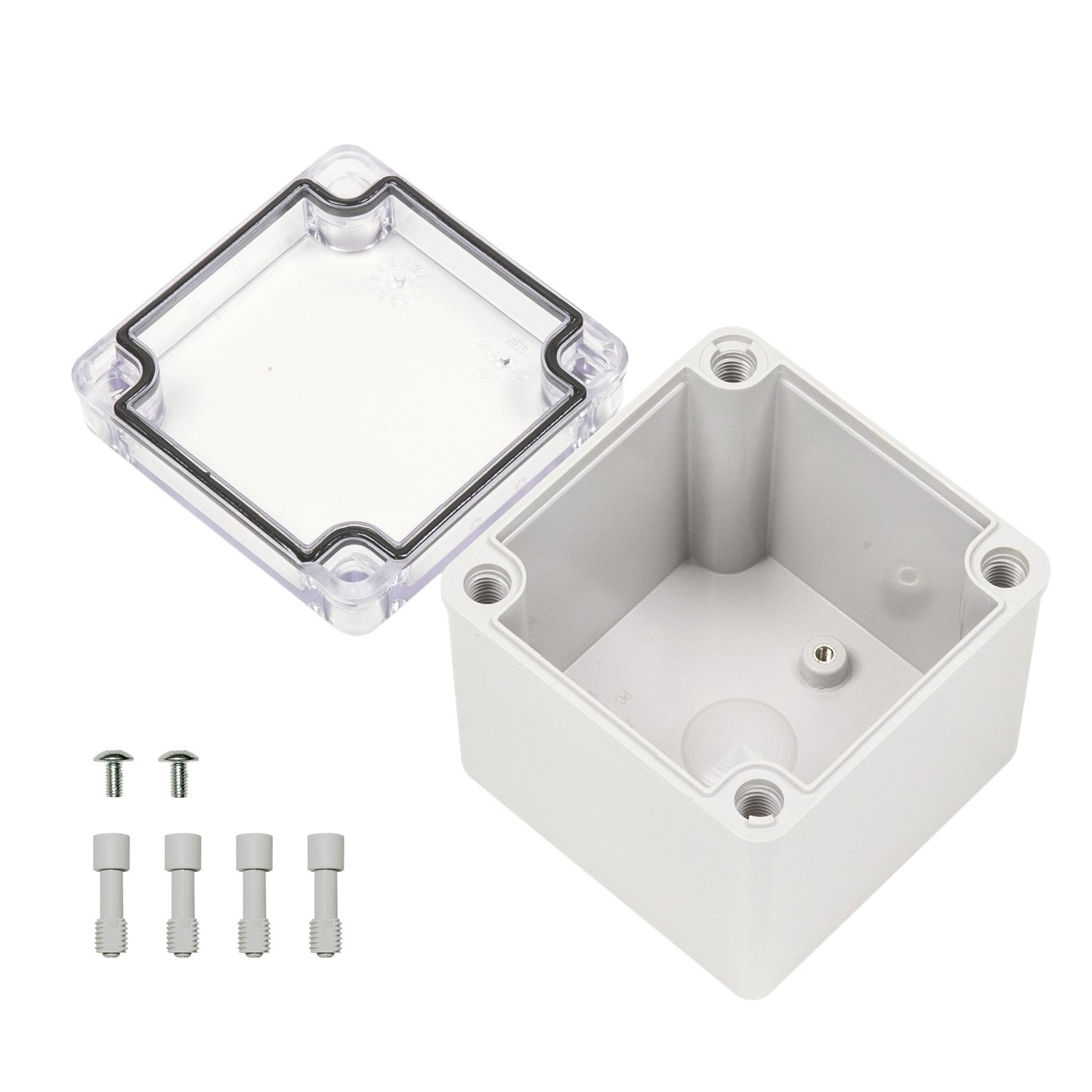

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.94 in
-
Width3.94 in
-
Height3.94 in
-
Weight0.62 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
Is the Boxco S-Series 100 x 100 x 100 mm enclosure suitable for outdoor use?
Yes. This model uses ultraviolet-stabilized material to help the enclosure maintain its appearance over long-term outdoor exposure, and it is rated IP67 for strong protection against dust and water ingress. That combination makes it a practical choice for outdoor control, monitoring, and instrumentation housings.
What protection level does this enclosure provide?
This enclosure is rated IP67 and IK08. IP67 indicates strong sealing against dust and temporary water exposure, while IK08 reflects resistance to external mechanical impact. The ABS body is also described as high impact resistant for added durability in demanding environments.
What are the main material and construction features of this model?
This version is made from ABS and includes a transparent screw-type cover. It also uses anti-static material to help protect sensitive electronic instruments from static electricity. Boxco also notes molded brass insert mounting points, pre-molded screw nuts, and precision-injected gasketing as part of the enclosure design.
When would I choose the transparent-cover version instead of an opaque enclosure?
The transparent cover is useful when internal indicators, displays, or status lights need to remain visible without opening the box. That can be helpful for inspection and monitoring while keeping the enclosure closed. If visibility is not needed, an opaque-cover option may be preferred for a more concealed appearance.
What kinds of applications is this 100 x 100 x 100 mm enclosure best suited for?
This size is well suited to compact industrial, commercial, and OEM electronics that need sealed protection in a relatively small footprint. Typical uses include sensor housings, control electronics, junction protection, and instrumentation enclosures. It is especially relevant where dust resistance, water resistance, and impact durability matter.
What operating temperature range does this enclosure support?
The stated operating temperature range for this model is -40 °C to 70 °C. That makes it suitable for a wide range of indoor and outdoor conditions. Buyers with applications near either temperature extreme should still confirm the full system, including internal components, is rated for the same range.
Will this enclosure work for mounting internal components or plates?
Yes, this model is designed with internal mounting support features. The description specifies mounting plate attachment points with brass-inserted injection molding and pre-molded screw nuts for securing DIN rail or other internal equipment. Exact fit depends on the size and layout of the components being housed.
