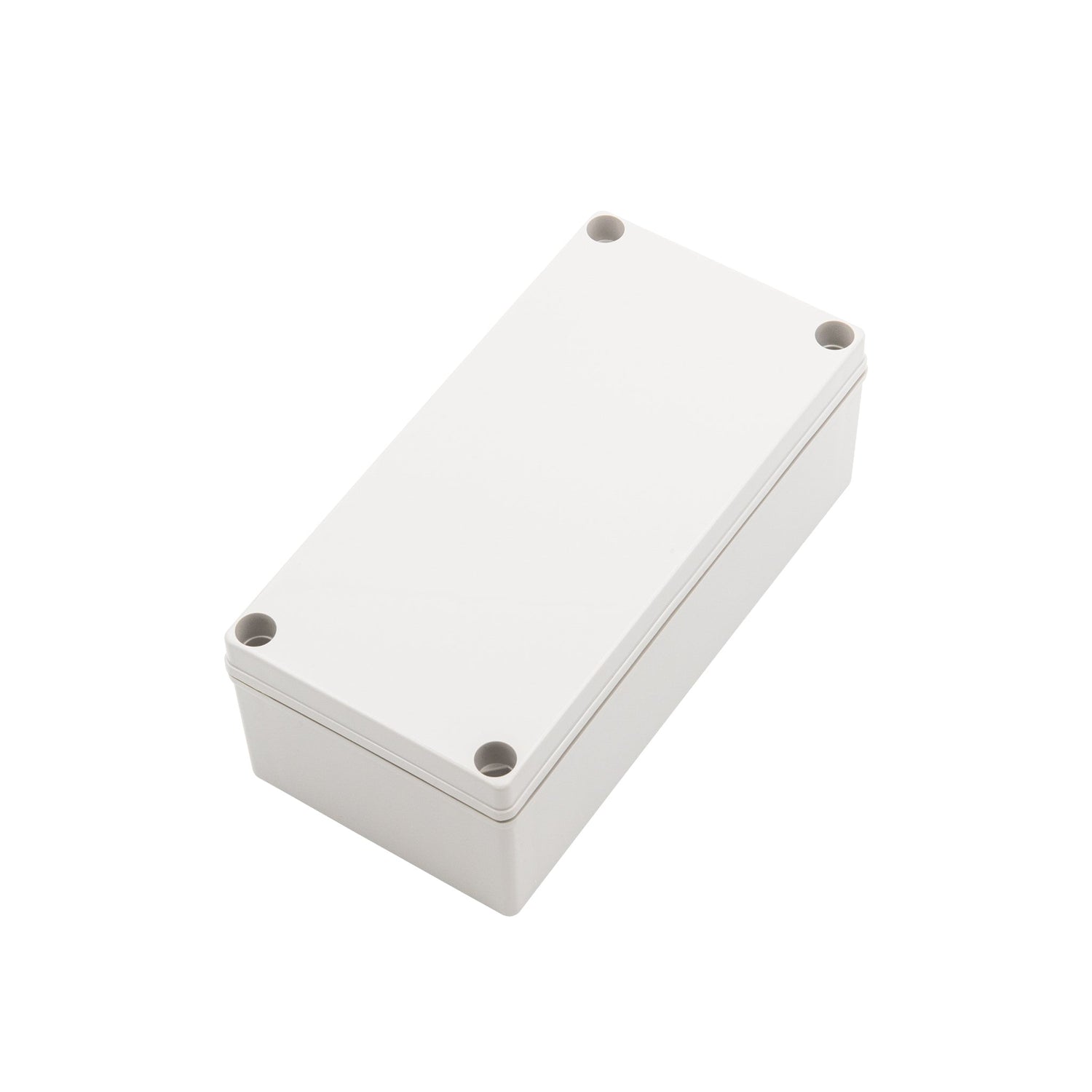

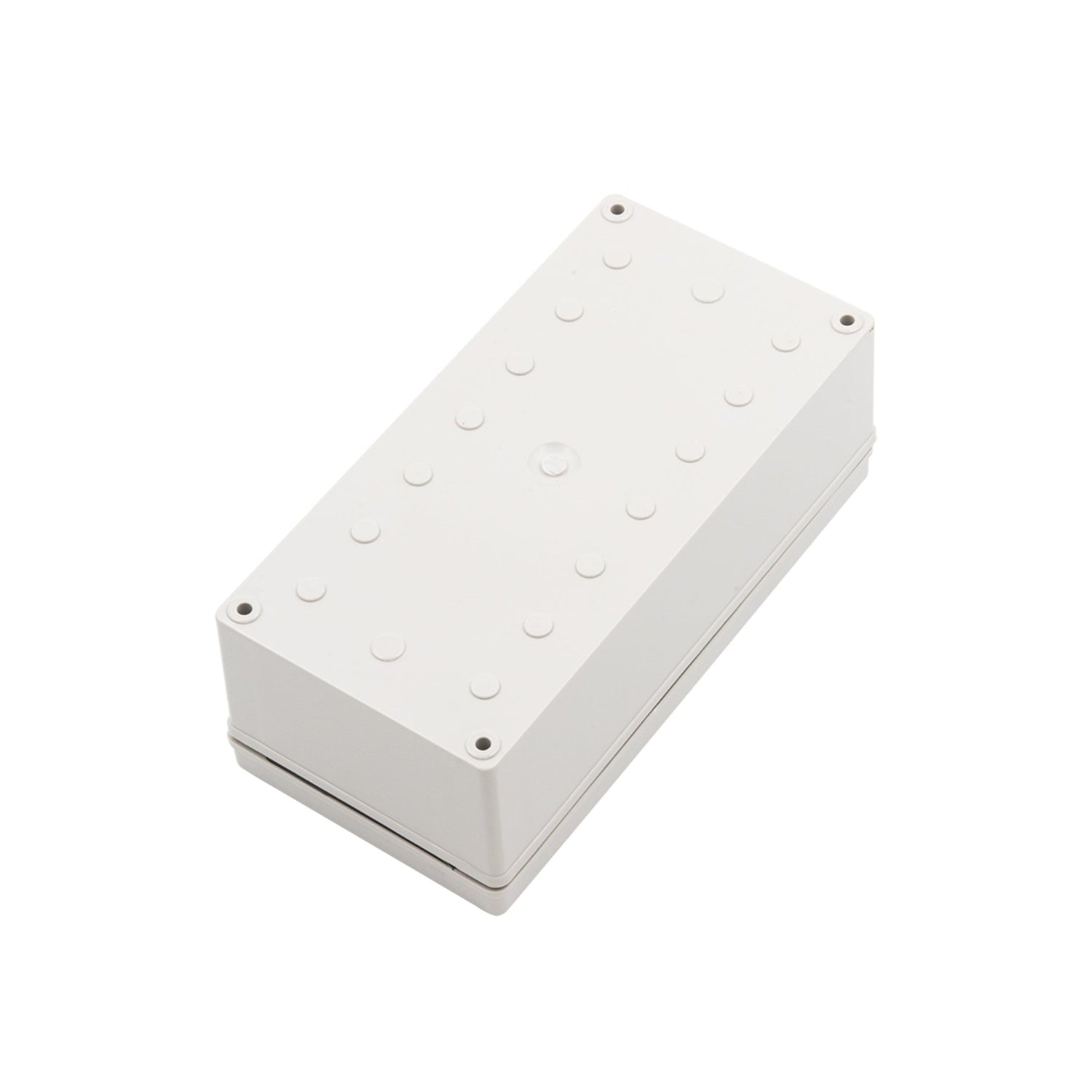

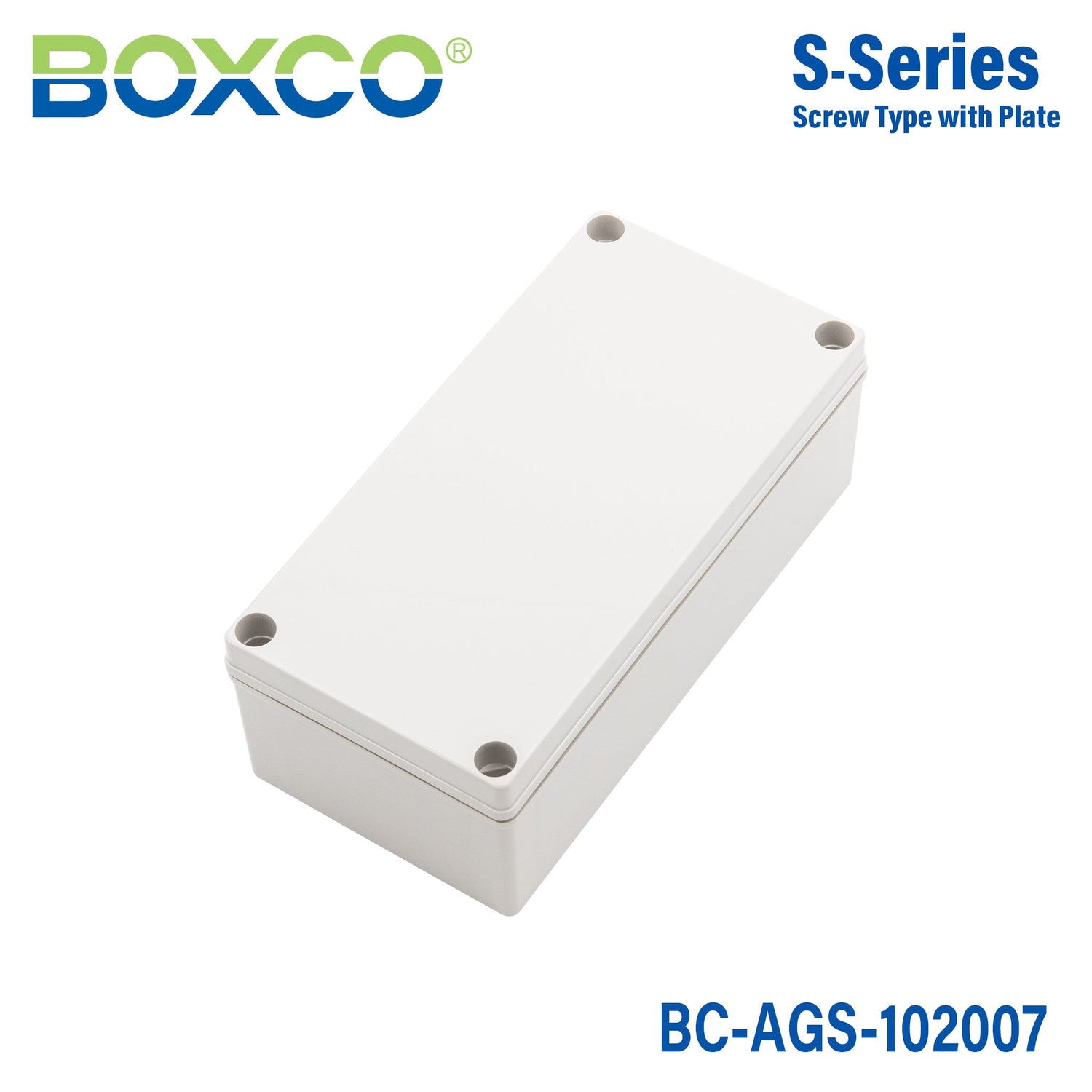

Boxco S-Series 3.94 x 7.87 x 2.76 Inches(100x200x70mm) Plastic Encl...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

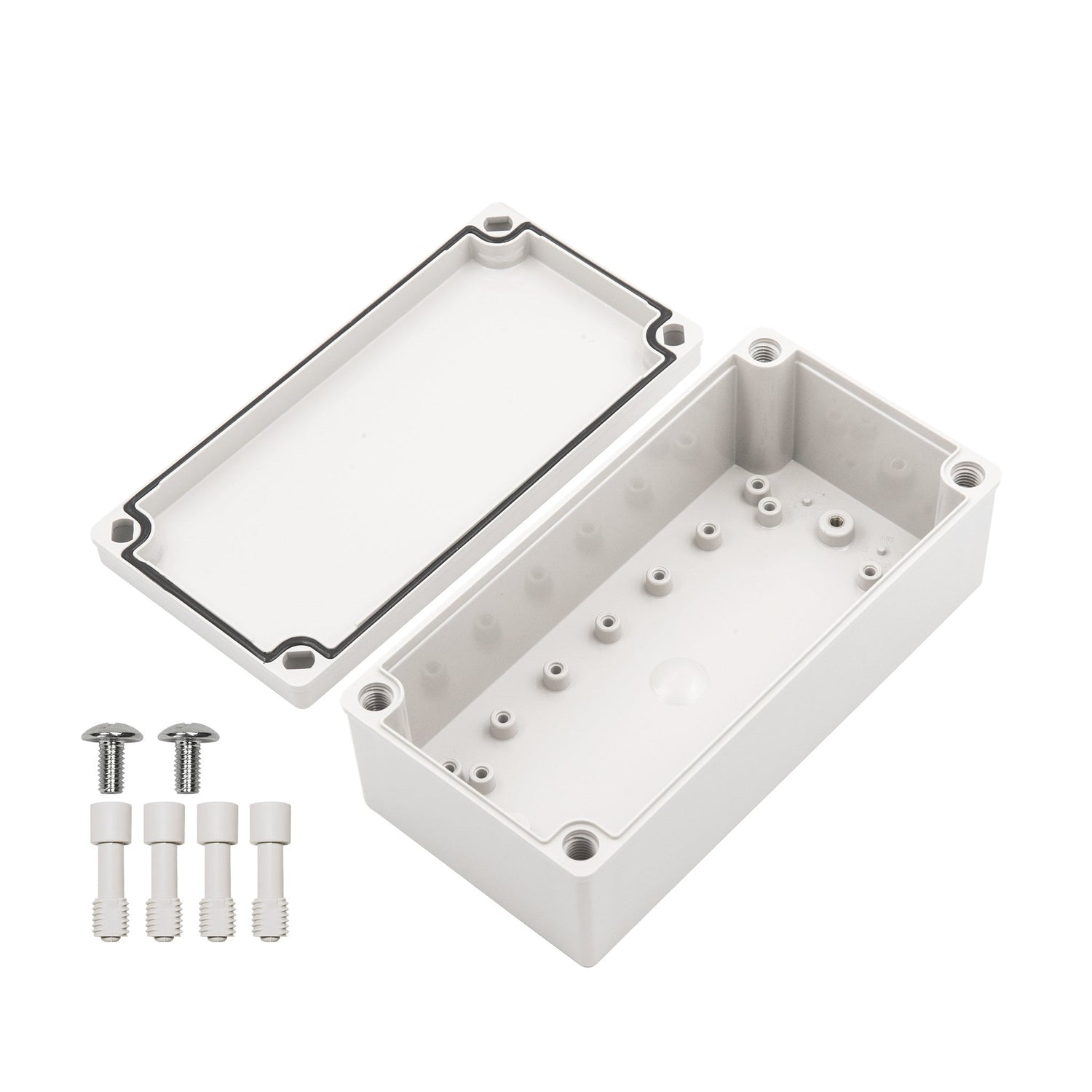

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.94 in
-
Width7.87 in
-
Height2.76 in
-
Weight0.67 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series 100x200x70mm enclosure suited for?
This enclosure is suited for protecting electronic components and control hardware in industrial, commercial, and OEM applications where a sealed non-metallic housing is needed. Its internal mounting features and impact-resistant ABS construction make it a practical choice for equipment that needs organized placement inside a compact enclosure.
Is this plastic enclosure suitable for outdoor environments?
Yes, this model is designed for outdoor use. The description states that an ultraviolet stabilizer is added to help protect the enclosure during long-term exposure, reducing visible color change over time.
What level of environmental protection does this enclosure provide?
This model is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. It also uses a precision-injected gasket design to support waterproof and dust-proof performance.
How durable is this enclosure for demanding environments?
The enclosure has an IK08 impact rating and is made from high impact resistant ABS material. According to the product description, the material is designed to resist external impact and help prevent breakage during processing.
What are the main physical specifications of this enclosure?
This Boxco S-Series enclosure measures 3.94 x 7.87 x 2.76 inches (100 x 200 x 70 mm) and weighs 0.302 kg. It has a grey cover, screw-type closure, and a plastic ABS body.
What internal mounting features does this model include?
This enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support secure installation of internal components such as mounting plates or DIN rail-based hardware.
What operating temperature range can this enclosure handle?
This model is specified for use from -40 °C to 70 °C. That range makes it suitable for many indoor and outdoor industrial environments where temperature exposure is a concern.
