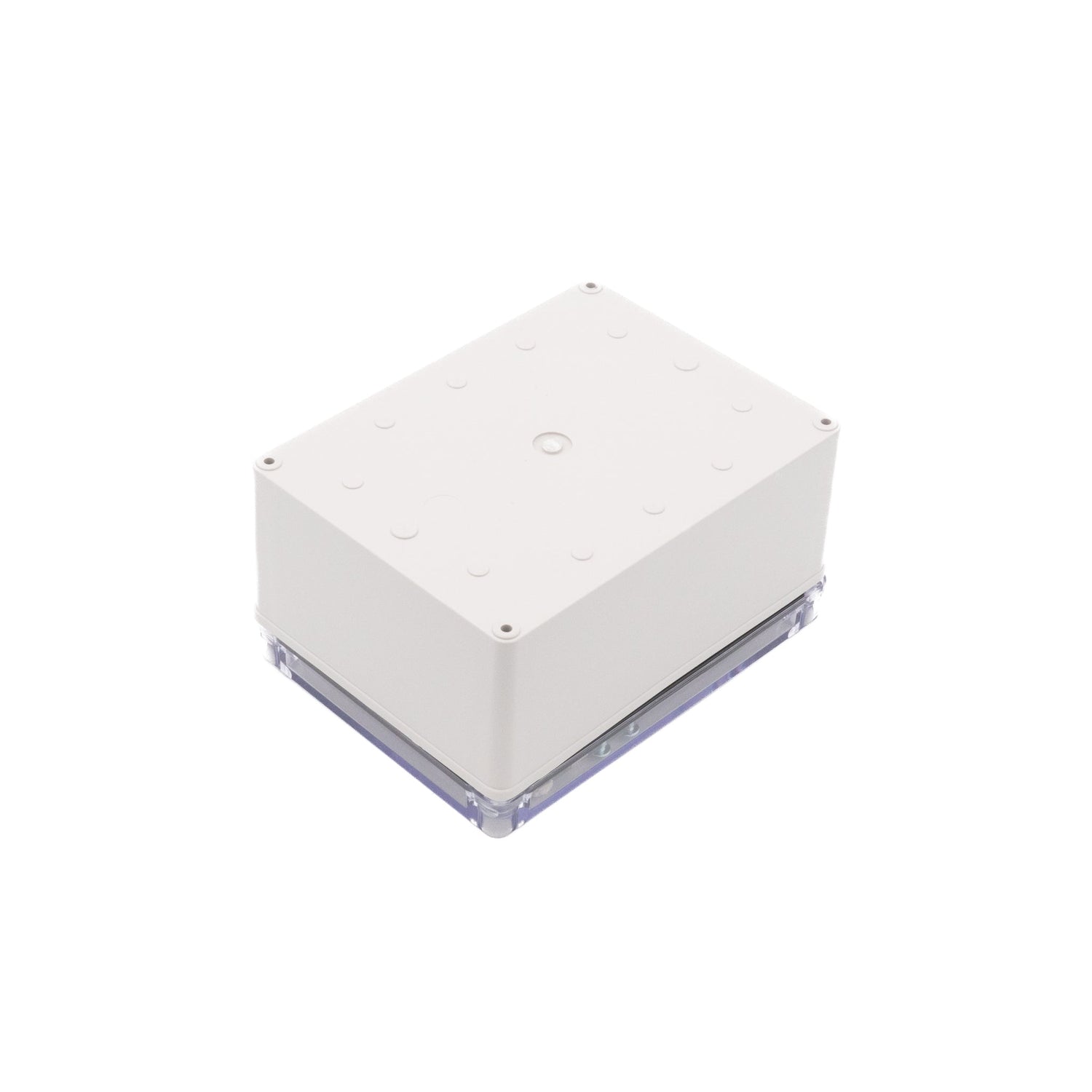

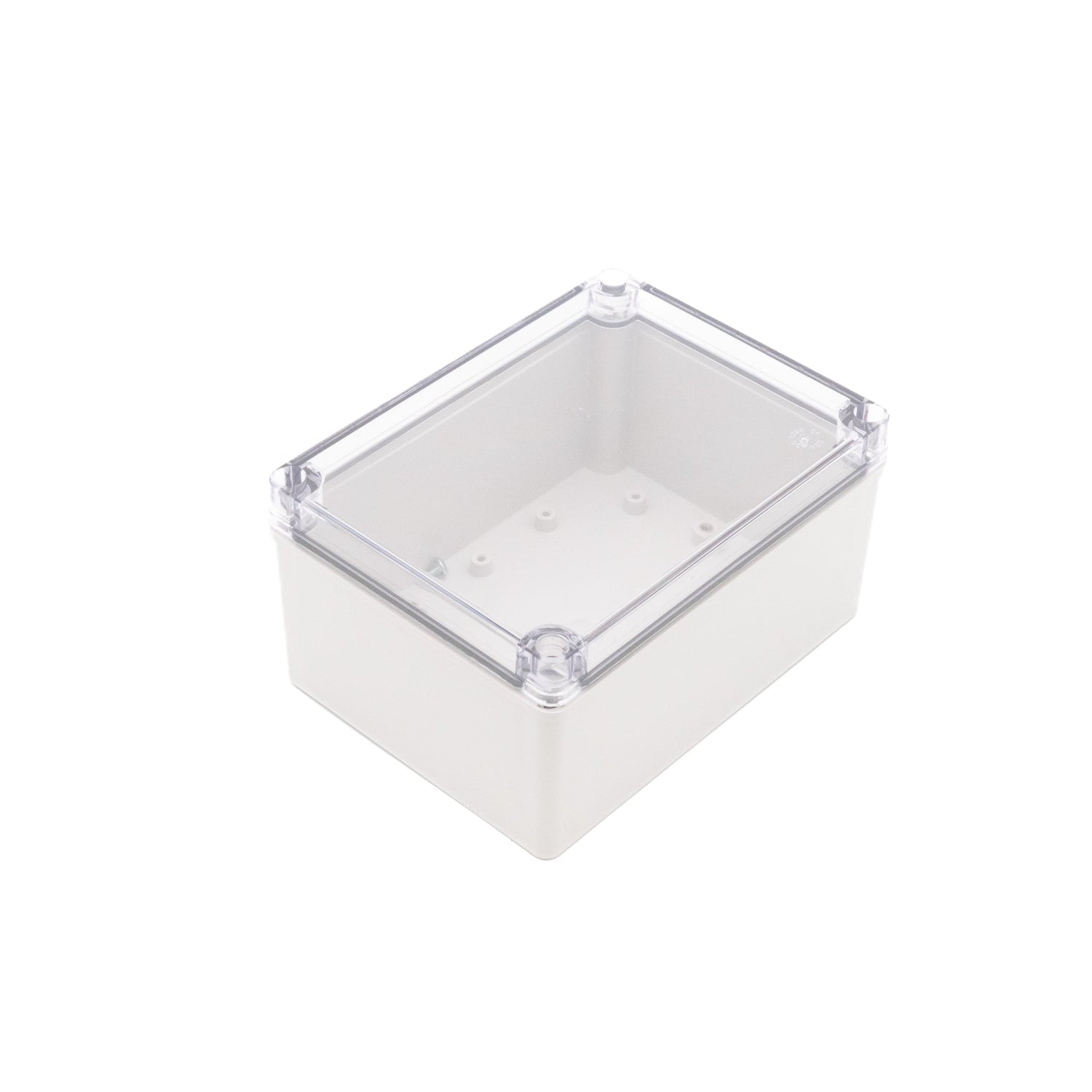

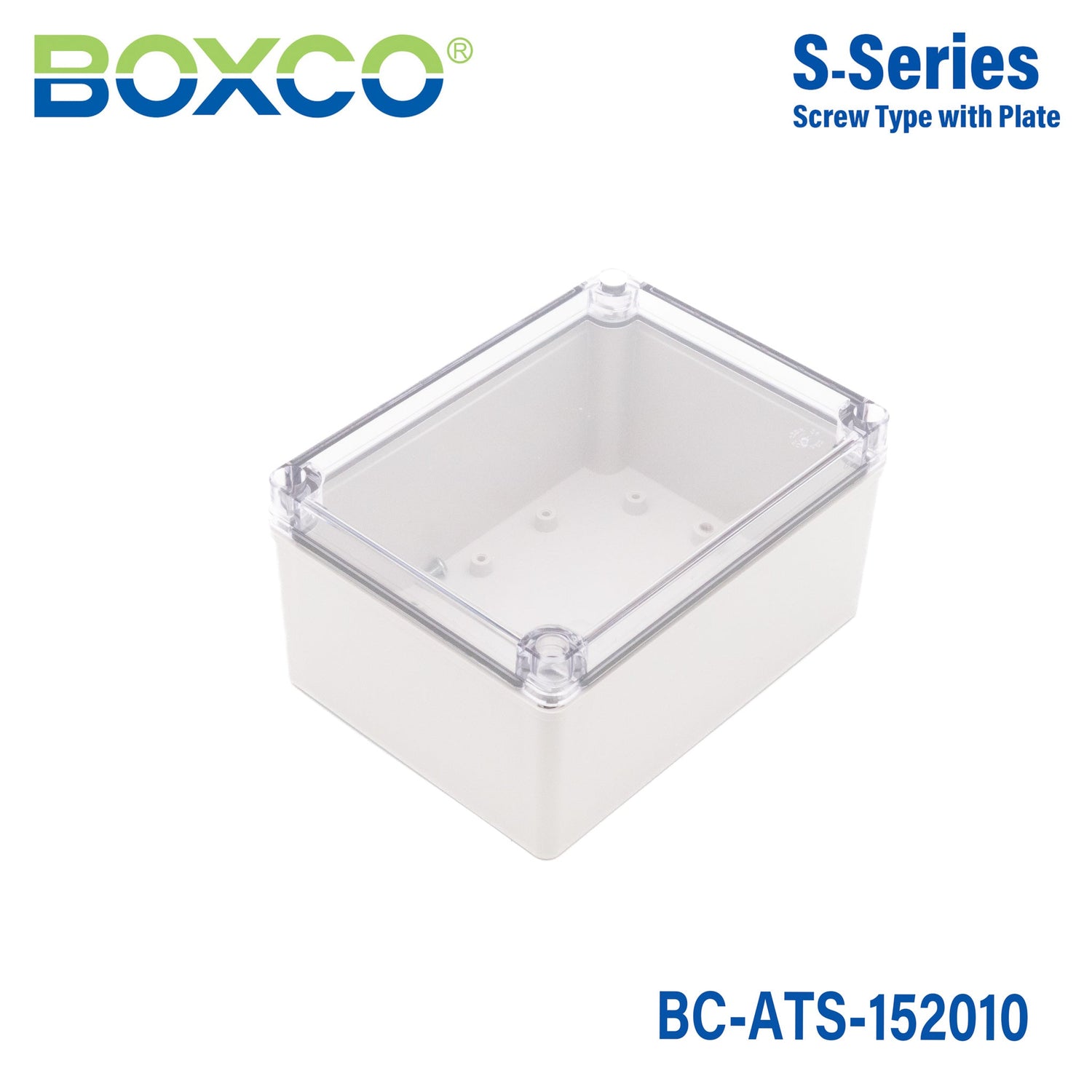

Boxco S-Series 5.91 x 7.87 x 3.94 Inches(150x200x100mm) Plastic Enc...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

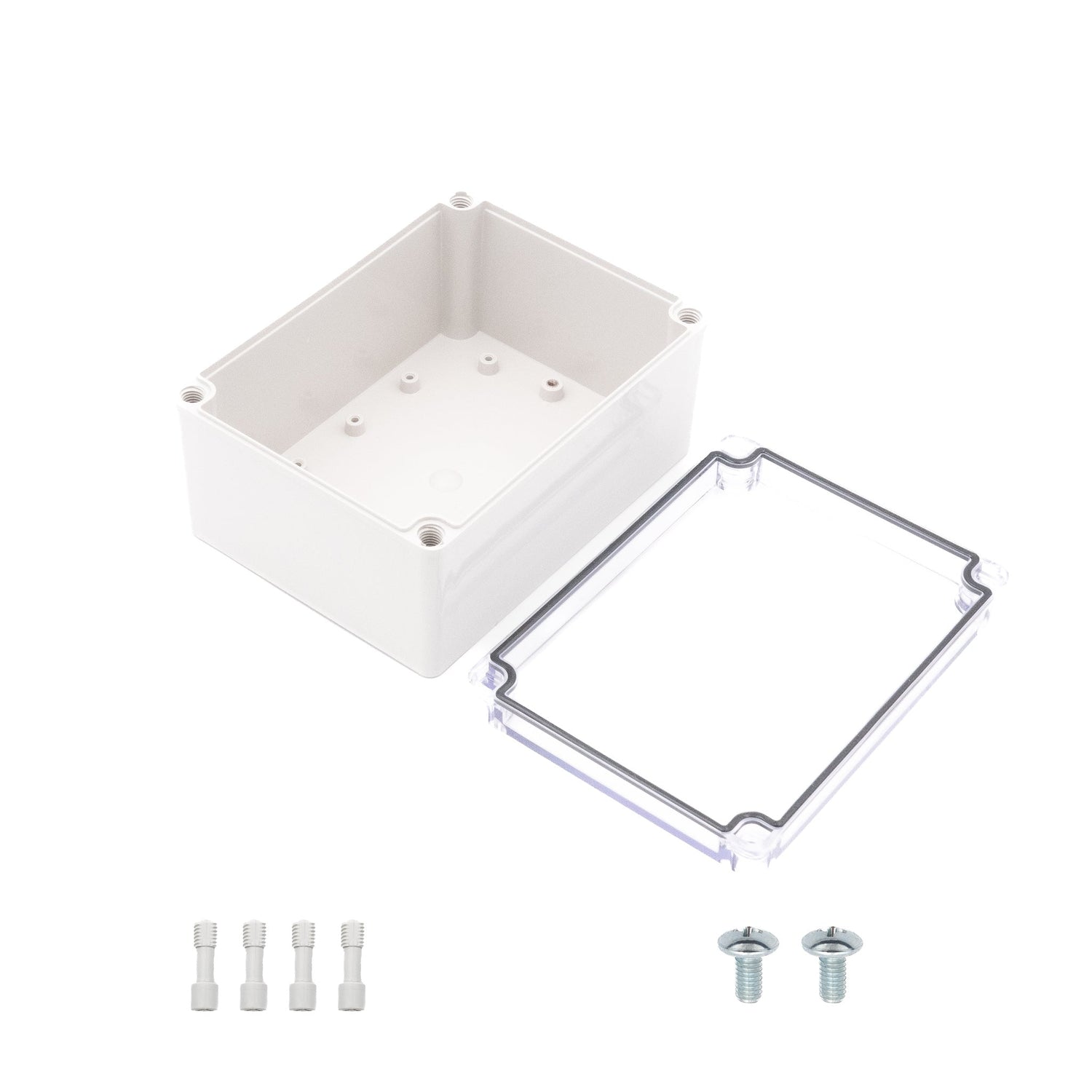

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length5.91 in
-
Width7.87 in
-
Height3.94 in
-
Weight1.13 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco S-Series BC-ATS-152010 enclosure best suited for?
This enclosure is suited for protecting electronic equipment in industrial and outdoor environments where dust, water resistance, and impact resistance matter. Its anti-static material also makes it a practical choice for housing sensitive electronic instruments.
Is the BC-ATS-152010 suitable for outdoor use?
Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to support outdoor usage and reduce visible color change over time. It is also rated IP67, which helps protect against dust and water ingress in demanding environments.
What are the main specifications of this plastic enclosure?
This model measures 5.91 x 7.87 x 3.94 inches (150 x 200 x 100 mm) and weighs 0.512 kg. It is made from ABS, has a transparent cover, uses a screw-type closure, carries IP67 and IK08 ratings, and is rated for temperatures from -40°C to 70°C.
Does this enclosure support internal mounting components?
Yes. The enclosure includes internal mounting plate attachment points with brass inserted injection molding so a mounting plate can be secured firmly. It also includes pre-molded mounting screw nuts for attaching compatible internal hardware such as DIN rail accessories.
How does this model help protect equipment in harsh environments?
The BC-ATS-152010 combines an IP67 sealing level with a gasket manufactured for waterproof and dust-proof performance. It also uses high impact resistant material and carries an IK08 impact rating for added protection against external impact.
What distinguishes this Boxco S-Series enclosure from a basic general-purpose plastic box?
This model is built for more demanding use than a basic utility box because it combines IP67 water and dust protection, IK08 impact resistance, and UV-stabilized ABS material. It also includes a transparent cover and molded internal mounting features that support equipment protection and organized enclosure builds.
