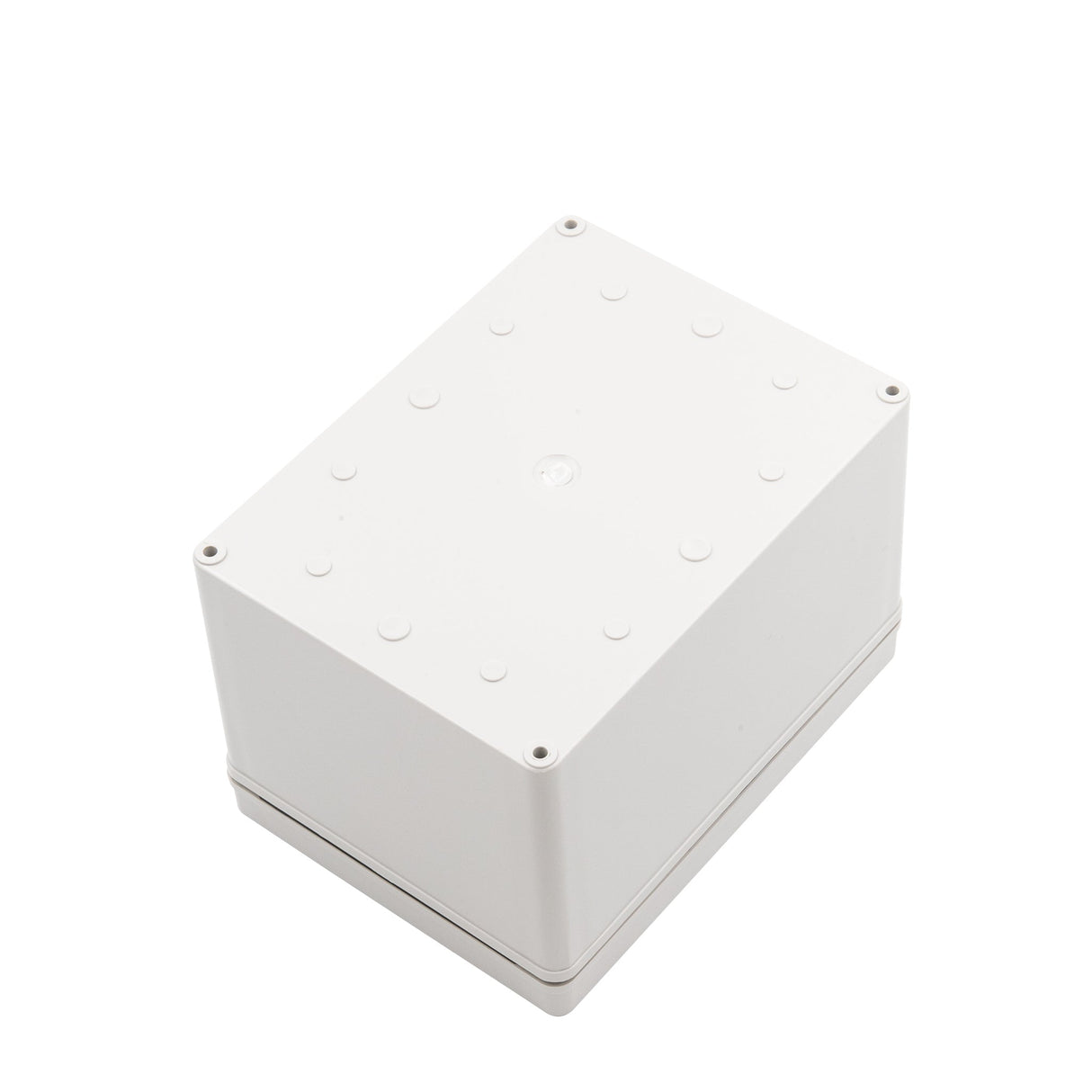

Boxco S-Series 5.91 x 7.87 x 5.12 Inches(150x200x130mm) Plastic Enc...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

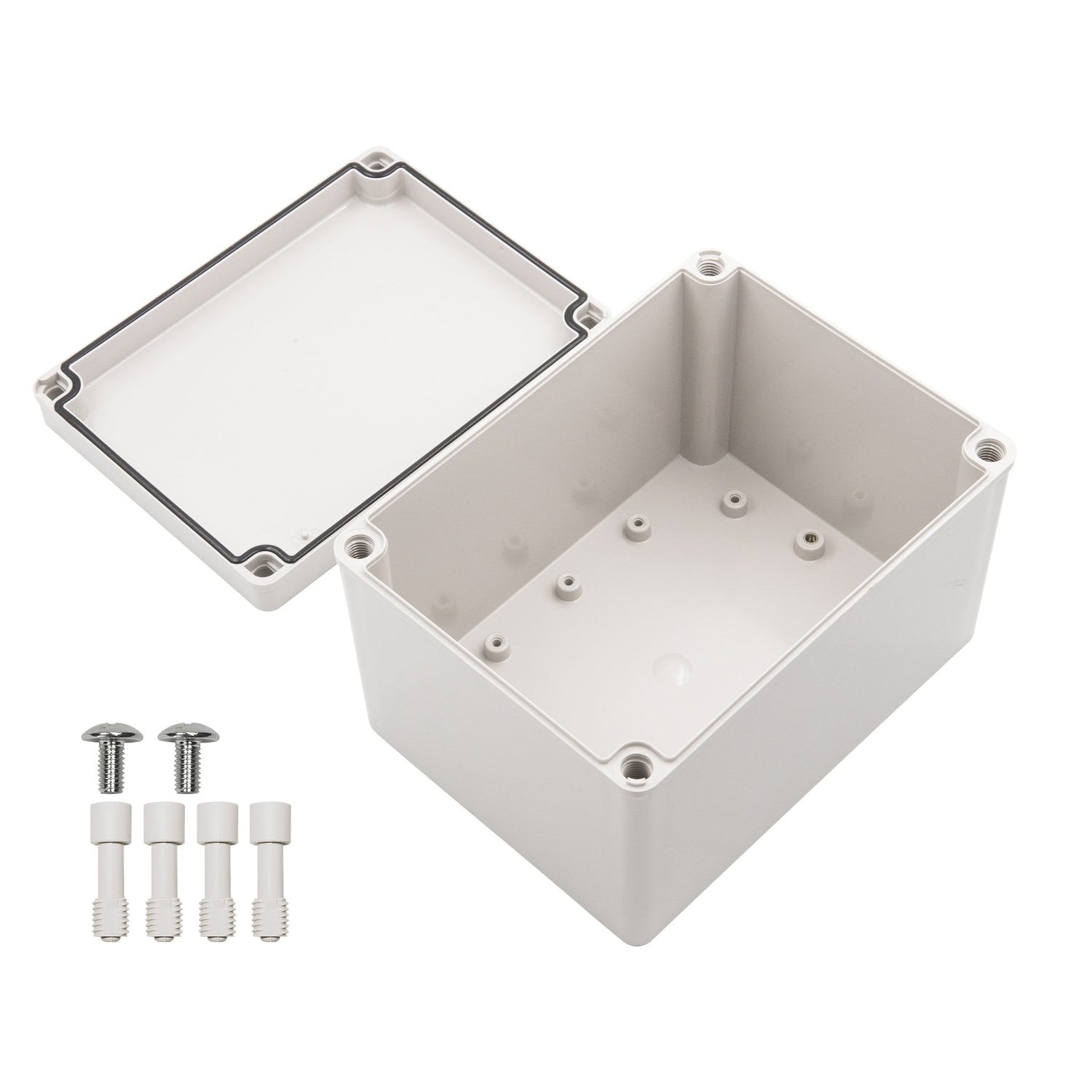

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length5.91 in
-
Width7.87 in
-
Height5.12 in
-
Weight1.16 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series BC-AGS-152013 enclosure suited for?
This enclosure is designed for protecting electronic components and control hardware in industrial and commercial environments. Its ABS construction, impact resistance, and sealed design make it a practical choice for indoor use and for outdoor use where protection from dust, water ingress, and UV exposure matters.
Is this enclosure suitable for outdoor environments?
Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. Its IP67 rating also indicates strong protection against dust and water ingress in demanding environments.
What level of environmental and impact protection does this model provide?
This model is rated IP67 and IK08. That means it is built for strong dust and water resistance and also offers solid impact protection for applications where the enclosure may be exposed to physical contact or rougher service conditions.
What are the size and material details for BC-AGS-152013?
The enclosure measures 5.91 x 7.87 x 5.12 inches, which is 150 x 200 x 130 mm. It is made from ABS and comes with a grey cover in a screw-type enclosure design.
What temperature range can this enclosure handle?
The specified operating temperature range is -40 °C to 70 °C. This makes it suitable for a wide range of industrial and outdoor conditions where both low and elevated temperatures may be a factor.
Does this enclosure support mounting internal components?
Yes. The description highlights internal mounting plate attachment points with brass inserted injection molding, as well as pre-molded mounting screw nuts for securing accessories such as DIN rail or other equipment. These features make the enclosure better suited for organized internal component mounting than a plain empty box.
How does this model differ from a basic plastic enclosure box?
This model adds several features beyond a generic plastic box, including IP67 sealing, IK08 impact protection, UV stabilization for outdoor use, anti-static material, and reinforced mounting points. It is intended for more demanding professional applications where durability and enclosure performance are important selection factors.
