Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

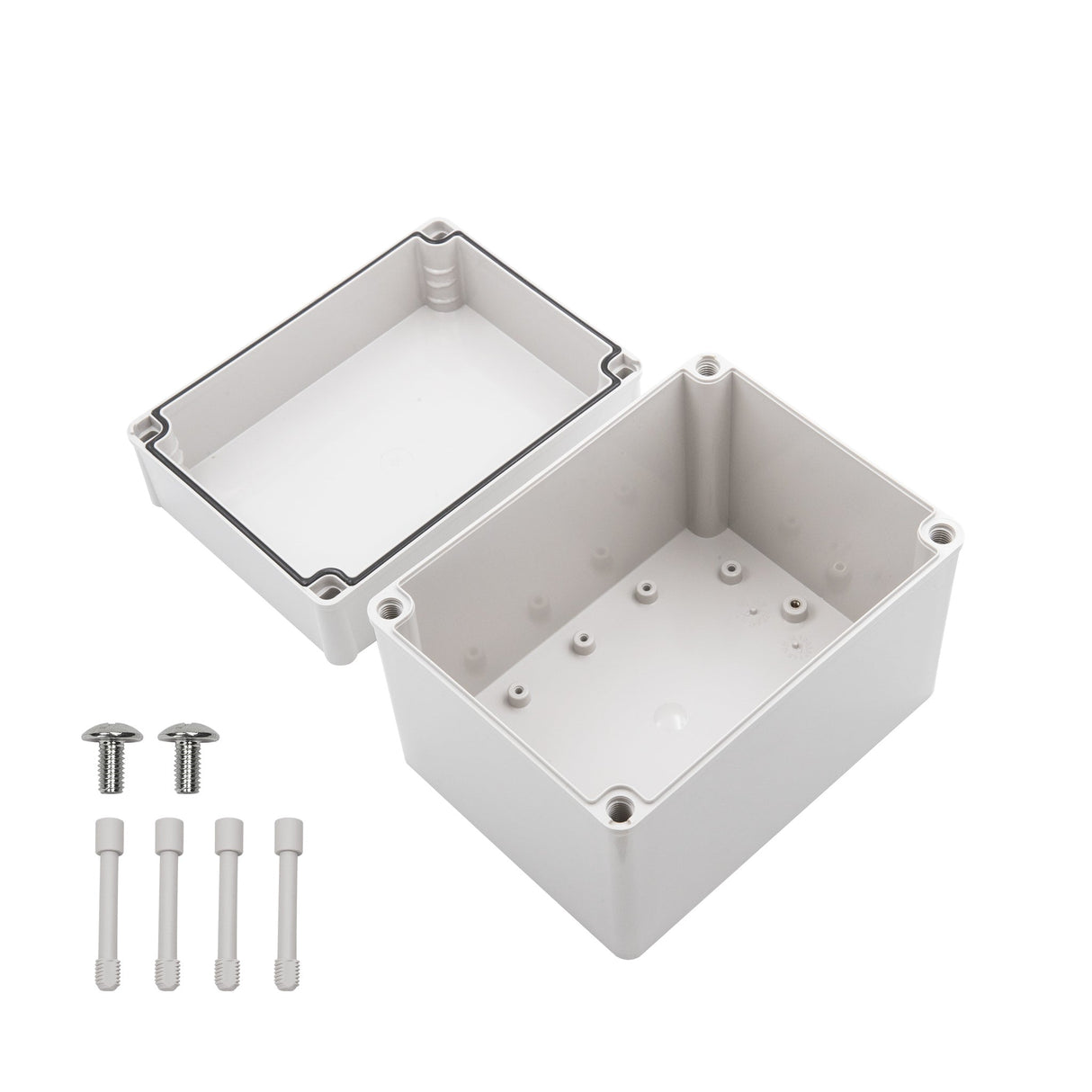

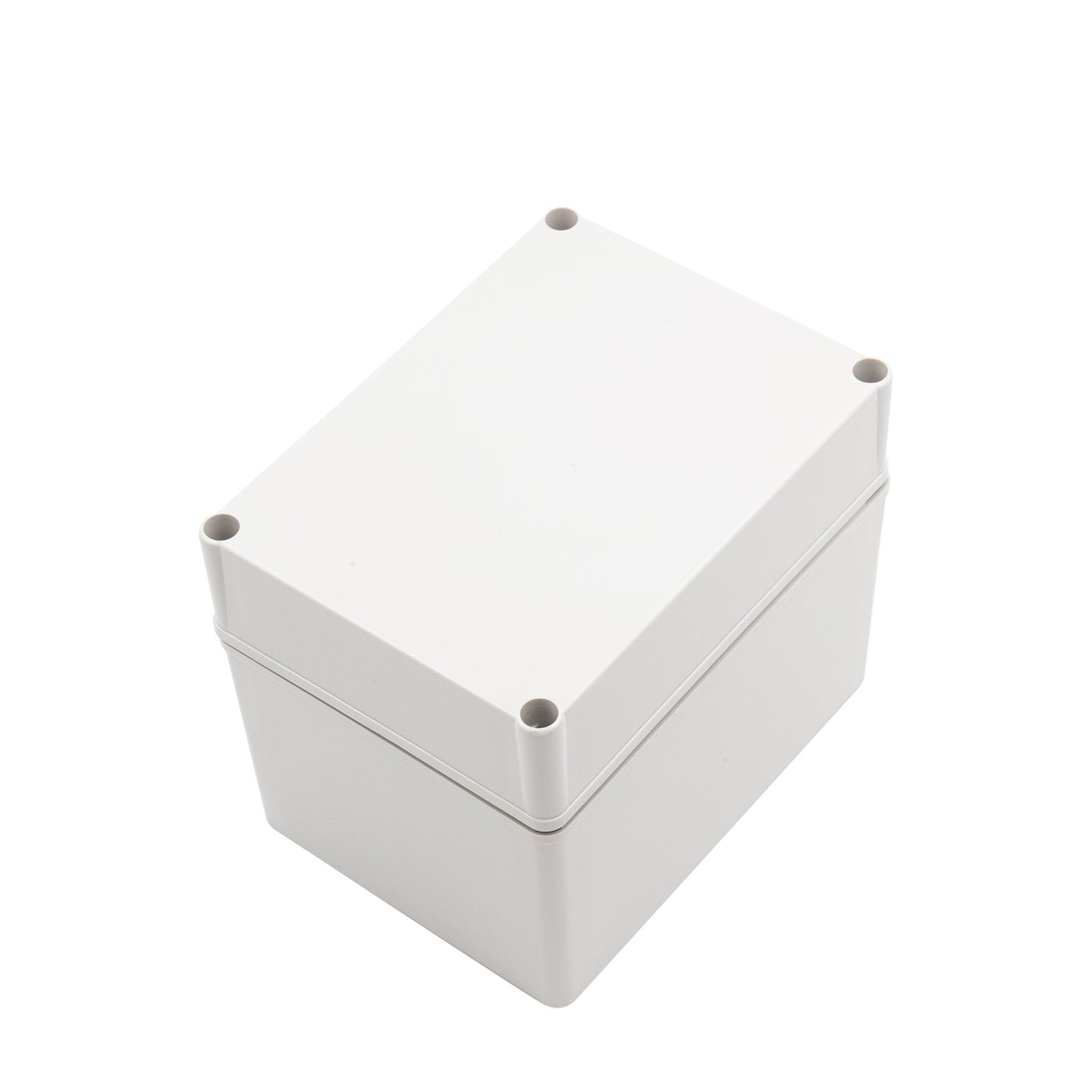

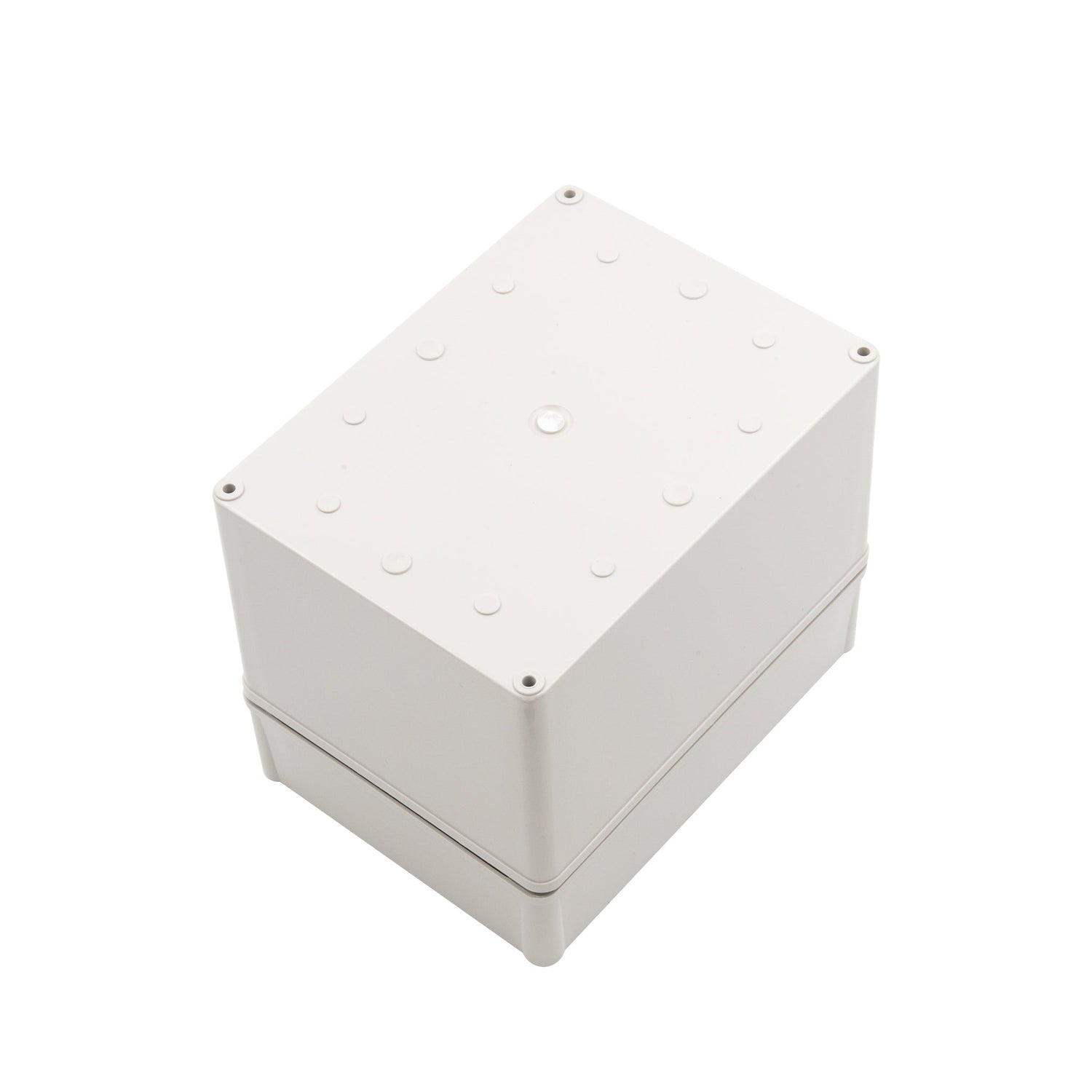

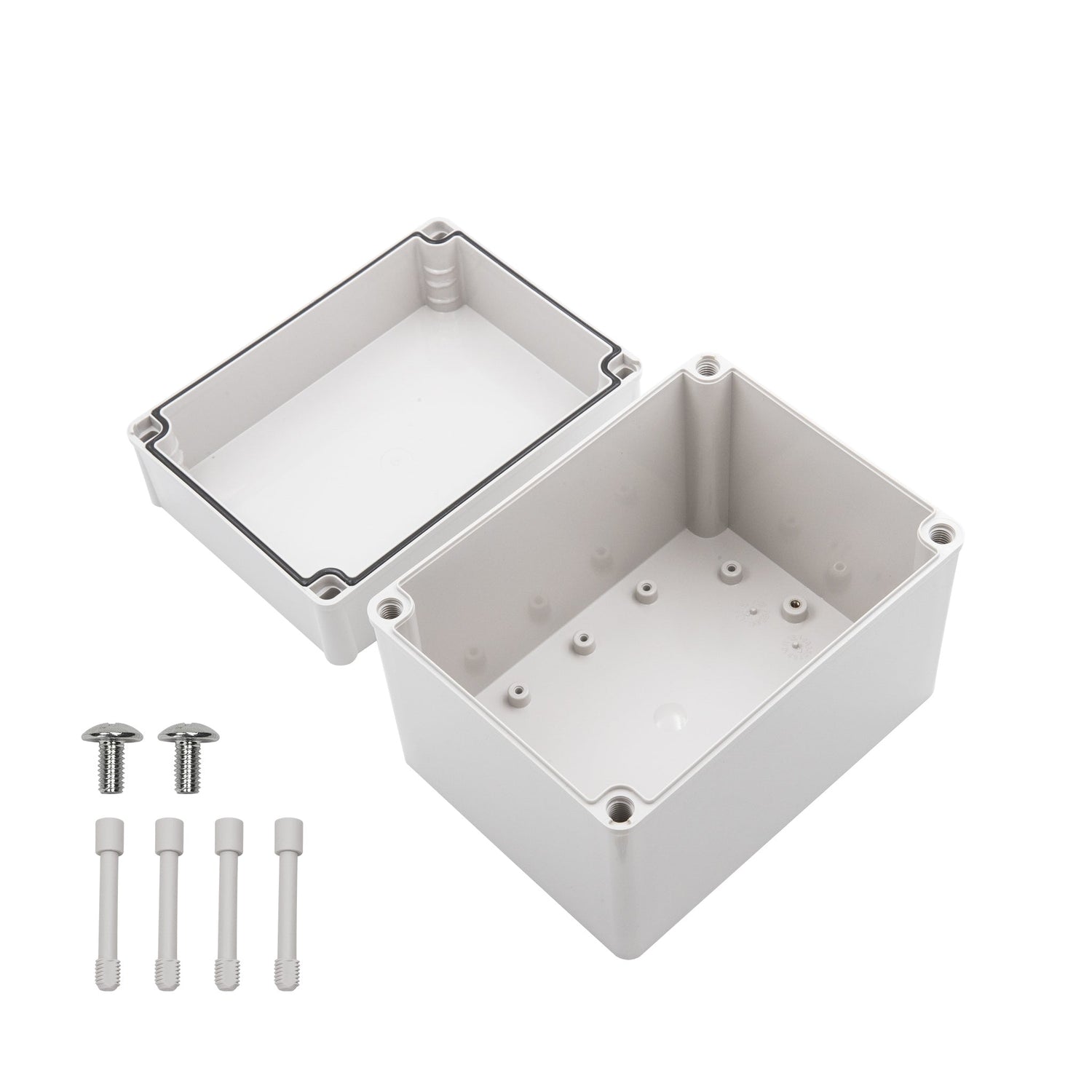

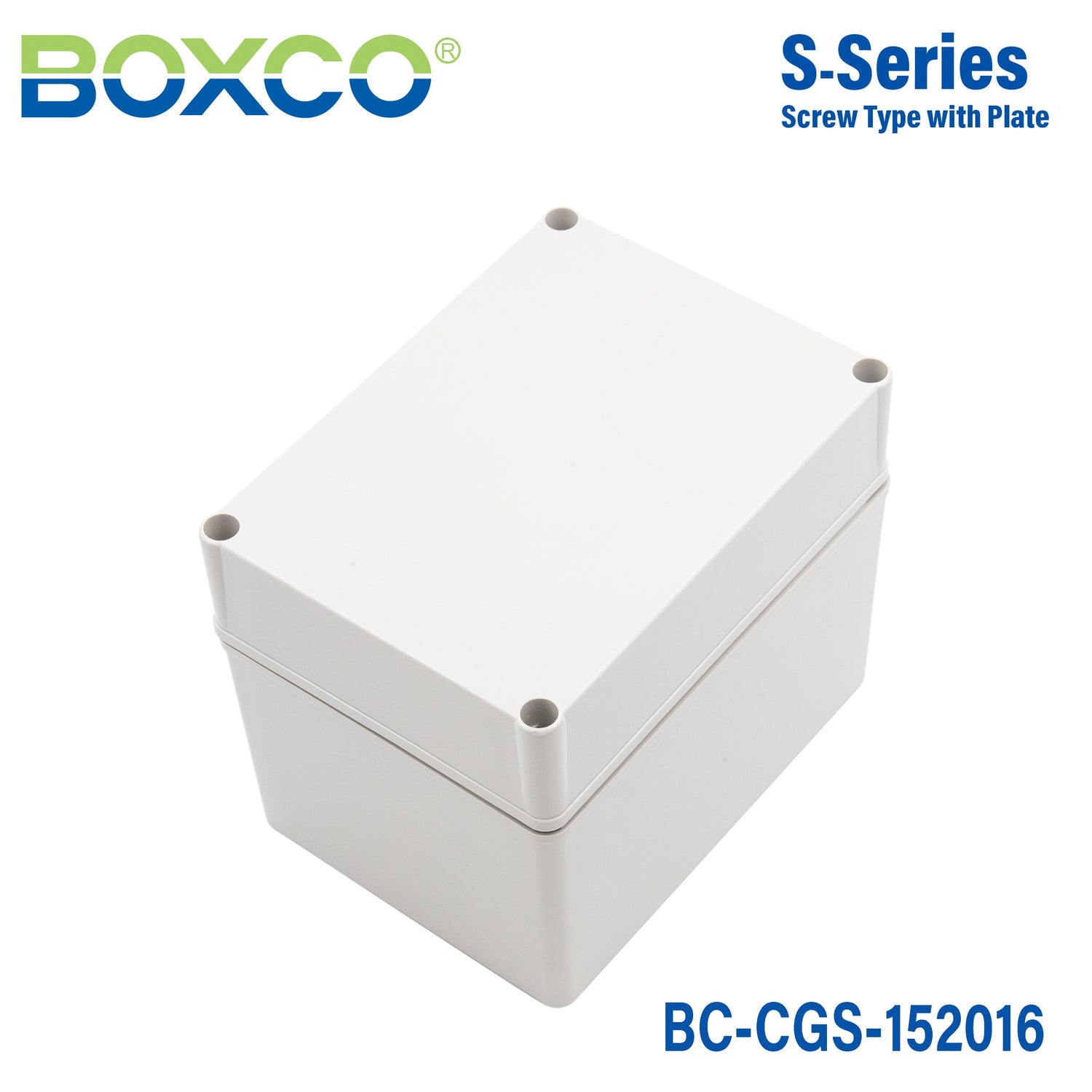

Boxco S-Series 5.91 x 7.87 x 6.3 Inches(150x200x160mm) Plastic Encl...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length5.91 in
-
Width7.87 in
-
Height6.3 in
-
Weight1.58 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series BC-CGS-152016 enclosure suited for?
This model is designed to protect electronic equipment in industrial and commercial environments where a sealed plastic enclosure is needed. Its IP67 rating, IK08 impact resistance, UV-stabilized construction, and anti-static material make it a strong fit for indoor or outdoor equipment protection.
Is the BC-CGS-152016 suitable for outdoor use?
Yes. Boxco adds an ultraviolet stabilizer to this S-Series enclosure to support outdoor use and help limit visible color change over time. The enclosure also has an IP67 rating for resistance to dust and water ingress.
What are the main specifications of this enclosure?
The Boxco BC-CGS-152016 measures 5.91 x 7.87 x 6.3 inches (150 x 200 x 160 mm) and weighs 0.715 kg. It is a polycarbonate (PC) screw-type enclosure with a grey cover, rated IP67 and IK08, and has an operating temperature range of -40 C to 110 C.
What makes this model a good choice for protecting sensitive electronics?
This enclosure uses anti-static material to help protect sensitive electronic instruments from static electricity. It is also made from high-impact-resistant material to improve durability during demanding use and processing.
How does this screw-cover enclosure differ from a general-purpose plastic box?
This model combines a sealed IP67 design with IK08 impact resistance, UV stabilization, and anti-static polycarbonate construction. It also includes molded features for mounting plates and equipment attachment points, which gives it more protection and utility than a basic plastic box.
Does the BC-CGS-152016 include features for mounting internal components?
Yes. The enclosure includes mounting plate attachment points and pre-molded mounting screw nuts to support internal equipment mounting. These built-in features are intended to provide a more secure and durable internal installation platform.
