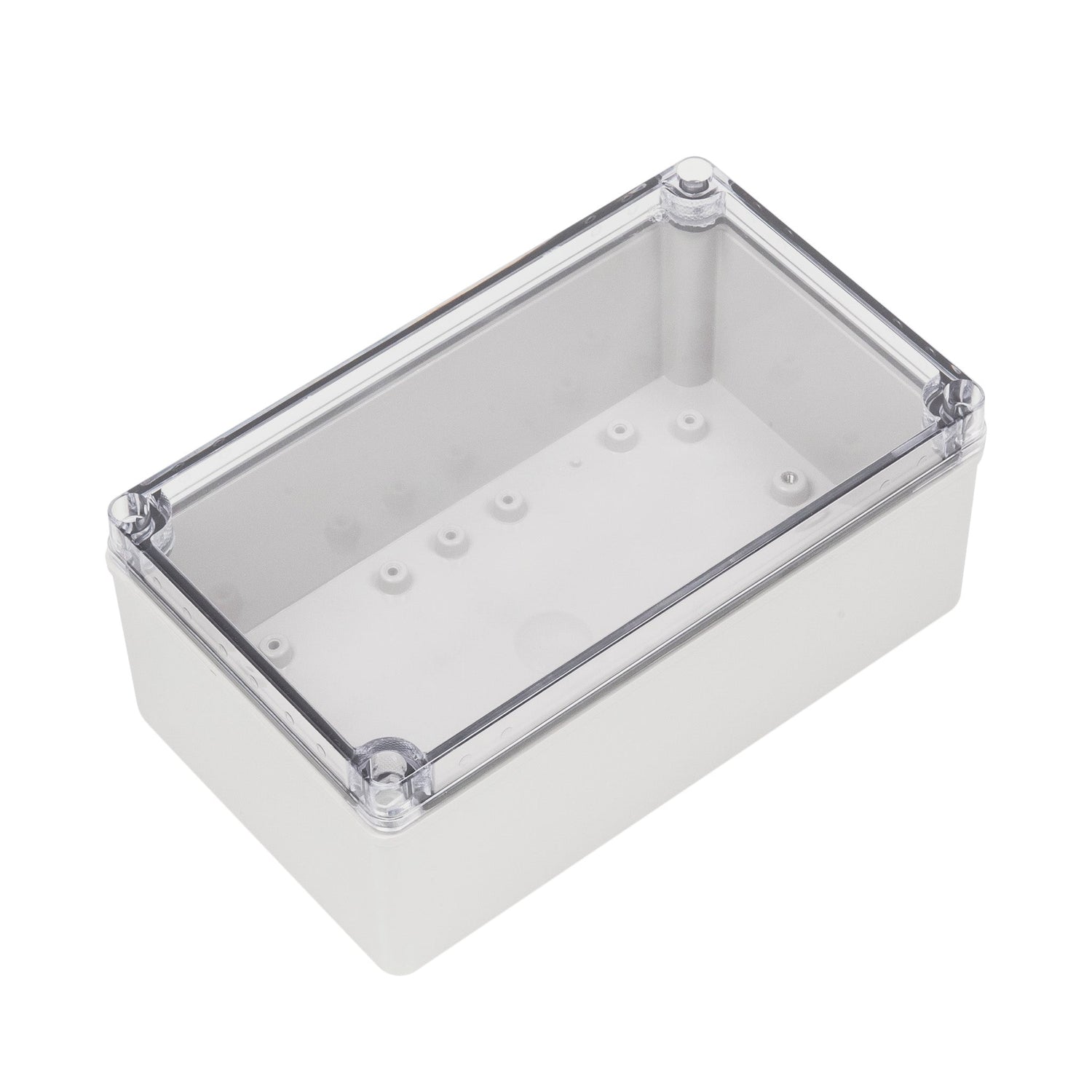

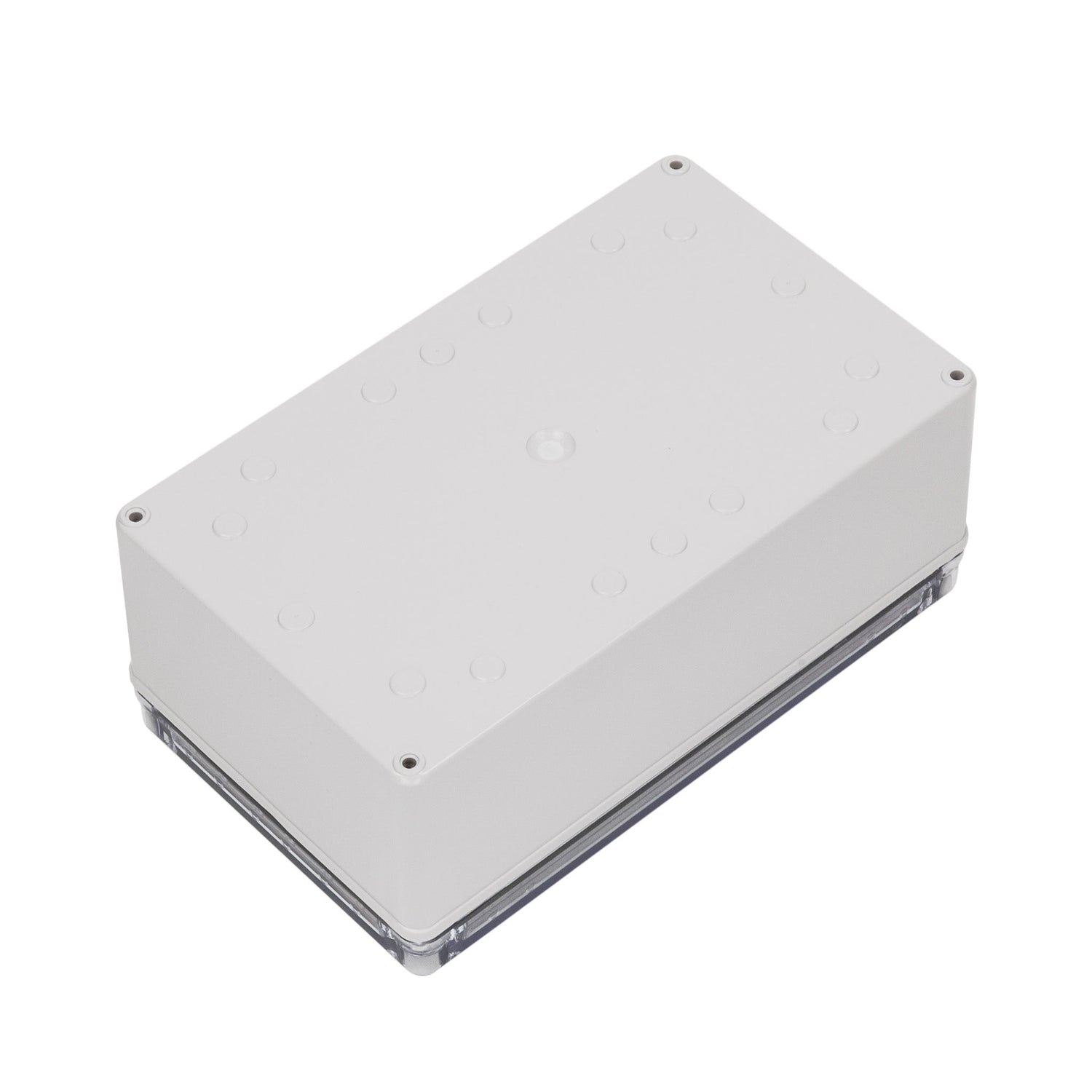

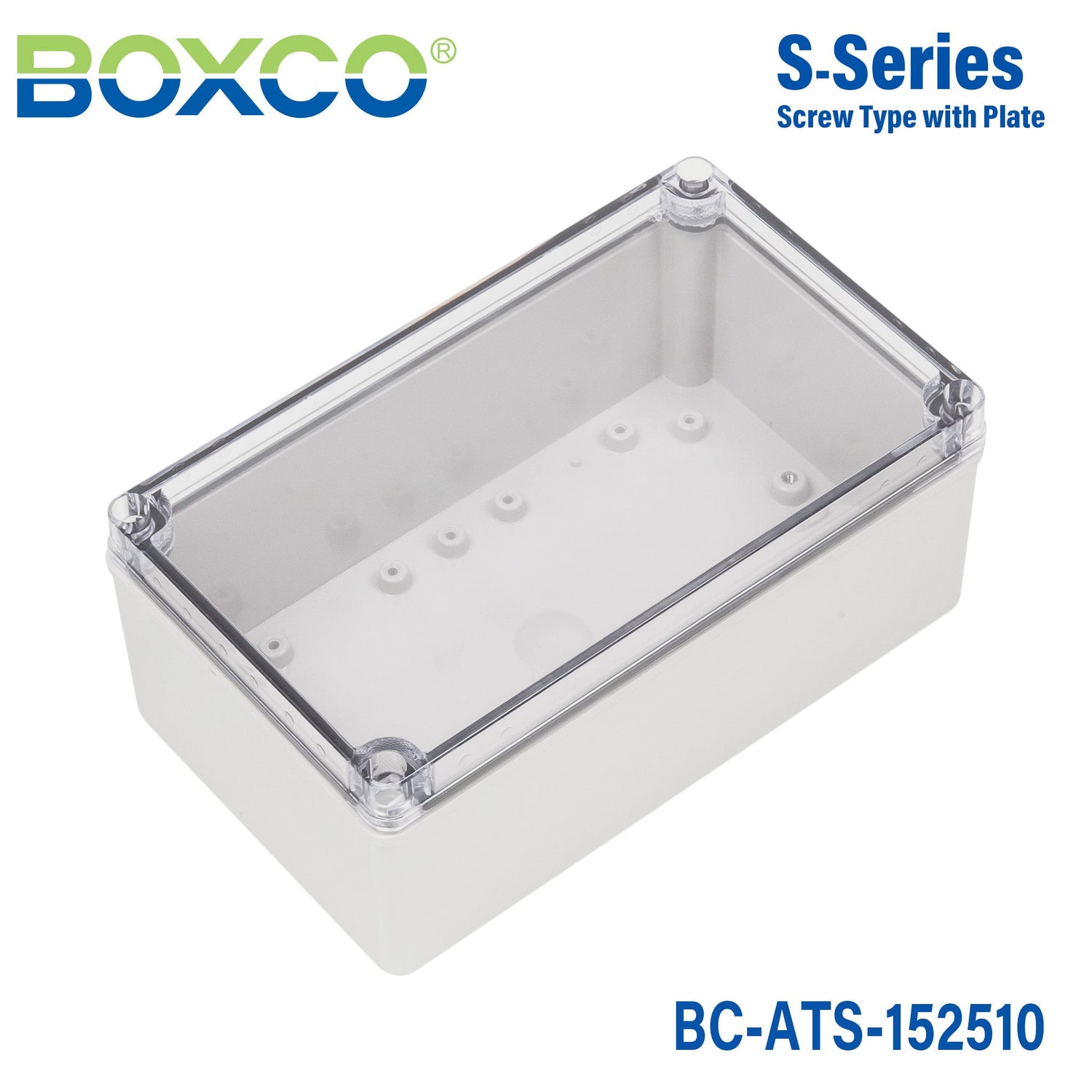

Boxco S-Series 5.91 x 9.84 x 3.94 Inches(150x250x100mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco S-Series 5.91 x 9.84 x 3.94 Inches(150x250x100mm) Plastic Enc...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

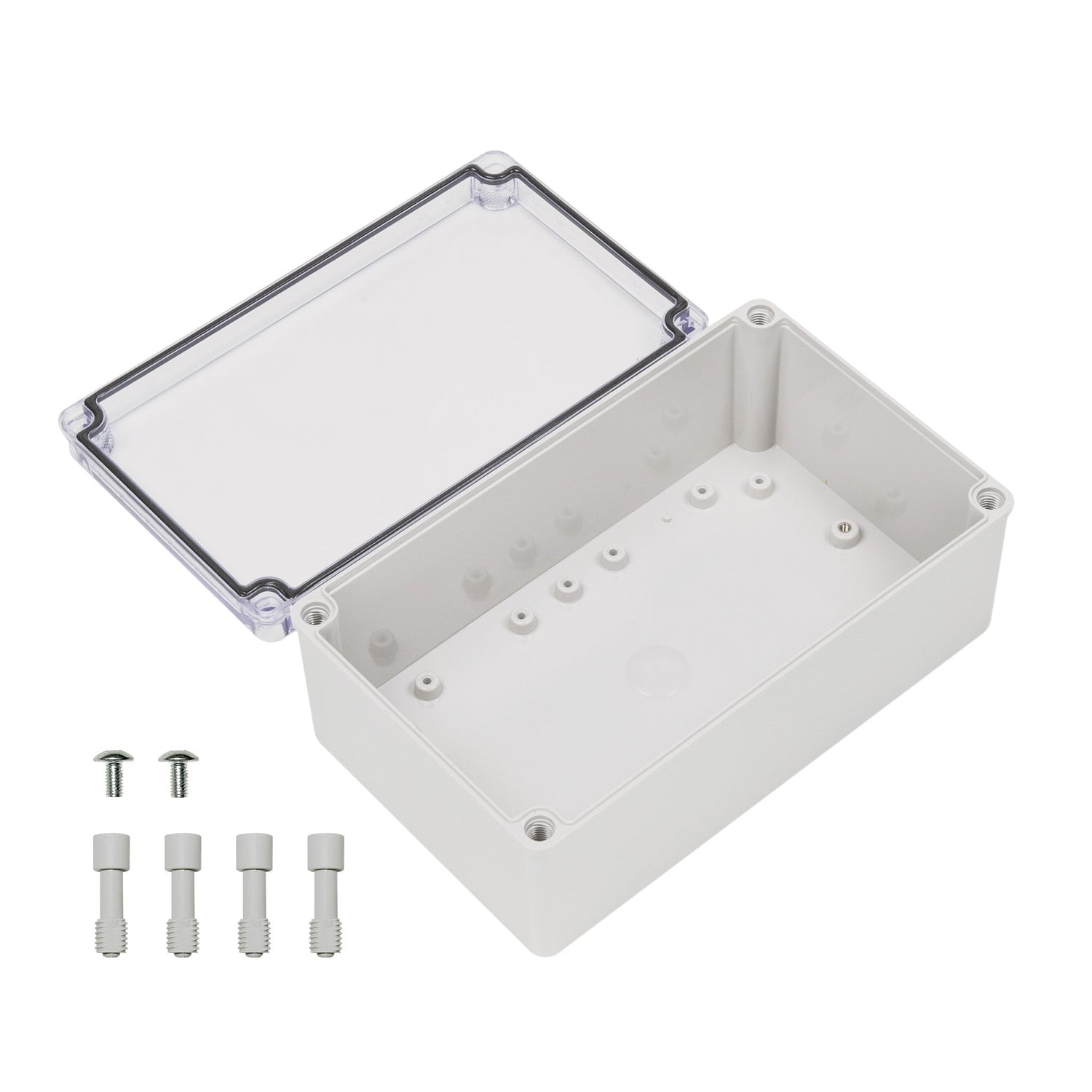

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length5.91 in
-
Width9.84 in
-
Height3.94 in
-
Weight1.34 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco BC-ATS-152510 enclosure best suited for?
This model is suited to protecting electronic controls, instruments, and other components that need a sealed plastic enclosure in industrial or commercial environments. Its anti-static material, transparent cover, and IP67 protection make it a practical choice when buyers need both environmental protection and quick visual inspection.
Can this enclosure be used outdoors?
Yes. Boxco states that the S-Series includes an ultraviolet stabilizer to support outdoor use and reduce visible color change over time. The IP67 rating also helps protect against dust ingress and temporary water exposure in demanding environments.
How durable is this enclosure for industrial environments?
This enclosure is made from high-impact ABS and carries an IK08 impact rating, which indicates solid resistance to external mechanical impact. Boxco also describes the material as resistant to breakage during hole and press processing, which supports use in tougher build environments.
Does the transparent cover make this model different from a standard opaque enclosure?
Yes. The transparent cover allows visual inspection of indicators, displays, or internal status without opening the box. That makes this version a better fit when access needs to be limited but monitoring still matters.
Is the BC-ATS-152510 suitable for sensitive electronic equipment?
Yes. Boxco specifies anti-static material for this model to help protect sensitive electronic instruments from static electricity. That makes it more appropriate for electronics-focused applications than a basic general-purpose plastic box without that stated feature.
What are the main specifications of this enclosure?
The enclosure measures 5.91 x 9.84 x 3.94 inches, equivalent to 150 x 250 x 100 mm, and weighs 0.608 kg. It has an operating temperature range of -40 degrees C to 70 degrees C, uses a screw-type cover, and includes a 1-year warranty.
