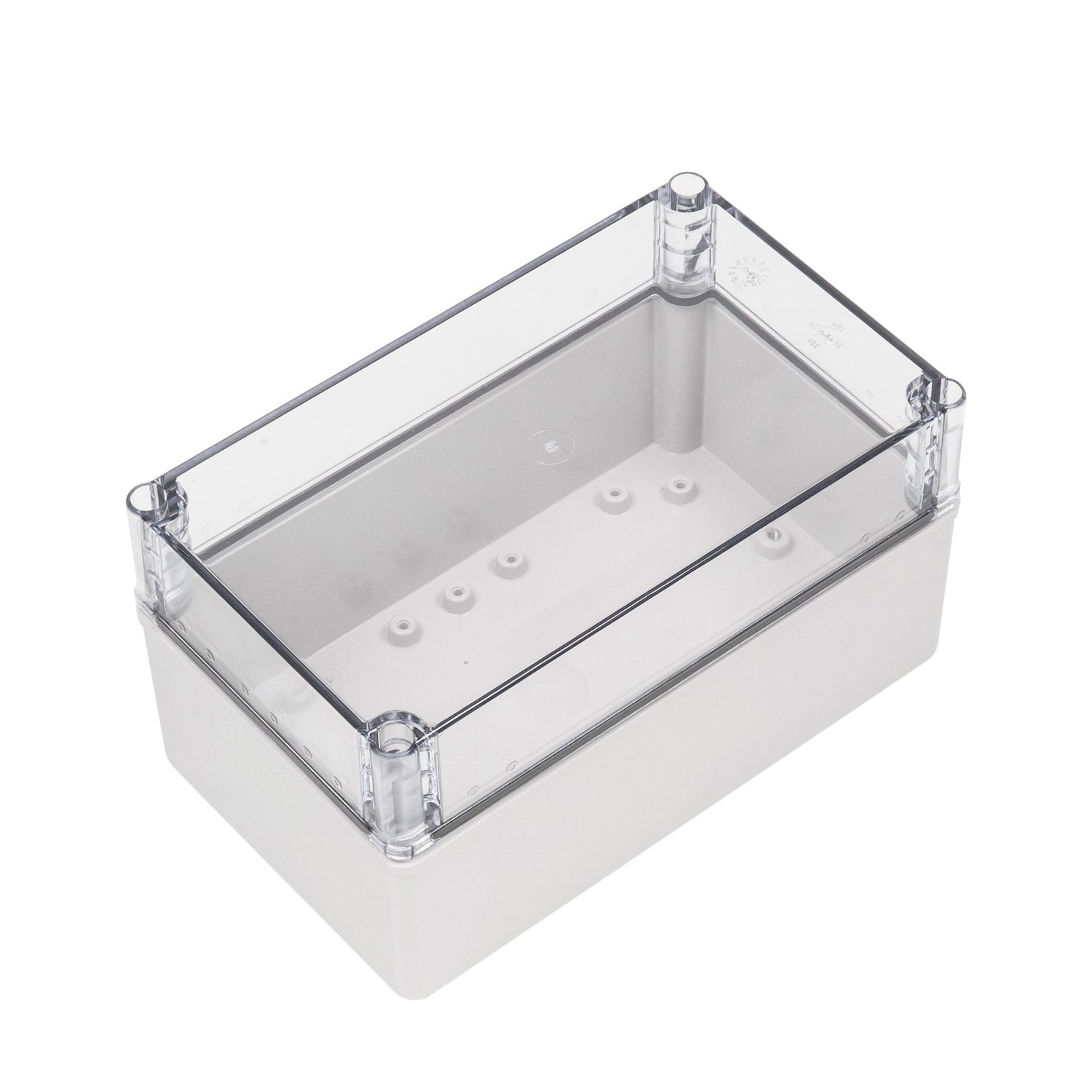

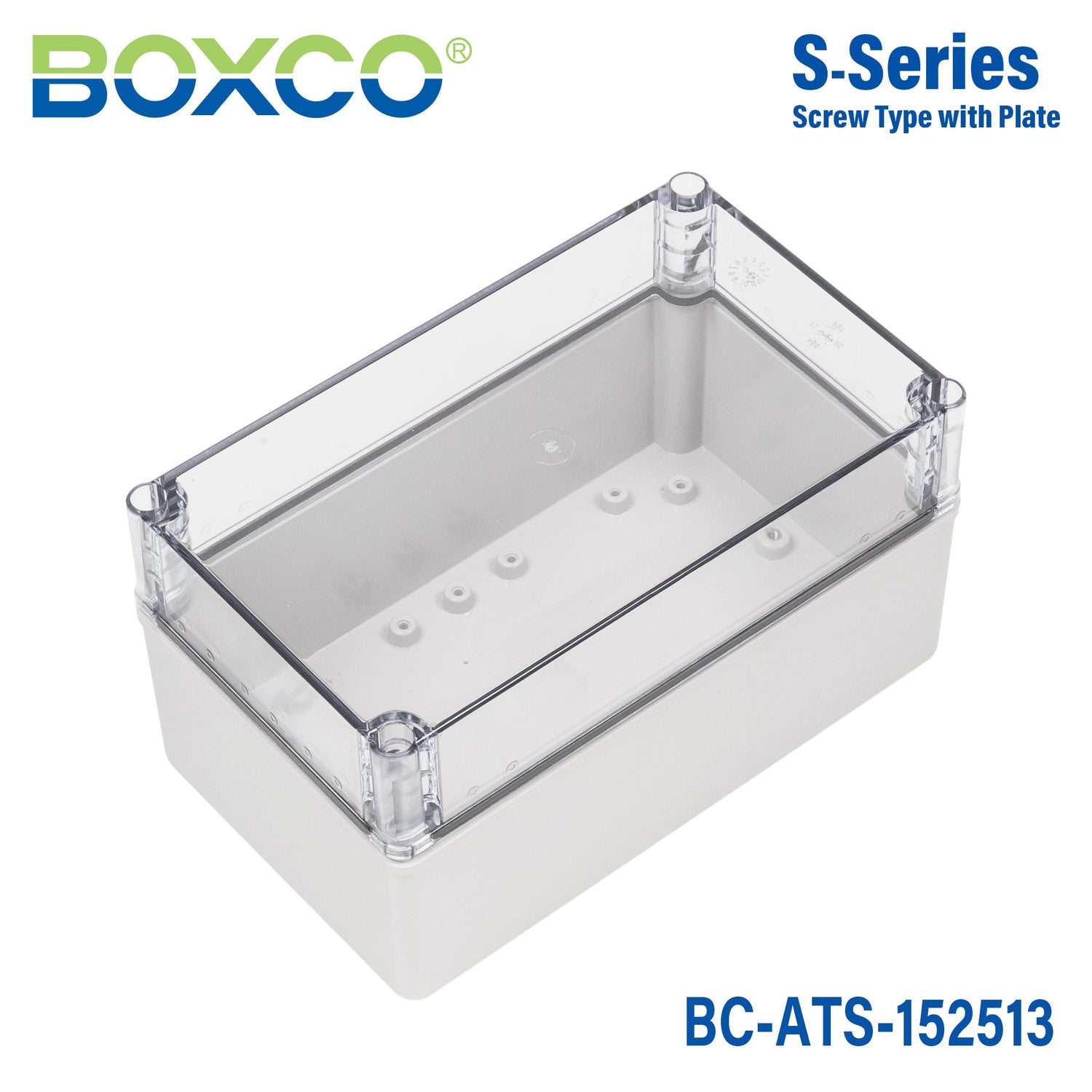

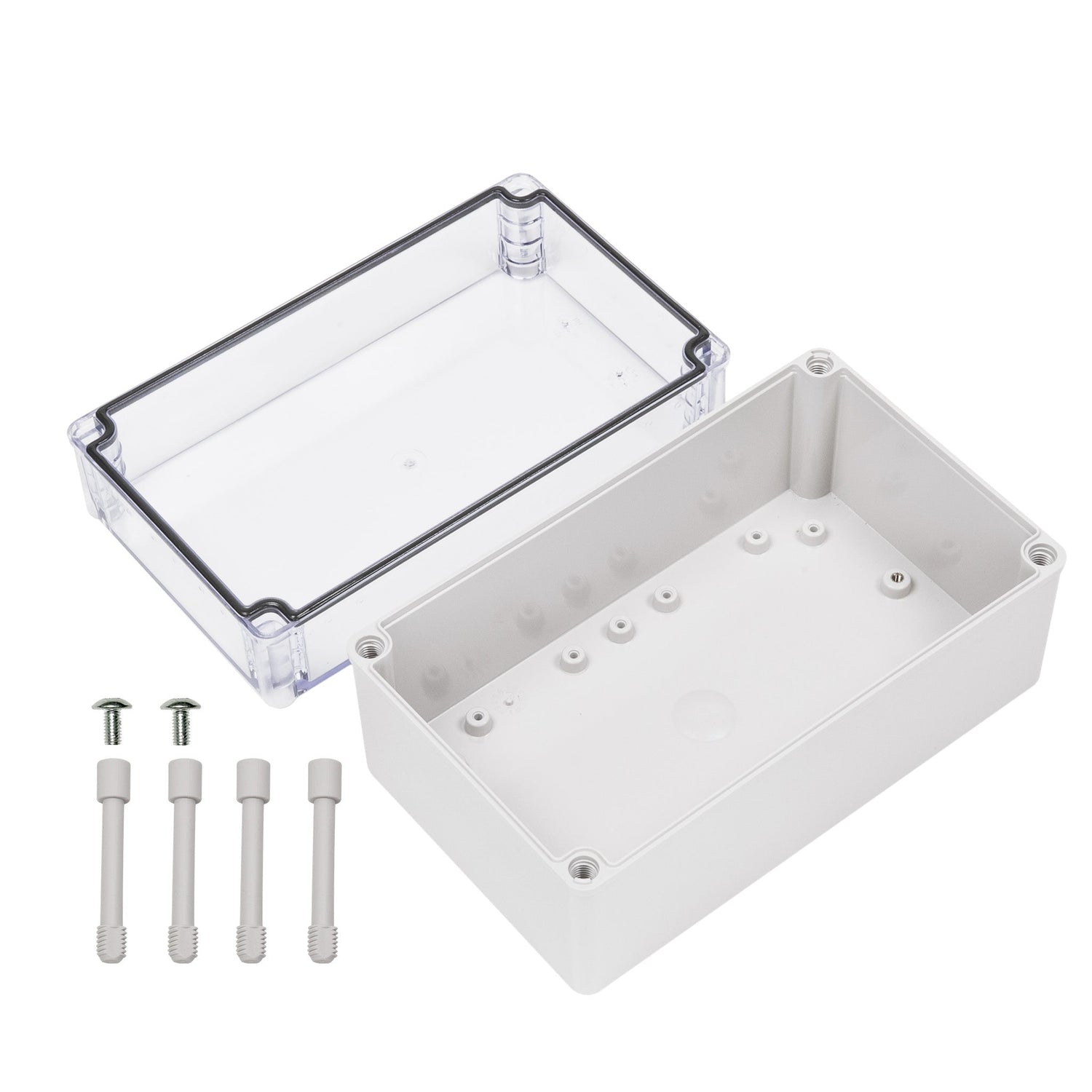

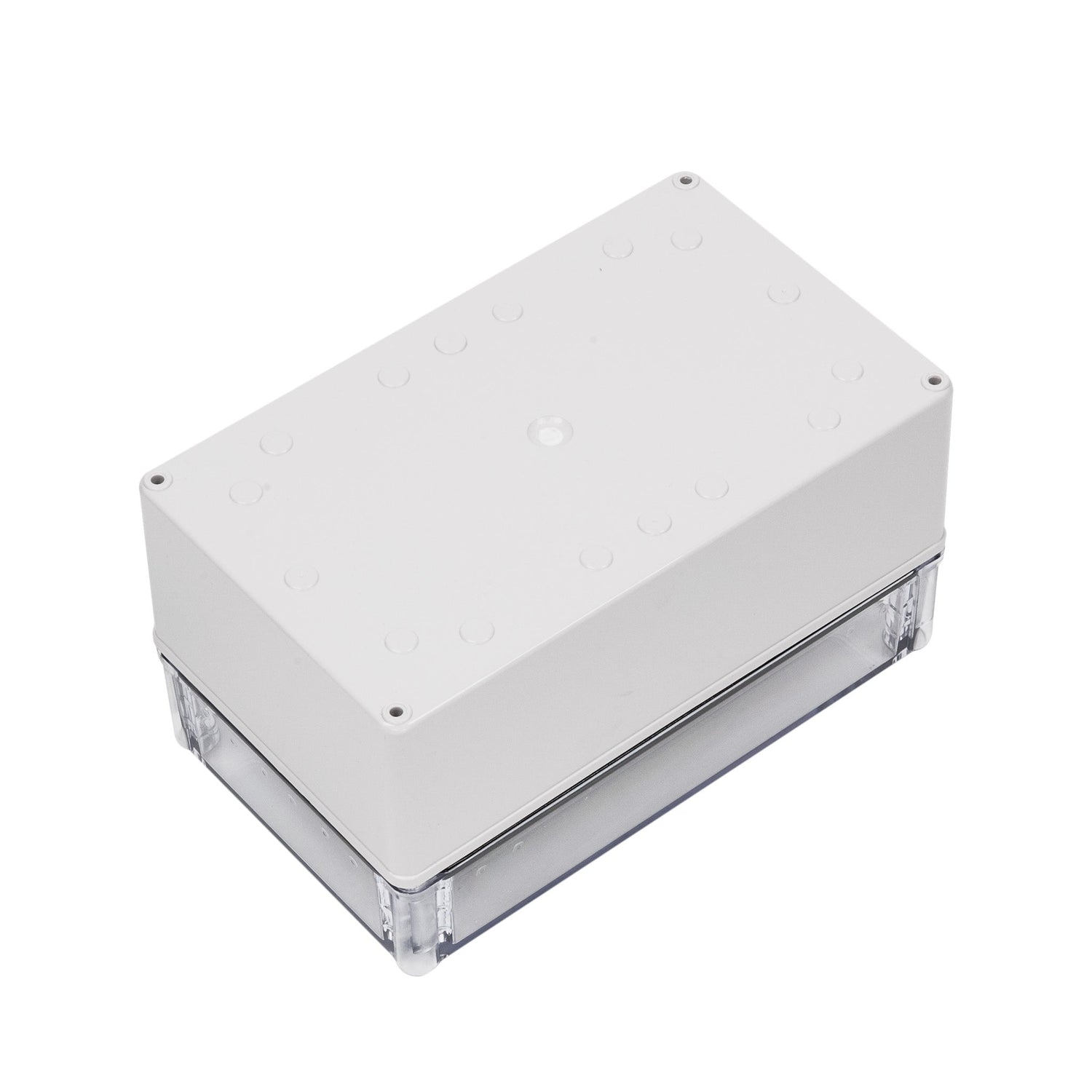

Boxco S-Series 5.91 x 9.84 x 5.12 Inches(150x250x130mm) Plastic Enc...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length5.91 in
-
Width9.84 in
-
Height5.12 in
-
Weight1.63 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco S-Series BC-ATS-152513 enclosure suited for?
This enclosure is suited for protecting electronic and control components in industrial, commercial, and outdoor equipment housings. Its anti-static ABS construction and high impact resistance make it a practical choice for sensitive instruments that need durable environmental protection.
Is this enclosure appropriate for outdoor environments?
Yes, this model is designed for outdoor use. The S-Series material includes an ultraviolet stabilizer to reduce color change over time, and the IP67 rating helps protect against dust and water ingress in exposed environments.
How durable is the BC-ATS-152513 against impact and harsh conditions?
This model is rated IK08 for impact resistance and is made from high impact resistant ABS. It is also specified for use from -40°C to 70°C, which supports use in demanding indoor and outdoor conditions.
Does this enclosure support internal component mounting?
Yes, the enclosure includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support secure installation of internal hardware such as mounting plates or DIN rail-based equipment.
What are the main size and material specifications of this enclosure?
The BC-ATS-152513 measures 5.91 x 9.84 x 5.12 inches (150 x 250 x 130 mm). It is made from ABS and includes a transparent screw-type cover, with a listed weight of 0.738 kg.
How does this screw-cover enclosure compare to a general-purpose plastic box?
This model is differentiated by its IP67 and IK08 ratings, anti-static ABS material, transparent cover, and outdoor-oriented UV-stabilized construction. It is built for more demanding protective applications than a basic non-rated plastic enclosure.
