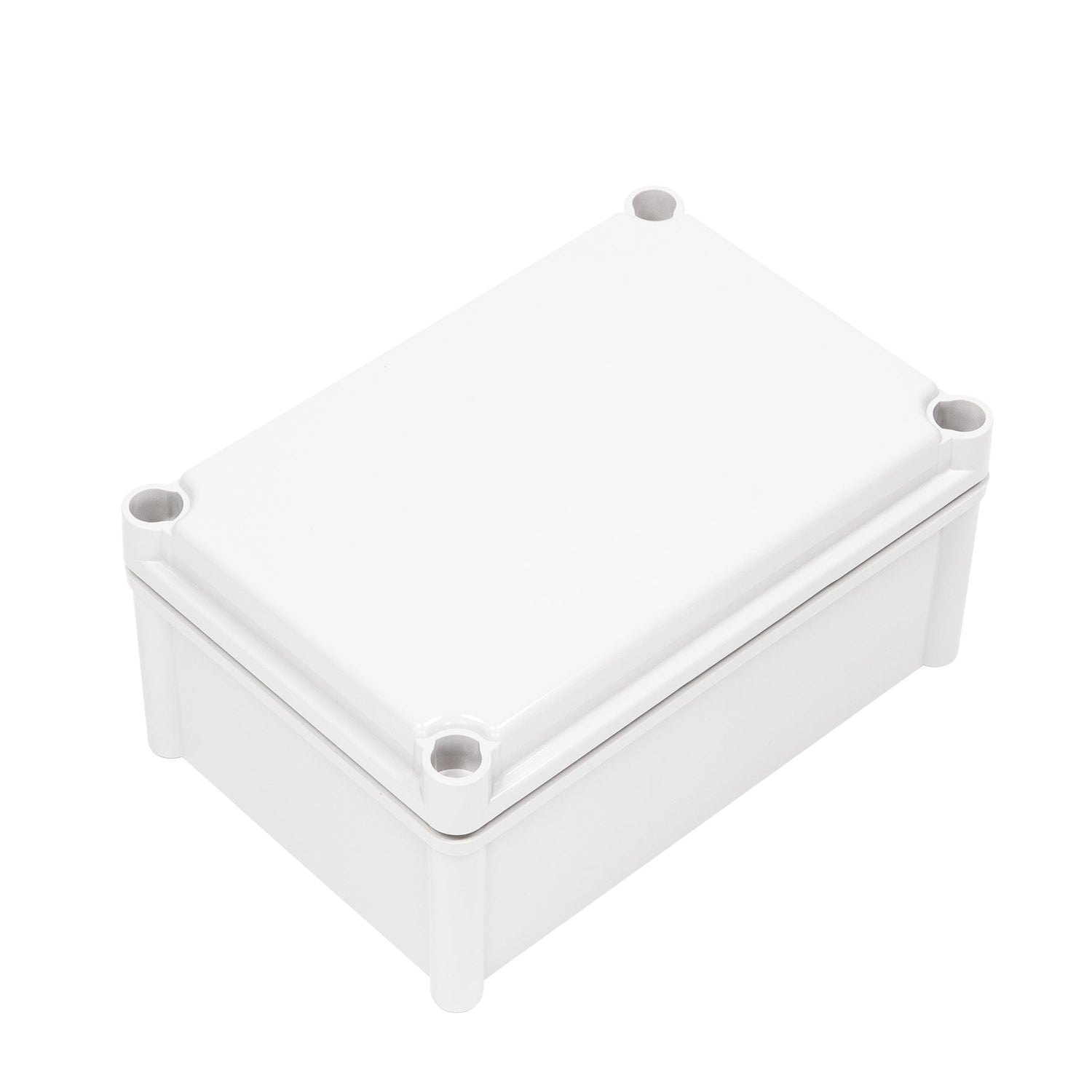

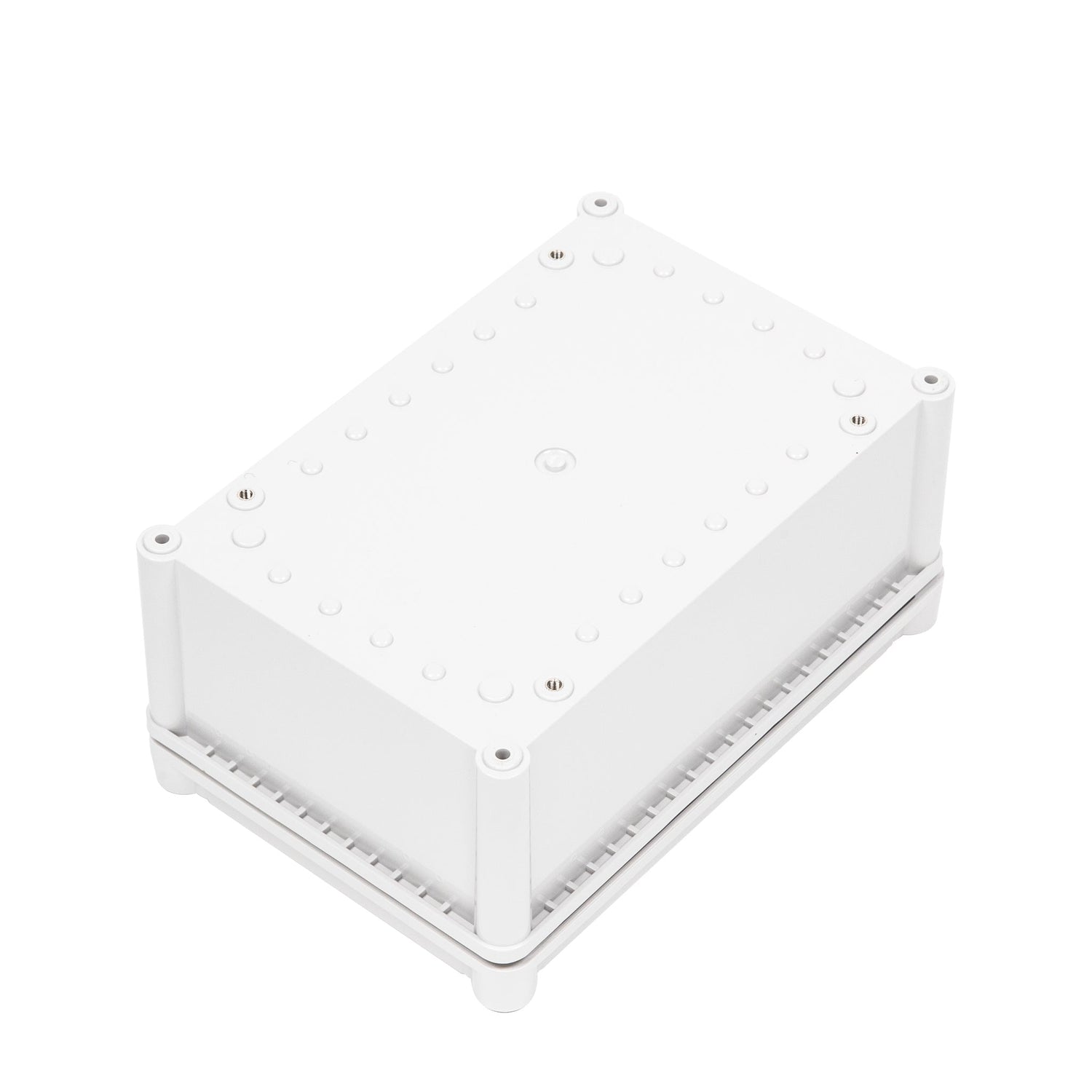

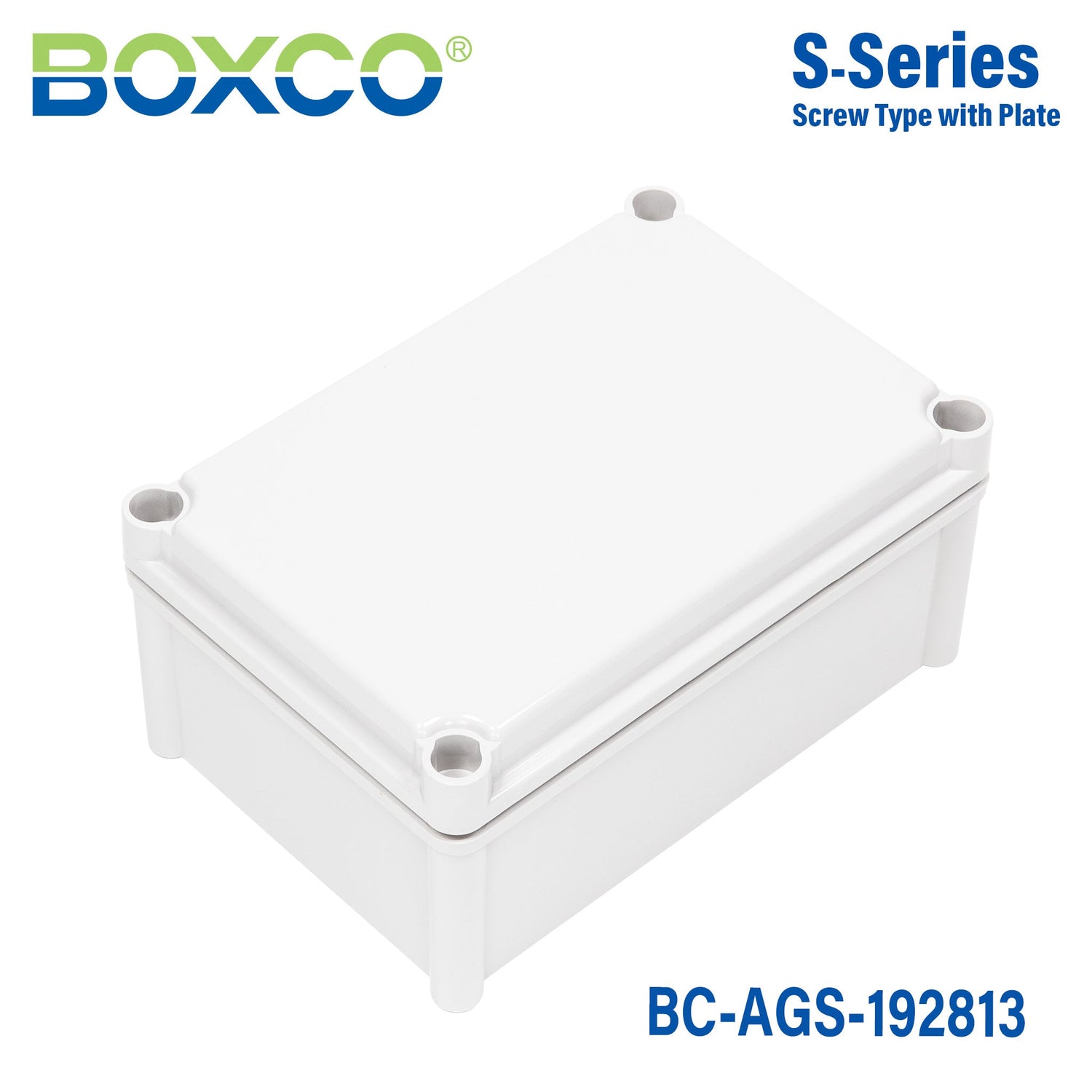

Boxco S-Series 7.48 x 11.02 x 5.12 Inches(190x280x130mm) Plastic En...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

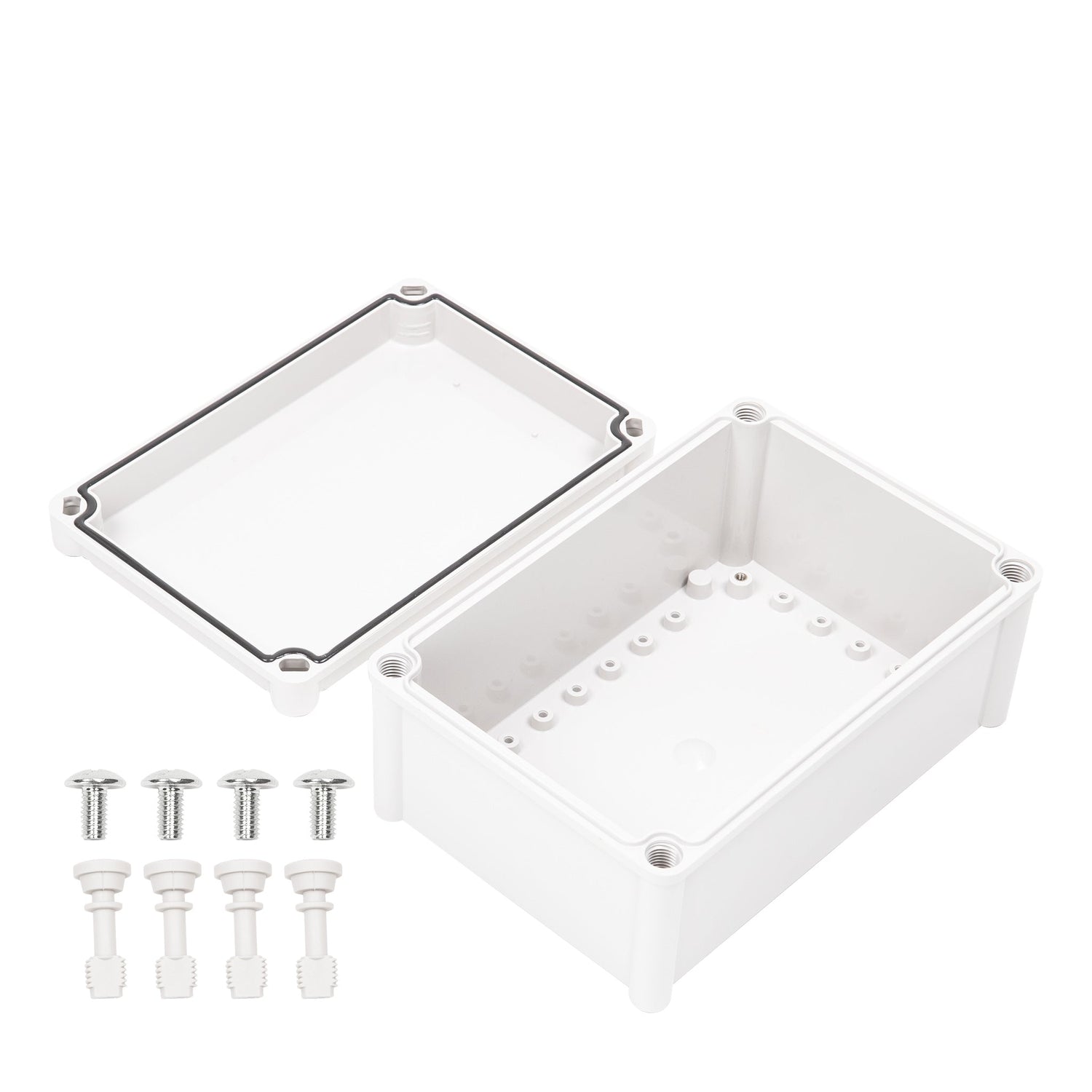

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.48 in
-
Width11.02 in
-
Height5.12 in
-
Weight1.83 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series 190x280x130mm plastic enclosure suited for?
This enclosure is suited for protecting electronic components and control equipment in industrial, commercial, and outdoor environments where dust and water resistance matter. Its internal mounting plate attachment points and pre-molded screw nuts make it appropriate for housing equipment that needs secure internal support inside the box.
Is this enclosure suitable for outdoor use?
Yes, this model is designed for outdoor use. The description states that an ultraviolet stabilizer is added to help protect the enclosure outdoors and reduce visible color change over long periods of use.
How well does this enclosure protect against water, dust, and impact?
This model is rated IP67 and IK08. That means it is built for strong dust and water resistance along with solid impact resistance for demanding environments.
What are the size, material, and cover style of this enclosure?
This Boxco S-Series enclosure measures 7.48 x 11.02 x 5.12 inches, which is 190x280x130mm. It is made from ABS plastic and comes with a grey cover in a screw type design.
What temperature range can this enclosure handle?
This enclosure is specified for use from -40 degrees C to 70 degrees C. That range makes it a practical choice for many indoor and outdoor industrial environments with varying temperatures.
Does this enclosure support mounting internal equipment securely?
Yes, the enclosure includes internal mounting plate attachment points designed to hold a mounting plate tightly using brass inserted injection molding. It also features pre-molded mounting screw nuts for securing compatible internal hardware such as DIN rail-based equipment.
