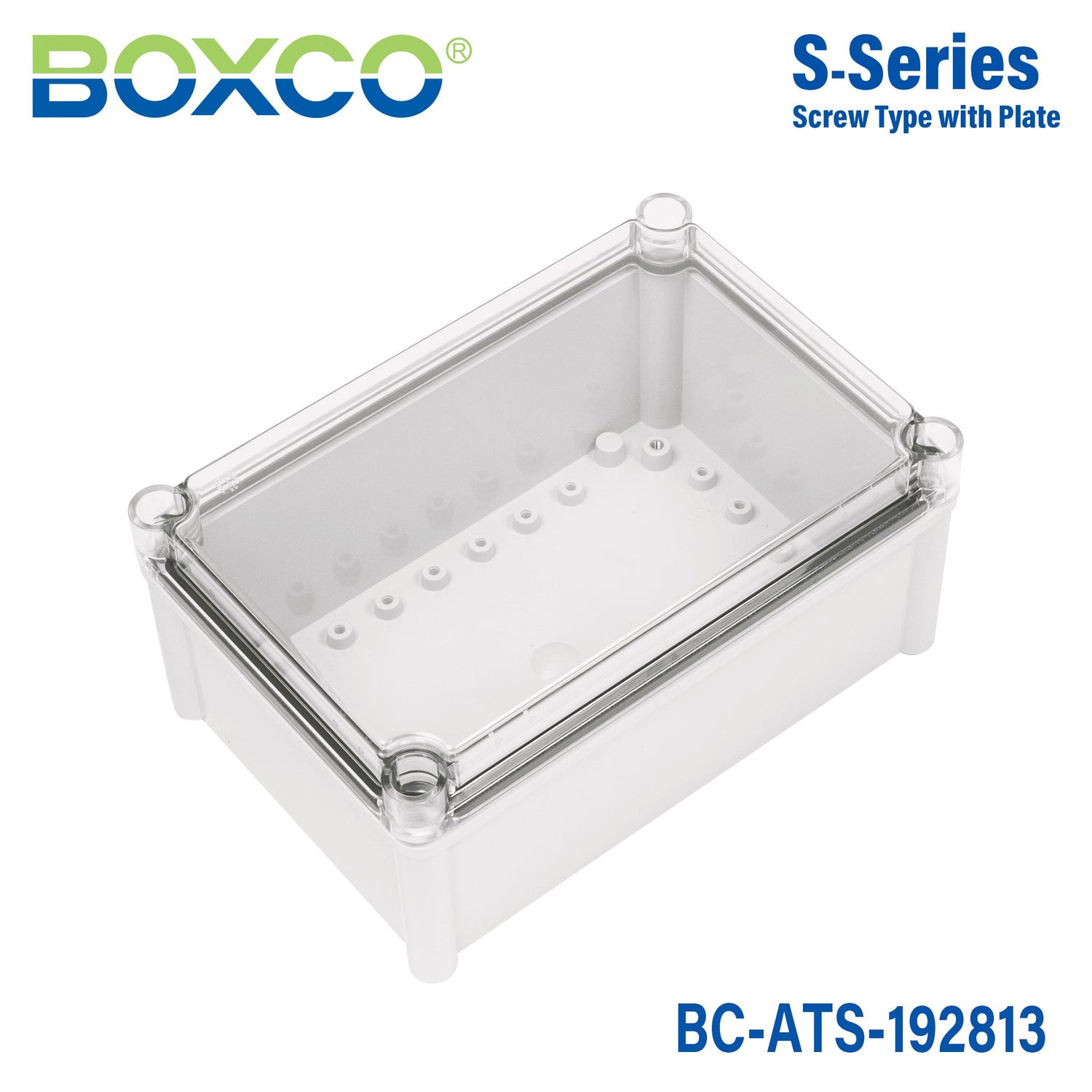

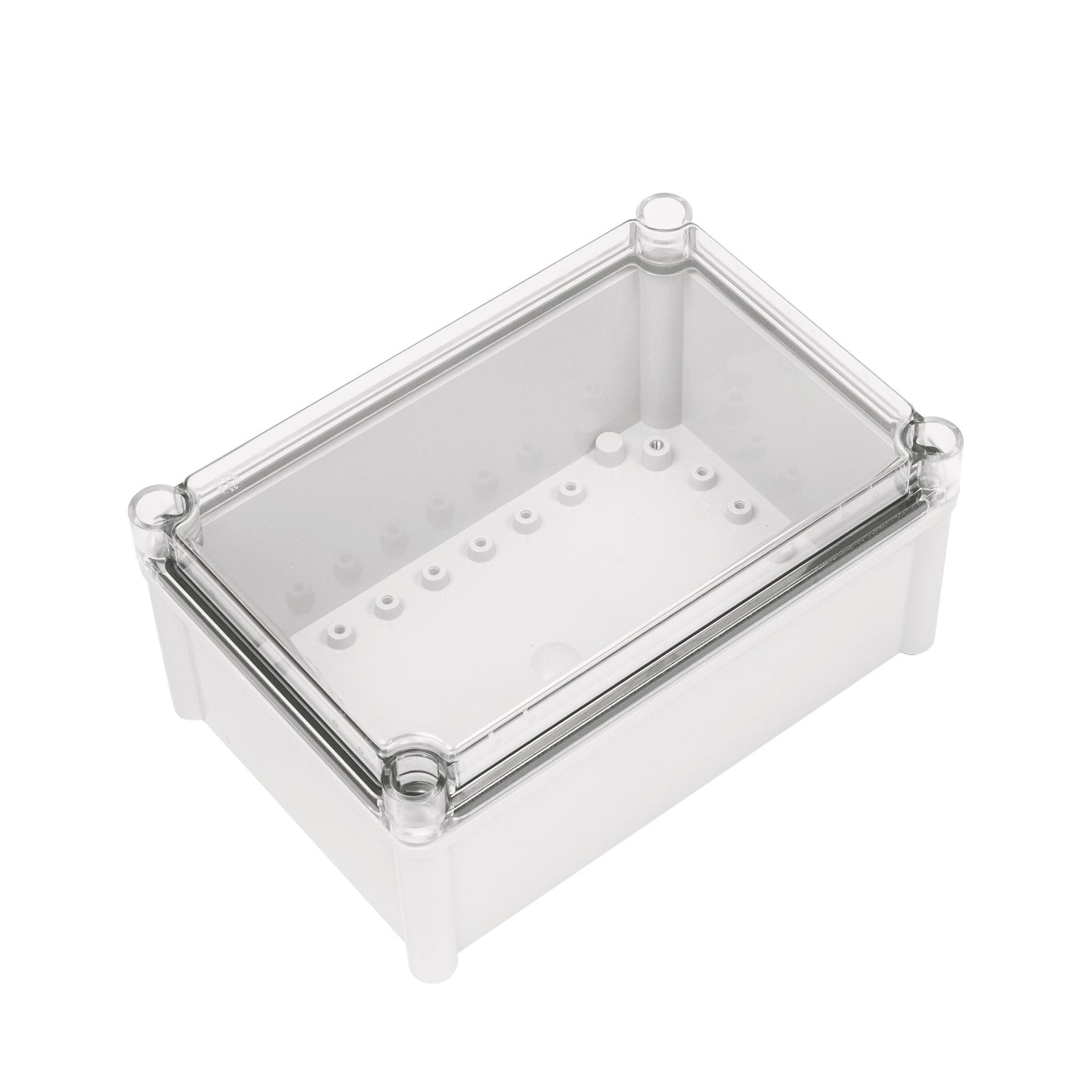

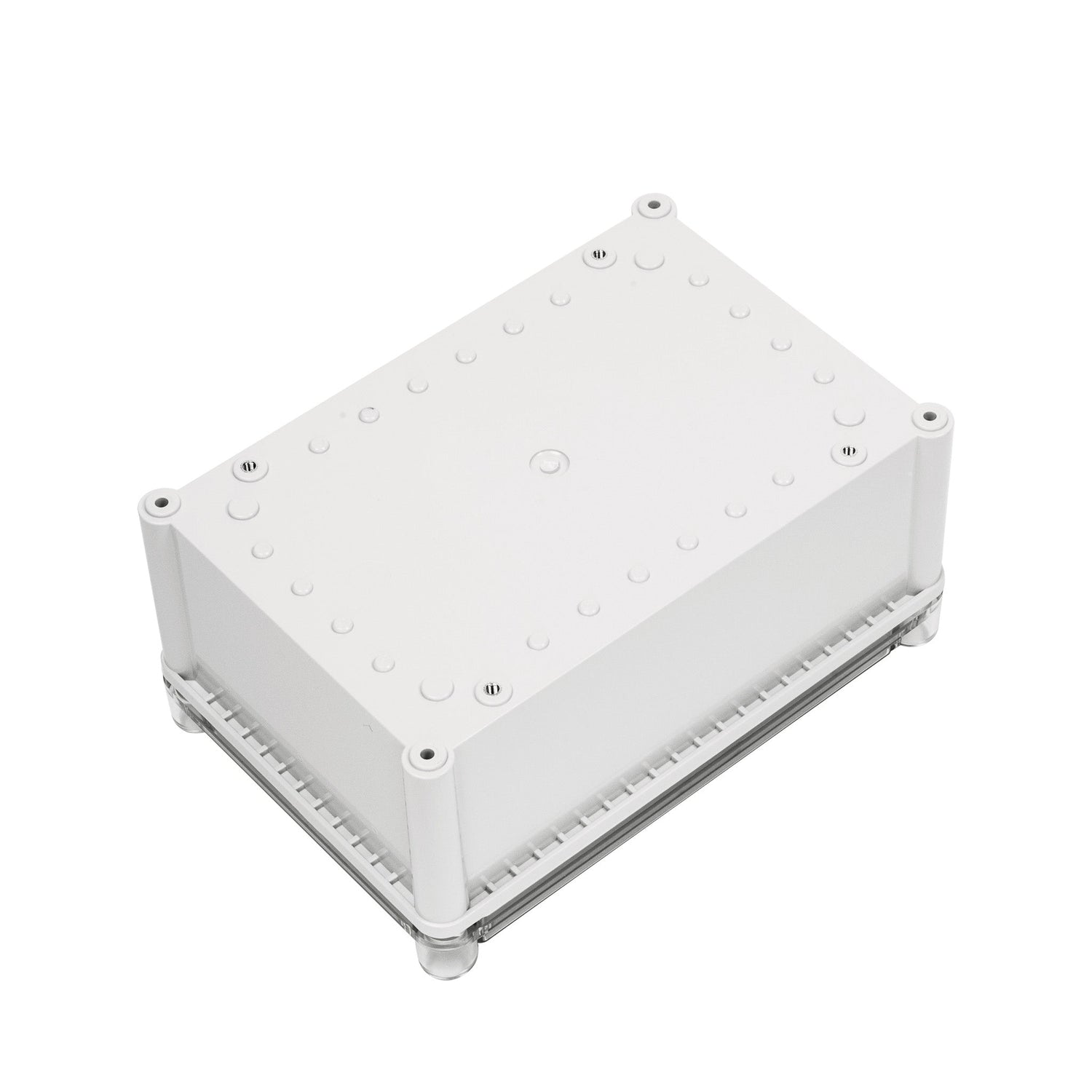

Boxco S-Series 7.48 x 11.02 x 5.12 Inches(190x280x130mm) Plastic En...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

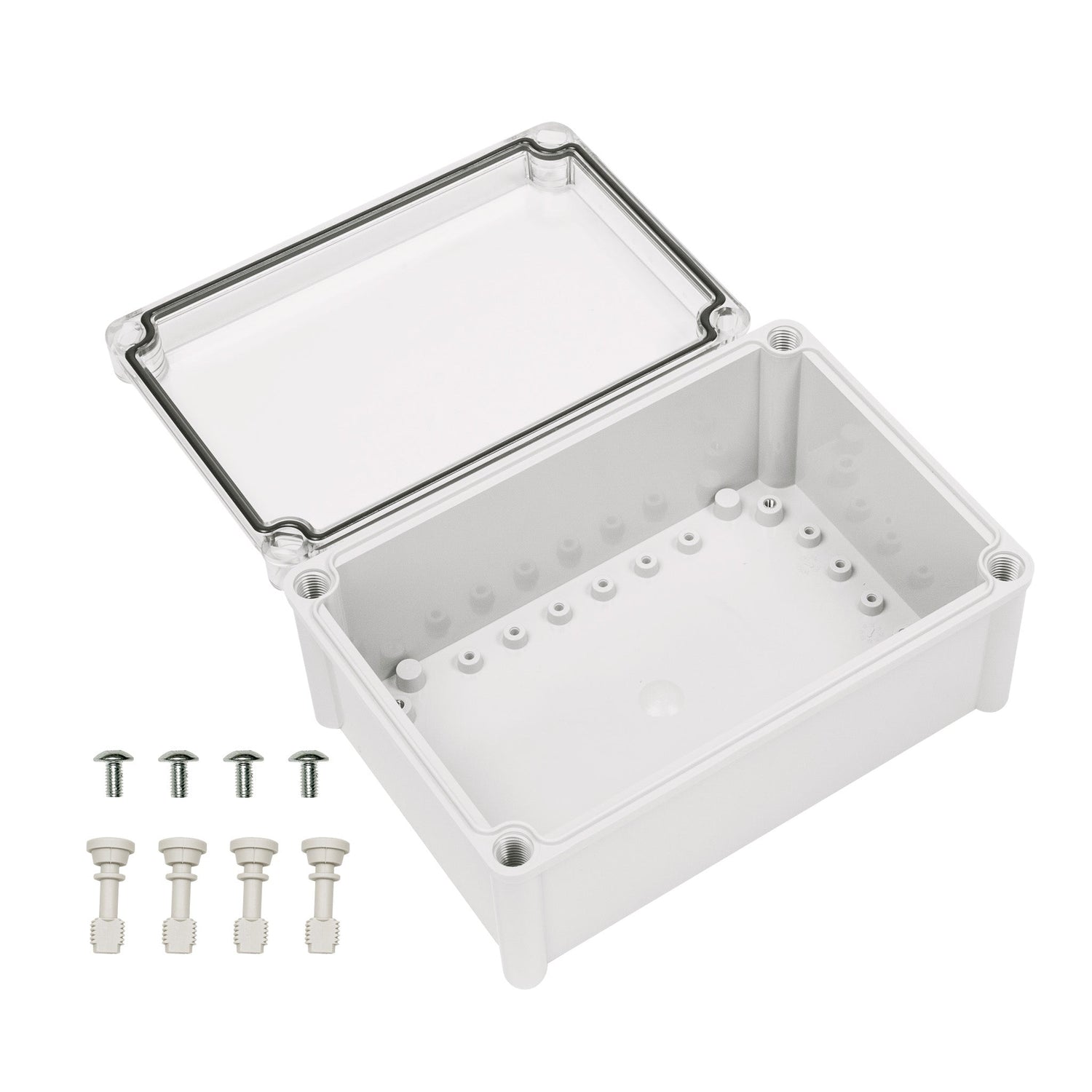

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.48 in
-
Width11.02 in
-
Height5.12 in
-
Weight2.05 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is this Boxco S-Series plastic enclosure suited for?
This enclosure is intended for protecting electronic equipment in industrial and commercial environments where a sealed non-metallic housing is needed. Its ABS construction, transparent cover, and internal mounting features make it a practical choice for control, monitoring, or instrumentation enclosures.
Can this enclosure be used outdoors?
Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. That helps reduce visible color change over long periods of exposure compared with standard untreated plastic enclosures.
How much protection does this enclosure provide against dust, water, and impact?
This model is rated IP67, which indicates a high level of sealing against dust and water ingress. It is also rated IK08 for impact resistance, and the product description notes high impact resistance for demanding environments.
What are the dimensions of this enclosure?
This Boxco S-Series enclosure measures 7.48 x 11.02 x 5.12 inches, which is also listed as 190 x 280 x 130 mm. That size gives it more internal room than compact junction-style boxes while remaining suitable for enclosed equipment protection.
What material is this enclosure made from, and why does that matter?
This model is made from ABS plastic and includes anti-static material for protecting sensitive electronic instruments from static electricity. ABS also offers good impact resistance while keeping the enclosure lighter than many metal alternatives.
What is the operating temperature range for this enclosure?
The specified operating temperature range is -40°C to 70°C. That makes it suitable for a wide range of indoor and outdoor industrial environments within those limits.
Does this enclosure support internal mounting accessories or equipment?
Yes, the product description states that it includes internal mounting plate attachment points with brass inserted injection molding for securely holding heavier installed equipment. It also includes pre-molded mounting screw nuts to support DIN rail or similar internal hardware.
