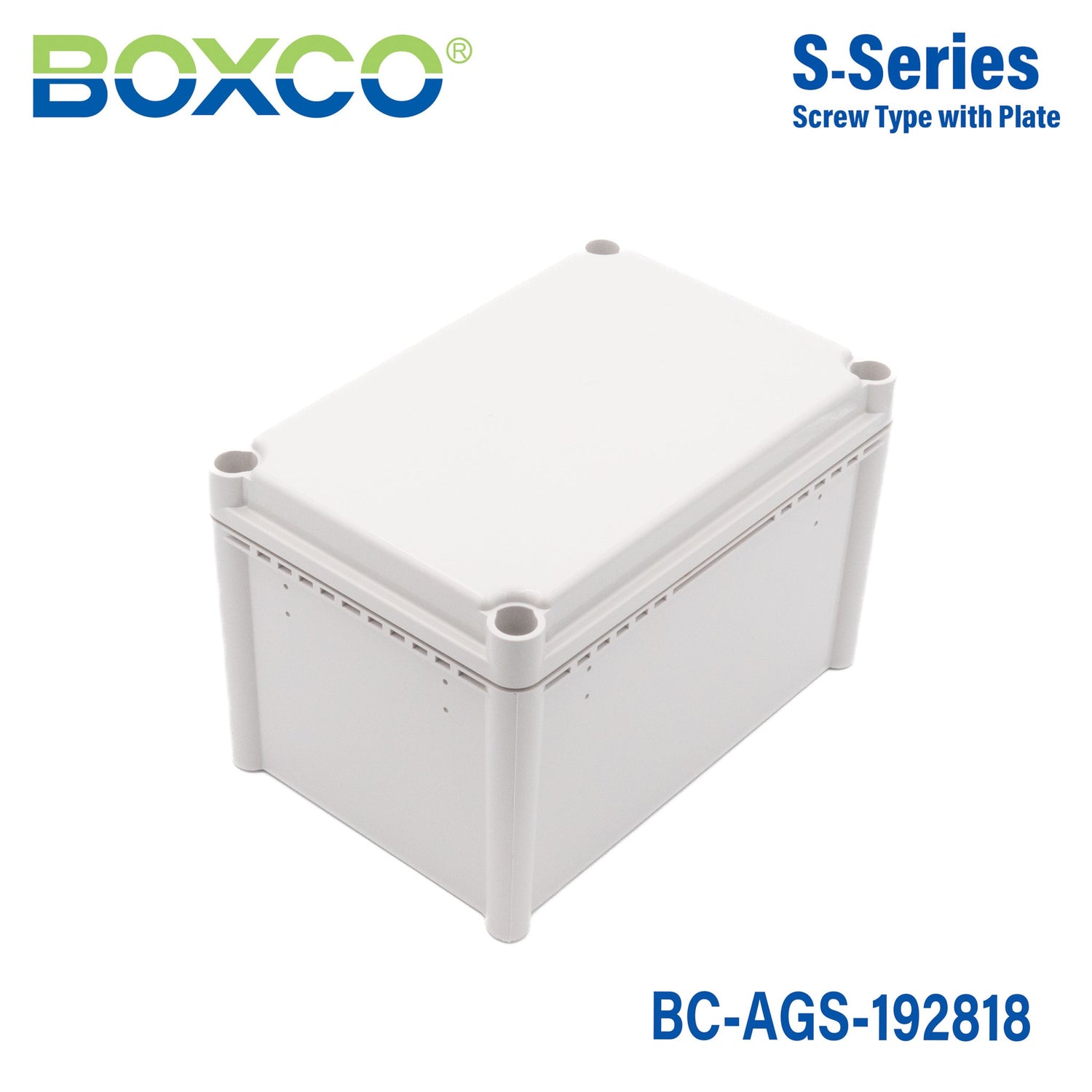

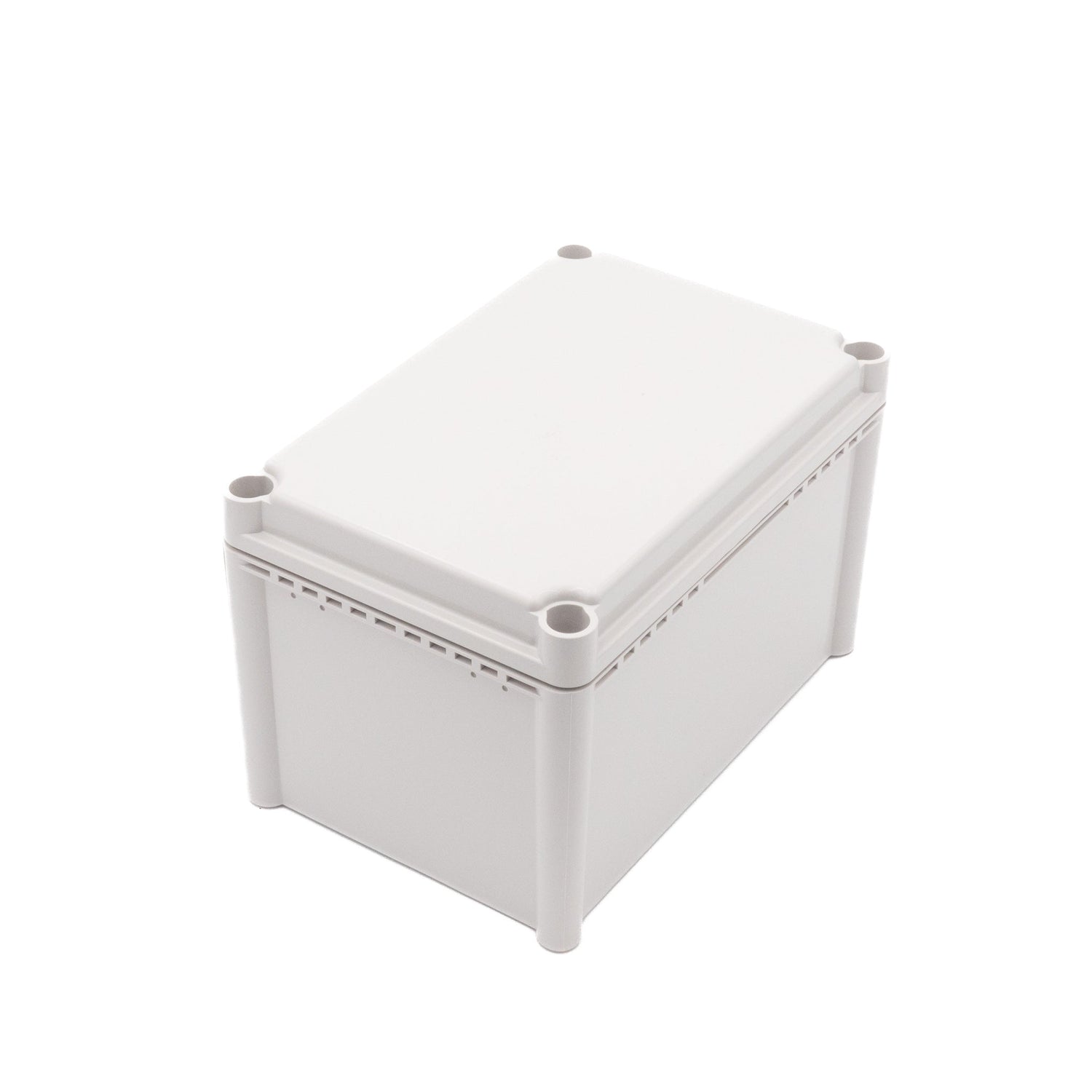

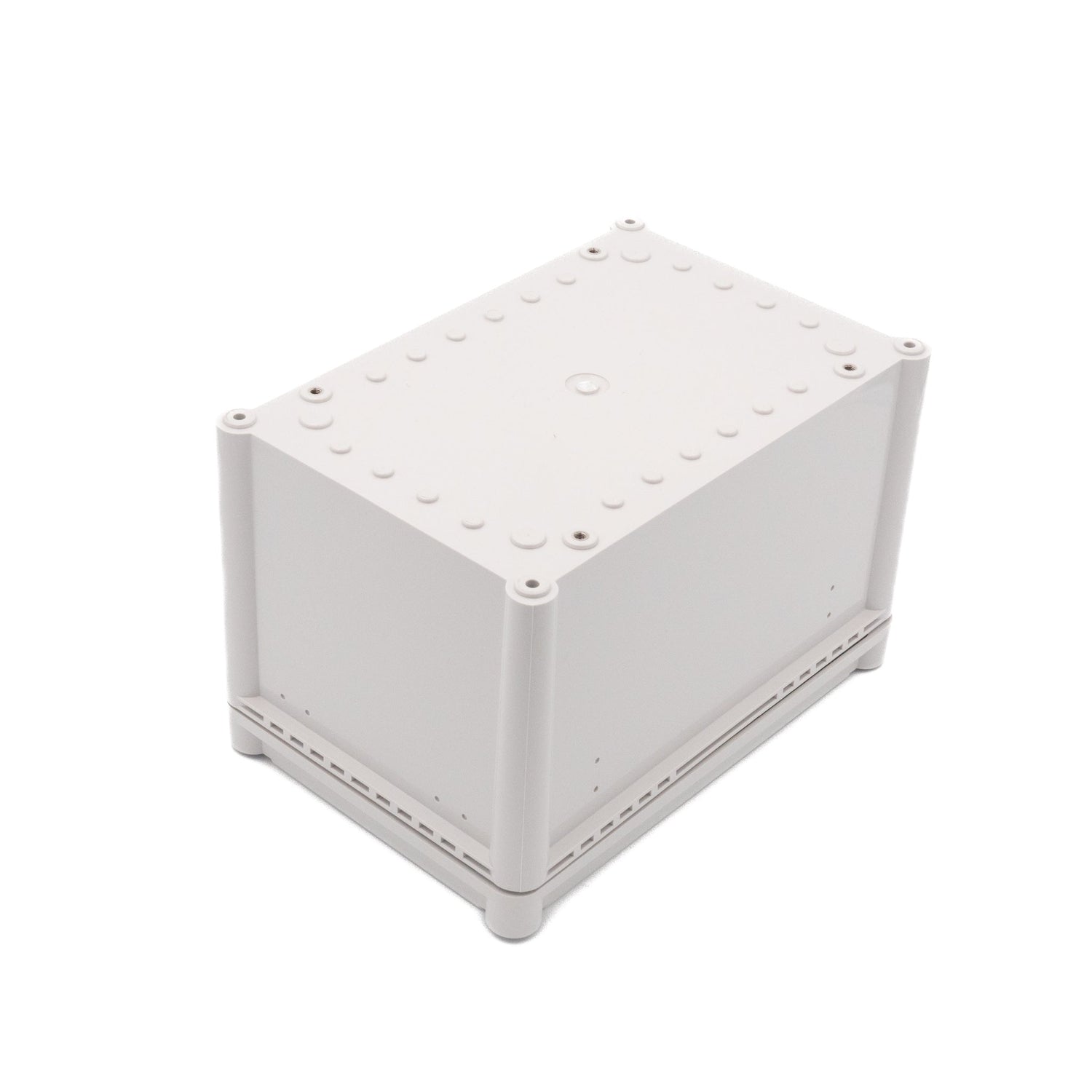

Boxco S-Series 7.48 x 11.02 x 7.09 Inches(190x280x180mm) Plastic En...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

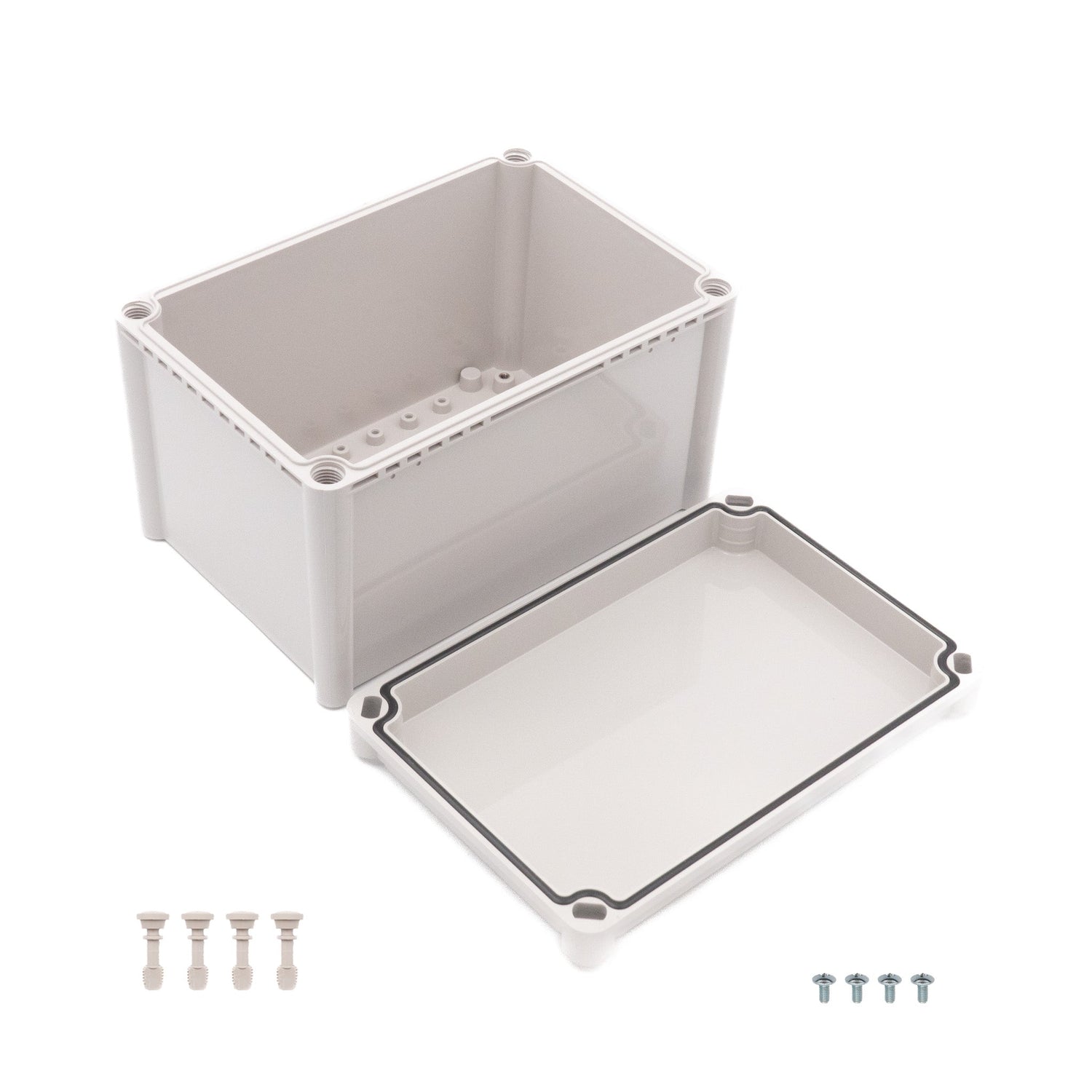

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.48 in
-
Width11.02 in
-
Height7.09 in
-
Weight2.31 lb
::specification::
Frequently Asked Questions
What applications is this Boxco S-Series enclosure best suited for?
This enclosure is designed for protecting electronic components and instruments in industrial or commercial environments where dust, moisture, and impact resistance matter. Its ABS construction, IP67 protection, and IK08 impact rating make it a practical choice for control, monitoring, and equipment housing applications, including outdoor use.
Is this plastic enclosure suitable for outdoor environments?
Yes, this model is described as having an ultraviolet stabilizer added for outdoor usage. The product description also notes that only minimal color change is expected over long-term use, helping it maintain appearance and durability in exposed environments.
What protection ratings does this enclosure have?
This model is rated IP67 and IK08. That means it is built for strong dust and water ingress protection and offers solid resistance to external impact for demanding enclosure applications.
What are the dimensions and material of this enclosure?
This Boxco S-Series enclosure measures 7.48 x 11.02 x 7.09 inches, which corresponds to 190 x 280 x 180 mm. It is made from ABS and has a grey cover in a screw-type enclosure design.
Does this enclosure support internal component mounting?
Yes, the product description states that it includes internal mounting plate attachment points and pre-molded mounting screw nuts. These features help support secure installation of internal hardware such as mounting plates or DIN rail-based equipment inside the enclosure.
What temperature range can this enclosure handle?
This model is specified for use from -40 degrees C to 70 degrees C. That range makes it suitable for a wide span of operating environments where temperature resistance is an important selection factor.
