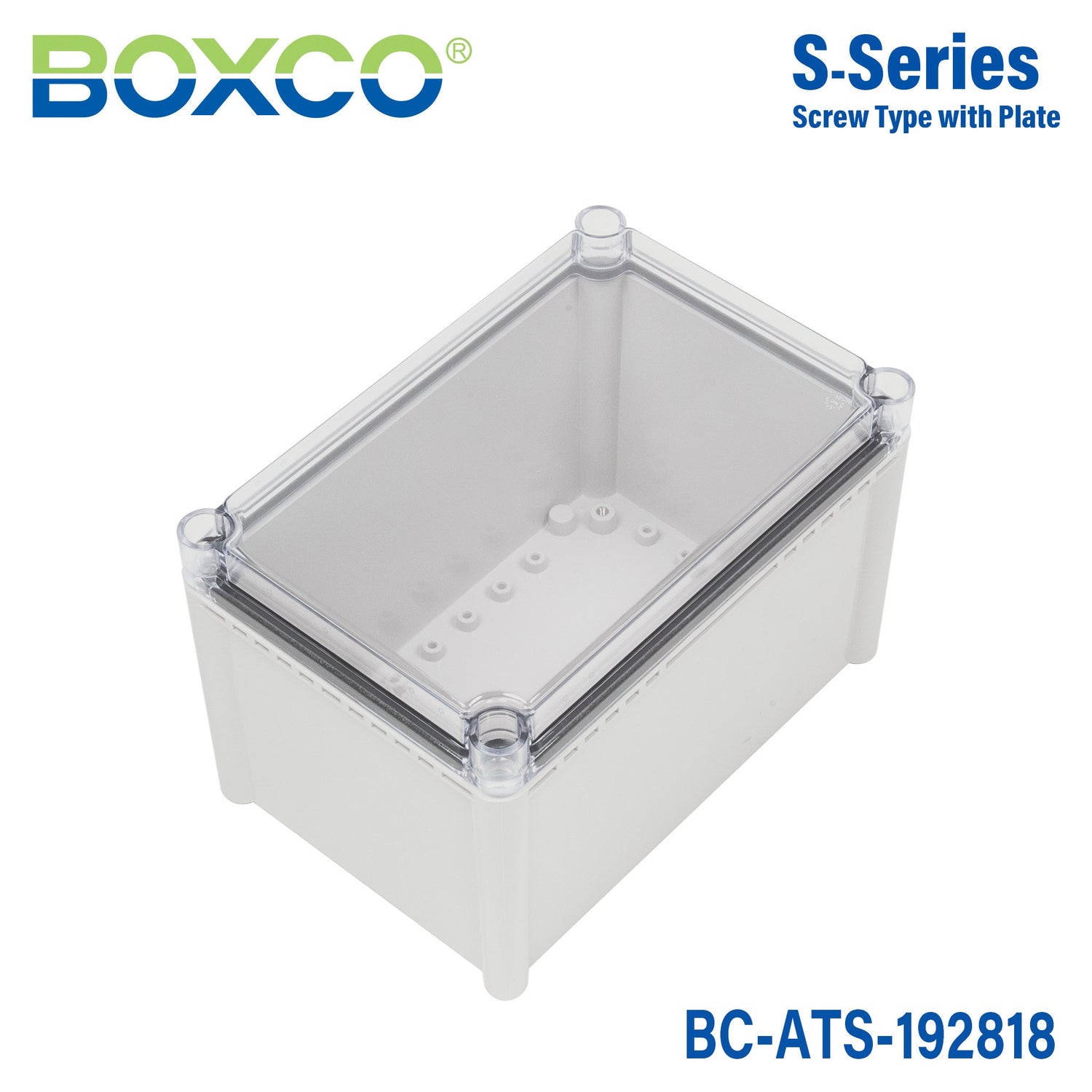

Boxco S-Series 7.48 x 11.02 x 7.09 Inches(190x280x180mm) Plastic En...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

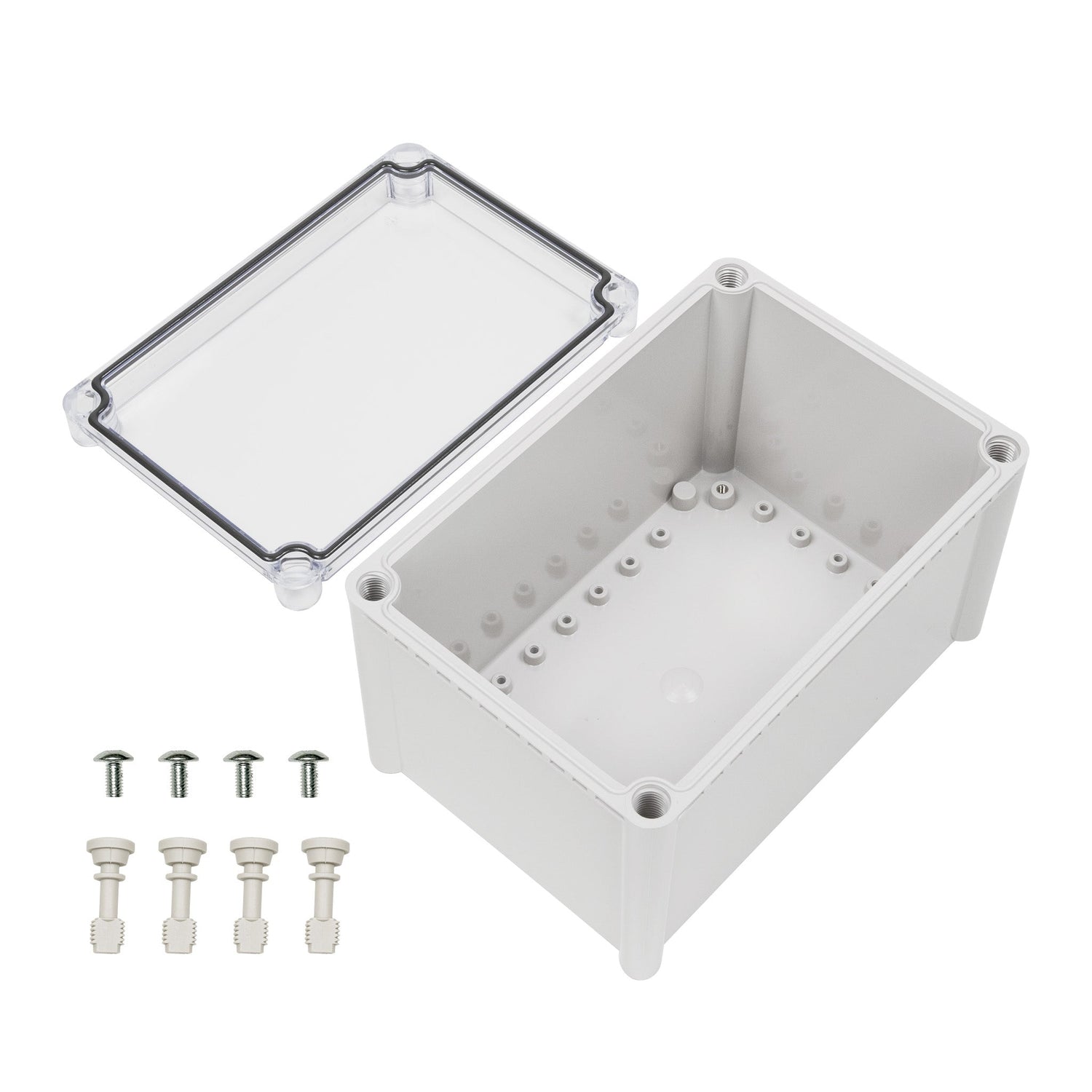

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.48 in
-
Width11.02 in
-
Height7.09 in
-
Weight2.52 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco S-Series 190x280x180mm plastic enclosure best suited for?
This model is suited to protecting industrial or commercial electronics that need a sealed non-metallic enclosure with a transparent cover for inspection. Its larger 190x280x180 mm size, IP67 sealing, and IK08 impact rating make it a practical option for control, monitoring, or instrumentation housings in demanding environments.
Is this enclosure suitable for outdoor use?
Yes. Boxco specifies that the S-Series includes an ultraviolet stabilizer to support outdoor usage and reduce visible color change over long periods. The IP67 rating also indicates strong protection against dust and water ingress when the enclosure is properly closed.
What are the key specifications of this enclosure?
This enclosure measures 7.48 x 11.02 x 7.09 inches (190 x 280 x 180 mm) and is made from ABS with a transparent cover and screw-type closure. It is rated IP67 and IK08, weighs 1.145 kg, and has an operating temperature range of -40 °C to 70 °C.
Does the transparent cover make this model better for inspection than a solid-cover enclosure?
Yes, if visual access matters. The transparent cover allows quick status checks of indicators, displays, or internal components without opening the box, while keeping the same published IP67 and IK08 ratings for this model. A solid-cover version may be preferred only when visibility is unnecessary.
What internal hardware support features does this Boxco enclosure include?
Boxco lists several built-in support features for this model, including internal mounting plate attachment points, pre-molded mounting screw nuts, and cover bolt attachment points formed during injection molding for strength. These features help support heavier internal equipment and make the enclosure more suitable for organized component mounting.
How durable is this enclosure in harsh industrial environments?
This model is designed for demanding use with high-impact-resistant ABS construction, an IK08 impact rating, and a gasket produced for strong waterproof and dust-proof performance. Boxco also notes anti-static material use to help protect sensitive electronic instruments from static electricity.
