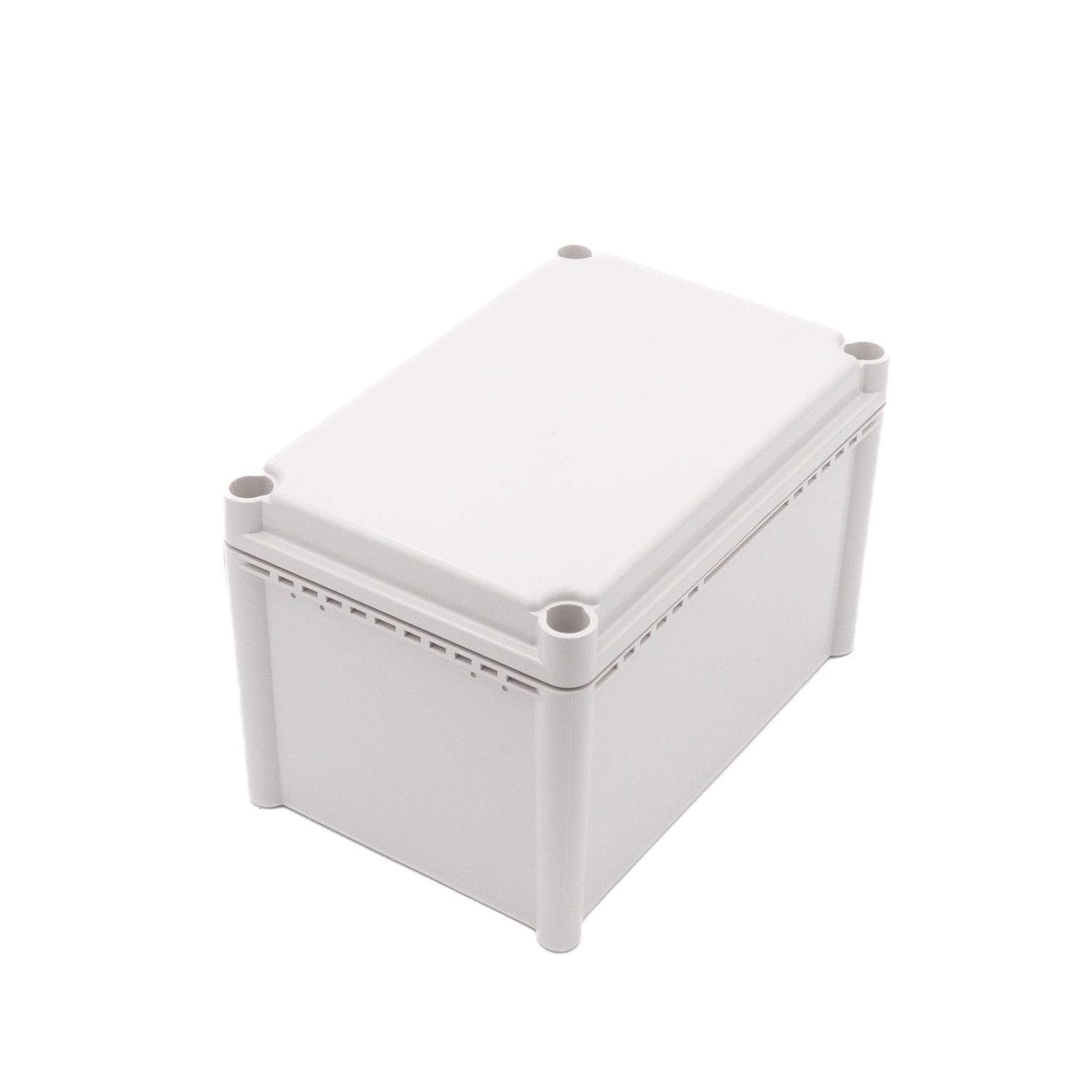

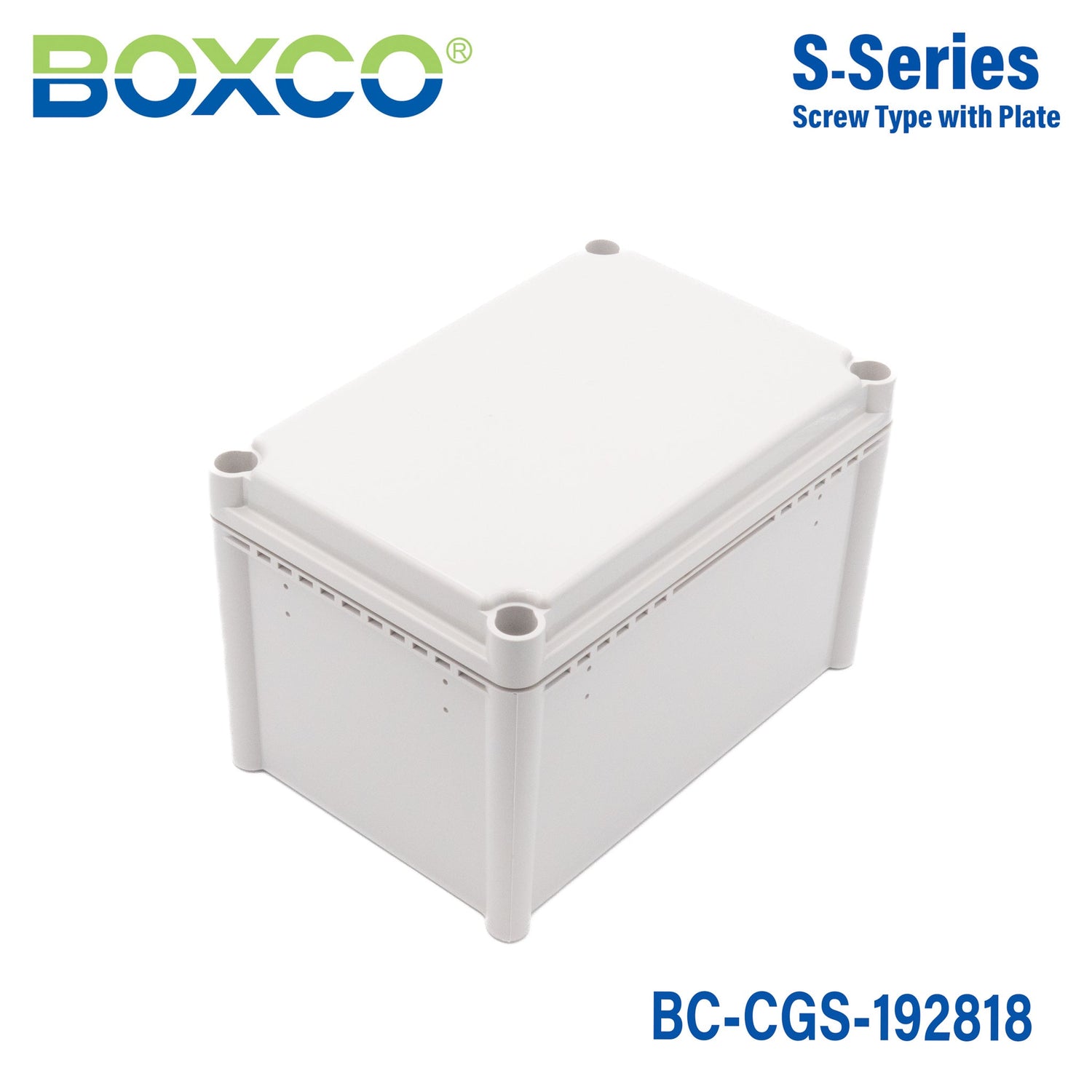

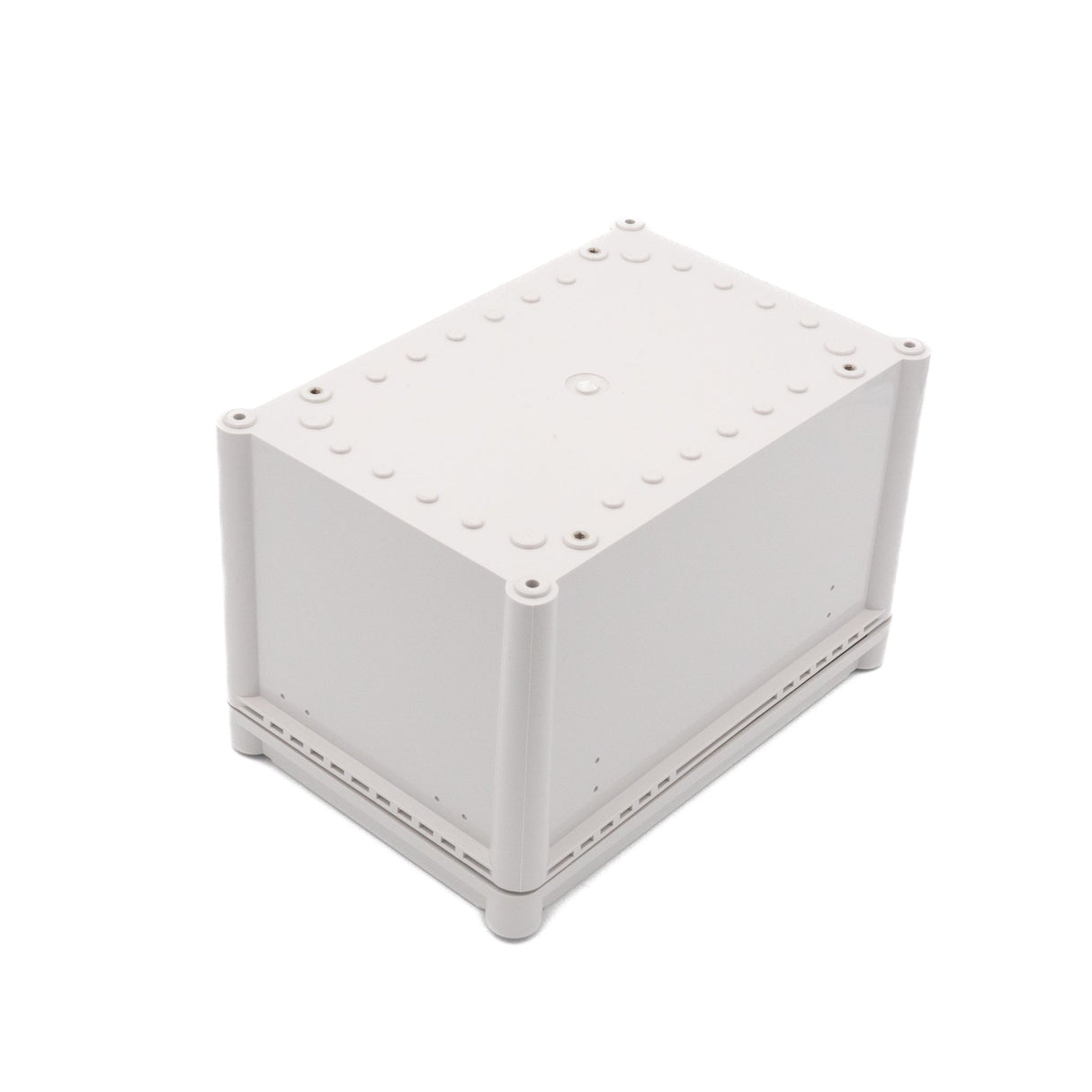

Boxco S-Series 7.48 x 11.02 x 7.09 Inches(190x280x180mm) Plastic En...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

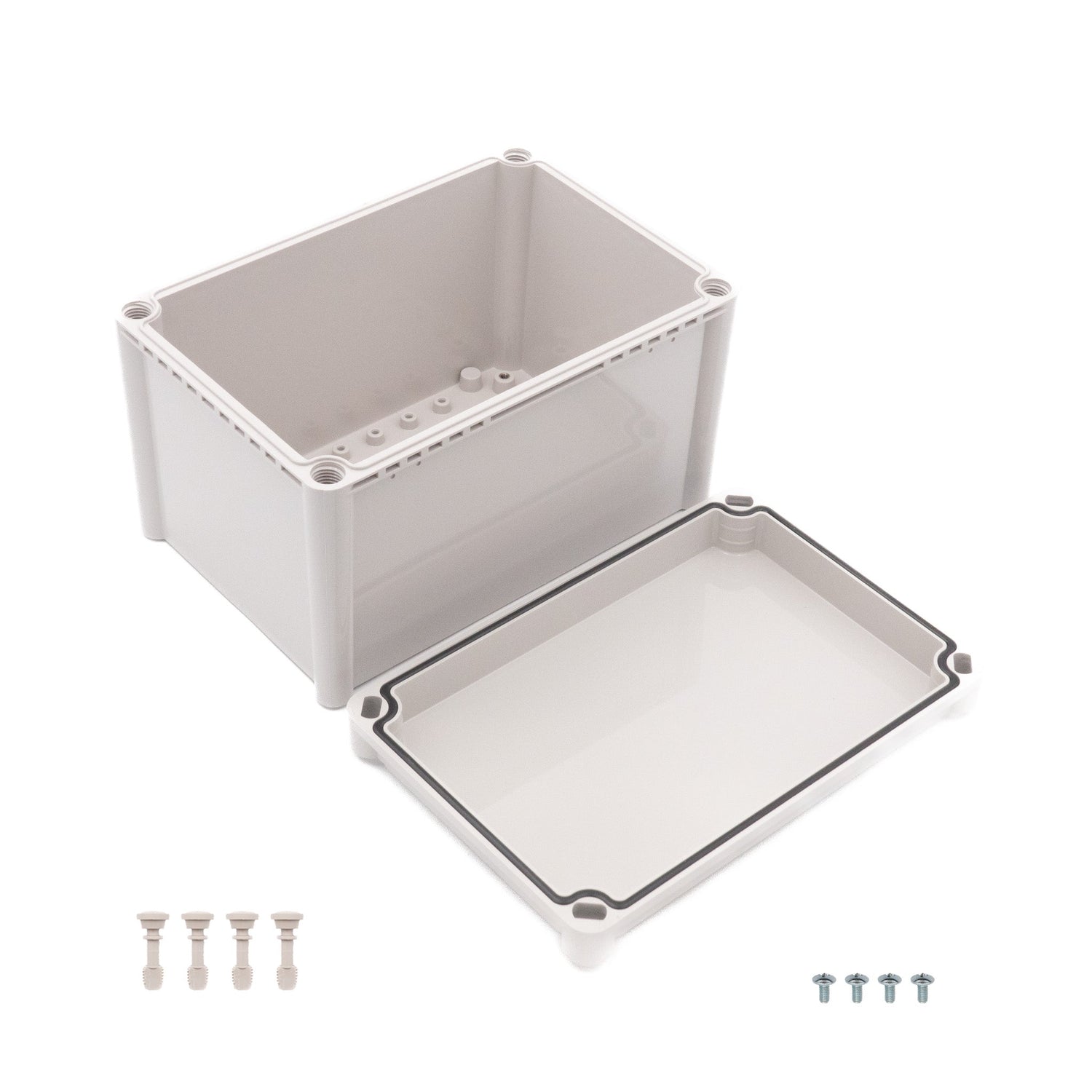

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.48 in
-
Width11.02 in
-
Height7.09 in
-
Weight2.72 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series 190x280x180 mm plastic enclosure suited for?
This enclosure is suited for protecting industrial and commercial components that need a sealed non-metallic housing in indoor or outdoor environments. Its IP67 rating, IK08 impact resistance, and anti-static PC construction make it a practical choice for control, instrumentation, and equipment protection where dust, water, and incidental impact are concerns.
Is this enclosure appropriate for outdoor use?
Yes. Boxco states that the S-Series includes an ultraviolet stabilizer to help protect the enclosure during outdoor use and reduce noticeable color change over time. The IP67 rating also supports use in environments where strong protection against dust and water ingress is required.
What are the key specifications of this specific enclosure model?
This model measures 7.48 x 11.02 x 7.09 inches, which corresponds to 190 x 280 x 180 mm. It is a polycarbonate (PC) screw-type enclosure with a grey cover, IP67 ingress protection, IK08 impact resistance, a 1-year warranty, and a listed weight of 1.236 kg.
What temperature range can this enclosure handle?
The listed operating temperature range for this model is -40 °C to 110 °C. That range makes it suitable for demanding environments with both low and high ambient temperatures, provided the rest of the application is designed within those limits.
How does this model support mounting internal components?
Boxco specifies internal mounting plate attachment points that can secure a mounting plate tightly to brass-inserted injection-molded points. It also includes pre-molded mounting screw nuts intended to support DIN rail or other internal equipment mounting within the enclosure.
What makes this enclosure different from a basic plastic project box?
This model is built for harsher service conditions than a basic general-purpose box, with IP67 sealing, IK08 impact protection, UV stabilization for outdoor exposure, and anti-static material for sensitive electronic instruments. It also includes molded features for stronger cover fastening and more robust internal equipment support.
Does this enclosure offer protection against dust and water?
Yes. This enclosure is rated IP67, and Boxco notes that the gasket is injected by a precision CNC robot process to support strong waterproof and dust-proof performance. That makes this specific model appropriate where reliable sealing is an important requirement.
