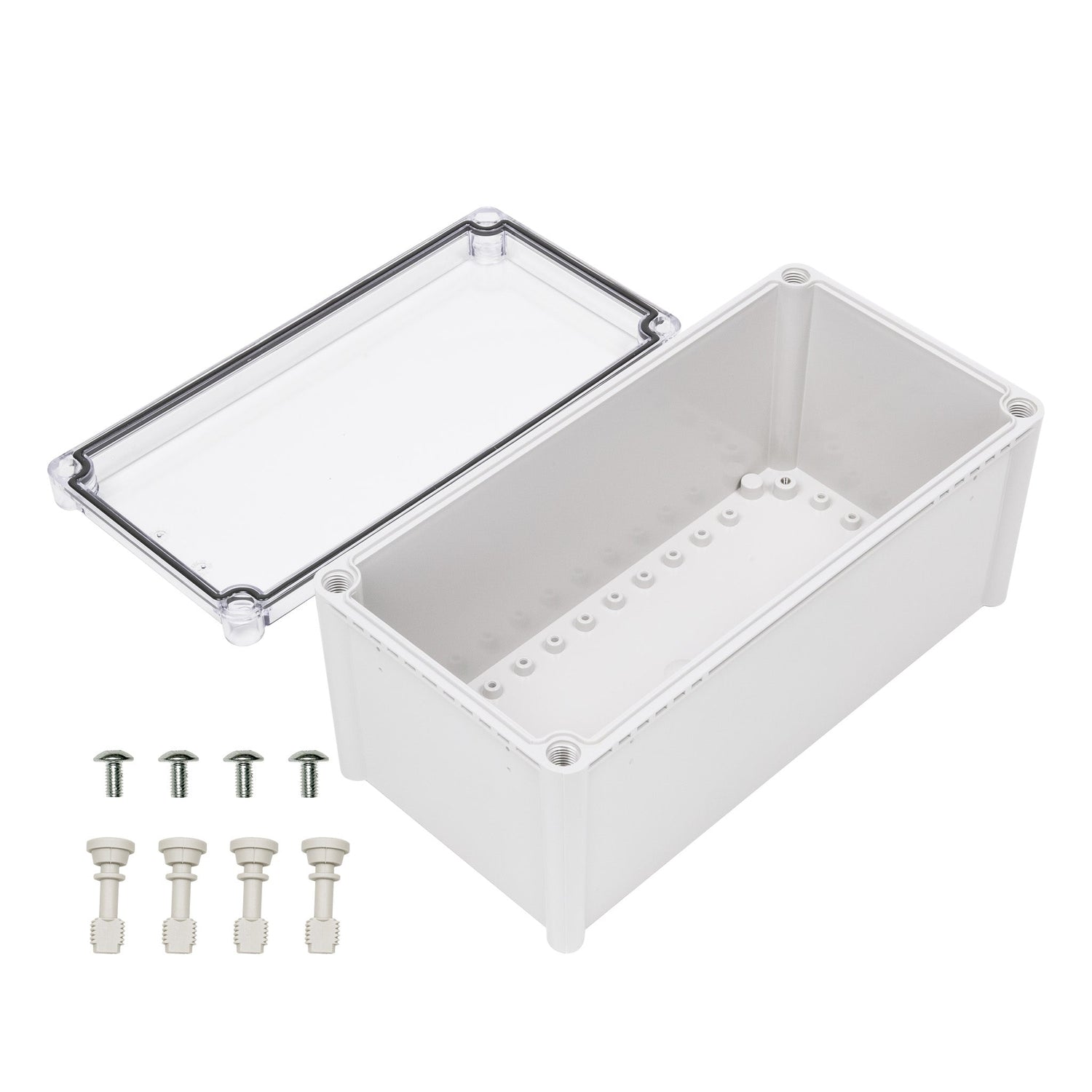

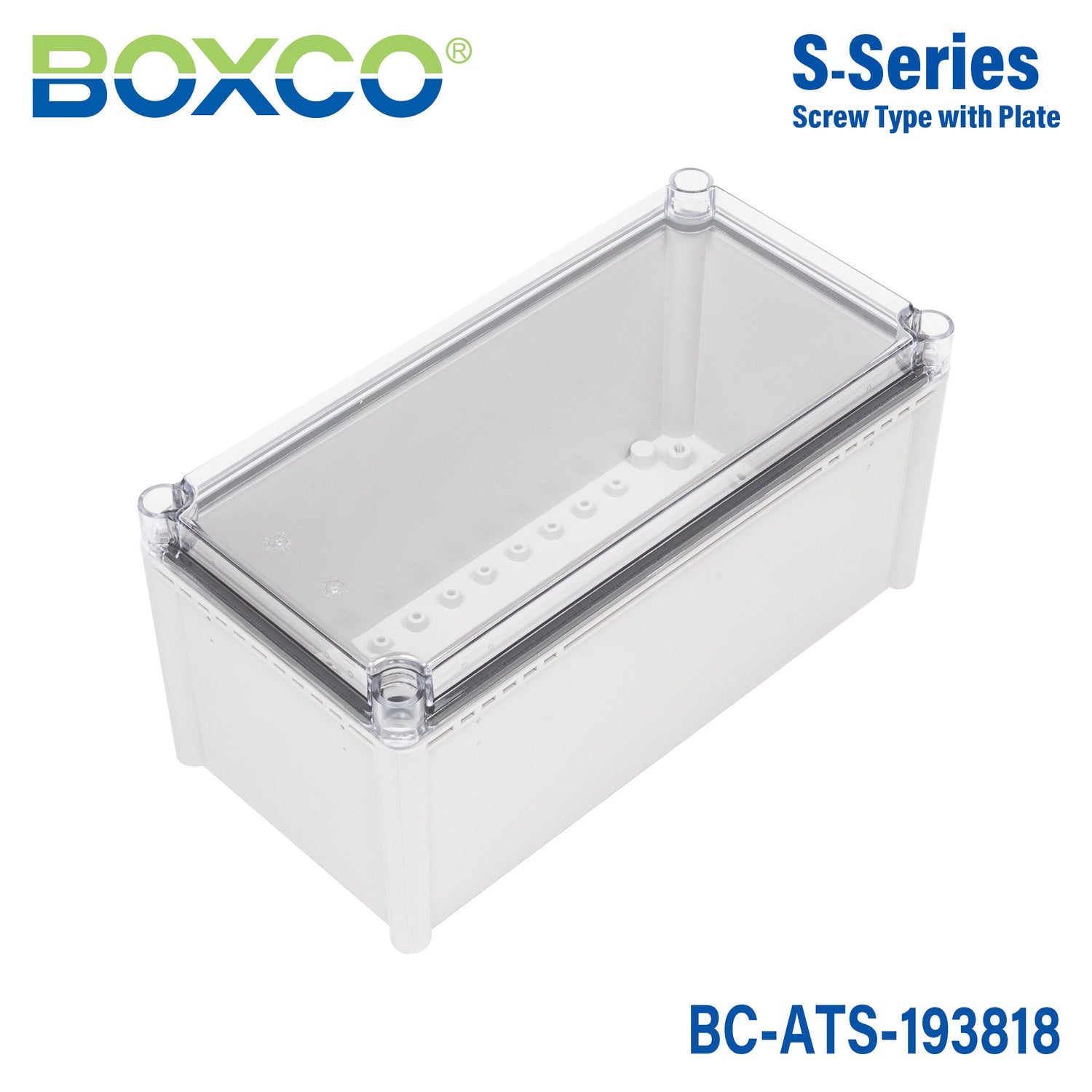

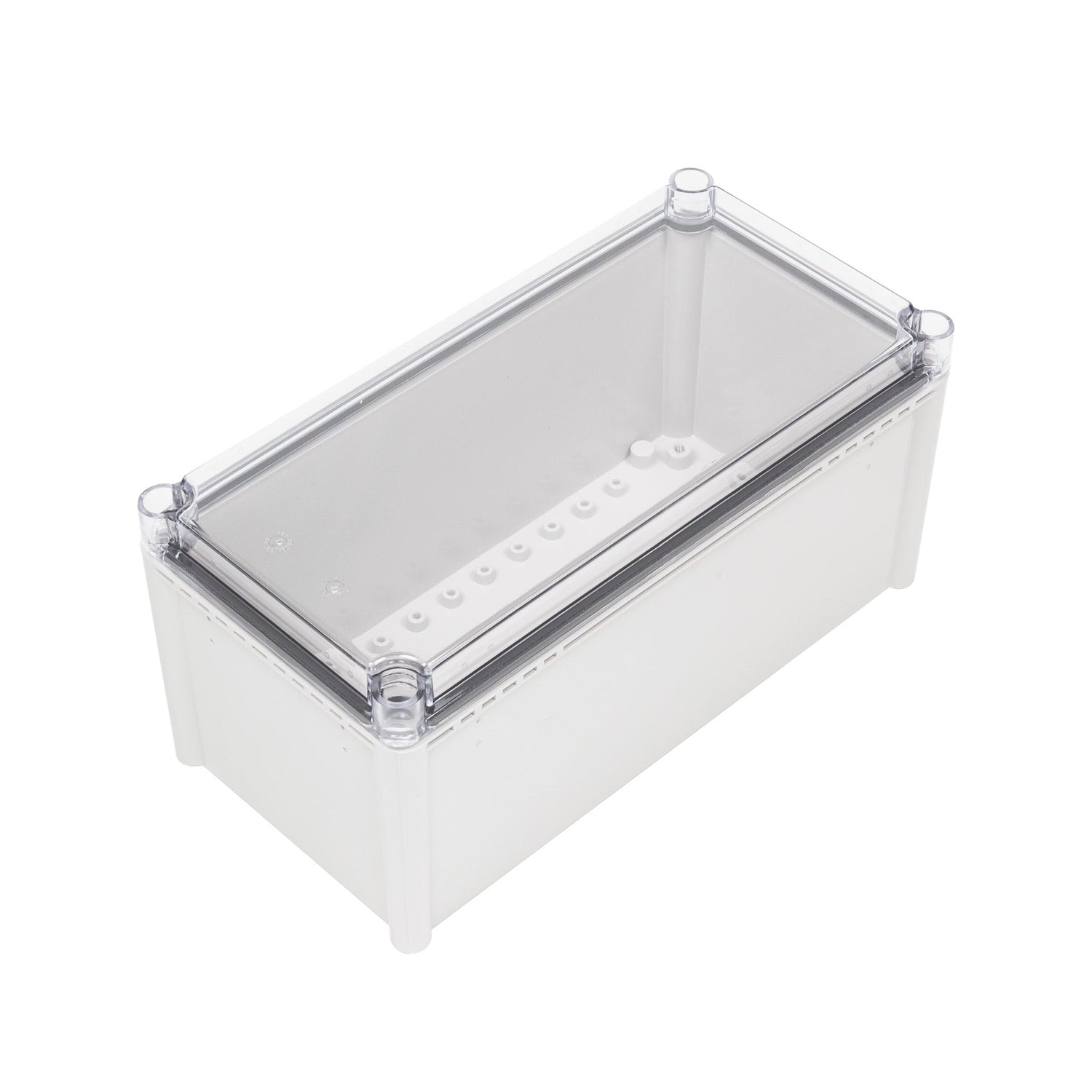

Boxco S-Series 7.48 x 14.96 x 7.09 Inches(190x380x180mm) Plastic En...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.48 in
-
Width14.96 in
-
Height7.09 in
-
Weight2.91 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is this Boxco S-Series enclosure best suited for?
This enclosure is suited for protecting electrical or electronic equipment in industrial and commercial environments where a sealed plastic housing is needed. Its IP67 rating, IK08 impact resistance, and anti-static ABS construction make it a practical choice for sensitive instruments and general-purpose equipment protection.
Can this enclosure be used outdoors?
Yes, this model is designed with an ultraviolet stabilizer to support outdoor use. The description notes that only limited color change is expected even after long-term exposure, which helps it maintain appearance over time.
What protection levels does this enclosure provide?
This model is rated IP67 for resistance to dust and water ingress and IK08 for impact resistance. It is also made from high-impact ABS material, which helps it withstand external force and reduces the risk of breakage during processing.
What are the dimensions of this enclosure?
The enclosure measures 7.48 x 14.96 x 7.09 inches, which corresponds to 190 x 380 x 180 mm. This size makes it a larger-format enclosure for applications that need more internal space than compact junction boxes.
Is this enclosure suitable for protecting sensitive electronic instruments?
Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a stronger fit for applications where electrostatic protection is an important consideration.
How does the transparent cover compare with a standard opaque cover?
This version includes a transparent cover, which can be useful when visual inspection is needed without opening the enclosure. Compared with an opaque-cover version, it offers easier viewing of internal indicators or labels while keeping the same screw-type enclosure format.
What internal mounting features does this enclosure include?
This model includes internal mounting plate attachment points and pre-molded mounting screw nuts. According to the product description, these features help secure an internal mounting plate firmly and make it easier to fasten DIN rail or other equipment inside the enclosure.
What temperature range is this enclosure rated for?
This enclosure is rated for use from -40 °C to 70 °C. That range supports use in both low-temperature and elevated-temperature environments, provided the application stays within those limits.
