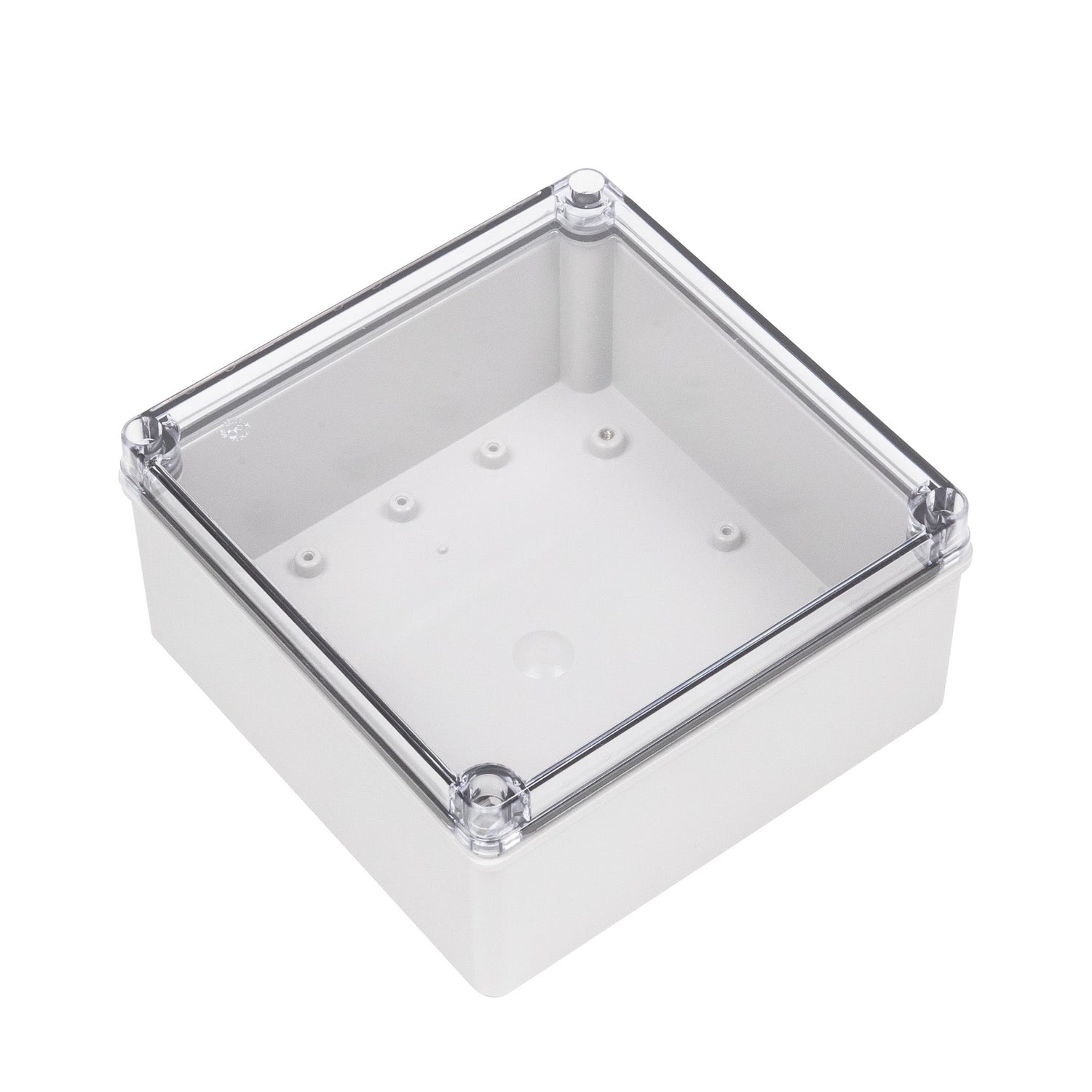

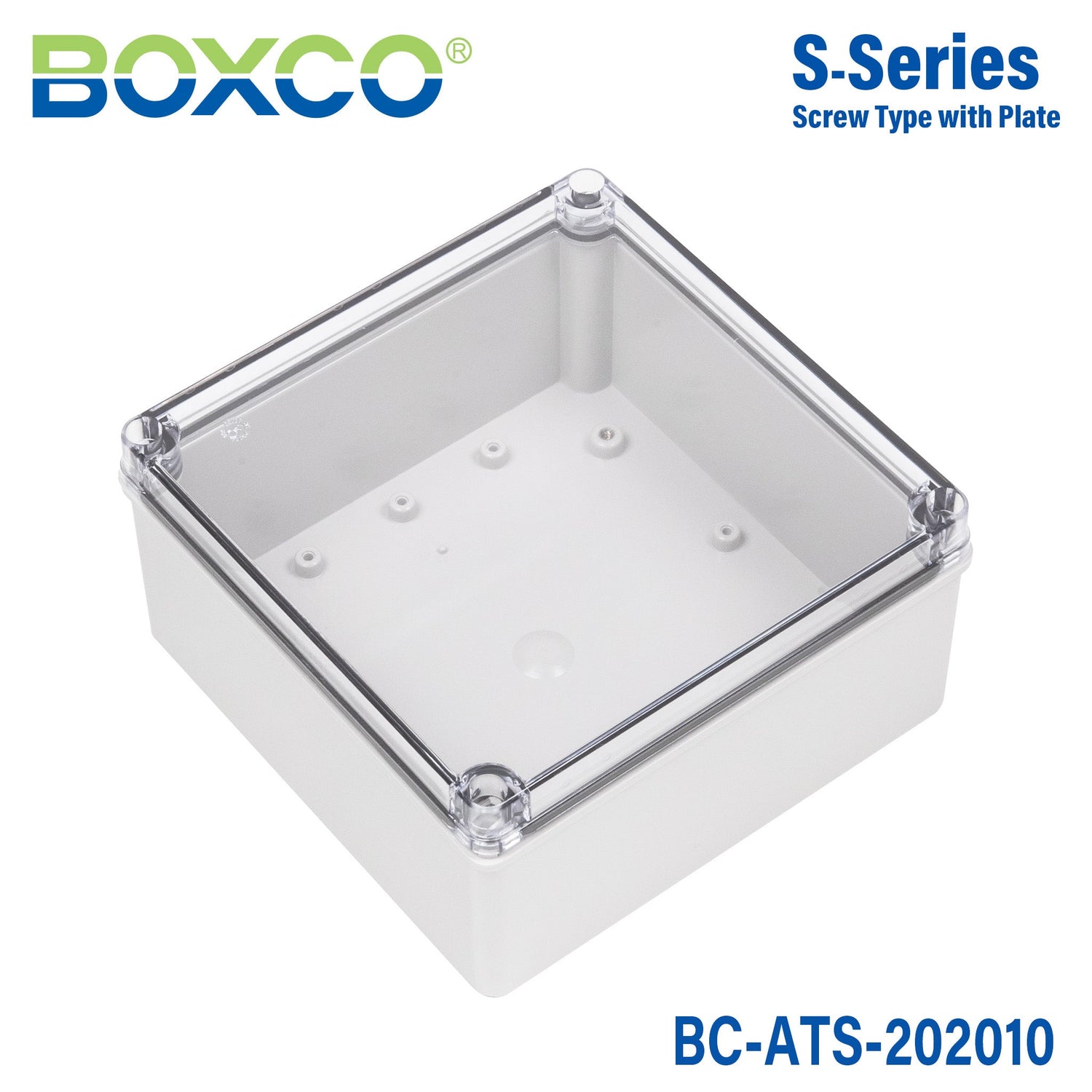

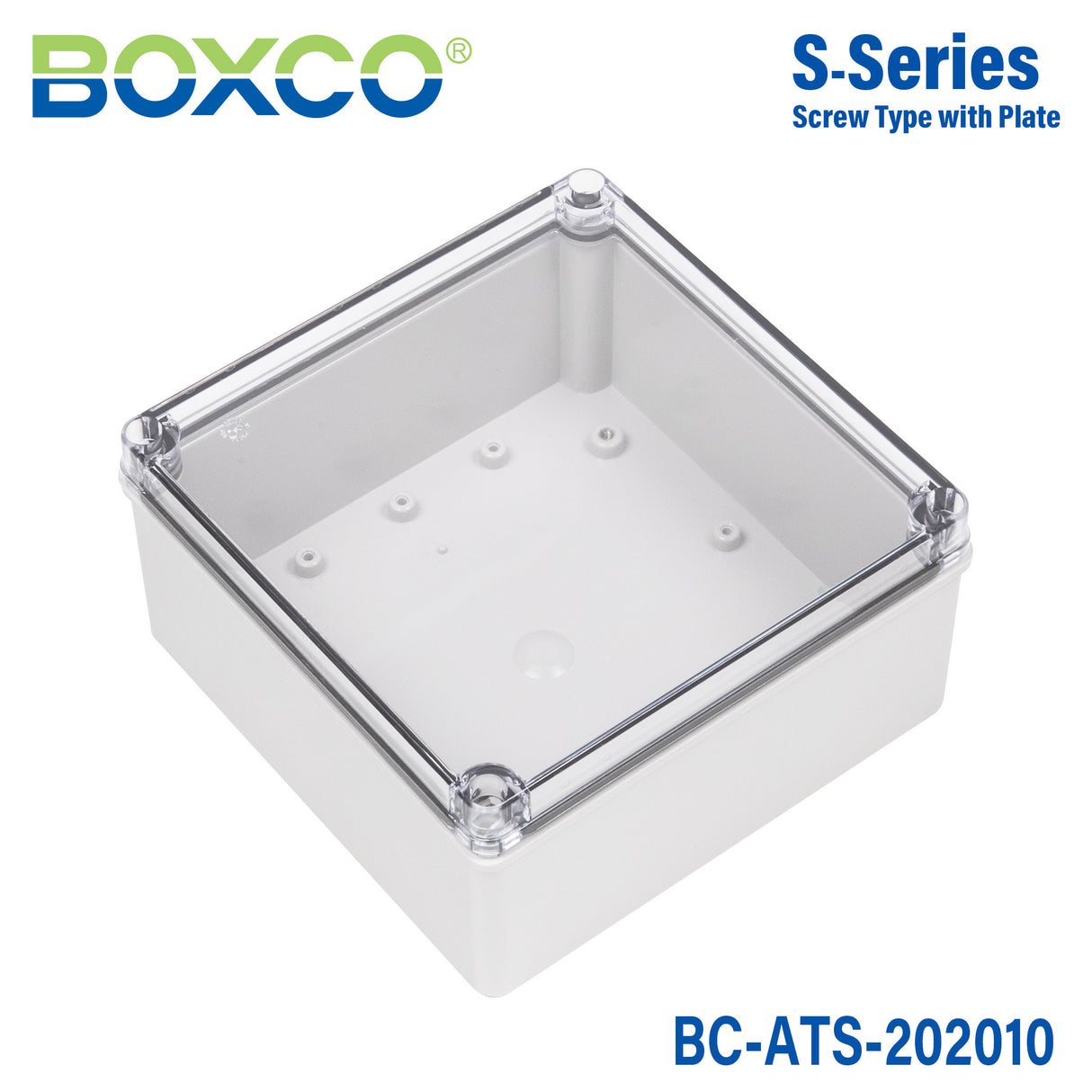

Boxco S-Series 7.87 x 7.87 x 3.94 Inches(200x200x100mm) Plastic Enclosure, IP67, IK08, ABS, Transparent Cover, Screw Type
Notify me when it's back in stock
Your order will be processed within 24 hours
Boxco S-Series 7.87 x 7.87 x 3.94 Inches(200x200x100mm) Plastic Enc...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

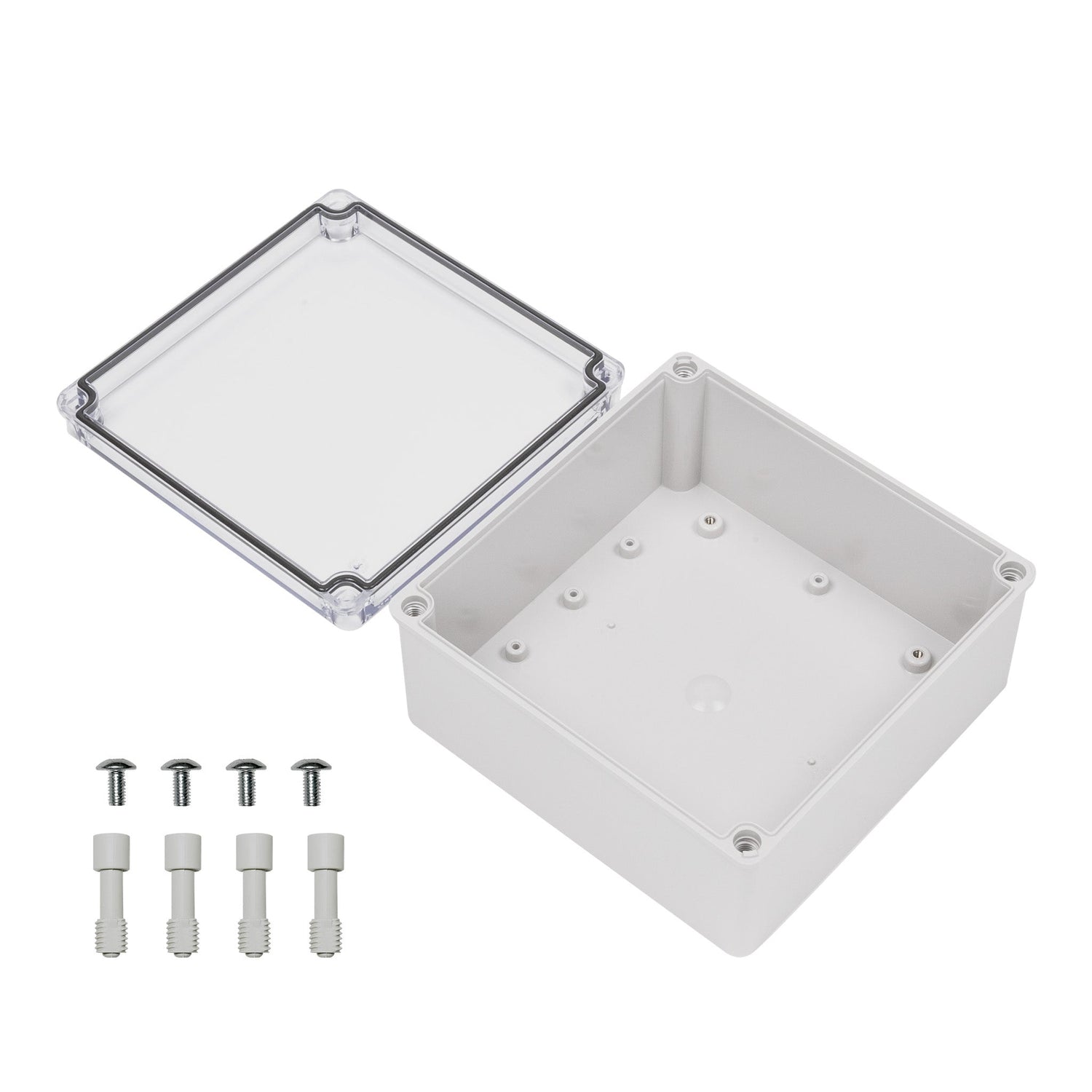

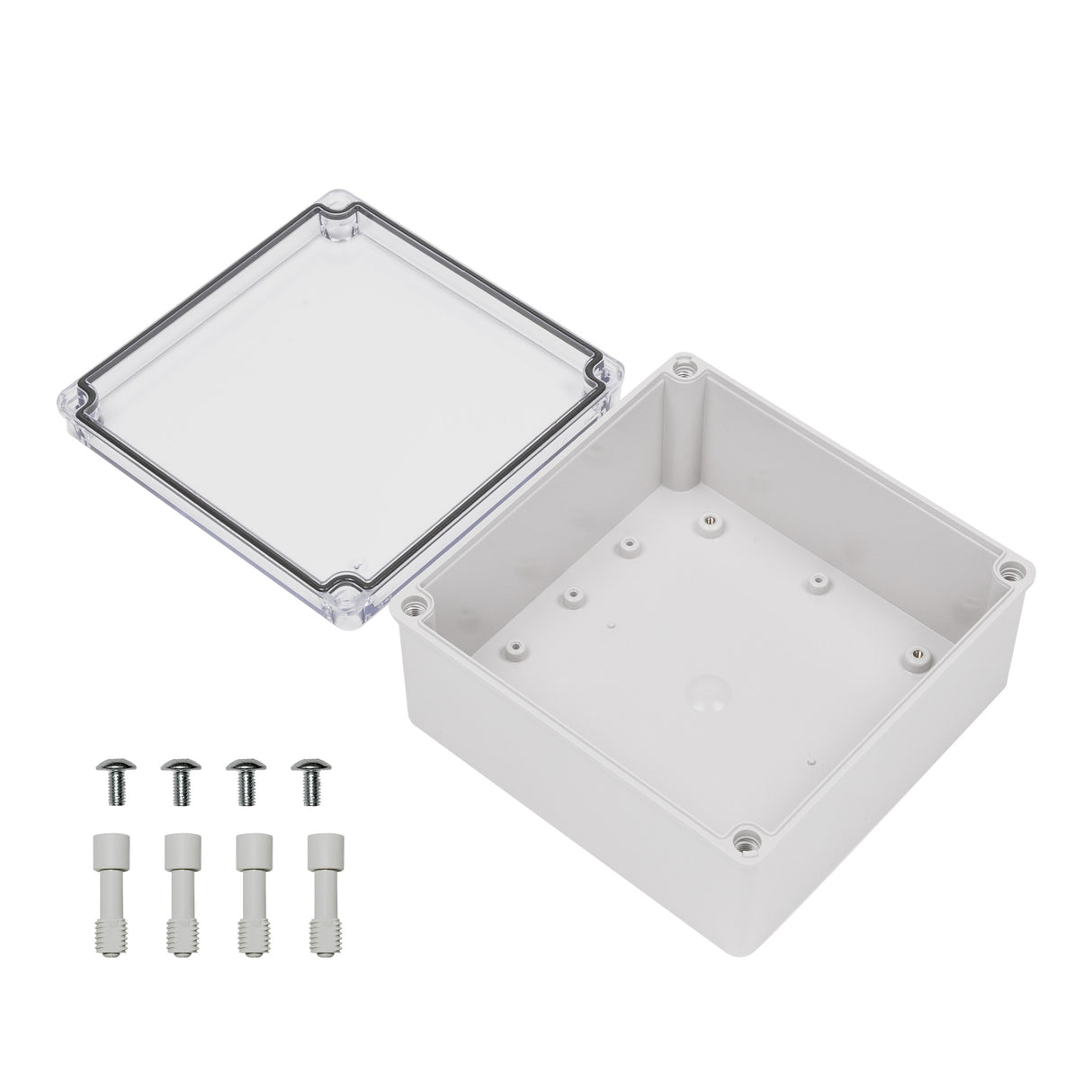

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.87 in
-
Width7.87 in
-
Height3.94 in
-
Weight1.44 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is this Boxco S-Series enclosure suited for?
This enclosure is intended for protecting electronic components and sensitive instruments in industrial and commercial environments. Its anti-static material, transparent cover, and heavy-duty ABS construction make it a practical choice for control, monitoring, and protection applications where visibility and enclosure strength matter.
What are the dimensions of this enclosure?
This model measures 7.87 x 7.87 x 3.94 inches, which is also listed as 200 x 200 x 100 mm. That size provides a square enclosure format with enough internal space for a range of protected equipment layouts.
Is this enclosure suitable for outdoor use?
Yes, the Boxco S-Series includes an ultraviolet stabilizer to help protect the enclosure in outdoor conditions. The product description notes that only minor color changes are expected even after long-term use.
How well does this enclosure resist water, dust, and impact?
This model is rated IP67 for protection against dust ingress and water exposure, and IK08 for impact resistance. It is also made from high-impact-resistant ABS to help withstand demanding environments.
What material is this enclosure made from, and why does that matter?
This enclosure is made from ABS plastic and uses anti-static material to help protect sensitive electronic instruments from static electricity. The housing is also designed for high impact resistance and durability during processing.
Does this model have a transparent cover?
Yes, this specific model includes a transparent cover. That makes it useful when internal components, indicators, or labels need to remain visible without opening the enclosure.
What temperature range can this enclosure handle?
The listed operating temperature range for this model is -40 C to 70 C. That range supports use in both low-temperature and moderately high-temperature environments.
Are there built-in features for mounting internal equipment?
Yes, the enclosure includes mounting plate attachment points and pre-molded mounting screw nuts. These features support secure placement of internal hardware and help distinguish this model from more basic empty enclosures.
