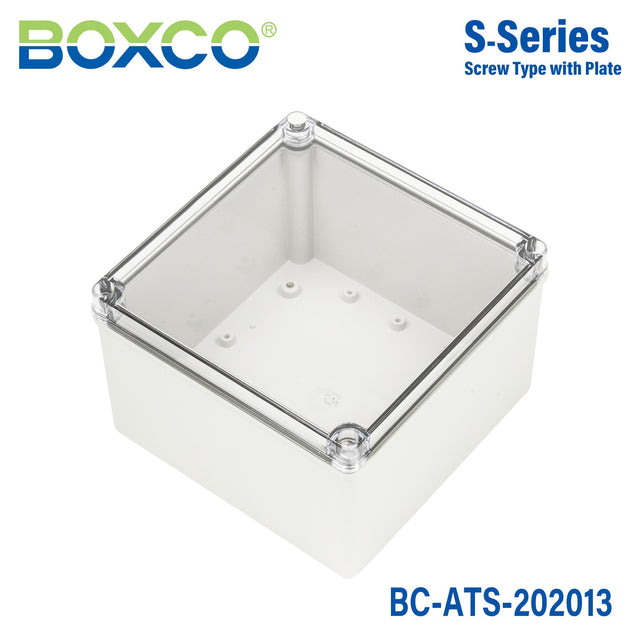

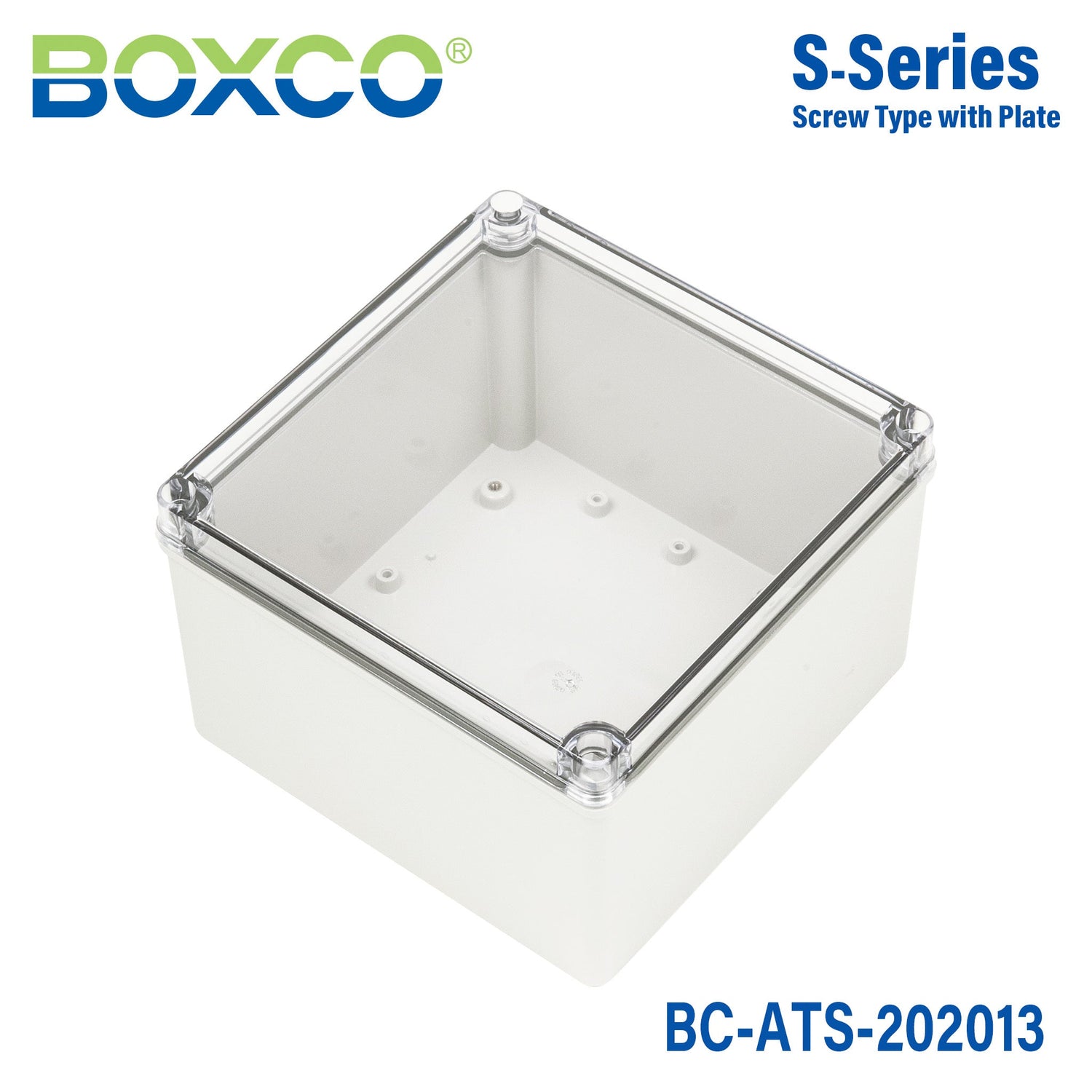

Boxco S-Series 7.87 x 7.87 x 5.12 Inches(200x200x130mm) Plastic Enc...
Description
Description
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
Specifications
Specifications
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length7.87 in
-
Width7.87 in
-
Height5.12 in
-
Weight1.6 lb
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What applications is the Boxco S-Series 200x200x130mm enclosure best suited for?
This enclosure is suited for protecting industrial and commercial electronic components that need a sealed plastic housing. Its internal space and impact-resistant ABS construction make it a practical choice for control, monitoring, and protection applications where durability and enclosure integrity matter.
Is this enclosure suitable for outdoor environments?
Yes, this model is designed for outdoor use. The S-Series includes an ultraviolet stabilizer to reduce color change over time, and its IP67 rating helps protect against dust and water ingress in exposed environments.
What level of environmental and impact protection does this enclosure provide?
This model is rated IP67 for dust-tight sealing and resistance to water ingress, and IK08 for impact resistance. It is made from high-impact ABS and includes a precision-injected gasket for strong waterproof and dust-proof performance.
What are the size and material details for this specific enclosure?
This Boxco enclosure measures 7.87 x 7.87 x 5.12 inches, which corresponds to 200 x 200 x 130 mm. It is made from ABS plastic and includes a transparent cover in a screw-type configuration.
Can this enclosure be used with sensitive electronic equipment?
Yes, the product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a strong option where added protection for electronics is important.
What temperature range can this enclosure handle?
This model is specified for use from -40 deg C to 70 deg C. That range supports use in both low-temperature and elevated-temperature environments within the stated limits.
