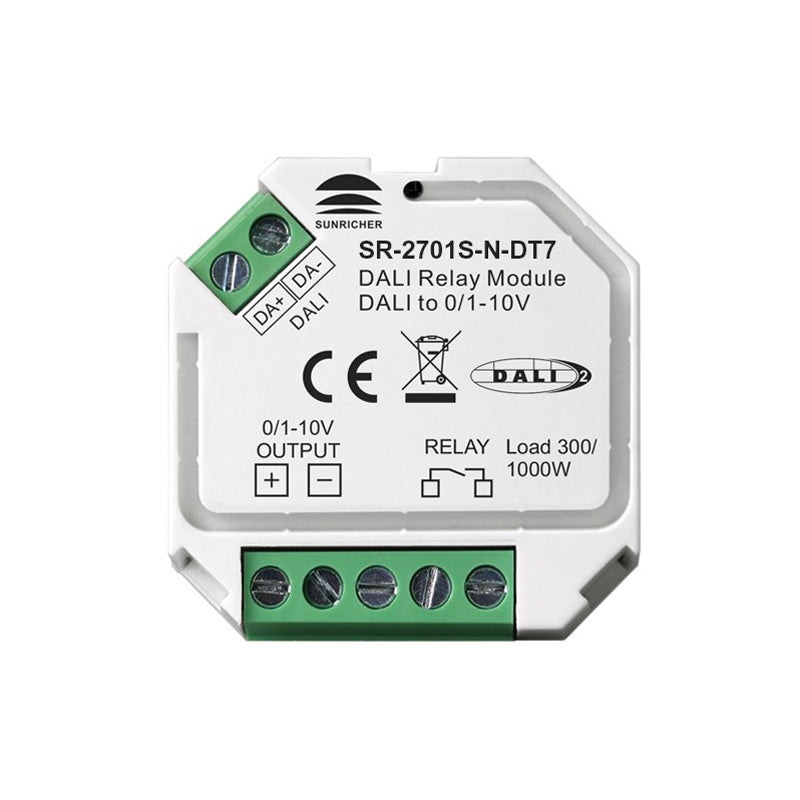

ENVO SR-2701S-N Relay On/Off Control + SR-2701S-N to 0/1-10V Conver...
Overview
Features
- DALI relay module + DALI to 0/1-10V converter 2 in 1, enable to switch power of the 0/1-10V load through the relay
- DALI bus powered, no extra power supply required
- 1 DALI address can be assigned by DALI master controller
- Control of one standard contactor
- Compact relay module for controlling a standard contactor via DALI
- Loads that do not have a DALI input can therefore be integrated in the DALI circuit
- The loads can be switched on and off via DALI
- Compatible with universal DALI systems and master controllers in the market
- Mini Size, easy to be Installed into a standard wall box
- 5 years warranty
- Waterproof grade: IP20
Specifications
Input
- DALI control input
- 1
- DALI consumption
- 3mA
- Number of DALI addresses
- 1
Output, relay
- Switching voltage AC
- 100-240V
- Switching voltage DC
- Max. 30V
- Current
- Resistive load: max. 4.3A Capacitive load: max. 1.3A Inductive load: max. 4.3A
- Type of contact
- 1 normally closed
Output 0/1-10V
- Current
- <10mA
Compatible Load Types
- Resistive loads Conventional incandescent and halogen light sources
- 1000W @ 230VAC 500W @ 110VAC
- Capacitive loads Fluorescent tube lamp (compact / with electronic ballast), electronic transformer, LED
- 300W @ 230VAC 150W @ 110VAC
- Inductive loads Ferromagnetic transformers
- 1000W @ 230VAC 500W @ 110VAC
Certifications & ratings
- Certification marks
- DALI, CE, RoHS
Test conditions and notes4
- Remark: Please keep attention on the connection of the DALI-line: The DALI input is not polarity free!
- Note: Please keep attention on the connection of the DALI input. The input is not polarity free!
- Note: the relay can also be connected to the input of the 12/24VDC PSU to switch 100-240V mains power.
- Setting DALI Address: 1 DALI address can be assigned by DALI Master controller automatically, please refer to user manuals of compatible DALI Masters for specific operations.
Downloads
Datasheet1
FAQ
What does the ENVO DALI2 Relay On/Off Control + DALI2 to 0/1-10V Converter do?
This model combines two control functions in one device: relay on/off control and DALI2 to 0/1-10V conversion. It is intended for projects that use DALI2 control while needing support for equipment that operates with 0/1-10V dimming. The configurable single-address design also makes it suitable for applications where one controlled point is preferred.
Is this controller suitable for DALI2-based lighting control systems?
Yes. This model is designed for DALI2 environments and is positioned as a DALI2 relay on/off control plus DALI2 to 0/1-10V converter. It is relevant for commercial and specification-driven lighting control projects that need DALI2 integration with 0/1-10V controlled loads.
What kind of dimming control does this model support?
The listed dimming control type for this model is DALI. Its product name further indicates DALI2 to 0/1-10V conversion capability, which helps bridge DALI2 control with compatible 0/1-10V dimming applications. Buyers evaluating protocol fit should focus on DALI/DALI2-based control requirements for this unit.
What are the main electrical ratings for the SR-2701S-N?
This controller is DALI bus powered and does not have a separate power rating. The relay output supports switching voltages of 100-240V AC or up to 30V DC, with a maximum switching current of 4.3A for resistive loads. The 0/1-10V output provides a control signal of less than 10mA.
Where is a configurable single-address controller typically useful?
A configurable single-address controller is typically useful when a project needs one defined control point rather than more complex multi-address behavior. For this model, that can help in applications where simple, targeted DALI2-based control is the priority. It is a practical fit for buyers who want combined relay and 0/1-10V conversion functions in one unit.
Can this model be used in demanding indoor environments?
This unit has an IP20 waterproof grade, making it suitable for installation in standard indoor wall boxes. It is designed for controlled indoor environments and should not be exposed to moisture or installed in outdoor locations.
What warranty period comes with this controller?
The stated warranty period for this model is 5 years. That gives buyers a clear baseline when comparing support coverage across similar lighting control products.
