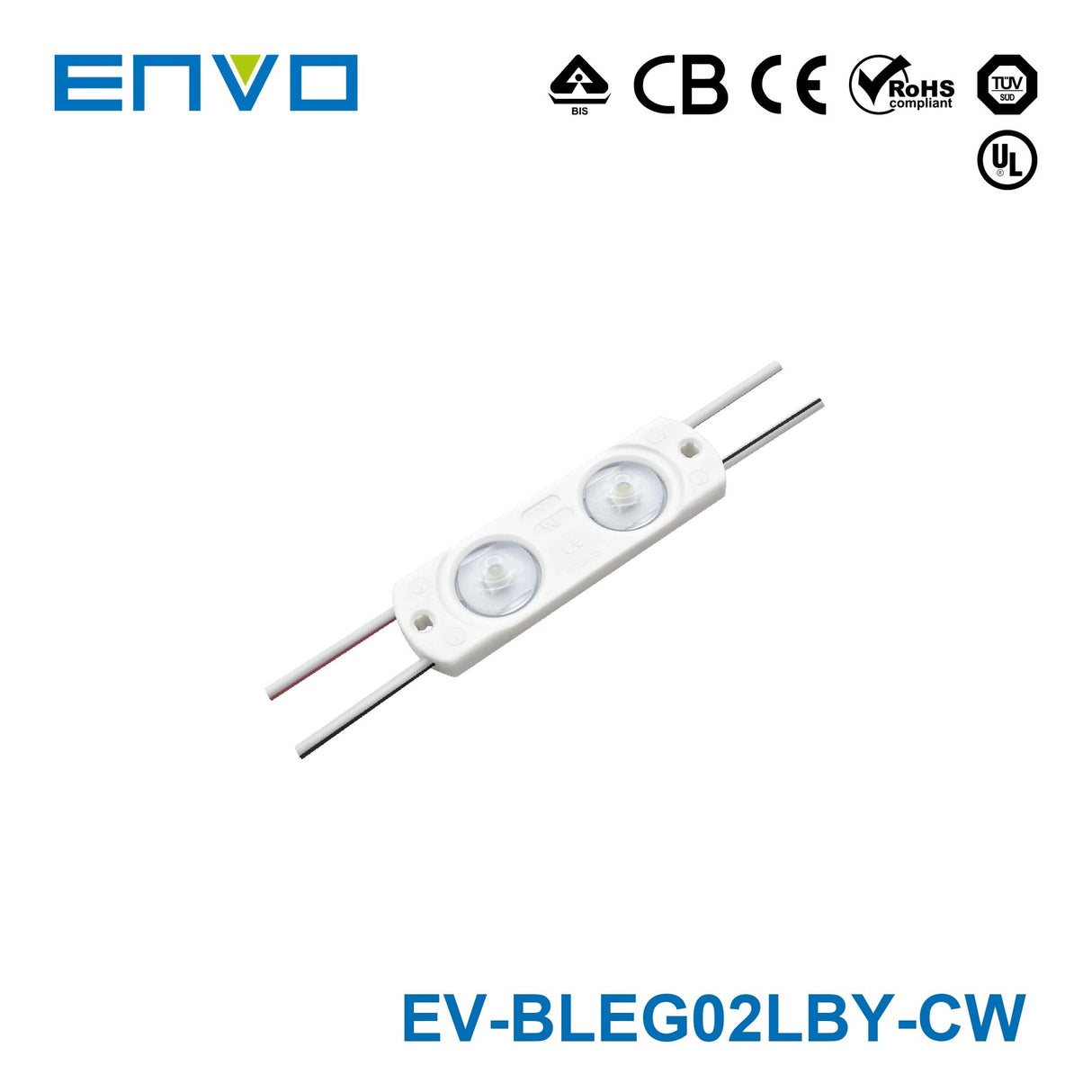

ENVO EcoGlo LED Module Backlit - Double LED

This LED module family is designed for illuminated letters and light boxes in commercial and public signage applications. It is suited to settings such as airports, metros, banks, buildings, and shopping malls where reliable backlit illumination is needed. The product description specifies use in signage depths from 4-15 cm.

This parent family is available in three correlated color temperature options based on the child variants: 3000K, 4000K, and 7000K. That allows buyers to choose a warmer, more neutral, or cooler appearance while keeping the same core module format and performance level. All listed variants share the same beam angle, power rating, CRI, lifetime, dimming capability, and warranty period.

All listed variants in this family are rated at 0.8 W and 80 lm per module. They also share a 170-degree beam angle, CRI of 75, dimmable operation, a 50,000-hour lifetime, and a 5-year warranty. These common specs make the main difference between variants the light color temperature.

Yes, the parent model is specified as dimmable, and the child variants also show dimmable control. That means the family supports light output adjustment when used in a compatible dimming setup. The dimming capability is consistent across the variants provided.

This product family has a 170-degree beam angle. The wide optic is intended to support broad and even light distribution in backlit signage applications. This can help improve coverage while reducing visible shadowing in illuminated letters and light boxes.

The parent product data identifies the power input as 12V. This is part of the shared parent-level specification for the family. Buyers should match the module family with compatible 12V system requirements.

The parent model dimensions are 56.0 mm long, 17.5 mm wide, and 6.2 mm high. The listed weight is 9.4 g per module. These dimensions are useful when evaluating fit for compact backlit letter and light box applications.

Yes, this family is positioned for commercial signage use and carries a rated lifetime of 50,000 hours with a 5-year warranty. The description also highlights constant-voltage operation and multiple certifications including CE, RoHS, UL, TUV, BIS, CB, and LM-80. Together, those details support its use where dependable long-service illumination is important.
