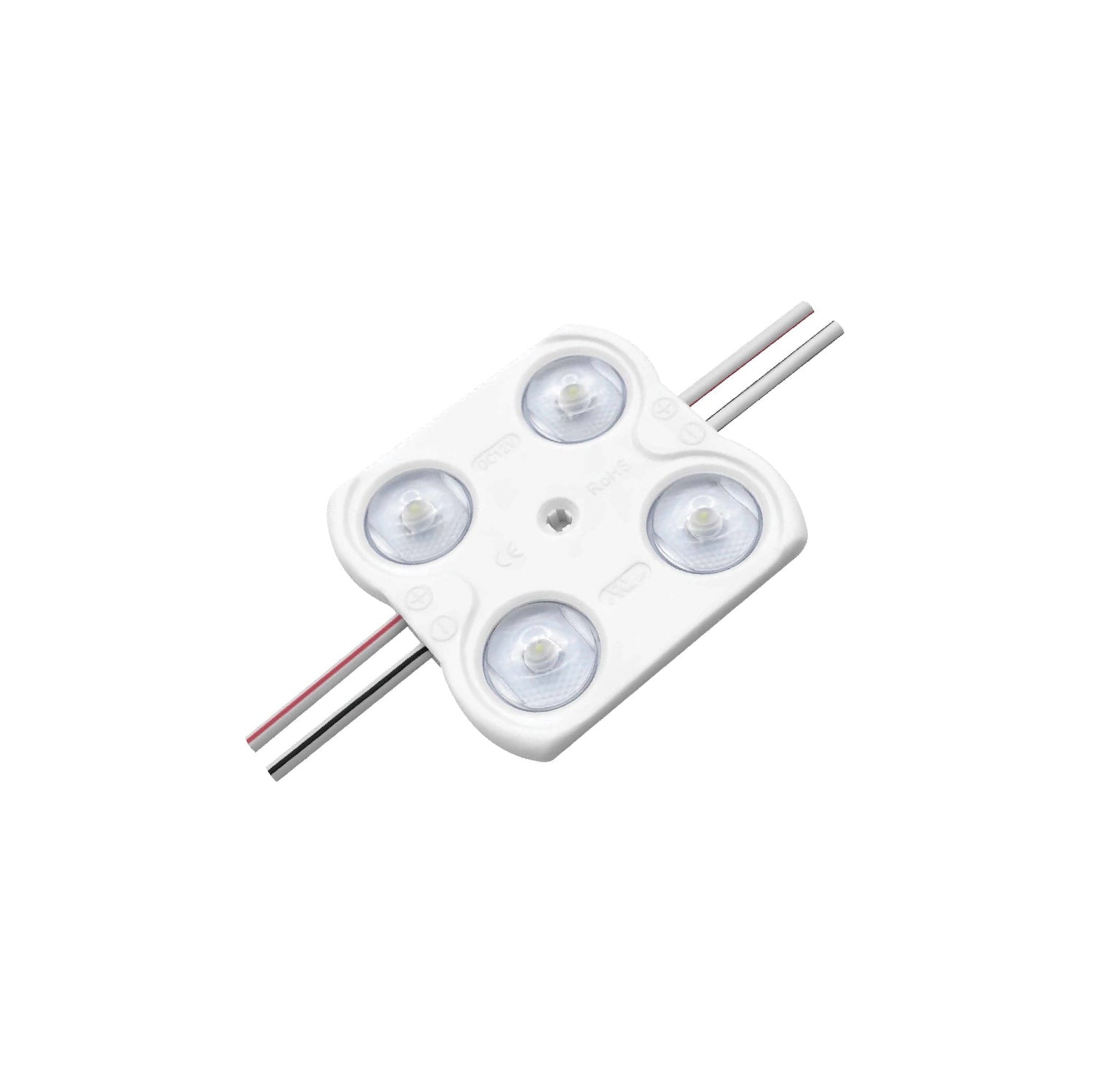

ENVO EcoGlo LED Module Backlit - Quad LED

This LED module family is designed for illuminated letters and light boxes in commercial and public signage applications. It is positioned for backlit signage in places such as airports, metros, banks, buildings, and shopping malls where reliable, economical illumination is needed.

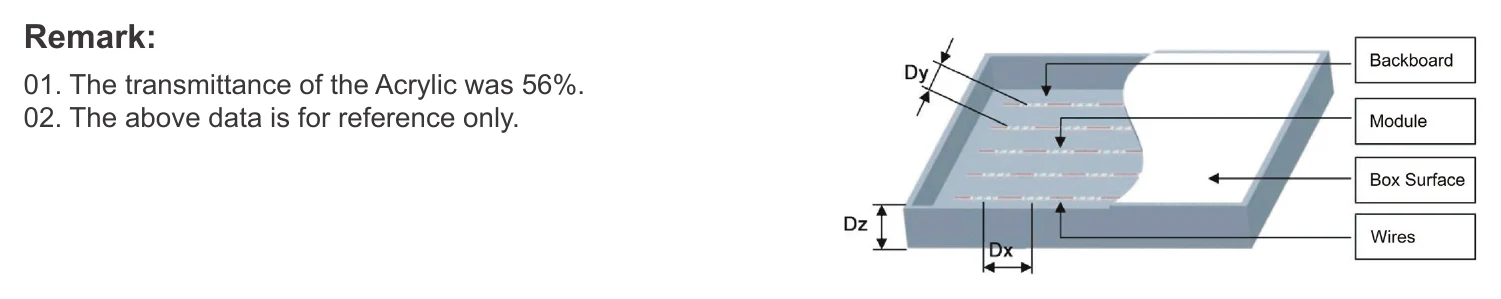

According to the product description, the EcoGlo Quad LED modules are intended for illuminated letters and light boxes with depths from 4 cm to 15 cm. That range makes them suitable for a variety of backlit signage formats where broad, even light spread is important.

Each variant in this family is rated at 1.6 W and produces 160 lumens. The modules use a 170 degree beam angle, have a CRI of 75, are dimmable, and are rated for a 50,000 hour lifetime with a 5 year warranty.

The main difference across the child variants is color temperature. This family is offered in 3000K warm white, 4000K neutral white, and 7000K cool white, while the listed beam angle, power rating, brightness, CRI, dimming, lifetime, and warranty remain the same across those options.

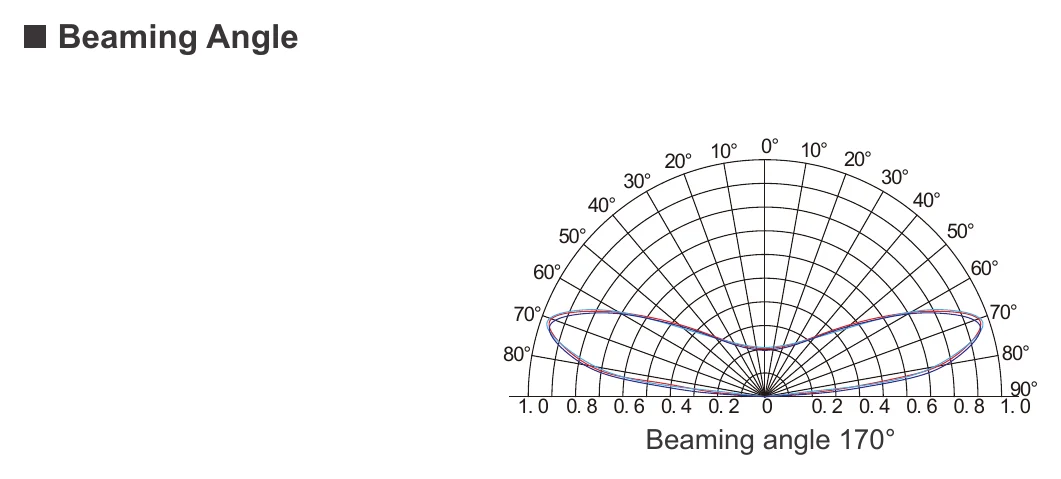

Yes. The product description states that it uses a Diamondback 170 degree optic lens, which is intended to provide expansive and even light distribution while reducing shadows in backlit signage applications.

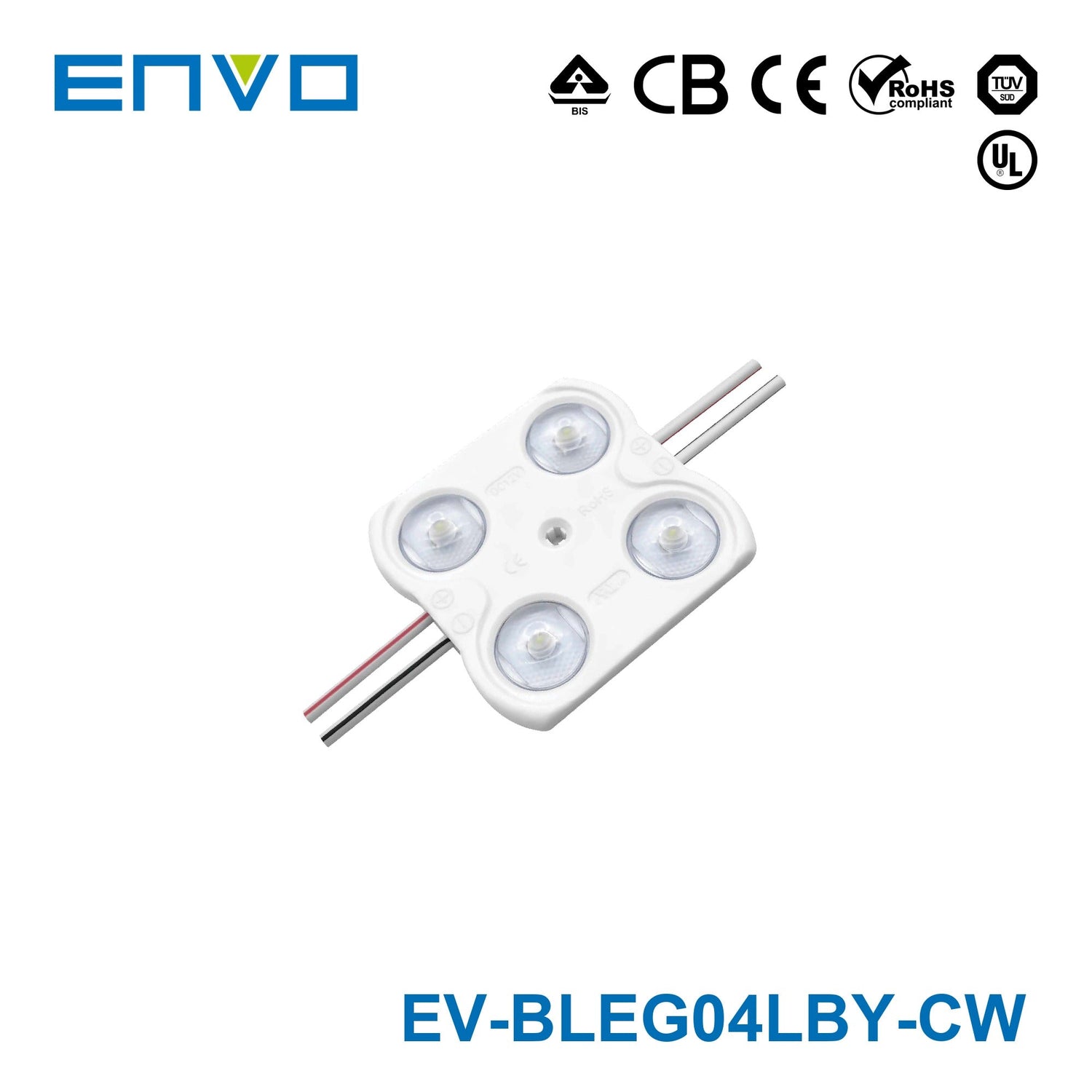

The product description lists CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications for this family. These certifications indicate that the product is positioned to meet recognized quality, safety, and environmental standards.
