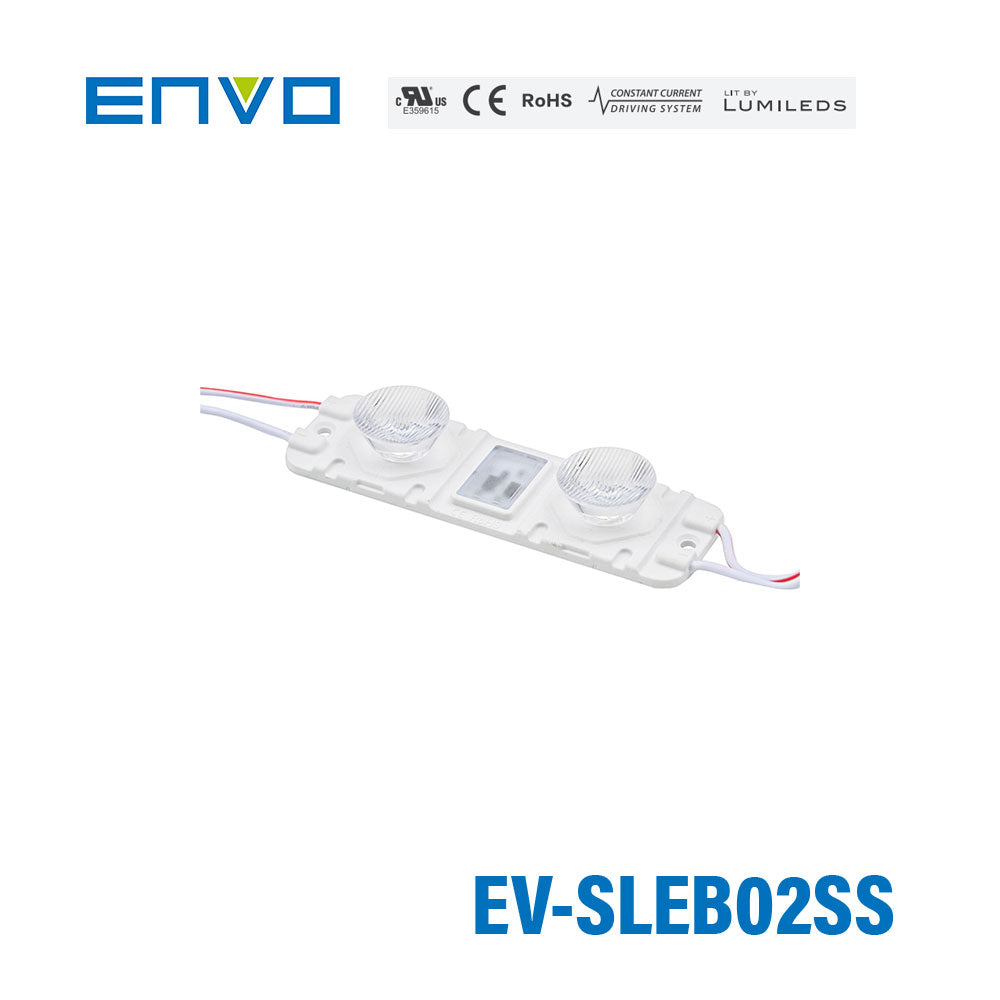

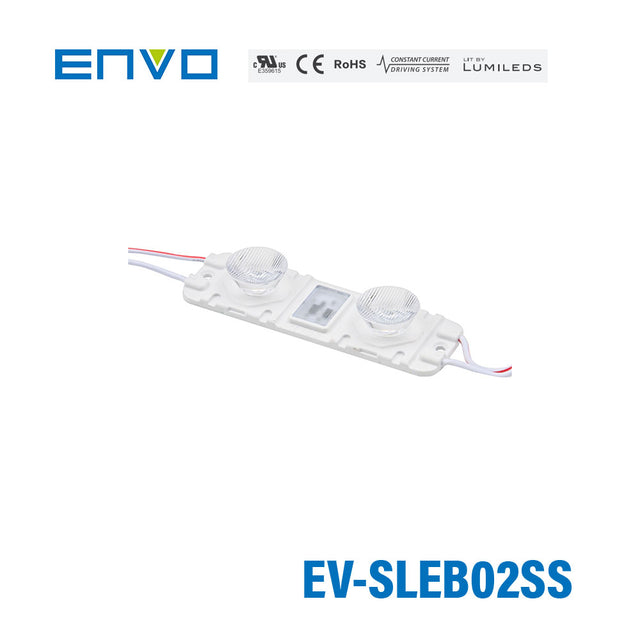

ENVO EdgeBlade2 LED Module Sidelit - Double LED
Description
Description
Exceptional Materials: Crafted with premium-grade LEDs and robust components for long-lasting performance in demanding signage applications.
Uncompromising Quality: Each EdgeBlade2 module is fully tested during production to ensure consistent output, durability, and reliability.
EdgeBlade2 – Precision Edgelit Illumination for Professional Signage
The EdgeBlade2 from ENVO’s 24V Edgelit Series delivers powerful, focused illumination for both indoor and outdoor channel letters, sign cabinets, lightboxes, and commercial lighting projects. Its slim 30 mm x 97.4 mm profile and advanced 10° x 40° beam optics make it ideal for achieving crisp, uniform edge lighting with minimal light spill. Built to withstand harsh environments, EdgeBlade2 ensures your signage stands out with clarity and impact.
Key Features:
-
High-Output Performance: 4.0 W per module delivering an impressive 400 lm for bright, sharp illumination.
-
Focused Beam Optics: 10° x 40° beam angle provides precise light distribution, perfect for edge lighting applications.
-
Optimized for Lightspace: Suitable for depths of 60–150 mm, ensuring versatile project compatibility.
-
Robust Design: IP67-rated for complete protection against dust and water ingress, with reliable operation from -40 °C to +70 °C.
-
Easy Installation: Fitted with 3M self-adhesive tape for secure and quick mounting.
-
Flexible Configuration: Supports up to 40 modules per series, packaged in convenient sets of 40.
-
Long-Term Assurance: Backed by a 7-year warranty for peace of mind.
Application:
Ideal for indoor and outdoor illuminated signage requiring precision edge lighting — from retail storefronts and architectural lettering to large-format lightboxes.
Illuminate with confidence using the EdgeBlade2 — engineered for sharp, consistent, and long-lasting performance.
Specifications
Specifications
-
BrandEnvo
-
SeriesEdgeBlade2
-
Power Rating4 Watt
-
Rated Current0.16 Ampere
-
Dimming ControlDimmable
-
Operating Temperature-40°C~70°C
-
Warranty7 Year
-
Length3.83 in
-
Width1.18 in
-
Height0.55 in
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What types of signage is the ENVO EdgeBlade2 LED Module Sidelit designed for?
The EdgeBlade2 is built for professional edge-lit signage applications, including channel letters, sign cabinets, lightboxes, and commercial lighting projects. It is suitable for both indoor and outdoor illuminated signage where crisp, focused side lighting is important.
What light output and beam pattern does the EdgeBlade2 family provide?
Each module in the EdgeBlade2 family delivers 400 lumens while using 4.0 W of power. The 10° x 40° beam angle is designed for focused edge lighting, helping direct light where it is needed with minimal spill.
What depth range is this LED module suitable for?
The EdgeBlade2 is optimized for lightspaces from 60 mm to 150 mm deep. That makes it a practical option for a range of edge-lit sign and lightbox designs that need controlled illumination in relatively slim spaces.
What is the difference between the available EdgeBlade2 variants?
The main difference shown across the family is color temperature. One variant is 3000K for a warmer appearance, and another is 6500K for a cooler, crisper look; both share the same 4.0 W power draw, 400 lm output, CRI 80, dimmable performance, 50,000-hour lifetime, and 7-year warranty.
Is the ENVO EdgeBlade2 suitable for outdoor or harsh environments?
Yes. The module is rated IP67 for protection against dust and water ingress and is specified to operate from -40 °C to +70 °C, making it suitable for demanding indoor and outdoor signage environments.
What are the physical dimensions of the EdgeBlade2 module?
The module measures 97.4 mm in length, 30.0 mm in width, and 14.0 mm in height. Its compact profile supports applications that need a slim edge-lighting solution without giving up output.
